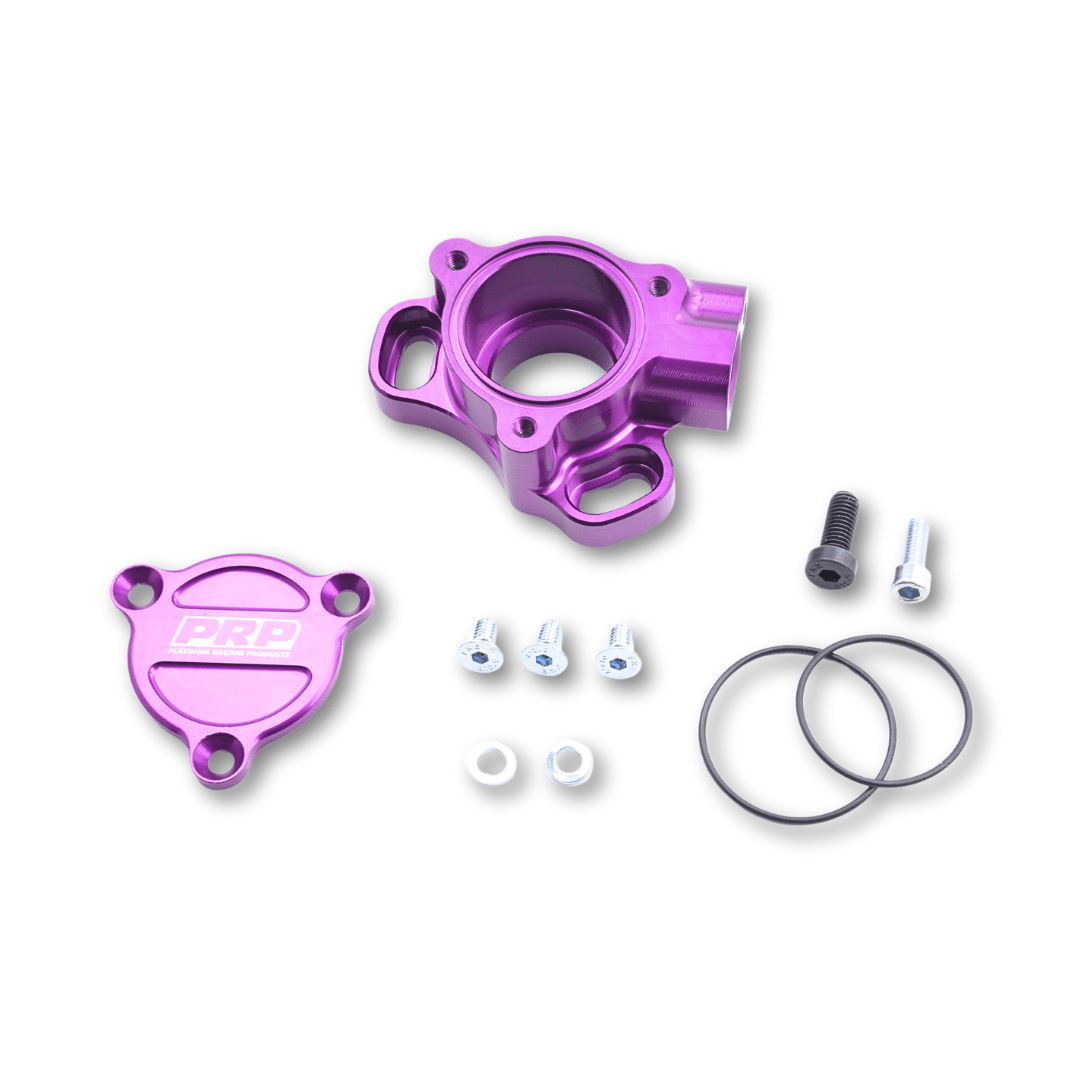

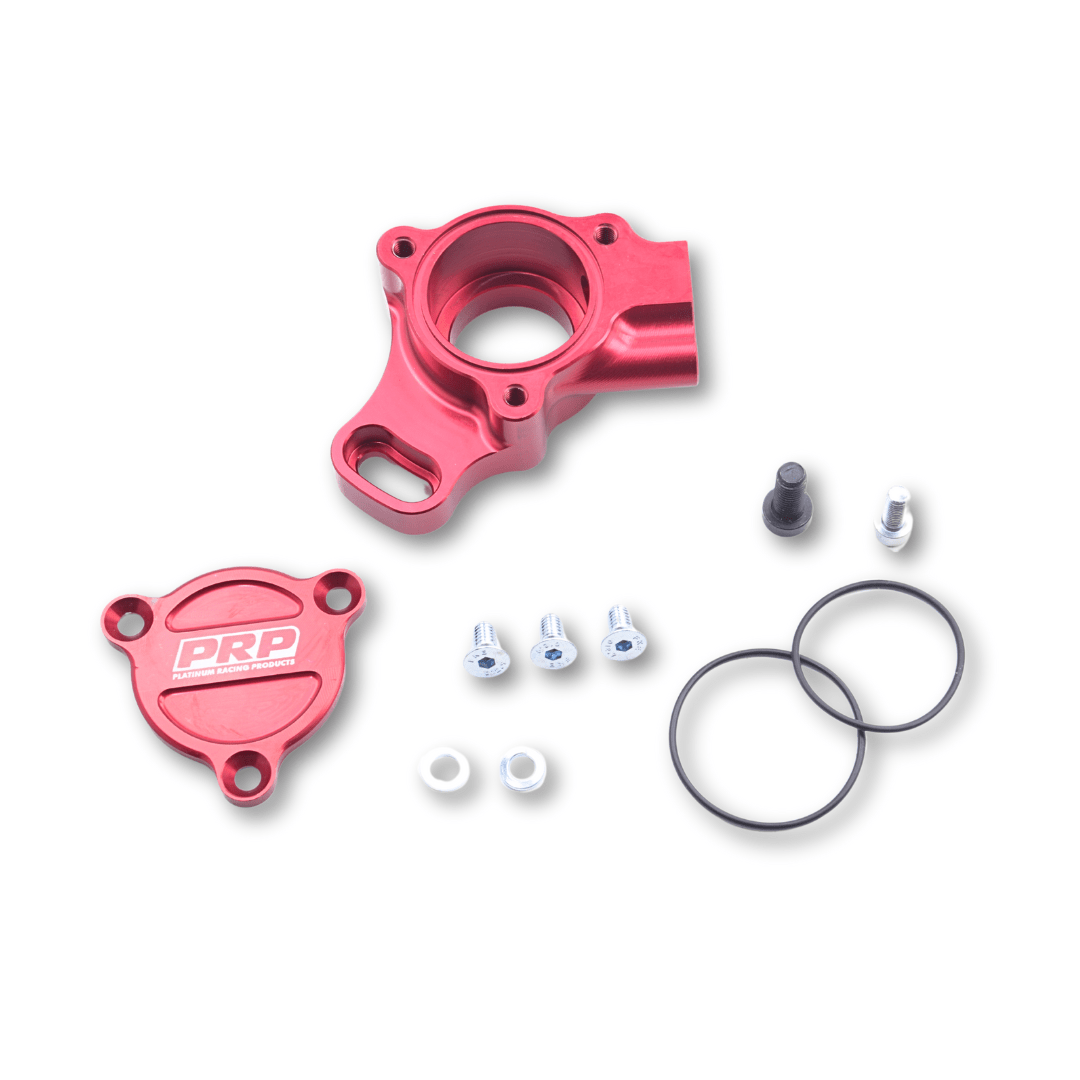

Mitsubishi 4G63 Evo 4 - 9 Cam Sensor Relocation Kit

SKU: EVOFABCAM01-PURMIV
Price
$462
Tax included and shipping calculated at checkout
What colour would you like the bracket to be:
Purple
Camshaft Option:
Mivec Intake Camshaft

Product variant with selected options does not exist!

Frequently Bought Together

Product Information

The Mitsubishi 4G63 Evo 4–9 Cam Sensor Relocation Kit is designed to reposition the factory cam sensor 180 degrees away from the exhaust manifold, reducing exposure to heat while providing a cleaner and safer wiring route.

By moving the sensor away from exhaust heat, this kit helps protect wiring and shielding from thermal damage, improving long-term reliability in high-performance and motorsport applications. Installation is direct bolt-on, requiring no modifications — simply rotate the factory sensor assembly 180 degrees and refit using the supplied components.

Multiple configurations are available to suit MIVEC and non-MIVEC engines, as well as different camshaft layouts. If you’re unsure which option is correct for your setup, please contact us before purchasing.

Available Configurations

1. MIVEC – Intake Side

2. Non-MIVEC / MIVEC – Exhaust Side

  • Not compatible with our Mechanical Fuel Pump Kit (fuel pump mounts on the exhaust cam side)

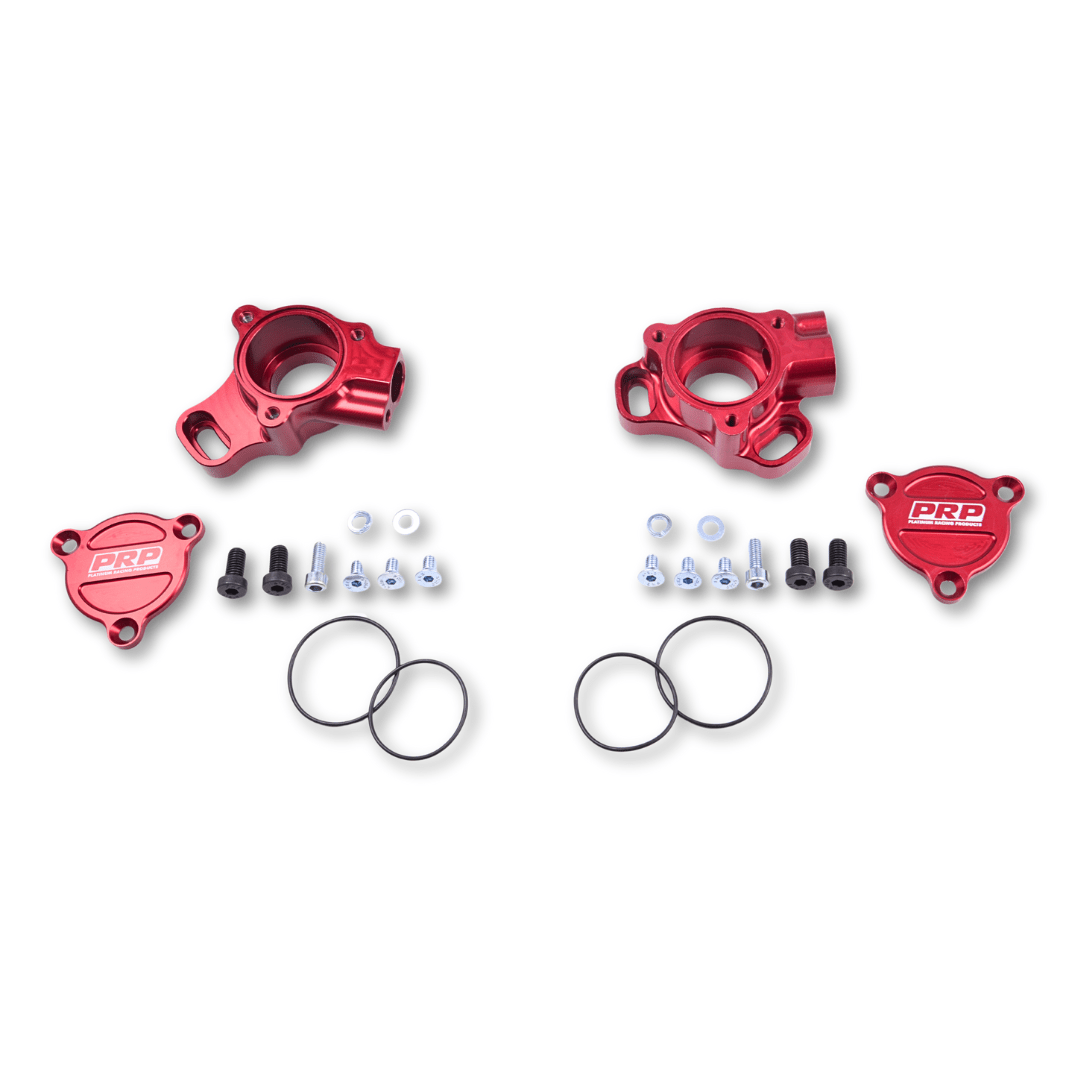

3. MIVEC Intake & Exhaust Sensor Relocation

  • Relocates both intake and exhaust cam sensors

Key Features

  • Suits Mitsubishi 4G63 Evo 4–9 engines

  • Moves cam sensor away from exhaust heat

  • Improves wiring routing and protection

  • Direct bolt-on installation

  • No engine modifications required

  • Includes all required mounting hardware

  • Dual O-ring sealing design for oil and water protection

  • No sealants or gaskets required

What’s Included

  • Cam sensor relocation housing (per selected option)

  • Mounting hardware

  • 2 × O-ring seals

    • Housing to cylinder head

    • Cap to housing mating surface

The proven dual O-ring design prevents oil leaks and water ingress while maintaining a clean, professional finish.
