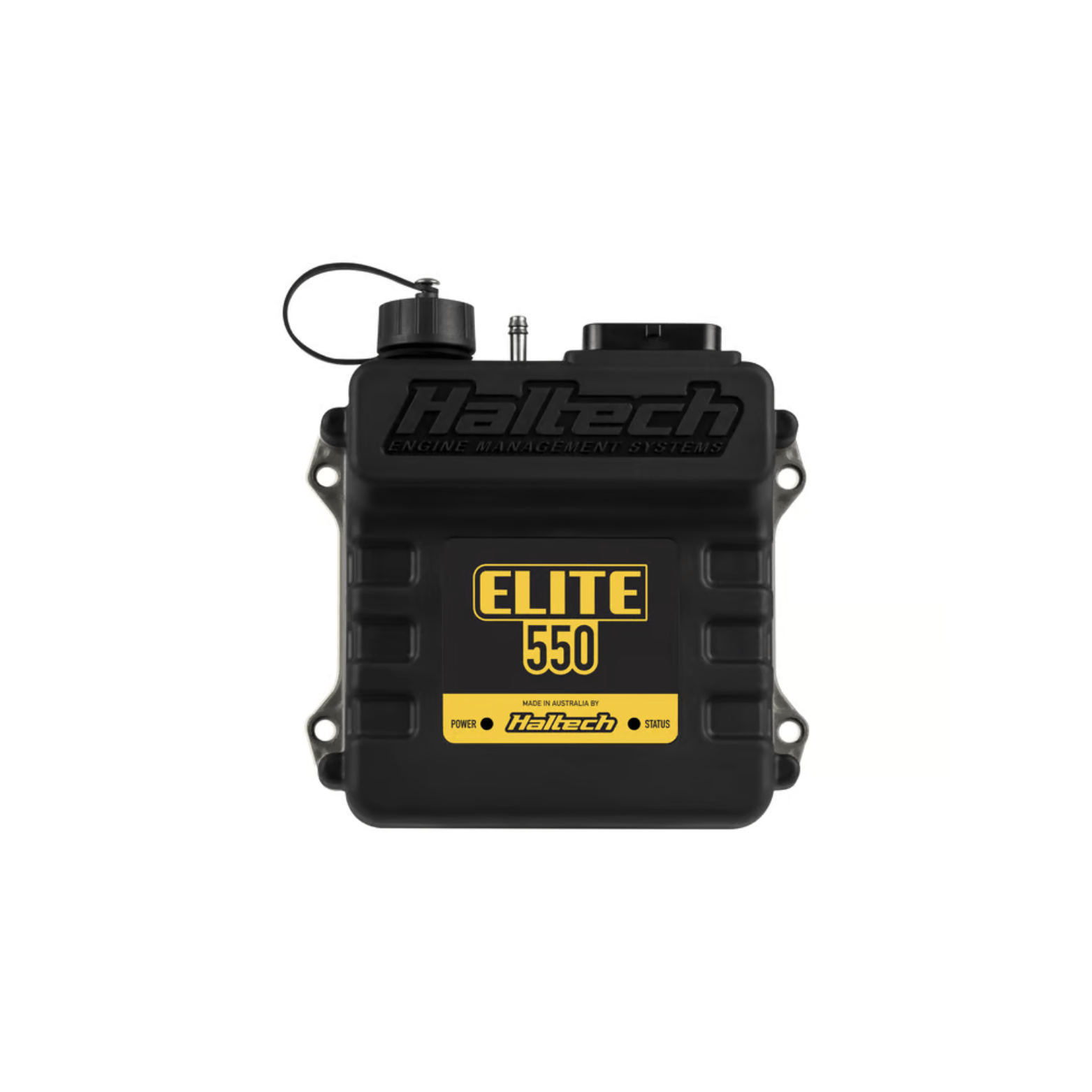

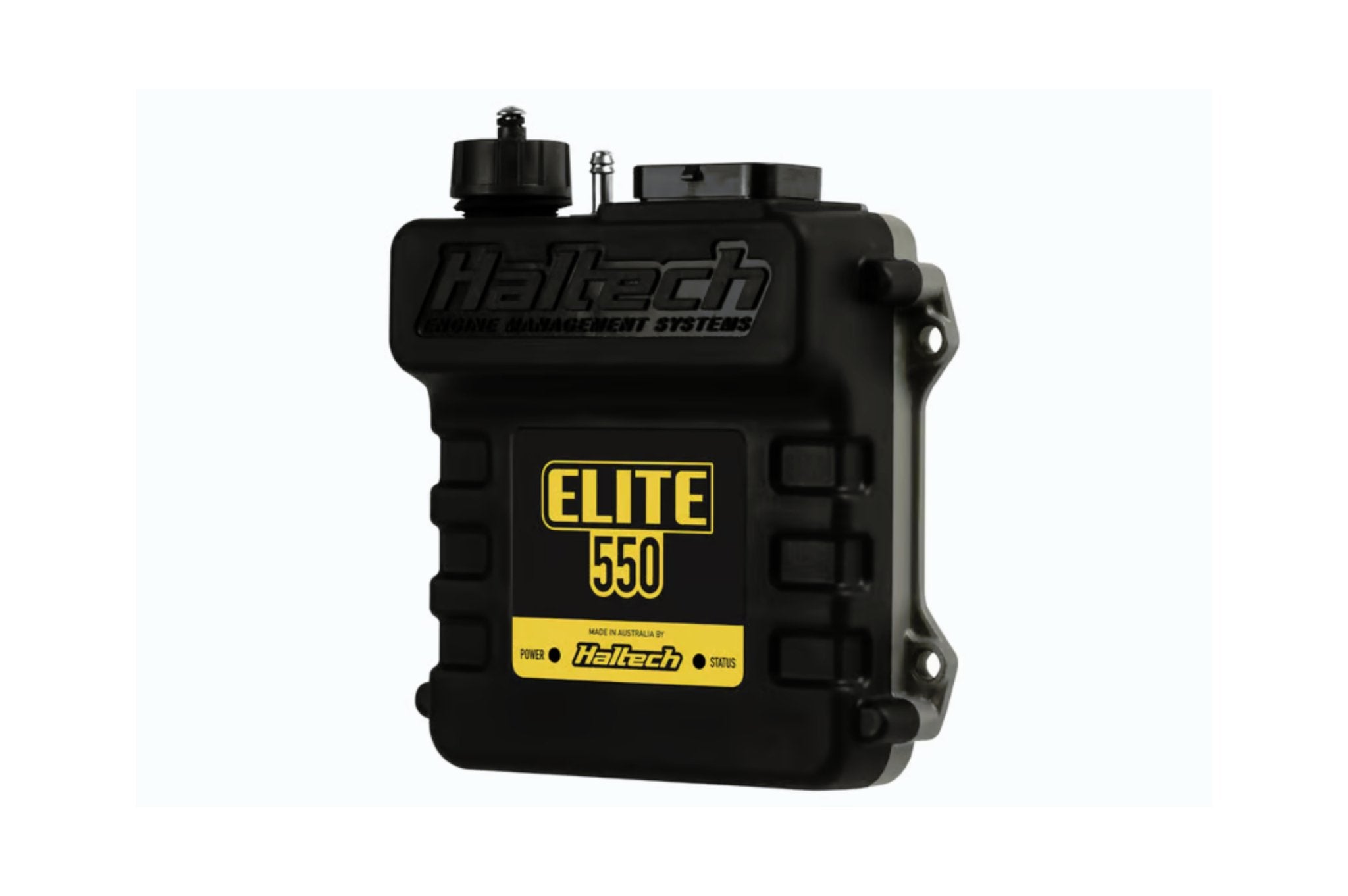

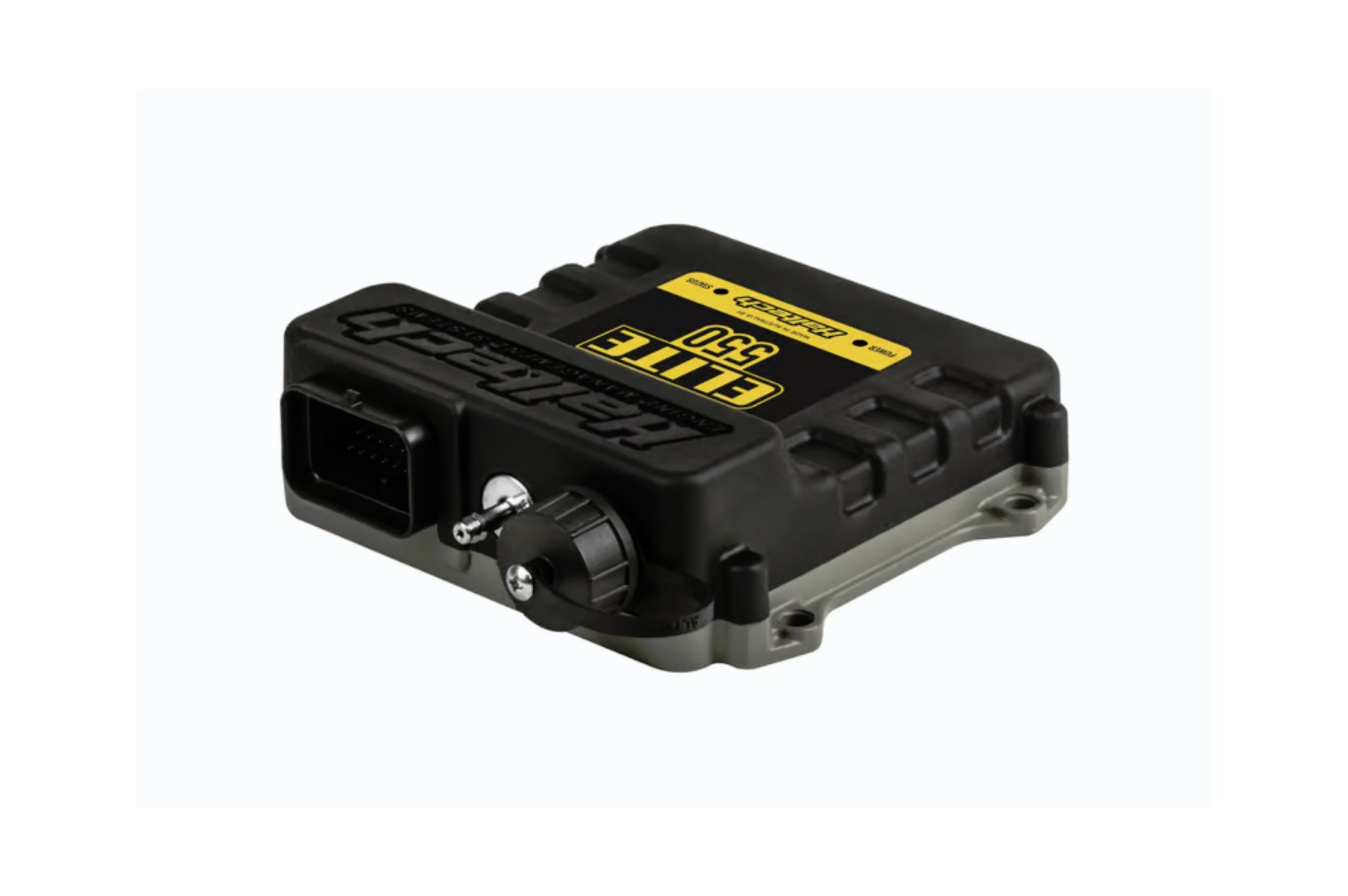

Haltech Elite 550 ECU HT-150400

SKU: HT-150400
Regular price $1,295.00

Download Haltechs Quickstart Guide Here

Download Haltechs Wiring Diagram Here

Download Haltechs Spec Sheet Here

Outputs: Up to 4 injector and 4 ignition.

Suits: Universal 1-8 cylinder or 2 rotor applications.

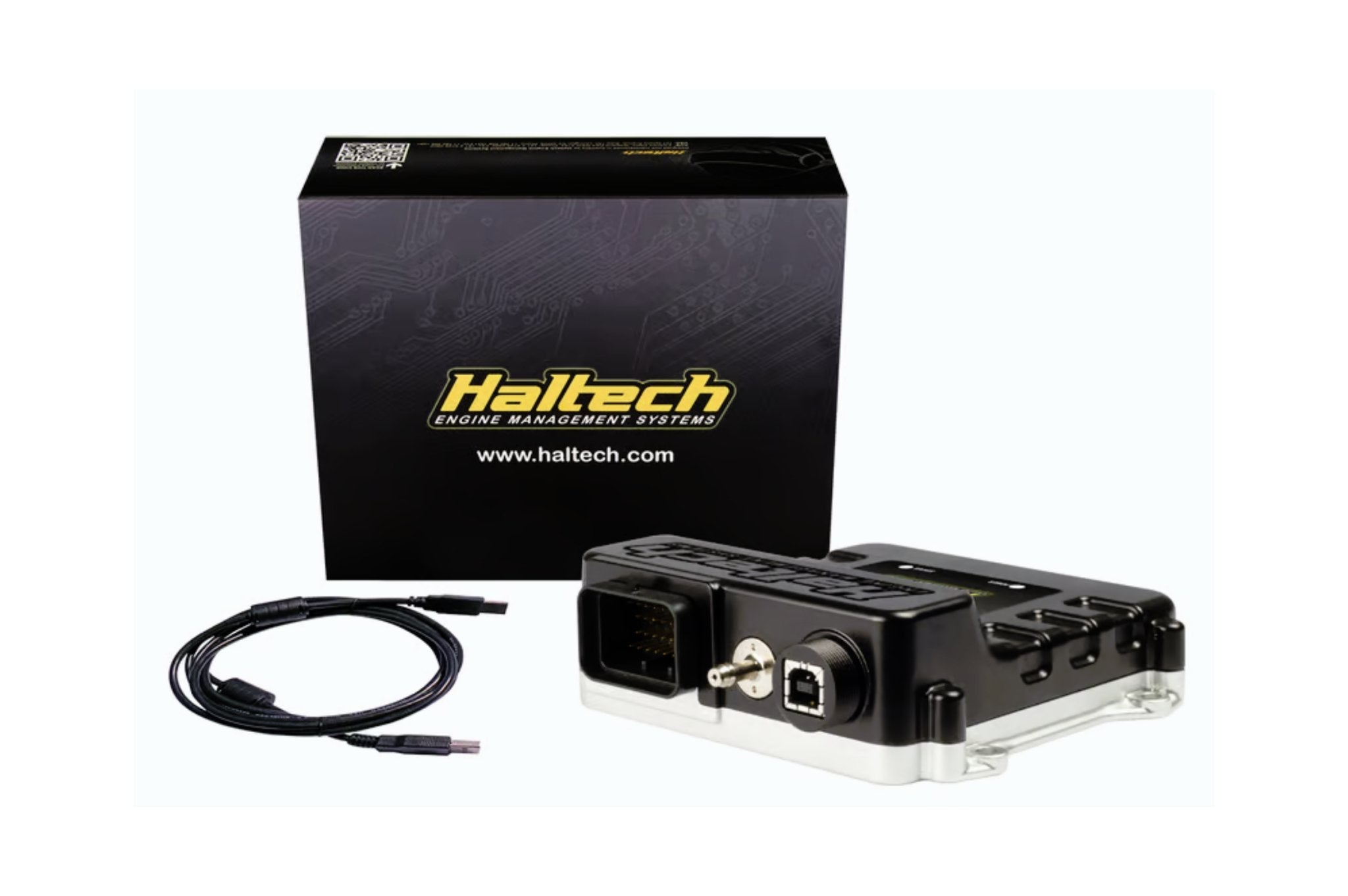

Includes: Elite 550 ECU, Waterproof USB cap, USB programming cable.

Notes: Haltech's entry-level, single-connector ECU. Ideal for basic 4-cylinder or 2-rotor engine applications and basic EFI conversions.

ECU Overview

The Elite 550 is a simple yet powerful ECU ideal for basic 4 to 8-cylinder or 1-2-rotor engine applications. Suitable for both naturally aspirated and forced induction engines, the Elite 550 provides full control over fuel delivery, ignition timing, and boost levels. This robust, competitively priced ECU features an environmentally sealed, waterproof case, 4 fuel and 4 ignition channels, and a 4 BAR internal MAP sensor. The Elite 550 ECU is now paired with the new Nexus Software Programmer (NSP), bringing unprecedented functionality and user-friendliness to engine control.

Key Features:

  • Supports: 1 to 8 Cylinder engines, 1 to 2 Rotor engines.
  • Load Sensing: Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
  • Injection Patterns: Sequential, semi-sequential, batch, or multipoint.
  • Ignition Modes: Direct fire multi-coil, distributor ignition, or Haltech CDI systems.
  • Connections: Compatible with a wide range of dashes, displays, and expansion devices via CAN.
  • Construction: Waterproof case (IP67) with a USB cover fitted.
  • Inputs/Outputs:
    • 4 x Fuel Injection Outputs (peak and hold: 0-8A peak / 0-2A hold).
    • 4 x Ignition Outputs.
    • 2 x Dedicated Engine Position inputs with extensive trigger type support.
    • 1 x Digital Pulsed Input.
    • 5 x Digital Pulsed Outputs.
    • 1 x Analog Voltage Input.
    • 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature).
    • Internal 4 Bar MAP sensor measuring up to 300kPa/3Bar/45psi of boost pressure.
    • Up to 33 channels of Input & Output (I/O) expansion via CAN.
    • USB Laptop Communication (Windows).

ECU Functions:

  • O2 Control: Closed loop with long-term learning for precise tuning (with optional external CAN O2 Wideband Controller Kit).
  • Boost Control: Closed loop with learning, flexible user-definable axis, and 6 fully user-definable correction modes (e.g., boost by gear, road speed).
  • Flex Fuel Function: Direct sensor input for tuning boost, fuel, and ignition by ethanol content.
  • Injector Control: Low impedance injector control with programmable peak and hold currents.
  • Idle Speed Control: Closed loop, requiring 1 or 2 user-defined outputs (BAC type).
  • Data Logging: On-board and laptop data logging for all available channels, useful for tuning and diagnostics.
  • CAN Bus Communication: For Haltech dashes and expansion devices or OBDII.
  • Injection Stages: 1 to 2 stages, suitable for rotary engines.
  • Advanced Features: No additional charges for advanced features.

Advanced Tuning:

  • Tuning Table Resolution: Up to 32 x 16.
  • Flexibility: Tune using 3D tables combined with 3D per cylinder compensations and multiple user-definable corrections.
  • Multiple Parameters: Tune by manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height, or any channel.
  • Per Cylinder Tuning: 3D per cylinder correction.
  • Wideband O2: Connect up to 3 channels via CAN expansion devices.
  • Thermocouples/EGT: Connect up to 12 channels via external CAN expansion devices.
  • Variable Cam Control: Independently control up to 2 camshafts (requires a minimum of 1 user-defined input and output per variable cam).

The Elite 550 ECU provides all the essential features for basic and advanced engine management, making it an excellent choice for tuners and performance enthusiasts seeking a reliable and flexible solution.
