Download Haltechs Product Quick Start Guide Here

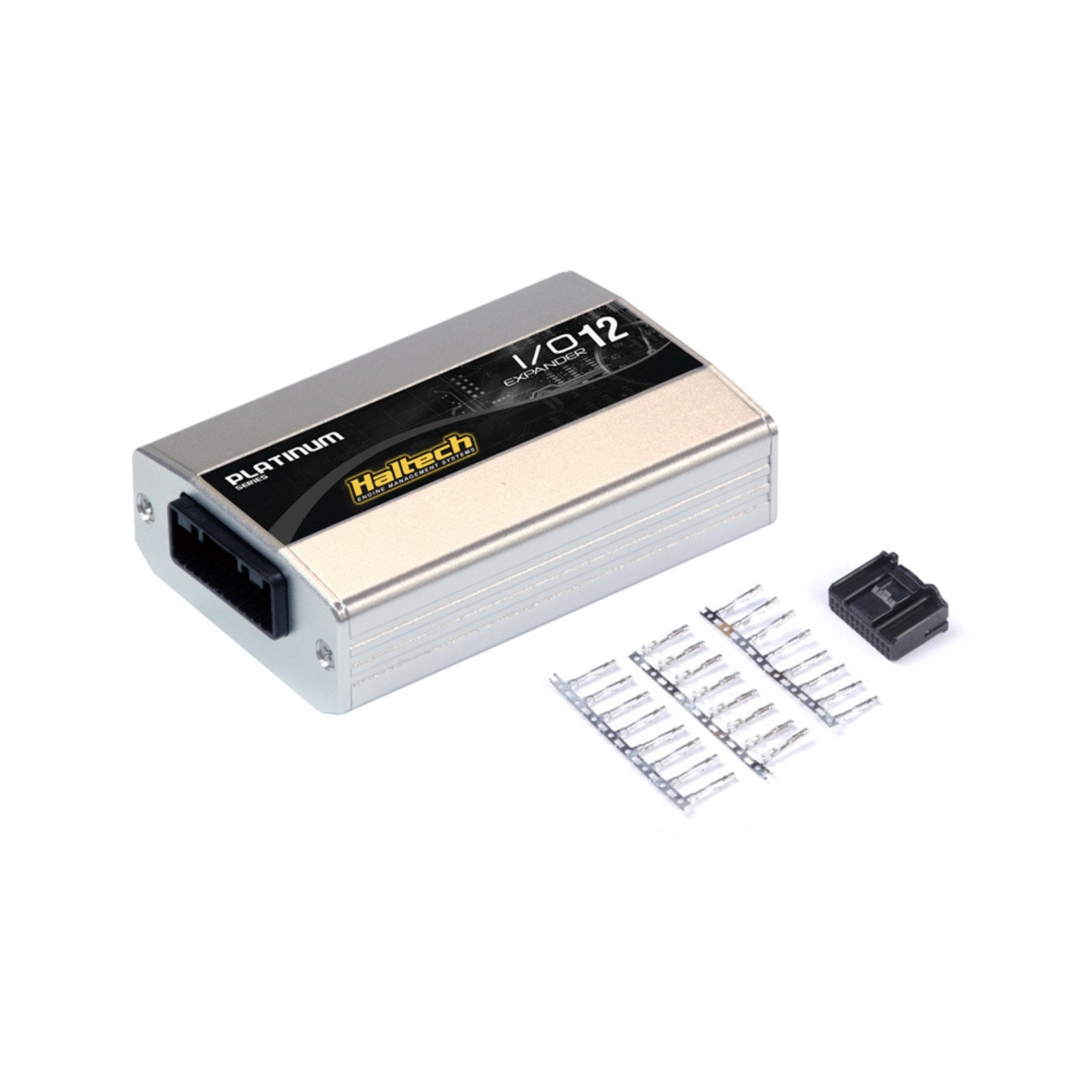

Enhance your vehicle's engine management system with the Haltech IO 12 Expander 12 Channel with Plug & Pins Kit CAN ID Box B HT-059903. This versatile expander is designed to provide additional input and output channels, offering greater flexibility and control over your vehicle's performance.
The IO 12 Expander features 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI), and 4 Analogue Voltage Inputs (AVI). It connects directly to an Elite ECU CAN port, Elite ECU Harness CAN connector, or multiple CAN device installations using an Elite 4 Port CAN HUB. For connections with Platinum Pro Plug-in, Sport, or Sprint ECUs, a Haltech CAN Cable (8 pin Black Tyco to 8 pin Black Tyco) in the appropriate length is required.
Key Features:
-
Expanded Capabilities: Adds 12 additional channels to your engine management system for greater flexibility.
-
Versatile Inputs and Outputs: Includes 4 Digital Pulsed Outputs (DPO), 4 Digital Pulsed Inputs (DPI), and 4 Analogue Voltage Inputs (AVI).
-
Plug 'n' Play Compatibility: Directly connects to Elite ECU CAN ports and Elite 4 Port CAN HUBs.
-
Easy Integration: Compatible with Platinum Pro Plug-in, Sport, and Sprint ECUs with the appropriate Haltech CAN Cable.
-
Multiple CAN Device Support: Combine two IO 12 Expanders with different CAN IDs (Box A or B) for up to 24 additional channels, depending on ECU compatibility.
Includes:
- IO 12 Expander with matching 24 Pin TYCO plug and pins
- Elite CAN cable DTM-4 to 8 pin Black Tyco - 300mm (12")
Notes:
- Combine two IO 12 Expanders with different CAN IDs (Box A or B) for up to 24 additional channels, subject to ECU compatibility.
