Download Haltechs Quickstart Guide Here
HARNESS OVERVIEW
If you are using a factory harness and are looking for an easy ECU upgrade, the Haltech Plug'n'Play Adaptor Kits are ideal. These adaptors plug directly into your Haltech ECU and have factory connectors on the other side, allowing them to connect straight into the factory harness. This simple Haltech Plug'n'Play product ensures you can be up and running in just a few hours.
The quick start guide will walk you through the installation of the Haltech Plug'n'Play adaptor into your vehicle. This guide is accompanied by the full ECU manual and software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
SUITS
- Plug'n'Play replacement of the factory ECU for MY95-97 Toyota LandCruiser 80 Series with 1FZ-FE and manual transmission only.
- Supports sub tank transfer system.
- Note: European delivered models, please confirm your ECU pinout with Haltech before ordering.

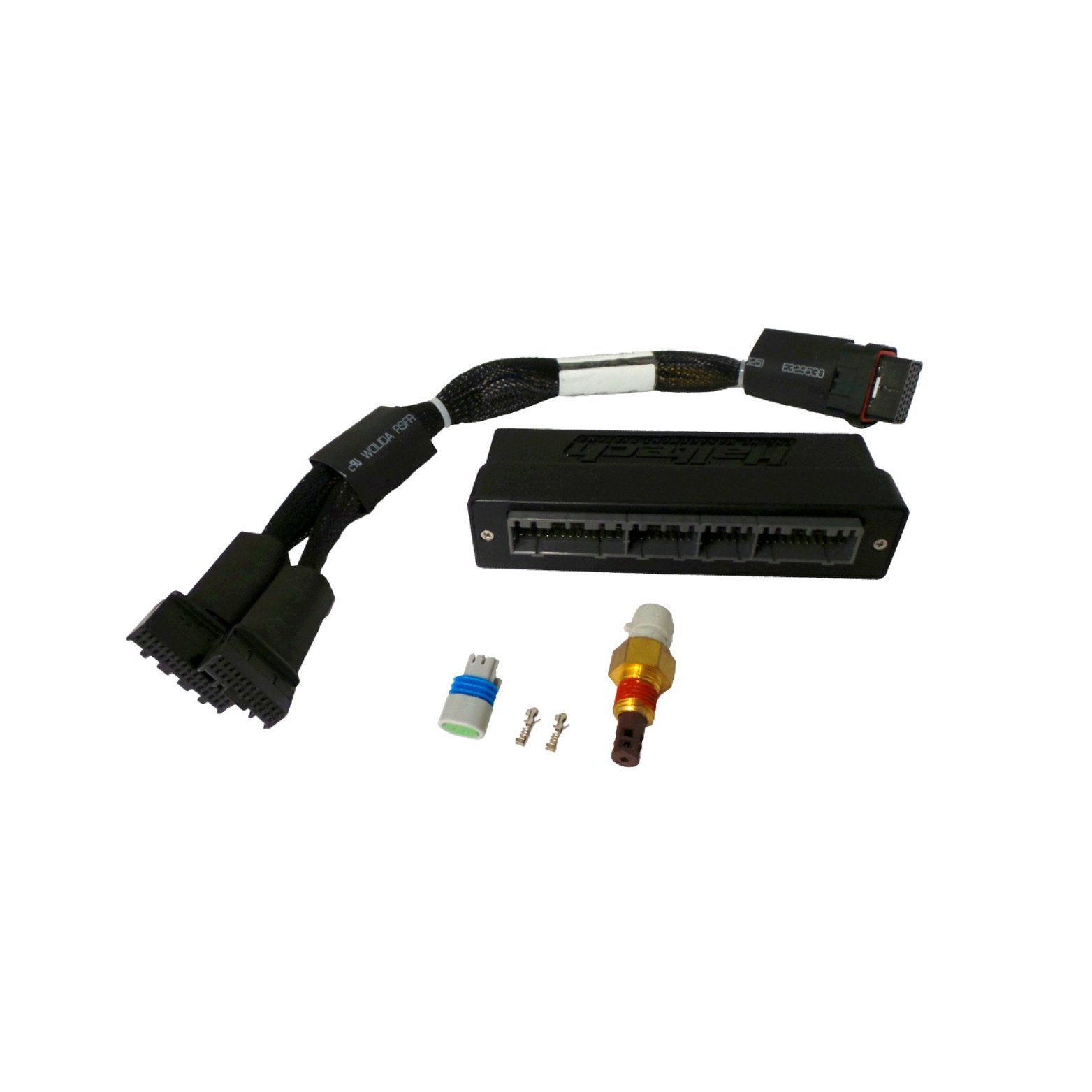

INCLUDES
- Plug'n'Play adaptor harness
- M14 x 1.5 air temp sensor with matching plug and pins
- Auxiliary I/O 16 Pin Tyco plug and pins
NOTES
- Spare ignition outputs can be used (via custom wiring) to convert from distributor to direct fire ignition system (6 individual coils).
- E750 ECU does NOT support the factory idle speed stepper motor control. Please use an E2000/2500 ECU if this function is required.
