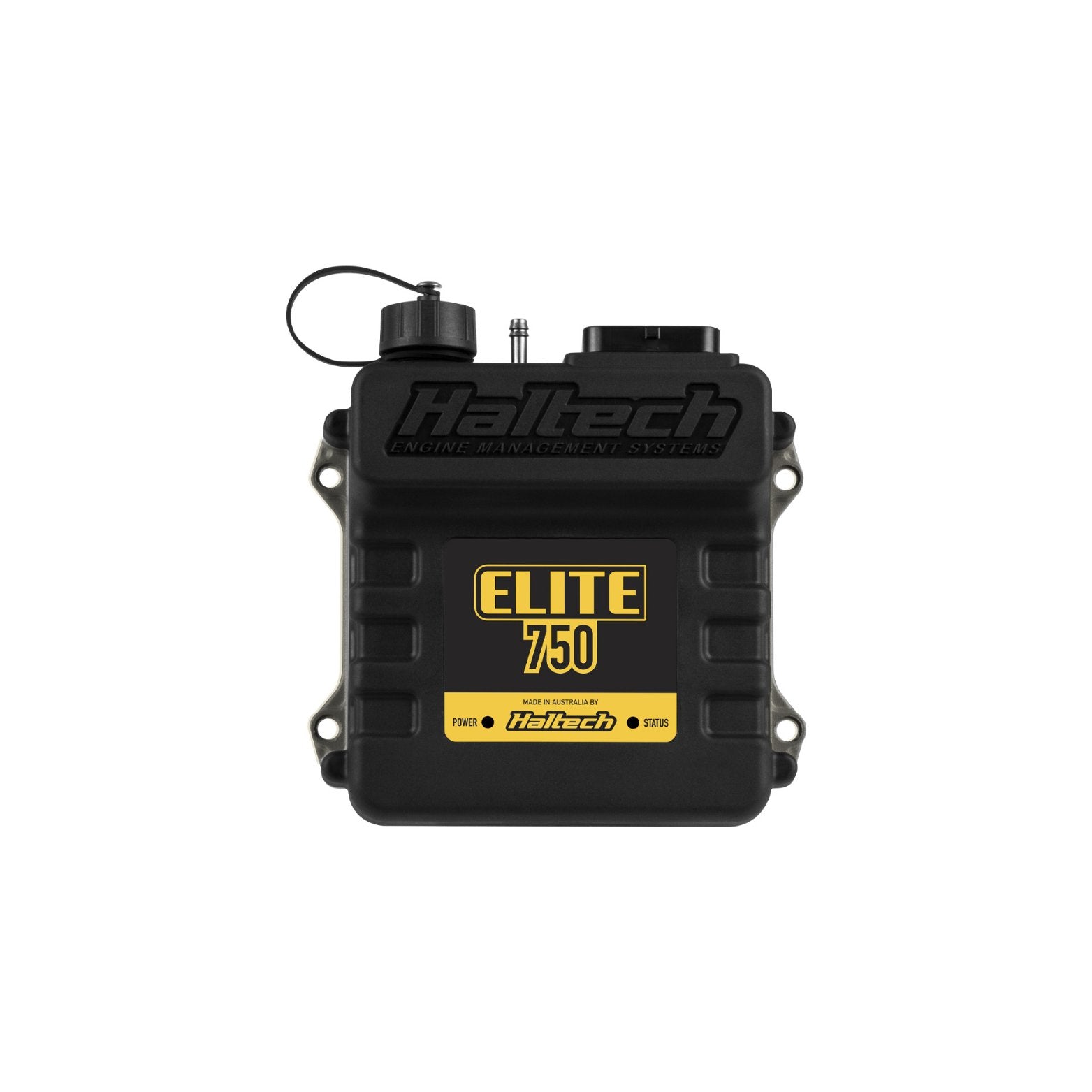

Haltech Elite 750 ECU HT-150600

Name: Haltech Elite 750 ECU HT-150600
Brand: Haltech
SKU: HT-150600
Price: 1599.0 AUD
Availability: InStock

SKU: HT-150600 Barcode: 9356450007368

No reviews

$1,599.00

Product variants

Download Haltechs Quickstart Guide Here

Download Haltechs Wiring Diagram Here

Download Haltechs Spec Sheet Here

Outputs

Up to 6 injector and 6 ignition.

Suits

Universal 1-12 cylinder or 2-3 rotor applications.

Includes

Elite 750 ECU
Waterproof USB cap
USB programming cable
USB software key

Notes

Single connector ECU ideal for basic 6 cylinder or 2 rotor engine, basic EFI conversions, single VVTi engines.

ECU OVERVIEW

The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging, and flex fuel tuning, the Elite 750 is a powerful, compact ECU. Alongside the Elite 750 ECU is the Elite Software Programmer (ESP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.

Supports: 1 to 8 Cylinder engines, 1 to 3 Rotor engines, normally aspirated or forced induction
Load sensing by: Throttle Position (TPS), Manifold Pressure (MAP) or Mass Air Flow (MAF)
Injection patterns: Staged, Sequential, semi sequential, batch or multipoint
Ignition systems: Distributor ignition systems, multi-coil systems, expand CDI range or Haltech Multiplex CDI systems
Connectivity: Connect to a wide range of display dashes and expansion devices via CAN.
Case: Waterproof (IP67) with USB cover fitted
Connector: 34 position AMP connector
Outputs: 6 x Fuel Injection Outputs (peak and hold 0-8A peak / 0-2A hold), 6 x Ignition Outputs
Inputs: 2 x Dedicated Engine Position inputs with extensive trigger type support, 2 x Digital Pulsed Inputs, 5 x Digital Pulsed Outputs, 2 x Analogue Voltage Inputs, 3 x Dedicated Inputs (Throttle Position, Coolant Temperature & Air Temperature)
MAP sensor: Internal 3Bar MAP sensor rated up to 200kPa of boost (2Bar/29psi)
Expansion: Up to 45 channels of Input & Output (I/O) expansion via CAN
Communication: USB Laptop Communication (Windows)
Data logging: On-board data logging
Software: NSP Calibration Software - Intuitive and easy to use

ECU FUNCTIONS

Injector control: Low Impedance Injector control with Programmable Injector Peak and Hold
Flex Fuel Function: Direct sensor input - Tune your engines boost, fuel, and ignition by ethanol content
Fuel types: Flexible tuning setup for Petrol (Gasoline), Methanol, and Ethanol; E85 flex-fuel ready - direct connection to sensor
Closed Loop O2 Control: For precise tuning (With optional external CAN O2 Wideband Controller Kit). Long-Term Learning
Idle Speed Control: Closed Loop with learning for consistent idle stability. Requires 1 or 2 user-defined outputs (BAC type)
Learning: Long-term learning (Autotune) on fuel, cam & idle control maps (up to 3D)
Data logging: Laptop data logging - Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics
CAN Bus: Communication for Haltech Dashes and expansion devices or OBDII (view live engine data & set and clear diagnostic trouble codes)
Injection Stages: 2 Injection Stages for use with Rotary Engines
Variable cam control: Independently control a single camshaft - Requires a minimum of 1 user-defined input & output. Supported for engines with a single cam sensor only, located on the variable cam. VVT Engines Supported - Toyota 1JZ/2JZ VVT, Toyota 1ZZ and 2ZZ, Mazda MX5 NB with VVT, Mazda / Ford Duratec, Suzuki M Series

ADVANCED TUNING

Tuning Table Resolution: Up to 16 x 32
Tuning flexibility: Tune your engine by a combination of 3D tuning tables combined with 3D per cylinder compensations and multiple user-definable corrections
Dual mapping: Tune by a combination of manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height or any channel for ultimate flexibility - Dual mapping is a thing of the past.
Per Cylinder Tuning Correction: 3D
Wideband O2: Connect up to 2 Channels via CAN expansion devices
Thermocouples/EGT: Connect up to 12 Channels via external CAN expansion devices
Nitrous control: Advanced programming of wet or dry nitrous kits with on/off delays.
Corrections: 3D fuel and ignition corrections available.
Boost Control: Intelligent 3D Open loop, with flexible user-definable axis and 6 fully user-definable corrections modes - example boost by gear, road speed etc.
