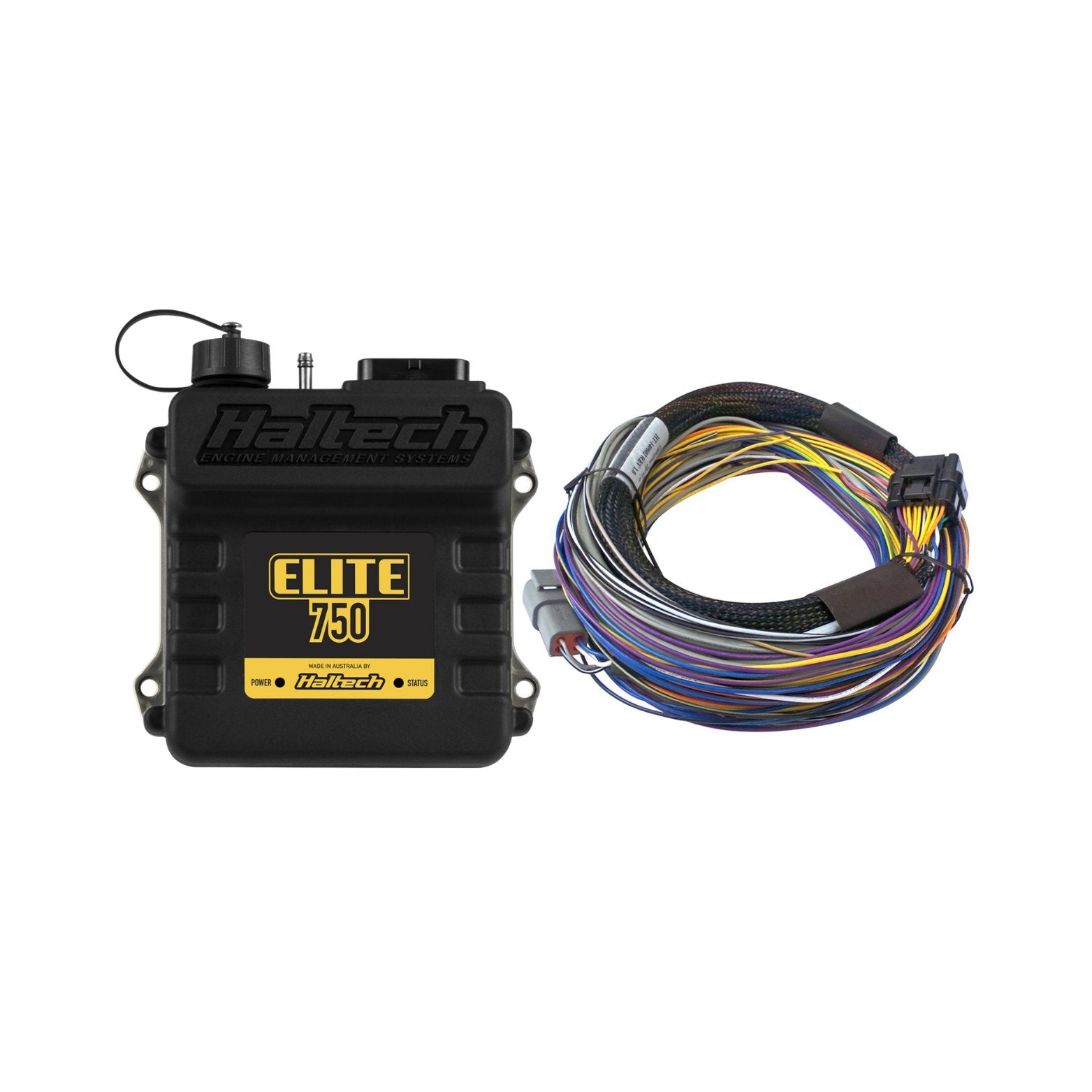

Haltech Elite 750 + Basic Universal Wire-in Harness Kit HT-150602

Name: Haltech Elite 750 + Basic Universal Wire-in Harness Kit HT-150602
Brand: Haltech
SKU: HT-150602
Price: 2009.0 AUD
Availability: InStock

SKU: HT-150602 Barcode: 9356450011839

No reviews

$2,009.00

Product variants

Download Haltechs Quickstart Guide Here

Download Haltechs Wiring Diagram Here

Download Haltechs Spec Sheet Here

Outputs: Up to 6 injector and 6 ignition.

Suits: Universal 1-12 cylinder or 2-3 rotor applications.

Includes: Elite 750 ECU, Basic Universal Wire-In Harness, Waterproof USB cap, USB programming cable, and software CD.

Notes: Single connector ECU kit ideal for basic 6-cylinder or 2-rotor engines, basic EFI conversions, and single VVTi engines. Does not include fuse and relay box.

HARNESS OVERVIEW

Ideal for dedicated race cars, engine swaps, and custom wiring jobs, the Universal Wire-in Harness features ECU connectors at one end and unterminated wires at the other. These wires are color-coded and clearly labeled, making the installation process straightforward. Simply connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map, and you're ready to go!

Color-Coded Wires: Ensures a confusion-free construction process.
Comprehensive Guide: Accompanied by a full ECU manual and software on the CD or USB key provided with the ECU.

ECU OVERVIEW

The Elite 750 is an entry-level ECU that provides many of the advanced features found in the Elite 1500/2500 at an affordable price. It includes a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging, and flex fuel tuning. The Elite 750 now uses the Nexus Software Programmer (NSP), bringing unparalleled functionality and user-friendliness to tuners and performance enthusiasts worldwide.

Supports: 1 to 8 Cylinder engines and 1 to 3 Rotor engines.
Induction: Suitable for both naturally aspirated and forced induction engines.
Load Sensing: Throttle Position (TPS), Manifold Pressure (MAP), or Mass Air Flow (MAF).
Ignition Modes: Includes direct fire multi-coil, distributor ignition, or Haltech CDI systems.
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Waterproof Case: IP67 rated with USB cover fitted.
Channels: Up to 45 channels of Input & Output (I/O) expansion via CAN.
USB Communication: Allows easy laptop connection for tuning.

HARNESS FEATURES

When installed with a Haltech Elite ECU, this harness facilitates virtually limitless performance modifications and tuning capabilities. Fully programmable systems enable you to extract maximum performance by delivering precise fuel and ignition timing under all conditions.

Quick Installation: Connect a handful of labeled wires for a fast setup.
Efficient: The Plug'n'Play harness makes the installation process smooth and quick.

ECU FUNCTIONS

Injector Control: Low Impedance with Programmable Injector Peak and Hold.
Flex Fuel Function: Tune boost, fuel, and ignition by ethanol content.
Fuel Flexibility: Suitable for Petrol (Gasoline), Methanol, and Ethanol.
Closed Loop O2 Control: Precise tuning with optional CAN O2 Wideband Controller Kit.
Idle Speed Control: Learning for consistent idle stability.
Data Logging: On-board and laptop data logging.
CAN Bus Communication: For Haltech dashes and expansion devices or OBDII.
Injection Stages: Two stages for Rotary Engines.
Variable Cam Control: Supports engines with a single cam sensor only.

ADVANCED TUNING

Resolution: Tuning table resolution up to 32 x 32.
Flexibility: Combine 3D tuning tables with per cylinder compensations and multiple corrections.
Per Cylinder Tuning: 3D correction.
Wideband O2: Connect up to 2 channels via CAN expansion devices.
EGT: Connect up to 12 channels via external CAN expansion devices.
Nitrous Control: Advanced programming of wet or dry nitrous kits with on/off delays.
Boost Control: Intelligent 3D Open loop with flexible user-definable axis and corrections modes.

The Haltech Elite 750 + Basic Universal Wire-in Harness Kit HT-150602 is a versatile and powerful solution for those looking to upgrade their engine management system, providing advanced features and easy installation for a wide range of applications.
