Haltech Elite 750 + Premium Universal Wire-in Harness Kit HT-150604

Name: Haltech Elite 750 + Premium Universal Wire-in Harness Kit HT-150604
Brand: Haltech
SKU: HT-150604
Price: 2139.0 AUD
Availability: InStock

SKU: HT-150604 Barcode: 9356450011846

No reviews

$2,139.00

Product variants

Download Haltechs Quickstart Guide Here

Download Haltechs Wiring Diagram Here

Download Haltechs Spec Sheet Here

Outputs: Up to 6 injector and 6 ignition.

Suits: Universal 1-12 cylinder or 2-3 rotor applications.

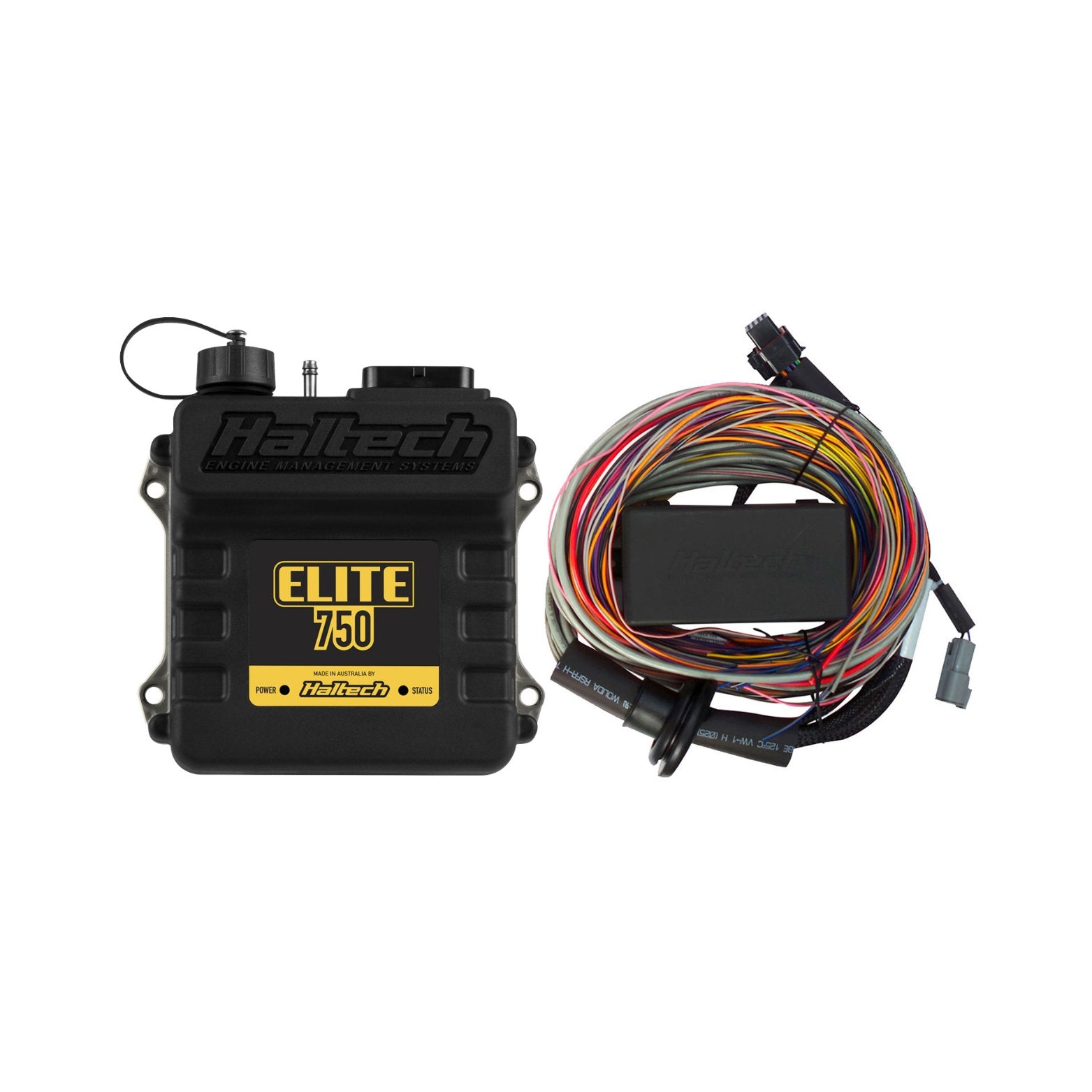

Includes: Elite 750 ECU, Premium Universal Wire-In Harness, firewall grommet, moulded 6 power circuit Haltech fuse box and lid, 2 relays, 6 fuses and pins for the 6 spare power circuits, waterproof USB cap, USB programming cable, and software USB key.

Notes: Single connector ECU kit ideal for basic 6 cylinder or 2 rotor engines, basic EFI conversions, single VVTi engines.

HARNESS OVERVIEW

Ideal for dedicated race cars, engine swaps, and custom wiring jobs. The Universal Wire-in Harness has a set of ECU connectors at one end and unterminated wires at the other. All the wires at the unterminated end are color-coded and clearly labeled. Connect your Haltech ECU to the terminated end and follow your wiring diagram for all the engine connections. Load your base map, and you're ready to go!

Color Coded and Labeled Wires: Match the detailed wiring diagram for a confusion-free construction process.
Detailed Wiring Diagram: Accompanied by the full ECU manual and software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.

HARNESS FEATURES

This harness, when installed in conjunction with a Haltech Elite ECU, opens the door to virtually limitless performance modification and tuning of your vehicle.

Fully Programmable Systems: Allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.

ECU OVERVIEW

The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging, and flex-fuel tuning, the Elite 750 is a powerful, compact ECU. Like all Elite Series ECUs, the Elite 750 ECU now uses the Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.

Supports: 1 to 8 cylinder engines, 1 to 3 rotor engines.
Induction: Suitable for both naturally aspirated and forced induction engines.
Load Sensing: By Throttle Position (TPS), Manifold Pressure (MAP), or Mass Air Flow (MAF).
Ignition Modes: Includes Direct fire multi-coil, Distributor ignition, or Haltech CDI systems.
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Waterproof Case: IP67 rated with USB cover fitted.
Channels: Up to 45 channels of Input & Output (I/O) expansion via CAN.
USB Communication: Allows easy laptop connection for tuning.
On-board Data Logging: Ensures comprehensive tuning and diagnostic capabilities.
NSP Calibration Software: Intuitive and easy to use.

ECU FUNCTIONS

Injector Control: Low Impedance with Programmable Injector Peak and Hold.
Flex Fuel Function: Tune boost, fuel, and ignition by ethanol content.
Fuel Flexibility: Suitable for Petrol (Gasoline), Methanol, and Ethanol.
Closed Loop O2 Control: Precise tuning with optional CAN O2 Wideband Controller Kit.
Idle Speed Control: Learning for consistent idle stability.
Data Logging: On-board and laptop data logging.
CAN Bus Communication: For Haltech dashes and expansion devices or OBDII.
Injection Stages: Two stages for Rotary Engines.
Variable Cam Control: Supports engines with a single cam sensor only.

ADVANCED TUNING

Resolution: Tuning table resolution up to 32 x 32.
Flexibility: Combine 3D tuning tables with per cylinder compensations and multiple corrections.
Per Cylinder Tuning: 3D correction.
Wideband O2: Connect up to 2 channels via CAN expansion devices.
EGT: Connect up to 12 channels via external CAN expansion devices.
Nitrous Control: Advanced programming of wet or dry nitrous kits with on/off delays.
Boost Control: Intelligent 3D open loop with flexible user-definable axis and corrections modes.
