Haltech Elite 750 + Nissan Patrol Y60 TB42 Plug n Play Adaptor Harness Kit HT-150660
Couldn't load pickup availability
Download Haltechs Quick Start Guide Here
Suits: Plug 'n' Play replacement of the factory ECU for Nissan Patrol/Safari Y60 with automatic or manual transmissions. (No shift re-programming/control etc) TB42E Only.

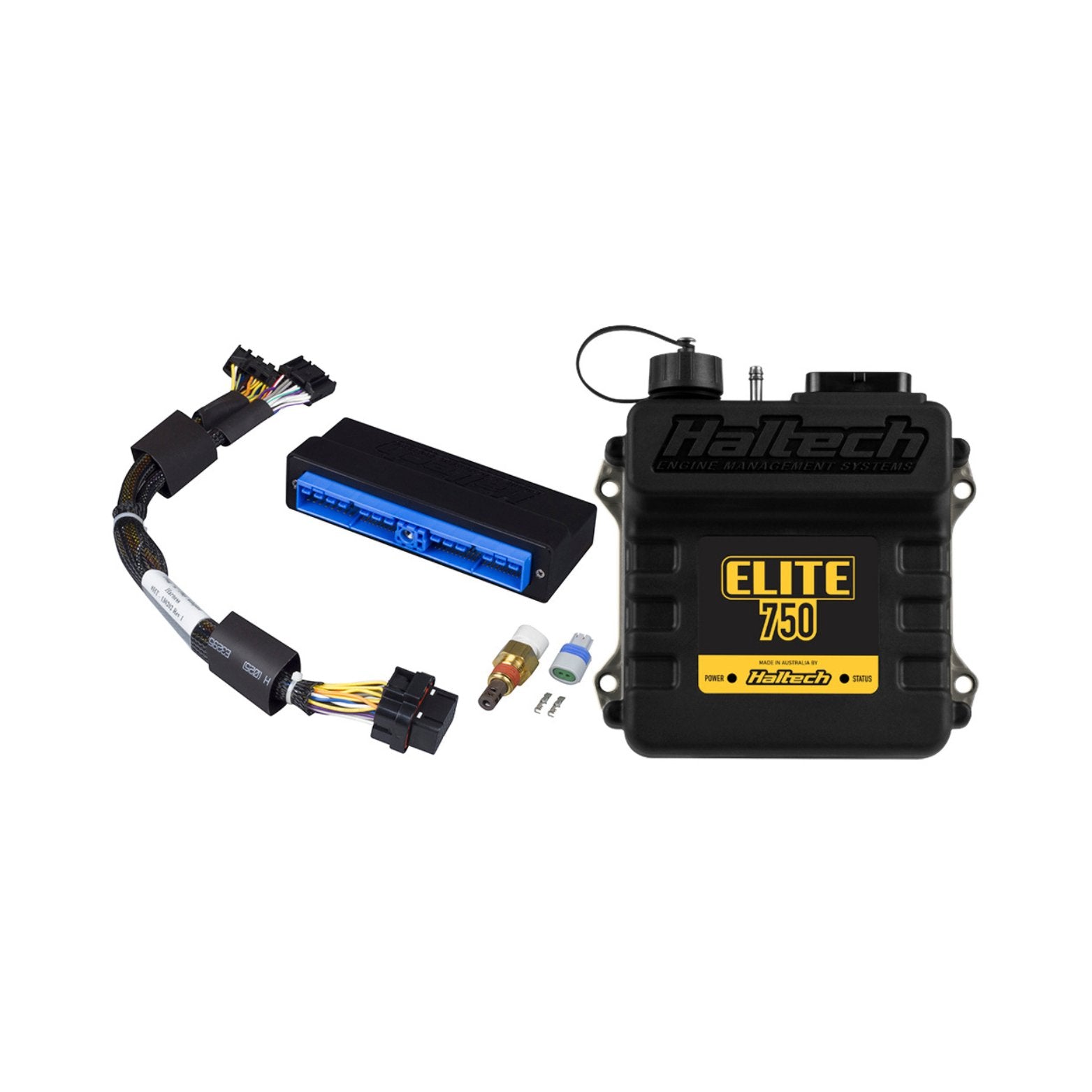

Includes: Elite 750 ECU, injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins, waterproof USB cap, USB programming cable, and software CD.
Notes: Spare ignition outputs can be used (via custom wiring) to convert from distributor to direct fire ignition system. (6 individual coils)
HARNESS OVERVIEW:
If you are using a factory harness and are after an easy ECU upgrade, this is the product for you. These adaptors plug directly into your Haltech ECU and have a set of factory connectors on the other side which plug straight into the factory harness.
- Plug 'n' Play Installation: A simple Haltech Plug 'n' Play product that allows you to be up and running in just a few hours.
- Quick Start Guide: The guide will walk you through the installation of the Haltech Plug 'n' Play adaptor into your vehicle. The guide is accompanied by the full ECU manual and Software located on the CD or USB key provided with the ECU to refer to while completing your installation and configuration.
HARNESS FEATURES:
When installed in conjunction with a Haltech Elite ECU, this harness opens the door to virtually limitless performance modification and tuning of your vehicle.
- Fully Programmable Systems: Allow you to extract all the performance from your engine by delivering precisely the required amount of fuel and ignition timing that your engine requires for maximum output under all operating conditions.
ECU OVERVIEW:
The Elite 750 is an entry-level ECU offering many features available on the more advanced Elite 1500/2500 at an affordable price. Featuring a robust, environmentally sealed, waterproof case, 6 fuel and 6 ignition channels, on-board data logging, and flex-fuel tuning, the Elite 750 is a powerful, compact ECU. Like all Elite Series ECUs, the Elite 750 ECU now uses the Nexus Software Programmer (NSP) that brings levels of functionality and user-friendliness never seen before in an engine control package. Together they offer true cutting-edge technology to tuners and performance enthusiasts worldwide.
- Supports: 1 to 8 Cylinder engines, 1 to 3 Rotor engines.
- Induction: Suitable for both naturally aspirated and forced induction engines.
- Load Sensing: By Throttle Position (TPS), Manifold Pressure (MAP), or Mass Air Flow (MAF).
- Ignition Modes: Includes Direct fire multi-coil, Distributor ignition, or Haltech CDI systems.
- Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
- Waterproof Case: IP67 rated with USB cover fitted.
- Channels: Up to 45 channels of Input & Output (I/O) expansion via CAN.
- USB Communication: Allows easy laptop connection for tuning.
- On-board Data Logging: Ensures comprehensive tuning and diagnostic capabilities.
ECU FUNCTIONS:
- Injector Control: Low Impedance with Programmable Injector Peak and Hold.
- Flex Fuel Function: Tune boost, fuel, and ignition by ethanol content.
- Fuel Flexibility: Suitable for Petrol (Gasoline), Methanol, and Ethanol.
- Closed Loop O2 Control: Precise tuning with optional CAN O2 Wideband Controller Kit.
- Idle Speed Control: Learning for consistent idle stability.
- Data Logging: On-board and laptop data logging.
- CAN Bus Communication: For Haltech dashes and expansion devices or OBDII.
- Injection Stages: Two stages for Rotary Engines.
- Variable Cam Control: Supports engines with a single cam sensor only.
ADVANCED TUNING:
- Resolution: Tuning table resolution up to 32 x 32.
- Flexibility: Combine 3D tuning tables with per cylinder compensations and multiple corrections.
- Per Cylinder Tuning: 3D correction.
- Wideband O2: Connect up to 2 channels via CAN expansion devices.
- EGT: Connect up to 12 channels via external CAN expansion devices.
- Nitrous Control: Advanced programming of wet or dry nitrous kits with on/off delays.
- Boost Control: Intelligent 3D Open loop with flexible user-definable axis and corrections modes.
