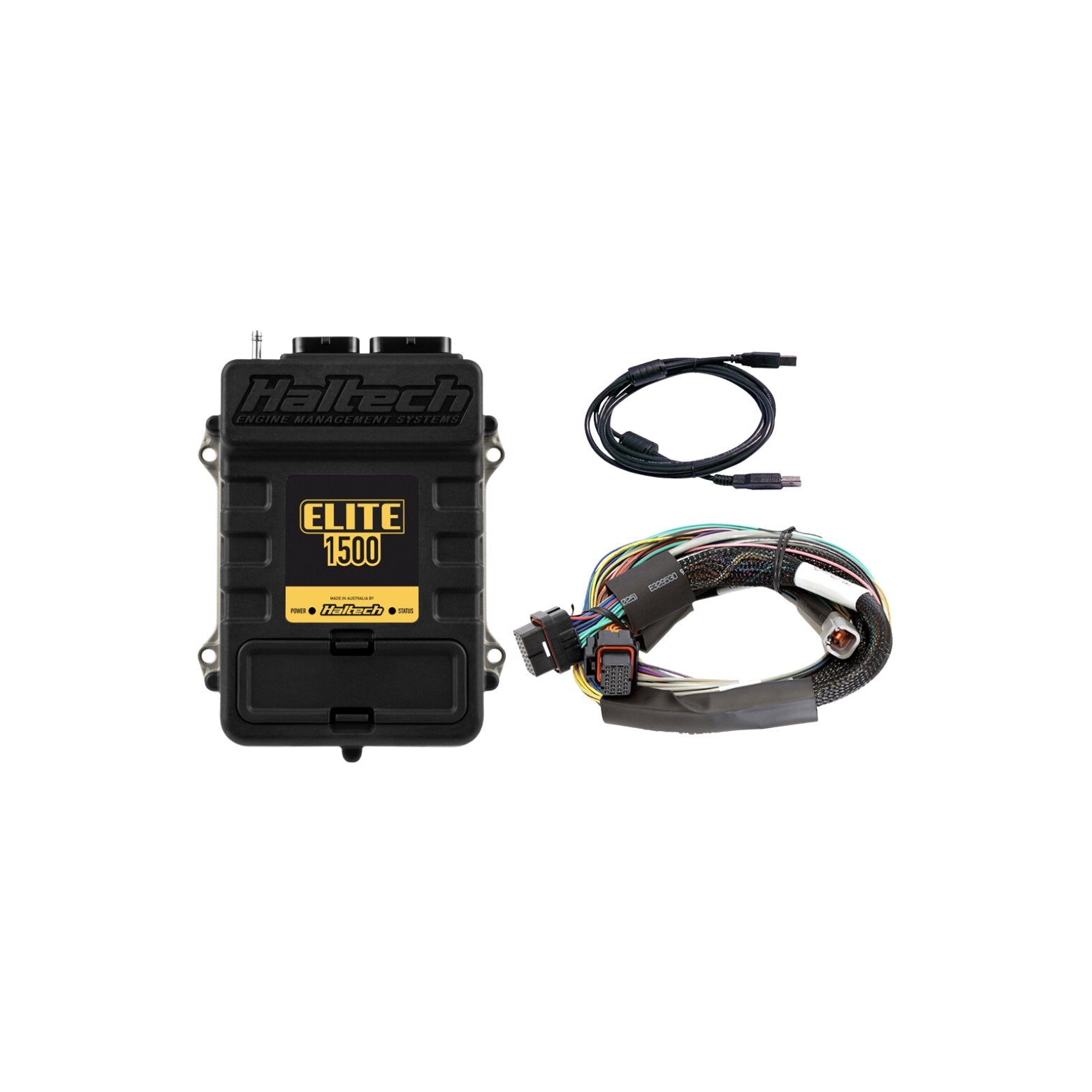

Haltech Elite 1500 + Basic Universal Wire-in Harness Kit HT-150902

SKU: HT-150902 Barcode: 9356450012041
Regular price $2,605.00

Download Haltechs QuickStart Guide For this product here

Upgrade your vehicle's ECU with the Haltech Elite 1500 + Basic Universal Wire-in Harness Kit, designed for versatility and high performance. Ideal for dedicated race cars, engine swaps, and custom wiring jobs, this kit includes everything needed for seamless integration and optimal engine management.

Key Features:

  • Outputs: Up to 4 injectors and 4 ignition outputs.
  • Compatibility: Universal fit for 1-12 cylinder or 2 rotor applications.

Includes:

  • Elite 1500 ECU: With Drive-By-Wire (DBW) and race functions.
  • Basic Universal Wire-In Harness: Set of ECU connectors at one end and unterminated wires at the other, color-coded and clearly labeled.
  • Waterproof USB Cap, USB Programming Cable, and USB Software Key.

Harness Overview:

  • Ideal for: Dedicated race cars, engine swaps, and custom wiring jobs.
  • Color-Coded and Labeled Wires: Match the detailed wiring diagram for a confusion-free construction process.
  • Installation Support: The quick start guide and full ECU manual and software on the provided CD or USB key.

ECU Overview:

  • Robust Design: Environmentally sealed water-resistant IP67-rated case.
  • Advanced Features: Drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual channel knock control, and more.
  • NSP Calibration Software: Intuitive and user-friendly for comprehensive engine control.

Compatibility:

  • Supports: 1 to 12 cylinder engines, 2 rotor engines, normally aspirated or forced induction.
  • Load Sensing: By Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
  • Injection Patterns: Staged, sequential, semi-sequential, batch, or multipoint.
  • Ignition Systems: Distributor ignition systems, multi-coil systems, expanded CDI range, or Haltech Multiplex CDI systems.

Features:

  • 4 x Fuel Injection Outputs
  • 4 x Ignition Outputs
  • 12 x Digital Outputs
  • 10 x Analog Voltage Inputs
  • 4 x Synchronized Pulsed Inputs
  • 3 x Dedicated Inputs (Knock, Ignition Switch, Onboard MAP Sensor)
  • 2 x Dedicated Engine Position Inputs
  • Up to 45 Channels of I/O Expansion (via CAN)
  • USB Laptop Communication (Windows)

Harness Features:

  • Limitless Performance Modification: Fully programmable systems for precise fuel and ignition timing.
  • Enhanced Performance: Extract maximum engine performance under all operating conditions.

ECU Functions:

  • Drive-by-Wire Throttle Control (DBW)
  • Low Impedance Injector Control
  • Flex Fuel Function
  • Closed Loop O2 Control
  • Knock Control
  • Variable Cam Control
  • Closed Loop Idle Speed Control
  • Long Term Learning (Auto Tune)
  • On-Board Data Logging
  • Laptop Data Logging
  • Dual CAN Bus Communication

Advanced Tuning:

  • 32 x 32 x 8 Tuning Table Resolution
  • 4D Tuning Tables
  • Per Cylinder Tuning Correction
  • Wideband O2 and EGT Connectivity
  • Engine Protection

Race Functions:

  • Nitrous Control
  • Boost Control
  • Sequential Turbo Control
  • CO2 Boost Control
  • Flat Shift
  • Shock Travel/Ride Height Inputs
  • Timer Functions
  • Trans Brake Function
