Haltech Elite 1500 + Nissan 200SX/Silvia S15 & S14A S2 Plug n Play Adaptor Harness Kit HT-150955

Name: Haltech Elite 1500 + Nissan 200SX/Silvia S15 & S14A S2 Plug n Play Adaptor Harness Kit HT-150955
Brand: Haltech
SKU: HT-150955
Price: 2810.0 AUD
Availability: InStock

SKU: HT-150955 Barcode: 9356450012225

No reviews

$2,810.00

Product variants

Download Haltechs QuickStart Guide For this product here

Upgrade your Nissan 200SX or Silvia

Compatibility

Nissan Models: 200SX/Silvia S15 (Australian Delivered and JDM), 200SX/Silvia S14A S2 "KOUKI," 180SX S13 Rev 3 "Type X" 1996 onwards, Pulsar N15 and N14 SSS and GTI-R, Micra K11 (CG13DE)
Transmissions: Manual only

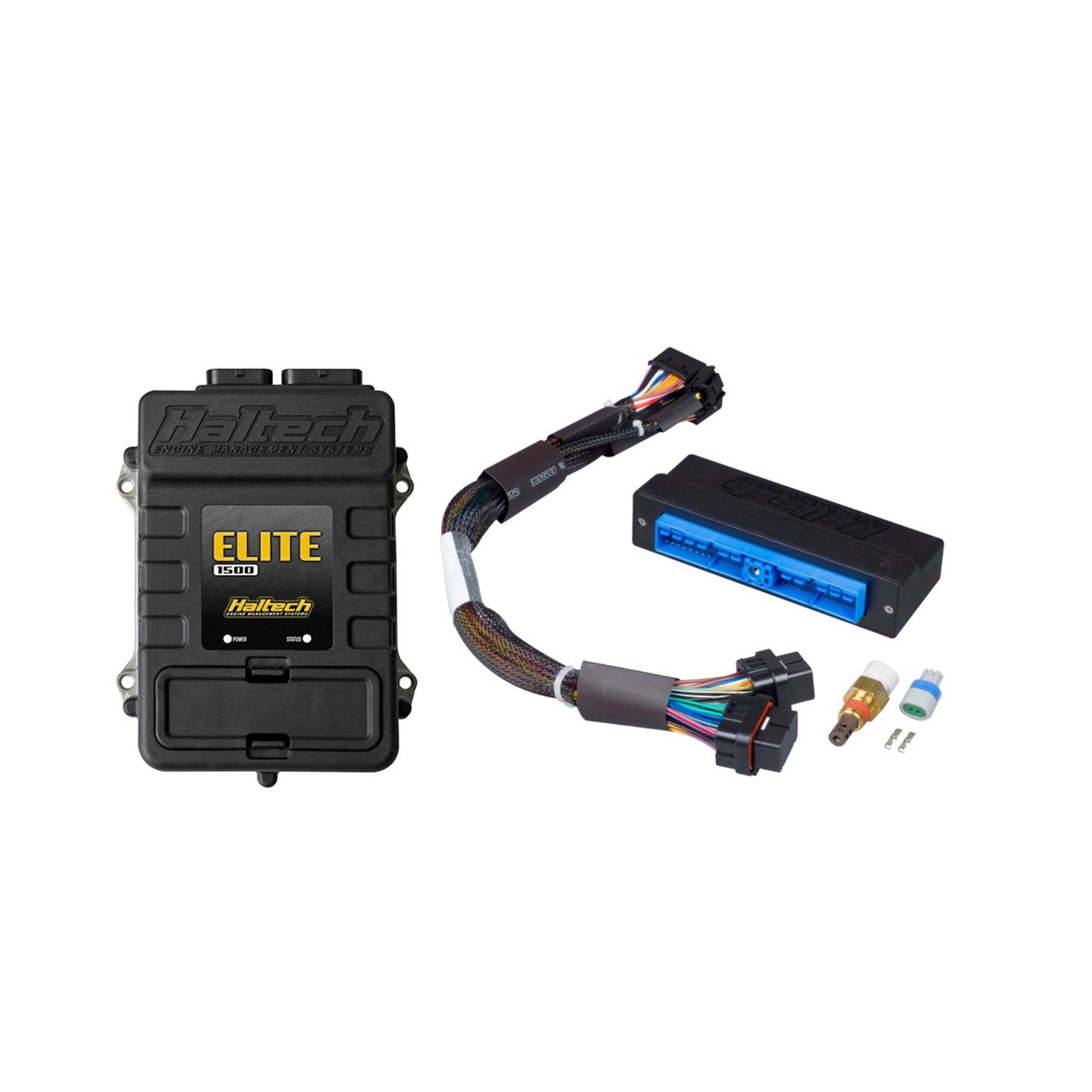

Includes

Elite 1500 ECU: Drive-By-Wire (DBW) and Race Functions
Plug 'n' Play Adaptor Harness: Injection Molded Plastic
M14 x 1.5 Air Temp Sensor: With matching plug and pins
Auxiliary I/O: 16 Pin TYCO Plug and Pins
USB Programming Cable and USB Software Key

Features

Simple Installation: Be up and running in just a few hours
Quick Start Guide: Walks you through the installation process
Comprehensive Documentation: Full ECU manual and software provided on CD or USB key

ECU Overview

The Elite 1500 is a powerful, stand-alone ECU ideal for late-model performance and racing applications. Suitable for 4-cylinder engines, Drive-By-Wire (DBW), or 2-rotor engines, EFI conversions, and engines with multiple variable camshafts. It features a robust, water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual-channel knock control, and more. Paired with the Nexus Software Programmer (NSP), the Elite 1500 offers unprecedented functionality and user-friendliness.

Key Specifications

Engine Support: 1 to 12 cylinder engines, 2 rotor engines
Load Sensing: Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF)
Injection Patterns: Staged, sequential, semi-sequential, batch, or multipoint
Ignition Systems: Distributor, multi-coil, CDI range, or Haltech Multiplex CDI systems
Connectivity: Wide range of display dashes and expansion devices via CAN
Outputs: 4 fuel injection, 4 ignition, 12 digital, 10 analogue voltage, 4 synchronized pulsed, 3 dedicated inputs
Expansion: Up to 45 channels of Input & Output (I/O) via CAN

ECU Functions

Drive by Wire Throttle Control (DBW): Requires 2 user-defined outputs and 4 user-defined inputs
Low Impedance Injector Control: Programmable Injector Peak and Hold Currents & Peak time
Flex Fuel Function: Direct sensor input to tune boost, fuel, and ignition by ethanol content
Fuel Tuning: Setup for Petrol (Gasoline), LPG, Methanol, and Ethanol
Closed Loop O2 Control: Dual bank control for precise tuning (with optional CAN O2 Wideband Controller Kit)
Knock Control: Synchronized to engine position with high-speed digital filtering for accurate detection
Variable Cam Control: Independently control up to 4 camshafts
Closed Loop Idle Speed Control: With learning for consistent idle stability
Long-Term Learning (Auto Tune): On fuel, ignition, cam, boost, and idle control maps
On-Board Data Logging: Up to 40 channels at sample rates up to 5ms (200Hz) with 2MB internal memory
Dual CAN Bus Communication: For Haltech Dashes and expansion devices
Injection Stages: Up to 4 with individual injector flow rates per injector
Anti-Lag/Rotational Idle: For closed course racing, rally, circuit, or drift. Build and maintain boost during closed throttle conditions
Rolling Anti-Lag: Lock to your current or pre-set RPM or road speed
Launch Control: Control your engine's power delivery, RPM, and boost for consistent performance at the start line
Traction Control: Control power output via mappable front vs rear axle or individual wheel speed slip

Advanced Tuning

Tuning Table Resolution: Up to 32 x 32 x 8
Limitless Tuning Flexibility: Combine 4D tuning tables with 3D per cylinder compensations and multiple user-definable corrections
Per Cylinder Tuning Correction: 3D
Wideband O2 Connectivity: Up to 9 channels via CAN expansion devices
Thermocouples/EGT: Connect up to 12 channels via external CAN expansion devices
Engine Protection: Set advanced multi-level limits for sensors to protect against common failure causes

Race Functions

Nitrous Control: Advanced programming of up to 6 stages of wet or dry nitrous kits
Boost Control: 4D Closed loop with learning and flexible user-defined axes
Sequential Turbo Control
CO2 Boost Control
Flat Shift
Shock Travel/Ride Height Inputs: Allow dynamic tuning and data logging
Timer Functions: Use a combination of the race timer and 5 additional programmable timers
Trans Brake Function: Allows smooth and consistent control of start line staging (Bump or Creep)
