Haltech Elite 1500 + Mazda 13B S4/5 CAS with Flying Lead Ignition Terminated Harness Kit HT-150975

Name: Haltech Elite 1500 + Mazda 13B S4/5 CAS with Flying Lead Ignition Terminated Harness Kit HT-150975
Brand: Haltech
SKU: HT-150975
Price: 3595.0 AUD
Availability: InStock

SKU: HT-150975 Barcode: 9356450012270

No reviews

$3,595.00

Product variants

Download Haltechs QuickStart Guide For this product here

Upgrade your Mazda 13B S4/5 engine's ECU effortlessly with the Haltech Elite 1500 + Flying Lead Ignition Terminated Harness Kit. This comprehensive kit ensures a straightforward connection between your engine and the Haltech ECU, facilitating a quick and efficient installation process.

Compatibility:

Suits: Mazda 13B S4/5 CAS (Crank Angle Sensor)
WBC1 CAN O2 Wideband Controller Ready: Controller and sensor not included

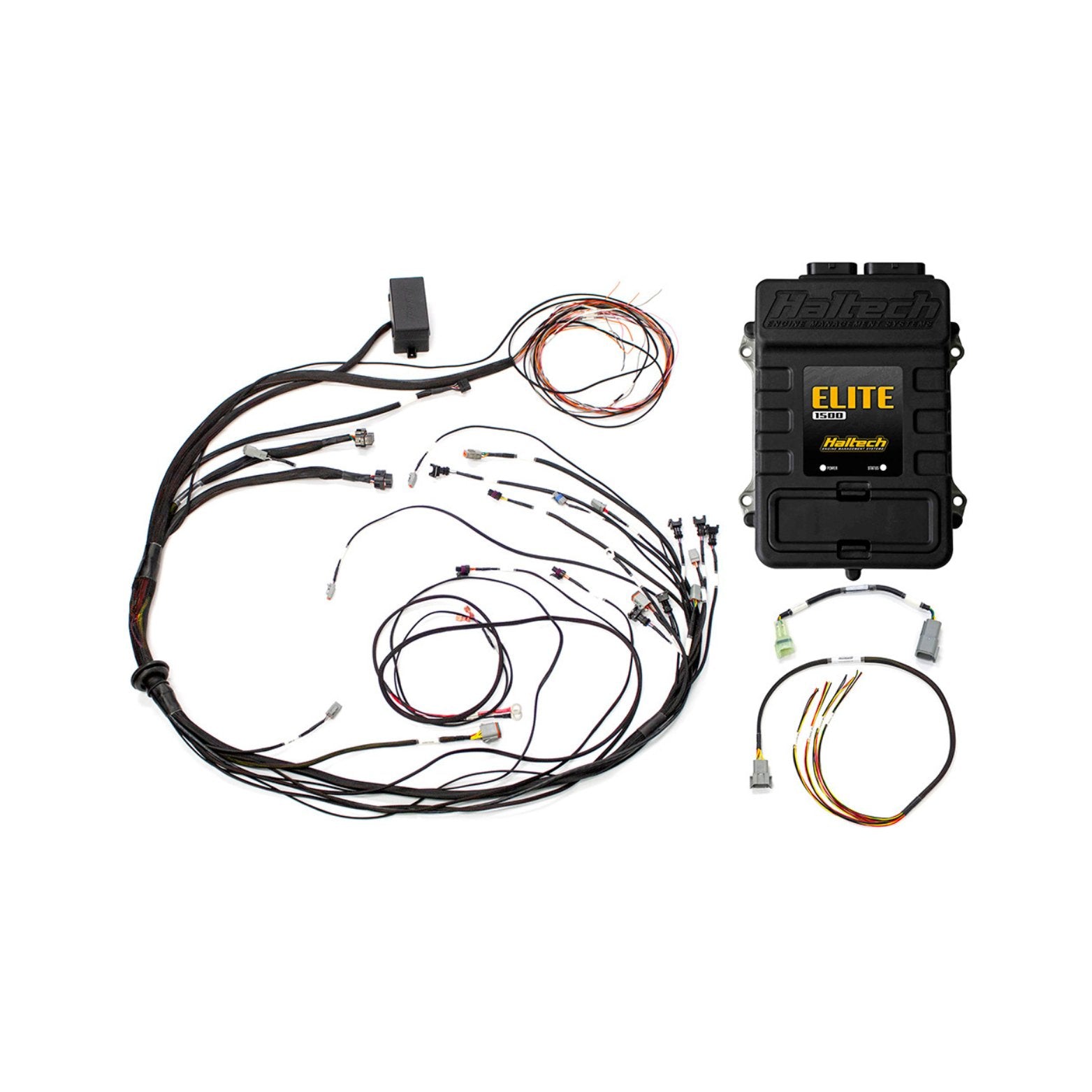

Includes:

Elite 1500 ECU: Equipped with Drive-By-Wire (DBW) and race functions.
Engine Harness with Fuse Block
Firewall Grommet
Flying Lead Ignition Harness
USB Programming Cable and USB Software Key

Harness Overview:

The Haltech Plug'n'Play product allows you to wire your race car or engine conversion efficiently and cost-effectively. Simply connect a handful of labeled wires, and you can be up and running in just a few hours. The quick start guide, accompanied by the full ECU manual and software on the CD or USB key, will walk you through the installation process.

ECU Overview:

The Elite 1500 is a robust, two-connector, stand-alone ECU designed for late-model performance and racing applications. It supports a wide range of engines, from 1 to 12 cylinders and 2 rotors, both normally aspirated and forced induction. Featuring a water-resistant IP67-rated case, the Elite 1500 provides advanced features like drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, and dual-channel knock control. Paired with the new Nexus Software Programmer (NSP), it offers unparalleled functionality and user-friendliness.

Key Features:

Supports: 1 to 12 cylinder engines, 2 rotor engines.
Load Sensing: Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
Injection Patterns: Staged, sequential, semi-sequential, batch, or multipoint.
Ignition Systems: Distributor, multi-coil, CDI range, or Haltech Multiplex CDI systems.
Connectivity: Wide range of display dashes and expansion devices via CAN.
Outputs: 4 fuel injection, 4 ignition, 12 digital, 10 analogue voltage, 4 synchronized pulsed, 3 dedicated inputs.
Expansion: Up to 45 channels of Input & Output (I/O) via CAN.
Communication: USB laptop (Windows), NSP Calibration Software.

ECU Functions:

Drive by Wire Throttle Control (DBW)
Low Impedance Injector Control
Flex Fuel Function
Closed Loop O2 Control
Knock Control
Variable Cam Control
Closed Loop Idle Speed Control
Long Term Learning (Auto Tune)
On-Board Data Logging
Laptop Data Logging
Dual CAN Bus Communication

Advanced Tuning:

Tuning Table Resolution: Up to 32 x 32 x 8
Flexible Tuning Setup: Tune by manifold pressure, throttle position, cam position, ethanol content, gear, road speed, race time, EGT, shock travel, ride height, or any channel.
Per Cylinder Tuning Correction: 3D
Wideband O2 Connectivity: Up to 9 channels via CAN expansion devices.
Engine Protection: Multi-level sensor limits to protect against common failure causes.

Race Functions:

Nitrous Control: Up to 6 stages with advanced programming.
Boost Control: 4D Closed loop with learning and flexible user-defined axes.
Sequential Turbo Control
CO2 Boost Control
Flat Shift
Shock Travel/Ride Height Inputs
Timer Functions
Trans Brake Function
Advanced Torque Management (Optional Upgrade)
