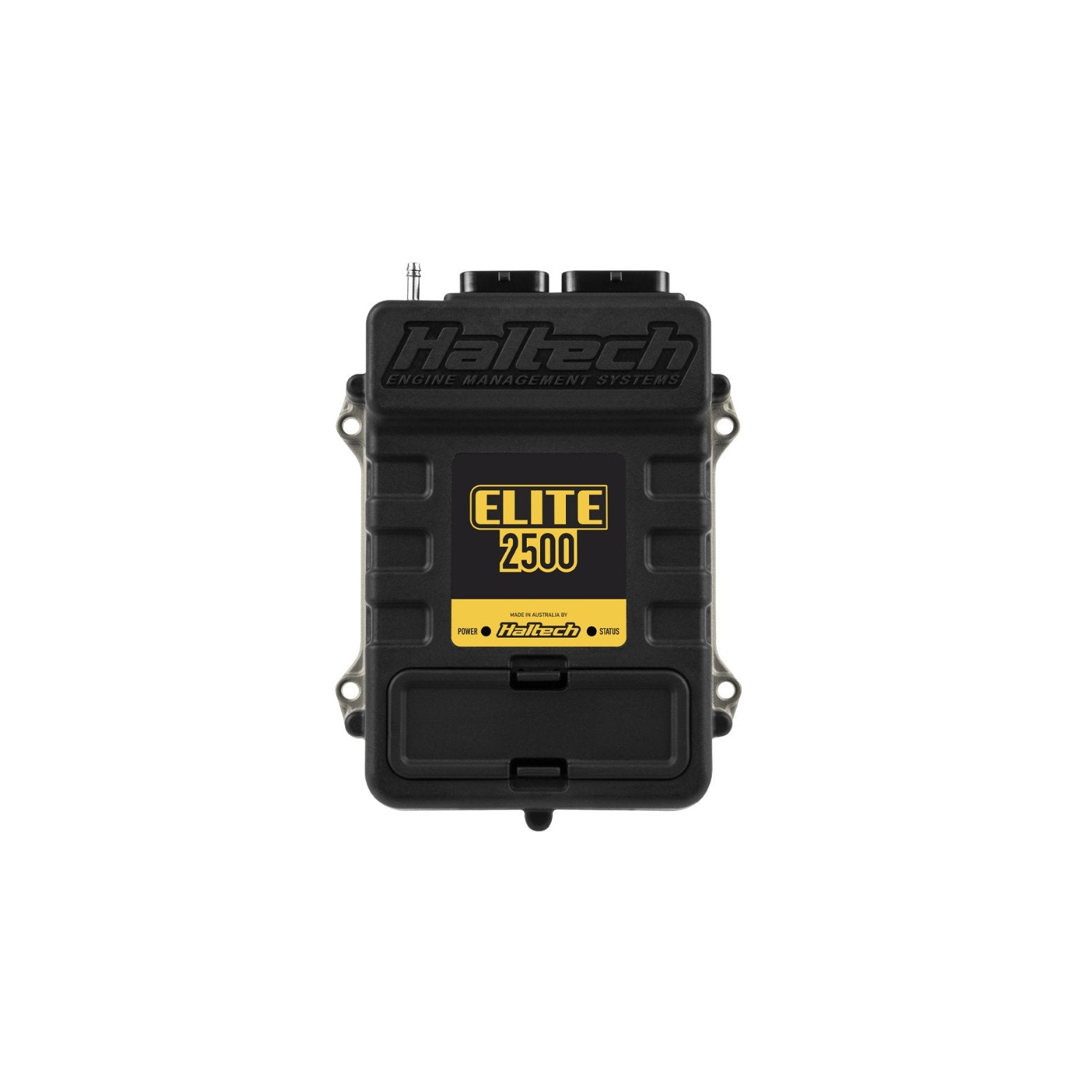

Haltech Elite 2500 ECU HT-151300

Name: Haltech Elite 2500 ECU HT-151300
Brand: Haltech
SKU: HT-151300
Price: 2795.0 AUD
Availability: InStock

SKU: HT-151300 Barcode: 9356450007412

No reviews

$2,795.00

Product variants

Download Haltechs Quickstart Guide Here

Download Haltechs Wiring Diagram Here

Download Haltechs Spec Sheet Here

Outputs:

Up to 8 injector and 8 ignition outputs.

Suits:

Universal 1-12 cylinder or 2-4 rotor applications.

Includes:

Elite 2500 ECU with Drive-By-Wire (DBW) and Race Functions.
USB programming cable.
USB Software Key.

Notes:

Ideal for popular late model performance and racing applications.
Recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW) or 2, 3, 4 rotor engines.
Suitable for EFI conversions and engines with multiple variable camshafts.

ECU Overview

The Haltech Elite 2500 ECU sets a new standard in engine management. It features a robust, environmentally sealed waterproof case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, and dual-channel knock control. This ECU offers the advanced tools needed for precise engine calibration, making it a top choice for tuners and performance enthusiasts worldwide. The Elite Software Programmer (ESP) enhances its functionality and user-friendliness.

Supported Engine Types:

1 to 12 Cylinder engines
2 to 4 Rotor engines
Normally aspirated or forced induction engines

Load Sensing Options:

Throttle Position (TPS)
Manifold Absolute Pressure (MAP)
Mass Air Flow (MAF)

Injection Patterns:

Staged
Sequential
Semi-sequential
Batch
Multipoint

Ignition Systems:

Distributor ignition systems
Multi-coil systems
CDI range expansion
Haltech Multiplex CDI systems

Connectivity:

CAN for connecting to various display dashes and expansion devices

Key Features:

Waterproof case with pocket cover fitted
8 x Fuel Injection Outputs
8 x Ignition Outputs
12 x Digital Outputs
10 x Analogue Voltage Inputs
4 x Synchronised Pulsed Inputs
4 x Dedicated inputs (Dual Knock, Ignition Switch, Onboard MAP Sensor)
2 x Dedicated Engine Position Inputs with extensive trigger type support
Up to 45 channels of I/O expansion via CAN
USB Laptop communication (Windows)
ESP Calibration Software – Intuitive and easy to use

ECU Functions

Drive by Wire Throttle Control (DBW):

Requires 2 user-defined outputs and 4 user-defined inputs

Injector Control:

Low impedance injector control with programmable peak and hold currents and peak time

Flex Fuel Function:

Direct sensor input for tuning engines' boost, fuel, and ignition by ethanol content

Flexible Tuning Setup:

Suitable for Petrol (Gasoline), LPG, Methanol, and Ethanol

Closed Loop O2 Control:

Dual bank control for precise tuning (with optional external CAN O2 Wideband Controller Kit)

Dual Channel Knock Control:

Synchronised to engine position with high-speed digital filtering for accurate detection

Variable Cam Control:

Independently controls up to 4 camshafts

Closed Loop Idle Speed Control:

Learning for consistent idle stability

Long Term Learning (Auto Tune):

On fuel, ignition, cam, boost, and idle control maps (up to 4D)

On-board Data Logging:

Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory

Laptop Data Logging:

Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics

Dual CAN Bus Communication:

For Haltech dashes and expansion devices, supported OEM CAN & OBDII

Advanced Tuning:

Tuning Table Resolution up to 32 x 32 x 8
Wideband O2 – Connect up to 9 Channels via CAN expansion devices
Thermocouples/EGT – Connect up to 12 Channels via external CAN expansion devices
Engine Protection – Set advanced multi-level limits for sensors and protect your engine against common causes of failure

Race Functions

Nitrous Control:

Advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays and banked control options

Boost Control:

Intelligent 4D Closed loop, with learning, flexible user-definable axis, and 14 fully user-definable boost target and duty cycle corrections

Sequential Turbo Control:

CO2 Boost control, wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hardcore racer

Flat Shift:

Optimise shifting precision via a combination of inputs such as a clutch switch or strain gauge

Shock Travel/Ride Height Inputs:

Allow dynamic tuning and data logging to assist in chassis development and power delivery

Timer Functions:

Use the combination of the race timer and 5 additional programmable timers for time-based control of multiple engine parameters, power delivery, and other user-definable functions

Trans Brake Function:

Allows smooth and consistent control of start line staging (Bump or Creep)

Optional Upgrade – Advanced Torque Management:

A fully integrated driveshaft RPM target race function that provides the ultimate control and consistency for the serious drag racer, eliminating the need for costly external controllers
