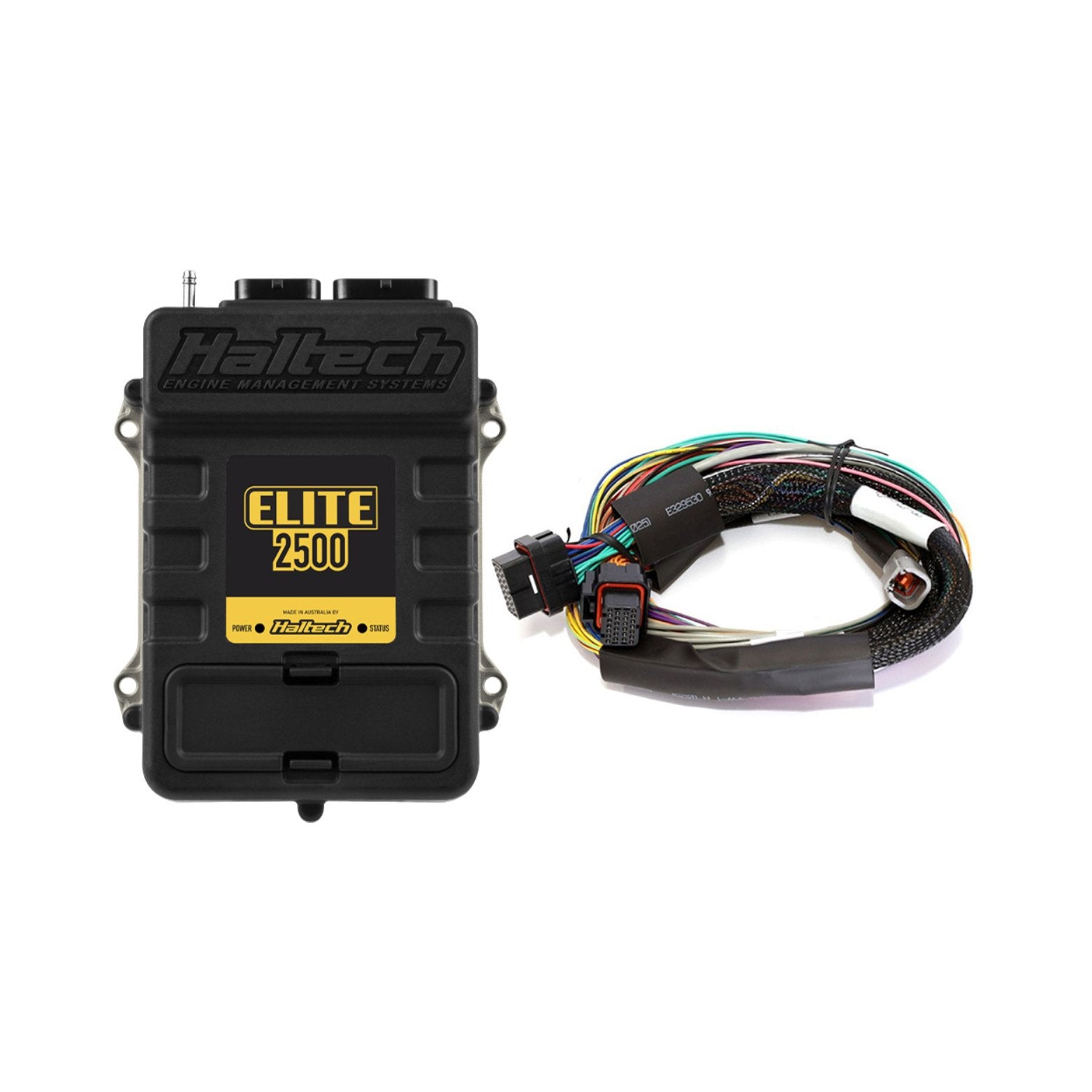

Haltech Elite 2500 + Basic Universal Wire-in Harness Kit HT-151302

Name: Haltech Elite 2500 + Basic Universal Wire-in Harness Kit HT-151302
Brand: Haltech
SKU: HT-151302
Price: 3305.0 AUD
Availability: InStock

SKU: HT-151302 Barcode: 9356450012621

No reviews

$3,305.00

Product variants

Download Haltechs Quickstart Guide Here

Overview: The Haltech Elite 2500 ECU paired with the Basic Universal Wire-In Harness Kit is the perfect solution for dedicated race cars, engine swaps, and custom wiring jobs. This kit offers a seamless and efficient way to wire your vehicle, providing maximum performance and flexibility.

Key Features:

Outputs: Supports up to 8 injectors and 8 ignition outputs.
Compatibility: Suitable for universal 1-12 cylinder or 2-4 rotor applications.
Includes: Elite 2500 ECU with Drive-By-Wire (DBW) and Race Functions, Basic Universal Wire-In Harness, USB programming cable, and USB software key.
Notes: Does not include fuse and relay box.

Harness Overview:

Ideal for Custom Applications: The Universal Wire-in Harness has ECU connectors at one end and unterminated wires at the other. The wires are color-coded and clearly labeled for an easy and confusion-free installation process.
Comprehensive Support: The harness comes with a detailed wiring diagram, ECU manual, and software on a CD or USB key to guide you through the installation and configuration.

ECU Overview:

Robust and Versatile: The Elite 2500 ECU is designed for popular late-model performance and racing applications. It is recommended for 4, 6, 8 cylinder, Drive-By-Wire (DBW), or 2, 3, 4 rotor engines, EFI conversions, and engines with multiple variable camshafts.
High-Performance Features: The ECU features a water-resistant IP67-rated case, drive-by-wire throttle control, intake and exhaust cam control, short-term and long-term map learning, dual-channel knock control, and much more.
Advanced Software: Paired with the new Nexus Software Programmer (NSP), the Elite 2500 offers unparalleled functionality and user-friendliness.

Supported Engine Types:

1 to 12 cylinder engines
2 to 4 rotor engines
Normally aspirated or forced induction

ECU Functions:

Drive-by-Wire Throttle Control: Requires 2 user-defined outputs and 4 user-defined inputs.
Low Impedance Injector Control: Programmable injector peak and hold currents and programmable peak time.
Flex Fuel Function: Direct sensor input to tune your engine's boost, fuel, and ignition by ethanol content.
Flexible Tuning Setup: Supports Petrol (Gasoline), LPG, Methanol, and Ethanol.
Closed Loop O2 Control: Dual bank control for precise tuning (with optional external CAN O2 Wideband Controller Kit).
Dual Channel Knock Control: Synchronized to engine position with high-speed digital filtering for accurate detection.
Variable Cam Control: Independently controls up to 4 camshafts.
Closed Loop Idle Speed Control: With learning for consistent idle stability.
Long-Term Learning: Auto-tune on fuel, ignition, cam, boost, and idle control maps.
On-Board Data Logging: Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory.
Laptop Data Logging: Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics.
Dual CAN Bus Communication: Supports Haltech dashes and expansion devices, OEM CAN & OBDII.

Advanced Tuning:

Tuning Table Resolution: Up to 32 x 32 x 8.
Limitless Tuning Flexibility: Tune your engine by a combination of 4D tuning tables with 3D per cylinder compensations and multiple user-definable corrections.
Per Cylinder Tuning Correction: 3D.
Wideband O2: Connect up to 9 channels via CAN expansion devices.
Thermocouples/EGT: Connect up to 12 channels via external CAN expansion devices.
Engine Protection: Set advanced multi-level limits for sensors and protect your engine against common causes of failure.

Race Functions:

Nitrous Control: Advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays and banked control options.
Boost Control: Intelligent 4D closed loop with learning, flexible user-definable axis, and 14 fully user-definable corrections.
Sequential Turbo Control
CO2 Boost Control: Wastegate pressure and position, intake air bleed control for hard-core racers.
Flat Shifting: Optimize your shifting precision via a combination of inputs such as a clutch switch or strain gauge.
Shock Travel/Ride Height Inputs: Allow dynamic tuning and data logging to assist in chassis development and power delivery.
Timer Functions: Use the combination of the race timer and 5 additional programmable timers for time-based control of multiple engine parameters.
Trans Brake Function: Allows smooth and consistent control of start line staging (Bump or Creep).
Optional Upgrade: Advanced Torque Management - A fully integrated driveshaft RPM target race function for ultimate control and consistency for serious drag racers.

Why Choose Haltech Elite 2500 + Basic Universal Wire-in Harness Kit:

Ultimate Performance: Unlocks the full potential of your engine with precise fuel and ignition timing.
Easy Installation: Color-coded and labeled wires simplify the wiring process.
Comprehensive Tuning: Advanced features and flexibility cater to the most demanding performance needs.
Robust and Reliable: Built to withstand the rigors of high-performance racing environments.
