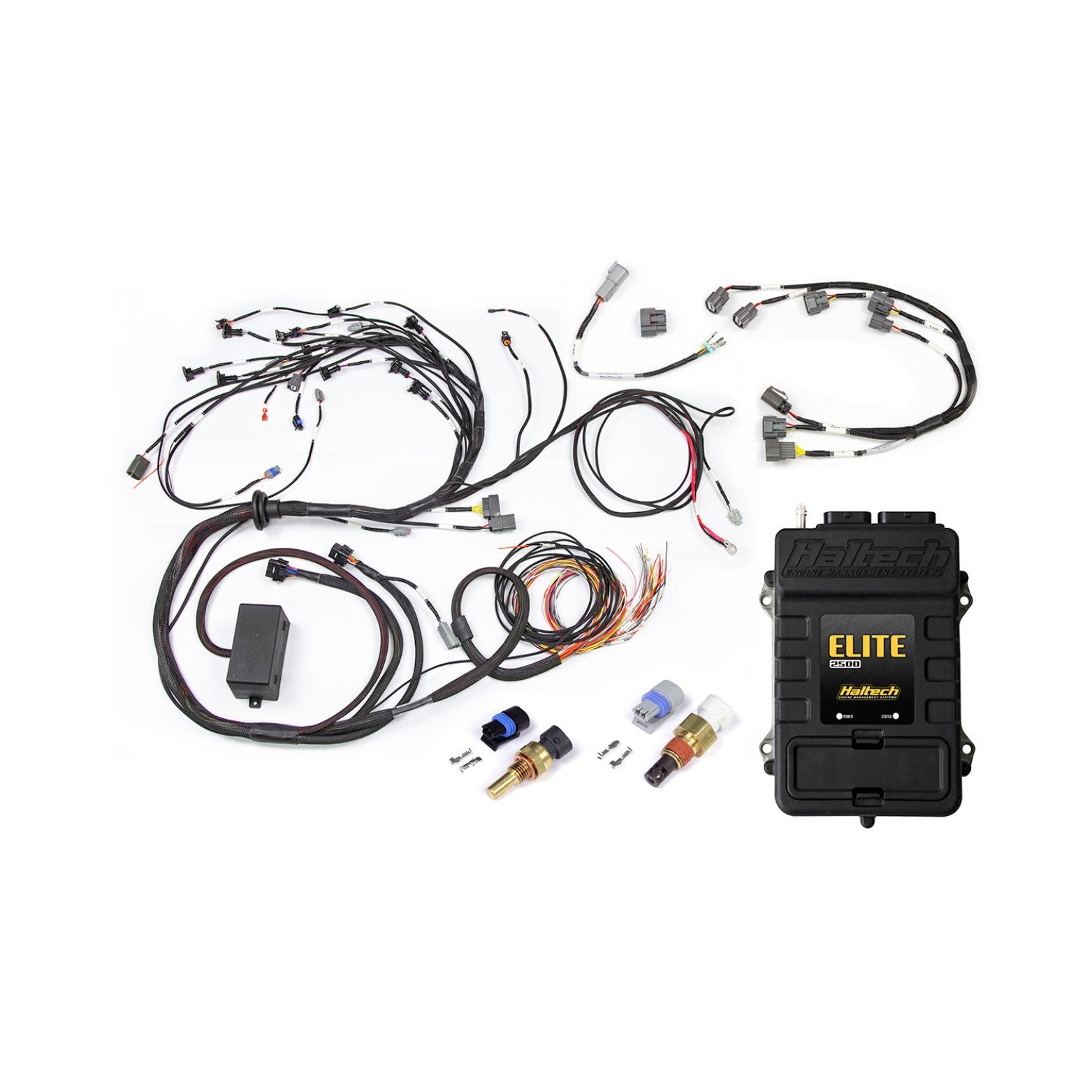

Haltech Elite 2500 + Terminated Harness Kit for Nissan RB30 Single Cam with LS1 Coil & CAS sub-harness HT-151311

SKU: HT-151311 Barcode: 9356450012690
Regular price $4,455.00

Download Haltechs Quickstart Guide Here

Upgrade your Nissan RB30 Single Cam engine with the Haltech Elite 2500 ECU and Terminated Harness Kit HT-151311. This kit offers precision, performance, and a straightforward plug-and-play solution for your race car or engine conversion.

Key Features:

  • Plug 'n' Play Installation: Labeled wires for easy, confusion-free installation. Connect the wires, and you're up and running in hours.
  • Comprehensive Kit: Includes Elite 2500 ECU, Nissan RB Single Cam Terminated Harness (HT-130326), LS1 Ignition Coil and Harness (HT-130343), CAS Harness (HT-130344), Air Temp Sensor (HT-010200), Coolant Temp Sensor (HT-010300), Connector Pack for auxiliary I/O, and Quick Start Guide.
  • Robust Sensors: Air Temp Sensor (M14 x 1.5) and Coolant Temp Sensor (M12 x 1.5) for precise data input.
  • LS1 Coil with Built-in Ignitor: Ensures reliable ignition performance for enhanced engine response.

Harness Overview:

  • Efficient and Cost-Effective: The fastest way to wire your race car or engine conversion.
  • User-Friendly: Quick start guide for easy installation, with the full ECU manual and software on a USB key for comprehensive setup.

ECU Overview:

The Elite 2500 ECU is a powerful stand-alone unit for late-model performance and racing applications, supporting a wide range of engine configurations.

  • Supports: 1 to 12 Cylinder engines, 2 to 4 Rotor engines, normally aspirated or forced induction.
  • Load Sensing: By Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
  • Connections: Compatible with various display dashes and expansion devices via CAN.
  • Inputs/Outputs: 8 Fuel Injection Outputs, 8 Ignition Outputs, 12 Digital Outputs, 10 Analogue Voltage Inputs, 4 Synchronised Pulsed Inputs, 4 Dedicated inputs (Dual Knock, Ignition Switch & onboard MAP Sensor), 2 Dedicated Engine Position Inputs, up to 45 channels of I/O expansion via CAN, and USB Laptop communication.

ECU Functions:

  • Drive by Wire Throttle Control (DBW): Requires (2) user-defined outputs and (4) user-defined inputs.
  • Injector Control: Low Impedance control with programmable peak and hold currents.
  • Flex Fuel Function: Direct sensor input for tuning boost, fuel, and ignition by ethanol content.
  • Flexible Tuning Setup: Suitable for Petrol (Gasoline), LPG, Methanol, and Ethanol.
  • Closed Loop O2 Control: Dual bank control (with optional external CAN O2 Wideband Controller Kit).
  • Dual Channel Knock Control: High-speed digital filtering for accurate detection.
  • Variable Cam Control: Controls up to 4 camshafts independently.
  • Closed Loop Idle Speed Control: Learning for consistent idle stability.
  • Long Term Learning (Auto Tune): On fuel, ignition, cam, boost, and idle control maps.
  • On-board Data Logging: Up to 40 channels with 2MB of internal memory.
  • Laptop Data Logging: Log all channels to your laptop's hard drive.
  • Dual CAN Bus Communication: For Haltech dashes and expansion devices.

Advanced Tuning:

  • Tuning Table Resolution: Up to 32 x 32 x 8.
  • Limitless Tuning Flexibility: Combines 4D tuning tables with 3D per cylinder compensations.
  • Per Cylinder Tuning Correction: 3D.
  • Wideband O2: Connect up to 9 Channels via CAN.
  • Thermocouples/EGT: Connect up to 12 Channels via CAN.
  • Engine Protection: Advanced multi-level sensor limits.

Race Functions:

  • Nitrous Control: Up to 6 stages of wet or dry kits.
  • Boost Control: Intelligent 4D Closed loop with learning.
  • Sequential Turbo Control
  • CO2 Boost Control: For hardcore racers.
  • Flat Shift: Optimizes shifting precision.
  • Shock Travel/Ride Height Inputs: For dynamic tuning and data logging.
  • Timer Functions: 5 programmable timers for control of engine parameters.
  • Trans Brake Function: Smooth control of start line staging.
  • Optional Upgrade - Advanced Torque Management: Integrated driveshaft RPM target function for serious drag racers.

Upgrade your Nissan RB30 Single Cam engine with the Haltech Elite 2500 ECU and Terminated Harness Kit HT-151311 and experience superior performance and precision tuning. Order now to unlock the full potential of your engine!
