Haltech Elite 2500 + Subaru GDB WRX MY01-05 Plug n Play Adaptor Harness Kit HT-151325

Name: Haltech Elite 2500 + Subaru GDB WRX MY01-05 Plug n Play Adaptor Harness Kit HT-151325
Brand: Haltech
SKU: HT-151325
Price: 3510.0 AUD
Availability: InStock

SKU: HT-151325 Barcode: 9356450012751

No reviews

$3,510.00

Product variants

Download Haltechs Quickstart Guide Here

Upgrade your Subaru GDB WRX MY01-05 or STI MY01-05 (JDM & Australian Delivered Only) with the Haltech Elite 2500 ECU and Plug 'n' Play Adaptor Harness Kit HT-151325. Designed for EJ20 Non-DBW engines with manual transmission, this kit offers seamless integration and advanced engine management features to enhance your vehicle's performance.

Key Features

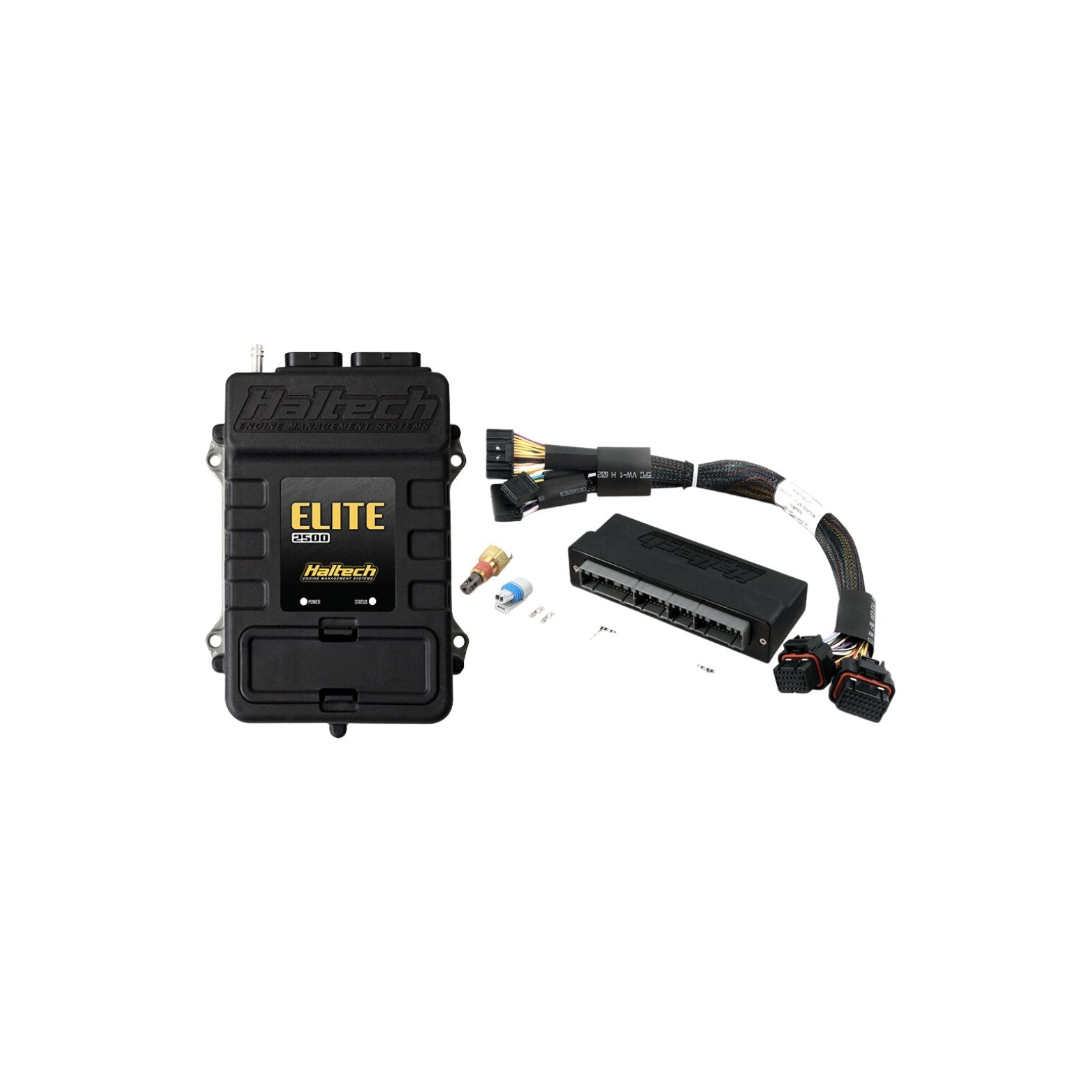

Comprehensive Kit: Includes Elite 2500 ECU with DBW and Race Functions, injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins, USB programming cable, and USB software key.
Plug 'n' Play Installation: This kit features factory connectors that plug directly into your Subaru's harness, ensuring an easy and quick installation.
Robust Design: The Elite 2500 ECU boasts a durable, environmentally sealed water-resistant IP67-rated case, ensuring it performs reliably in various conditions.

Harness Overview

Easy Upgrade: Ideal for users retaining the factory harness and looking for a straightforward ECU upgrade.
User-Friendly: Comes with a quick start guide for easy installation, alongside a full ECU manual and software on a CD or USB key for comprehensive setup and configuration.

ECU Overview

The Elite 2500 ECU is a state-of-the-art, stand-alone unit ideal for late-model performance and racing applications. It supports a variety of engine configurations and offers advanced features for optimal tuning and performance.

Supports: 1 to 12 Cylinder engines, 2 to 4 Rotor engines, normally aspirated or forced induction.
Load Sensing: By Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Inputs/Outputs: 8 Fuel Injection Outputs, 8 Ignition Outputs, 12 Digital Outputs, 10 Analogue Voltage Inputs, 4 Synchronised Pulsed Inputs, 4 Dedicated inputs (Dual Knock, Ignition Switch & onboard MAP Sensor), 2 Dedicated Engine Position Inputs with extensive trigger type support, up to 45 channels of I/O expansion via CAN, and USB Laptop communication.

ECU Functions

Drive by Wire Throttle Control (DBW): Requires (2) user-defined outputs and (4) user-defined inputs.
Injector Control: Low Impedance Injector control with programmable peak and hold currents and peak time.
Flex Fuel Function: Direct sensor input for tuning engines' boost, fuel, and ignition by ethanol content.
Flexible Tuning Setup: Suitable for Petrol (Gasoline), LPG, Methanol, and Ethanol.
Closed Loop O2 Control: Dual bank control for precise tuning (with optional external CAN O2 Wideband Controller Kit).
Dual Channel Knock Control: Synchronised to engine position with high-speed digital filtering for accurate detection.
Variable Cam Control: Independently controls up to 4 camshafts, requiring a minimum of 1 user-defined input and output per variable cam.
Closed Loop Idle Speed Control: Learning for consistent idle stability, requires 1 or 2 user-defined outputs (BAC type) or 4 user-defined outputs (Stepper motor type).
Long Term Learning (Auto Tune): On fuel, ignition, cam, boost, and idle control maps (up to 4D).
On-board Data Logging: Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory.
Laptop Data Logging: Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics.
Dual CAN Bus Communication: For Haltech dashes and expansion devices, supported OEM CAN & OBDII.

Advanced Tuning

Tuning Table Resolution: Up to 32 x 32 x 8.
Limitless Tuning Flexibility: Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user-definable corrections.
Per Cylinder Tuning Correction: 3D.
Wideband O2: Connect up to 9 Channels via CAN expansion devices.
Thermocouples/EGT: Connect up to 12 Channels via external CAN expansion devices.
Engine Protection: Set advanced multi-level limits for sensors and protect your engine against common causes of failure.

Race Functions

Nitrous Control: Advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays and banked control options.
Boost Control: Intelligent 4D Closed loop, with learning, flexible user-definable axis, and 14 fully user-definable boost target and duty cycle corrections.
Sequential Turbo Control
CO2 Boost Control: Wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hardcore racer.
Flat Shift: Optimise shifting precision via a combination of inputs such as a clutch switch or strain gauge.
Shock Travel/Ride Height Inputs: Allow dynamic tuning and data logging to assist in chassis development and power delivery.
Timer Functions: Use the combination of the race timer and 5 additional programmable timers for time-based control of multiple engine parameters, power delivery, and other user-definable functions.
Trans Brake Function: Allows smooth and consistent control of start line staging (Bump or Creep).
Optional Upgrade - Advanced Torque Management: A fully integrated driveshaft RPM target race function that provides the ultimate control and consistency for the serious drag racer, eliminating the need for costly external controllers.
