Haltech

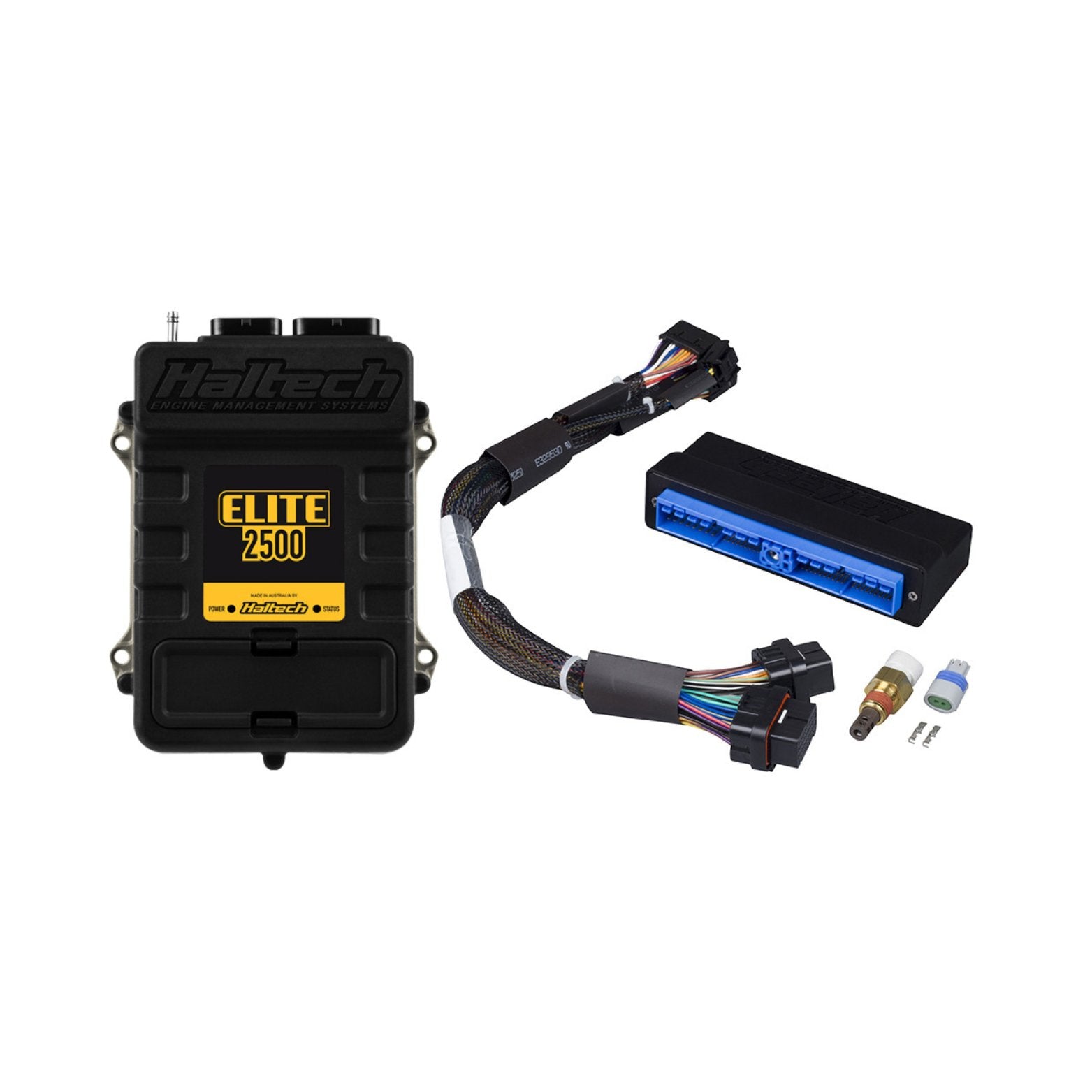

Haltech Elite 2500 + Nissan Skyline R32 R33 R34 GT-R Plug n Play Adaptor Harness Kit HT-151357

Name: Haltech Elite 2500 + Nissan Skyline R32 R33 R34 GT-R Plug n Play Adaptor Harness Kit HT-151357
Brand: Haltech
SKU: HT-151357
Price: 3510.0 AUD
Availability: InStock

SKU: HT-151357 Barcode: 9356450012928

No reviews

$3,510.00

Product variants

Download Haltechs Quickstart Guide Here

Transform your Nissan Skyline R32, R33, or R34 GT-R with the Haltech Elite 2500 ECU and Plug 'n' Play Adaptor Harness Kit HT-151357. This kit provides an effortless upgrade, ensuring seamless integration with your vehicle’s factory harness for enhanced performance and tuning capabilities.

Key Features

Plug 'n' Play Installation: The adaptor harness connects directly to the Haltech Elite ECU, with factory connectors on the other side that plug into the vehicle’s harness, making the installation process quick and straightforward.
Comprehensive Kit: Includes the Elite 2500 ECU with Drive-By-Wire (DBW) and Race Functions, plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins, USB programming cable, and USB software key.
Advanced ECU Functions: Features drive-by-wire throttle control, dual-channel knock control, variable cam control, anti-lag/rotational idle, rolling anti-lag, launch control, and traction control.
Supported OEM Functionality: Includes idle control (BAC), thermofan, tachometer, A/C request and control, engine control relay, injector MFD, fuel pump, power steering switch, knock sensors, wastegate control, AFM front and rear, coolant and air temperature sensors, O2 sensors, check engine light, throttle position sensor, ignition input, vehicle speed sensor, and more.
Robust and Durable: Housed in an environmentally sealed water-resistant IP67-rated case, ensuring durability in various conditions.

Suitability

Vehicle Compatibility: Specifically designed for plug 'n' play replacement of the factory ECU in Nissan Skyline R32 GTS-T, R32 GT-R, R33 GTS-T, R33 GT-R, and R34 GT-R models. Suitable for manual transmissions only.
Important Note: Ensure the compatibility of the components with your vehicle's existing setup before purchase.

ECU Overview

The Elite 2500 ECU is a powerful, two-connector, stand-alone unit ideal for late-model performance and racing applications. It is suitable for 4, 6, 8-cylinder engines, DBW, and 2, 3, 4 rotor engines. The Elite 2500 ECU, paired with the new Nexus Software Programmer (NSP), offers unmatched user-friendliness and functionality.

Supports: 1 to 12 Cylinder engines, 2 to 4 Rotor engines, normally aspirated or forced induction.
Load Sensing: By Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Inputs/Outputs: 8 Fuel Injection Outputs, 8 Ignition Outputs, 12 Digital Outputs, 10 Analogue Voltage Inputs, 4 Synchronised Pulsed Inputs, 4 Dedicated inputs (Dual Knock, Ignition Switch & Onboard MAP Sensor), 2 Dedicated Engine Position Inputs with extensive trigger type support, up to 45 channels of I/O expansion via CAN, and USB Laptop communication.

Harness Features

Seamless Installation: The harness allows for quick and easy connection to your vehicle, enabling you to be up and running in just a few hours.
Comprehensive Support: The quick start guide and the full ECU manual and software (provided on a CD or USB key) guide you through the installation and configuration process.
Limitless Tuning: When paired with the Haltech Elite ECU, the harness unlocks extensive performance modification and tuning capabilities.

Advanced Tuning and Race Functions

Advanced Tuning: Offers resolutions up to 32 x 32 x 8, with limitless flexibility through 4D tuning tables, multiple user-definable corrections, and wideband O2 control.
Race Functions: Includes nitrous control, boost control, sequential turbo control, CO2 boost control, flat shift, shock travel/ride height inputs, timer functions, and advanced torque management.

Installation and Configuration

The included quick start guide provides step-by-step instructions for installation. The guide is complemented by the full ECU manual and software on the CD or USB key, ensuring you have all the resources needed for a successful installation and configuration.
