Haltech Elite 2500 + Nissan Skyline R34 GT-T Stagea WC34 Plug n Play Adaptor Harness Kit HT-151358

Name: Haltech Elite 2500 + Nissan Skyline R34 GT-T Stagea WC34 Plug n Play Adaptor Harness Kit HT-151358
Brand: Haltech
SKU: HT-151358
Price: 3510.0 AUD
Availability: InStock

SKU: HT-151358 Barcode: 9356450012935

No reviews

$3,510.00

Product variants

Download Haltechs Quickstart Guide Here

Upgrade your Nissan Skyline R34 GT-T and Stagea WC34 with the Haltech Elite 2500 ECU and Plug 'n' Play Adaptor Harness Kit HT-151358. Designed for manual transmissions, this kit provides an effortless integration with your vehicle’s factory harness, offering enhanced performance and tuning capabilities.

Key Features

Plug 'n' Play Installation: The adaptor harness connects directly to the Haltech Elite ECU, with factory connectors that plug into the vehicle’s harness, ensuring a quick and seamless installation process.

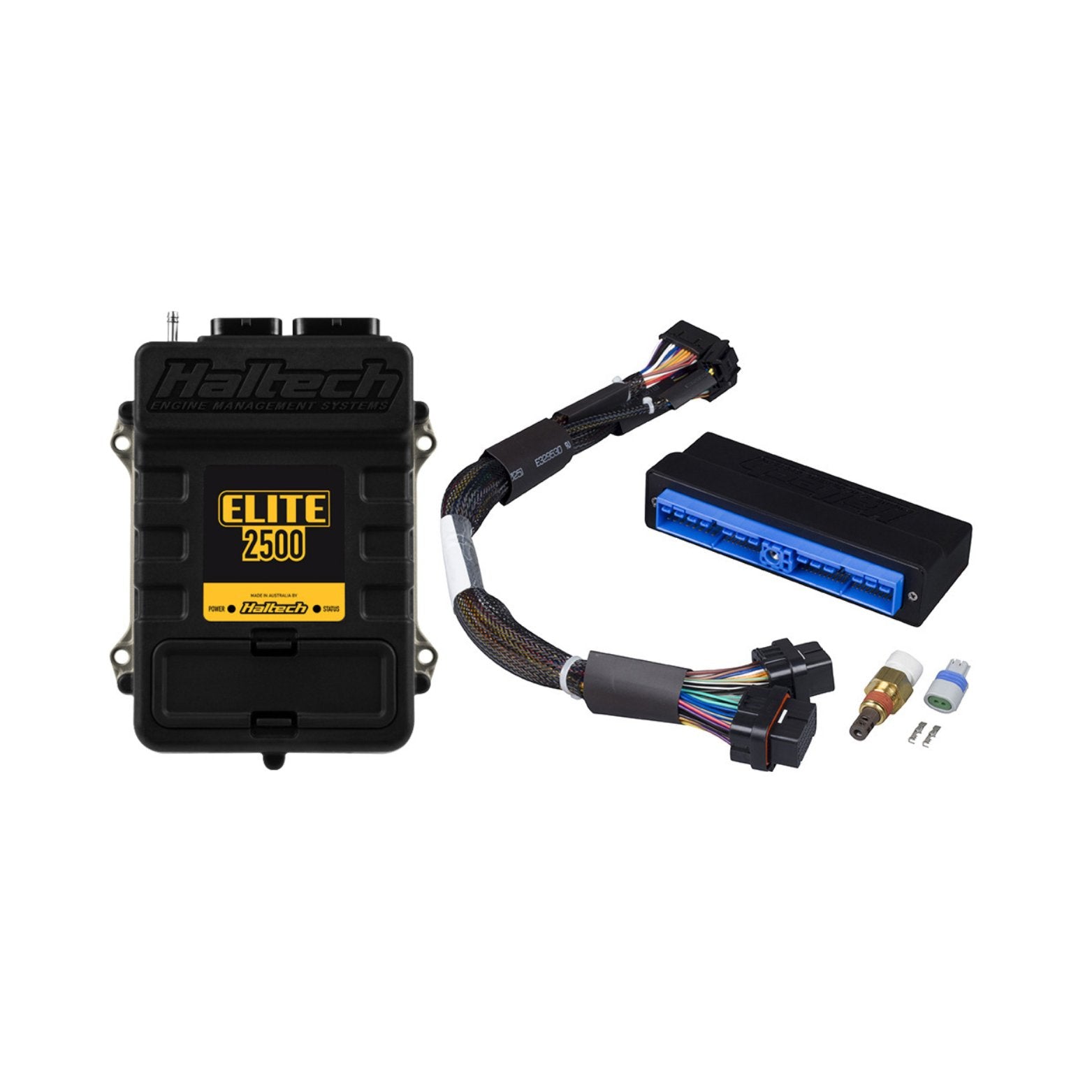

Comprehensive Kit: Includes the Elite 2500 ECU with Drive-By-Wire (DBW) and Race Functions, plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins, USB programming cable, and USB software key.
Robust Design: The Elite 2500 ECU features a durable, environmentally sealed water-resistant IP67-rated case, making it suitable for various conditions and applications.

Harness Overview

Simple Installation: The Haltech Plug 'n' Play product allows you to be up and running in just a few hours, connecting easily to the factory harness.
Comprehensive Guidance: The quick start guide provides step-by-step instructions for installation, accompanied by the full ECU manual and software on a CD or USB key.

ECU Overview

The Elite 2500 ECU is a powerful, two-connector, stand-alone unit ideal for late-model performance and racing applications. It supports 4, 6, 8-cylinder engines, DBW, and 2, 3, 4 rotor engines, EFI conversions, and engines with multiple variable camshafts. Paired with the new Nexus Software Programmer (NSP), it offers unparalleled functionality and user-friendliness.

Supports: 1 to 12 Cylinder engines, 2 to 4 Rotor engines, normally aspirated or forced induction.
Load Sensing: By Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Inputs/Outputs: 8 Fuel Injection Outputs, 8 Ignition Outputs, 12 Digital Outputs, 10 Analogue Voltage Inputs, 4 Synchronised Pulsed Inputs, 4 Dedicated inputs (Dual Knock, Ignition Switch & Onboard MAP Sensor), 2 Dedicated Engine Position Inputs with extensive trigger type support, up to 45 channels of I/O expansion via CAN, and USB Laptop communication.

Supported OEM Functionality

ATTESA AWD system
Throttle Position Sensor
Turbo Pressure Signal
Power Steering Switch
Tachometer
Engine Control Relay
Wastegate Solenoid
Check Engine Light
Idle Air Control
Coolant Temp
A/C Control
A/C Pressure
Cooling Fan
Vehicle Speed
Narrowband O2
Electrical Load Switch
Fuel Pump Voltage Control
Fuel Pump Relay Output
Knock Sensor 1 & 2
Mass Air Flow
VCT Solenoid

ECU Functions

Drive by Wire Throttle Control (DBW): Requires (2) user-defined outputs and (4) user-defined inputs.
Injector Control: Low Impedance Injector control with programmable peak and hold currents and peak time.
Flex Fuel Function: Direct sensor input for tuning engines boost, fuel, and ignition by ethanol content.
Flexible Tuning Setup: Suitable for Petrol (Gasoline), LPG, Methanol, and Ethanol.
Closed Loop O2 Control: Dual bank control for precise tuning (with optional external CAN O2 Wideband Controller Kit).
Dual Channel Knock Control: Synchronised to engine position with high-speed digital filtering for accurate detection.
Variable Cam Control: Independently controls up to 4 camshafts, requiring a minimum of 1 user-defined input and output per variable cam.
Closed Loop Idle Speed Control: Learning for consistent idle stability, requires 1 or 2 user-defined outputs (BAC type) or 4 user-defined outputs (Stepper motor type).
Long Term Learning (Auto Tune): On fuel, ignition, cam, boost, and idle control maps (up to 4D).
On-board Data Logging: Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory.
Laptop Data Logging: Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics.
Dual CAN Bus Communication: For Haltech Dashes and expansion devices, supported OEM CAN & OBDII.

Advanced Tuning

Tuning Table Resolution: Up to 32 x 32 x 8.
Limitless Tuning Flexibility: Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user-definable corrections.
Per Cylinder Tuning Correction: 3D.
Wideband O2: Connect up to 9 Channels via CAN expansion devices.
Thermocouples/EGT: Connect up to 12 Channels via external CAN expansion devices.
Engine Protection: Set advanced multi-level limits for sensors and protect your engine against common causes of failure.

Race Functions

Nitrous Control: Advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays and banked control options.
Boost Control: Intelligent 4D Closed loop, with learning, flexible user-definable axis, and 14 fully user-definable boost target and duty cycle corrections.
Sequential Turbo Control
CO2 Boost Control: Wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hard-core racer.
Flat Shift: Optimise shifting precision via a combination of inputs such as a clutch switch or strain gauge.
Shock Travel/Ride Height Inputs: Allow dynamic tuning and data logging to assist in chassis development and power delivery.
Timer Functions: Use the combination of the race timer and 5 additional programmable timers for time-based control of multiple engine parameters, power delivery, and other user-definable functions.
Trans Brake Function: Allows smooth and consistent control of start line staging (Bump or Creep).
Optional Upgrade - Advanced Torque Management: A fully integrated driveshaft RPM target race function that provides the ultimate control and consistency for the serious drag racer, eliminating the need for costly external controllers.
