Haltech Elite 2500 + V8 Small/Big Block GM Ford & Chrysler Terminated Harness Kit Download Haltechs Quickstart Guide

Name: Haltech Elite 2500 + V8 Small/Big Block GM Ford & Chrysler Terminated Harness Kit Download Haltechs Quickstart Guide
Brand: Haltech
SKU: HT-151376
Price: 4125.0 AUD
Availability: InStock

SKU: HT-151376 Barcode: 9356450013055

No reviews

$4,125.00

Product variants

Download Haltechs Quickstart Guide Here

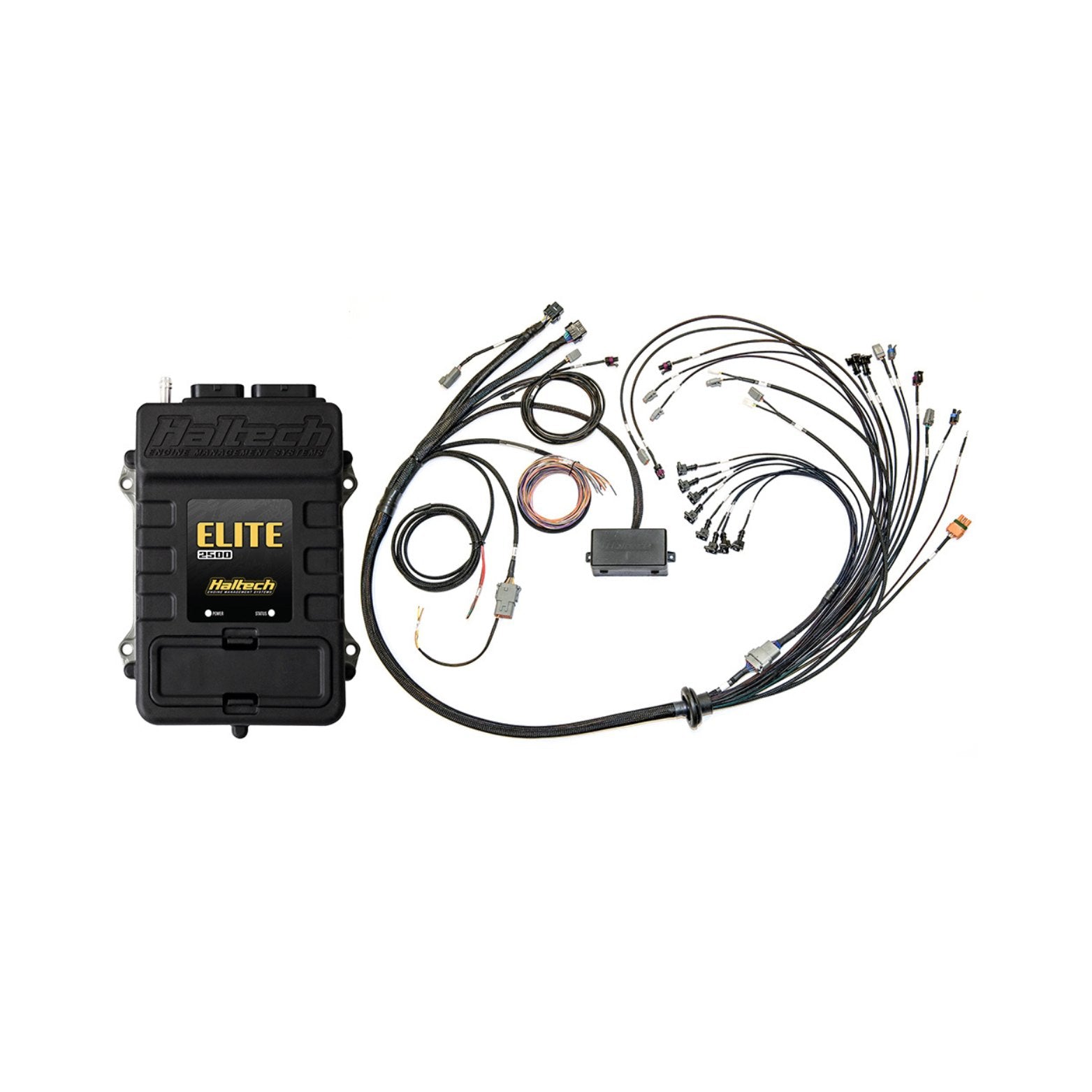

Upgrade your V8 GM Small/Big Block, V8 Ford Small/Big Block, or Chrysler HEMI engine with the Haltech Elite 2500 ECU and Terminated Harness Kit HT-151376. This comprehensive kit provides a seamless replacement for factory ECUs, offering advanced tuning capabilities and enhanced performance for your engine conversion or race car.

Key Features

Outputs: Up to 8 injectors and 8 ignition.
Compatibility: Suits V8 GM Small/Big Block, V8 Ford Small/Big Block, Chrysler HEMI.
Includes: Elite 2500 ECU with DBW and Race Functions, engine harness with fuse block, firewall grommet, and distributor/MSD ready ignition harness, USB programming cable, and USB Software Key.
Notes: 8 individual ignition coil ready (Direct fire) when used with HT-130306, HT-130311, HT-130312, or HT-130313.

Harness Overview

Efficient Installation: The fastest and most cost-effective way to wire your race car or engine conversion. Simply connect a handful of labeled wires and this Plug 'n' Play product allows you to be up and running in just a few hours.
User-Friendly Guide: The included quick start guide walks you through the installation process, and the full ECU manual and software on the USB key provide comprehensive instructions and support.

ECU Overview

The Elite 2500 ECU is a two-connector, stand-alone unit ideal for late-model performance and racing applications. It supports various engine configurations and provides advanced features for optimal tuning and performance.

Supports: 1 to 12 Cylinder engines, 2 to 4 Rotor engines, normally aspirated or forced induction.
Load Sensing: Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Inputs/Outputs: 8 Fuel Injection Outputs, 8 Ignition Outputs, 12 Digital Outputs, 10 Analogue Voltage Inputs, 4 Synchronised Pulsed Inputs, 4 Dedicated inputs (Dual Knock, Ignition Switch & Onboard MAP Sensor), 2 Dedicated Engine Position Inputs with extensive trigger type support, up to 45 channels of I/O expansion via CAN, and USB Laptop communication.

ECU Functions

Drive by Wire Throttle Control (DBW): Requires (2) user-defined outputs and (4) user-defined inputs.
Injector Control: Low Impedance Injector control with programmable peak and hold currents and peak time.
Flex Fuel Function: Direct sensor input for tuning engines' boost, fuel, and ignition by ethanol content.
Flexible Tuning Setup: Suitable for Petrol (Gasoline), LPG, Methanol, and Ethanol.
Closed Loop O2 Control: Dual bank control for precise tuning (with optional external CAN O2 Wideband Controller Kit).
Dual Channel Knock Control: Synchronised to engine position with high-speed digital filtering for accurate detection.
Variable Cam Control: Independently controls up to 4 camshafts, requiring a minimum of 1 user-defined input and output per variable cam.
Closed Loop Idle Speed Control: Learning for consistent idle stability, requires 1 or 2 user-defined outputs (BAC type) or 4 user-defined outputs (Stepper motor type).
Long Term Learning (Auto Tune): On fuel, ignition, cam, boost, and idle control maps (up to 4D).
On-board Data Logging: Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory.
Laptop Data Logging: Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics.
Dual CAN Bus Communication: For Haltech dashes and expansion devices, supported OEM CAN & OBDII.

Advanced Tuning

Tuning Table Resolution: Up to 32 x 32 x 8.
Limitless Tuning Flexibility: Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user-definable corrections.
Per Cylinder Tuning Correction: 3D.
Wideband O2: Connect up to 9 Channels via CAN expansion devices.
Thermocouples/EGT: Connect up to 12 Channels via external CAN expansion devices.
Engine Protection: Set advanced multi-level limits for sensors and protect your engine against common causes of failure.

Race Functions

Nitrous Control: Advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays and banked control options.
Boost Control: Intelligent 4D Closed loop, with learning, flexible user-definable axis, and 14 fully user-definable boost target and duty cycle corrections.
Sequential Turbo Control.
CO2 Boost Control: Wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hardcore racer.
Flat Shift: Optimise shifting precision via a combination of inputs such as a clutch switch or strain gauge.
Shock Travel/Ride Height Inputs: Allow dynamic tuning and data logging to assist in chassis development and power delivery.
Timer Functions: Use the combination of the race timer and 5 additional programmable timers for time-based control of multiple engine parameters, power delivery, and other user-definable functions.
Trans Brake Function: Allows smooth and consistent control of start line staging (Bump or Creep).
Optional Upgrade - Advanced Torque Management: A fully integrated driveshaft RPM target race function that provides the ultimate control and consistency for the serious drag racer, eliminating the need for costly external controllers.
