Haltech Elite 2500 + Toyota LandCruiser 80 Series Plug n Play Adaptor Harness Kit HT-151389

Name: Haltech Elite 2500 + Toyota LandCruiser 80 Series Plug n Play Adaptor Harness Kit HT-151389
Brand: Haltech
SKU: HT-151389
Price: 3510.0 AUD
Availability: InStock

SKU: HT-151389 Barcode: 9356450013062

No reviews

$3,510.00

Download Haltechs Quickstart Guide Here

Upgrade your MY95-97 Toyota LandCruiser 80 Series with the Haltech Elite 2500 ECU and Plug 'n' Play Adaptor Harness Kit HT-151389. This kit is designed specifically for vehicles with the 1FZ-FE engine and manual transmission, supporting the sub-tank transfer system. Please confirm your ECU pinout with Haltech for European models before ordering.

Key Features

Plug 'n' Play Installation: The adaptor harness includes factory connectors that plug directly into your existing harness, making installation straightforward and efficient.

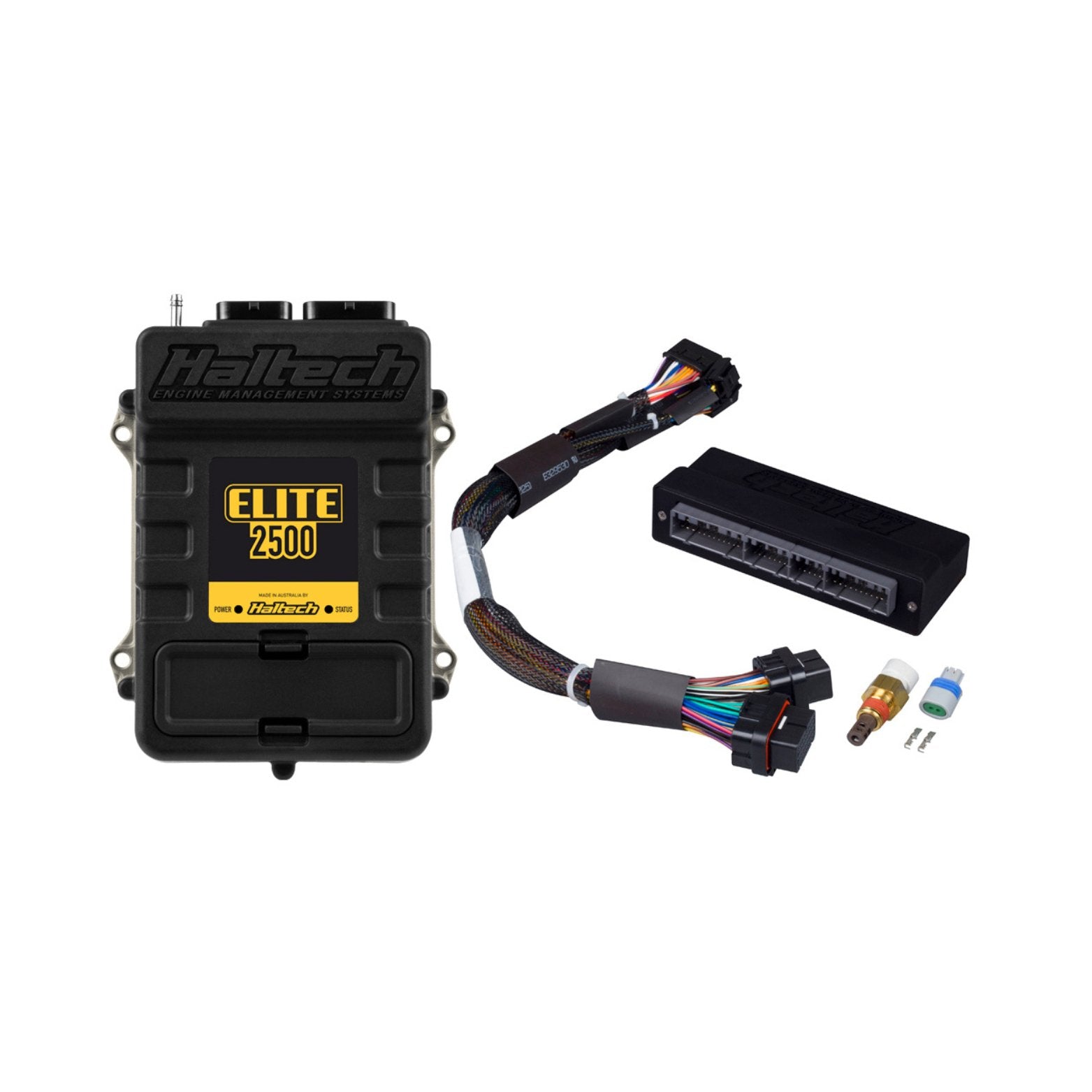

Comprehensive Kit: Includes Elite 2500 ECU with DBW and Race Functions, Plug'n'Play Adaptor Harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins, USB programming cable, and USB software key.
Versatile Ignition Options: Spare ignition outputs can be used (via custom wiring) to convert from distributor to direct fire ignition system with 6 individual coils.

Notes

System Compatibility: Installation of this Haltech product will prevent the factory TRC and ETCS systems from operating, and warning lights will illuminate on the dash cluster to indicate these systems are disabled. Removal of the TRC and ETCS warning bulbs from the dash cluster is recommended.

Harness Overview

Efficient Installation: Haltech's Plug 'n' Play adaptor kits connect directly to your Haltech ECU and factory harness, allowing you to get up and running in just a few hours.
User-Friendly Guide: The included quick start guide walks you through the installation process, and the full ECU manual and software on the USB key provide comprehensive instructions and support.

ECU Overview

The Elite 2500 ECU is a two-connector, stand-alone unit ideal for late-model performance and racing applications. It supports various engine configurations and provides advanced features for optimal tuning and performance.

Supports: 1 to 12 Cylinder engines, 2 to 4 Rotor engines, normally aspirated or forced induction.
Load Sensing: Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Inputs/Outputs: 8 Fuel Injection Outputs, 8 Ignition Outputs, 12 Digital Outputs, 10 Analogue Voltage Inputs, 4 Synchronised Pulsed Inputs, 4 Dedicated inputs (Dual Knock, Ignition Switch & Onboard MAP Sensor), 2 Dedicated Engine Position Inputs with extensive trigger type support, up to 45 channels of I/O expansion via CAN, and USB Laptop communication.

ECU Functions

Drive by Wire Throttle Control (DBW): Requires (2) user-defined outputs and (4) user-defined inputs.
Injector Control: Low Impedance Injector control with programmable peak and hold currents and peak time.
Flex Fuel Function: Direct sensor input for tuning engines' boost, fuel, and ignition by ethanol content.
Flexible Tuning Setup: Suitable for Petrol (Gasoline), LPG, Methanol, and Ethanol.
Closed Loop O2 Control: Dual bank control for precise tuning (with optional external CAN O2 Wideband Controller Kit).
Dual Channel Knock Control: Synchronised to engine position with high-speed digital filtering for accurate detection.
Variable Cam Control: Independently controls up to 4 camshafts, requiring a minimum of 1 user-defined input and output per variable cam.
Closed Loop Idle Speed Control: Learning for consistent idle stability, requires 1 or 2 user-defined outputs (BAC type) or 4 user-defined outputs (Stepper motor type).
Long Term Learning (Auto Tune): On fuel, ignition, cam, boost, and idle control maps (up to 4D).
On-board Data Logging: Up to 40 channels of logging at sample rates up to 5ms (200Hz) with 2MB of internal memory.
Laptop Data Logging: Data log all available channels directly to your laptop's hard drive for both tuning and diagnostics.
Dual CAN Bus Communication: For Haltech dashes and expansion devices, supported OEM CAN & OBDII.

Advanced Tuning

Tuning Table Resolution: Up to 32 x 32 x 8.
Limitless Tuning Flexibility: Tune your engine by a combination of 4D tuning tables combined with 3D per cylinder compensations and multiple user-definable corrections.
Per Cylinder Tuning Correction: 3D.
Wideband O2: Connect up to 9 Channels via CAN expansion devices.
Thermocouples/EGT: Connect up to 12 Channels via external CAN expansion devices.
Engine Protection: Set advanced multi-level limits for sensors and protect your engine against common causes of failure.

Race Functions

Nitrous Control: Advanced programming of up to 6 stages of wet or dry nitrous kits with on/off delays and banked control options.
Boost Control: Intelligent 4D Closed loop, with learning, flexible user-definable axis, and 14 fully user-definable boost target and duty cycle corrections.
Sequential Turbo Control.
CO2 Boost Control: Wastegate pressure and position, intake air bleed control (charge pipe wastegate) functionality for the hardcore racer.
Flat Shift: Optimise shifting precision via a combination of inputs such as a clutch switch or strain gauge.
Shock Travel/Ride Height Inputs: Allow dynamic tuning and data logging to assist in chassis development and power delivery.
Timer Functions: Use the combination of the race timer and 5 additional programmable timers for time-based control of multiple engine parameters, power delivery, and other user-definable functions.
Trans Brake Function: Allows smooth and consistent control of start line staging (Bump or Creep).
Optional Upgrade - Advanced Torque Management: A fully integrated driveshaft RPM target race function that provides the ultimate control and consistency for the serious drag racer, eliminating the need for costly external controllers.
