Haltech Elite 2500 + Nissan Patrol Y60 Y61 TB45 Plug n Play Adaptor Harness Kit HT-151398

Name: Haltech Elite 2500 + Nissan Patrol Y60 Y61 TB45 Plug n Play Adaptor Harness Kit HT-151398
Brand: Haltech
SKU: HT-151398
Price: 3510.0 AUD
Availability: InStock

SKU: HT-151398 Barcode: 9356450013109

No reviews

$3,510.00

Product variants

Download Haltechs Quickstart Guide Here

Upgrade your Nissan Patrol Y60 or Y61 with the Haltech Elite 2500 ECU and Plug 'n' Play Adaptor Harness Kit HT-151398 for an effortless performance enhancement. This kit offers a seamless integration, replacing the factory ECU with ease, making it suitable for both automatic and manual transmissions (TB45E engines only).

Key Features

Plug 'n' Play Installation: The adaptor kit connects directly to the factory harness, ensuring a straightforward installation process.

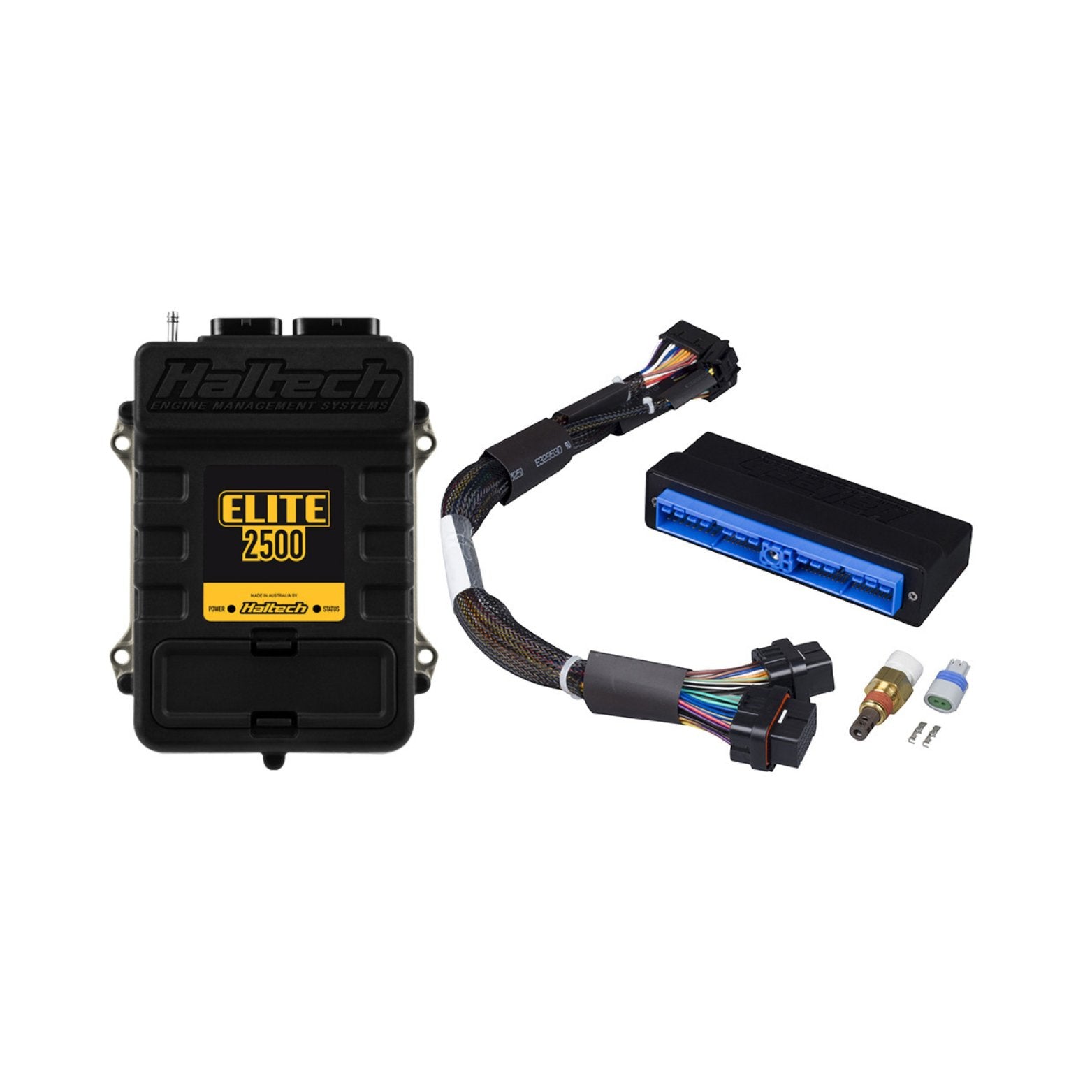

Comprehensive Kit: Includes Elite 2500 ECU with DBW and Race Functions, injection molded plastic plug 'n' play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin TYCO plug and pins, USB programming cable, and USB software key.
Advanced ECU Functions: Features drive-by-wire (DBW) throttle control, dual-channel knock control, variable cam control, anti-lag/rotational idle, rolling anti-lag, launch control, and traction control.
Flexible and Customizable: Supports 1 to 12 cylinder engines and 2 to 4 rotor engines, providing extensive tuning flexibility with 4D tuning tables, per cylinder tuning correction, and wideband O2 control.
Durable Construction: The ECU is housed in a robust, environmentally sealed, water-resistant IP67-rated case.
Direct Fire Ignition: Spare ignition outputs can be utilized (via custom wiring) to convert from distributor to a direct fire ignition system with 6 individual coils.

Suitability

Vehicle Compatibility: Specifically designed for plug 'n' play replacement of the factory ECU in Nissan Patrol/Safari Y60 and Y61 models with TB45E engines. Suitable for both automatic and manual transmissions.
Important Note: Ensure your alternator connector matches the kit's specifications. Order alternator adaptors HT-040090 or HT-040091 if required. LS2 ignition coils and harnesses are not included and must be purchased separately.

ECU Overview

The Elite 2500 ECU is a powerful, two-connector, stand-alone unit ideal for late-model performance and racing applications. It is suitable for 4, 6, 8-cylinder engines, drive-by-wire (DBW), and 2, 3, 4 rotor engines. With the Nexus Software Programmer (NSP), it offers unmatched user-friendliness and functionality.

Supports: 1 to 12 Cylinder engines, 2 to 4 Rotor engines, normally aspirated or forced induction.
Load Sensing: By Throttle Position (TPS), Manifold Absolute Pressure (MAP), or Mass Air Flow (MAF).
Connections: Compatible with a wide range of display dashes and expansion devices via CAN.
Waterproof Case: Ensures durability in various environments with a pocket cover fitted.
Inputs/Outputs: 8 Fuel Injection Outputs, 8 Ignition Outputs, 12 Digital Outputs, 10 Analogue Voltage Inputs, 4 Synchronised Pulsed Inputs, 4 Dedicated inputs (Dual Knock, Ignition Switch & Onboard MAP Sensor), 2 Dedicated Engine Position Inputs with extensive trigger type support, up to 45 channels of I/O expansion via CAN, and USB Laptop communication.

Harness Features

Seamless Installation: The harness allows for quick and easy connection to your vehicle, enabling you to be up and running in just a few hours.
Comprehensive Support: The quick start guide and the full ECU manual and software (provided on a CD or USB key) guide you through the installation and configuration process.
Limitless Tuning: When paired with the Haltech Elite ECU, the harness unlocks extensive performance modification and tuning capabilities.

Advanced Tuning and Race Functions

Advanced Tuning: Offers resolutions up to 32 x 32 x 8, with limitless flexibility through 4D tuning tables, multiple user-definable corrections, and wideband O2 control.
Race Functions: Includes nitrous control, boost control, sequential turbo control, CO2 boost control, flat shift, shock travel/ride height inputs, timer functions, and advanced torque management.

Installation and Configuration

The included quick start guide provides step-by-step instructions for installation. The guide is complemented by the full ECU manual and software on the CD or USB key, ensuring you have all the resources needed for a successful installation and configuration.
