Haltech Elite PRO Plug-in ECU Ford Falcon I6 Barra HT-154000

SKU: HT-154000 Barcode: 9356450007443
Regular price $3,855.00

Download Haltechs Quickstart Guide Here

Download Haltechs Spec Sheet Here

SUITS

  • Ford Falcon BA (02-05): I6 4.0L DOHC VCT Barra engine with manual transmission.
  • Ford Falcon BF (05-08): I6 4.0L DOHC VCT Barra engine with manual or ZF 6HP26 6-speed automatic transmission.
  • Ford Falcon FG (08-14): I6 4.0L DOHC VCT Barra engine with manual or ZF 6HP26 6-speed automatic transmission.
  • Applicable for both naturally aspirated and turbocharged variants.

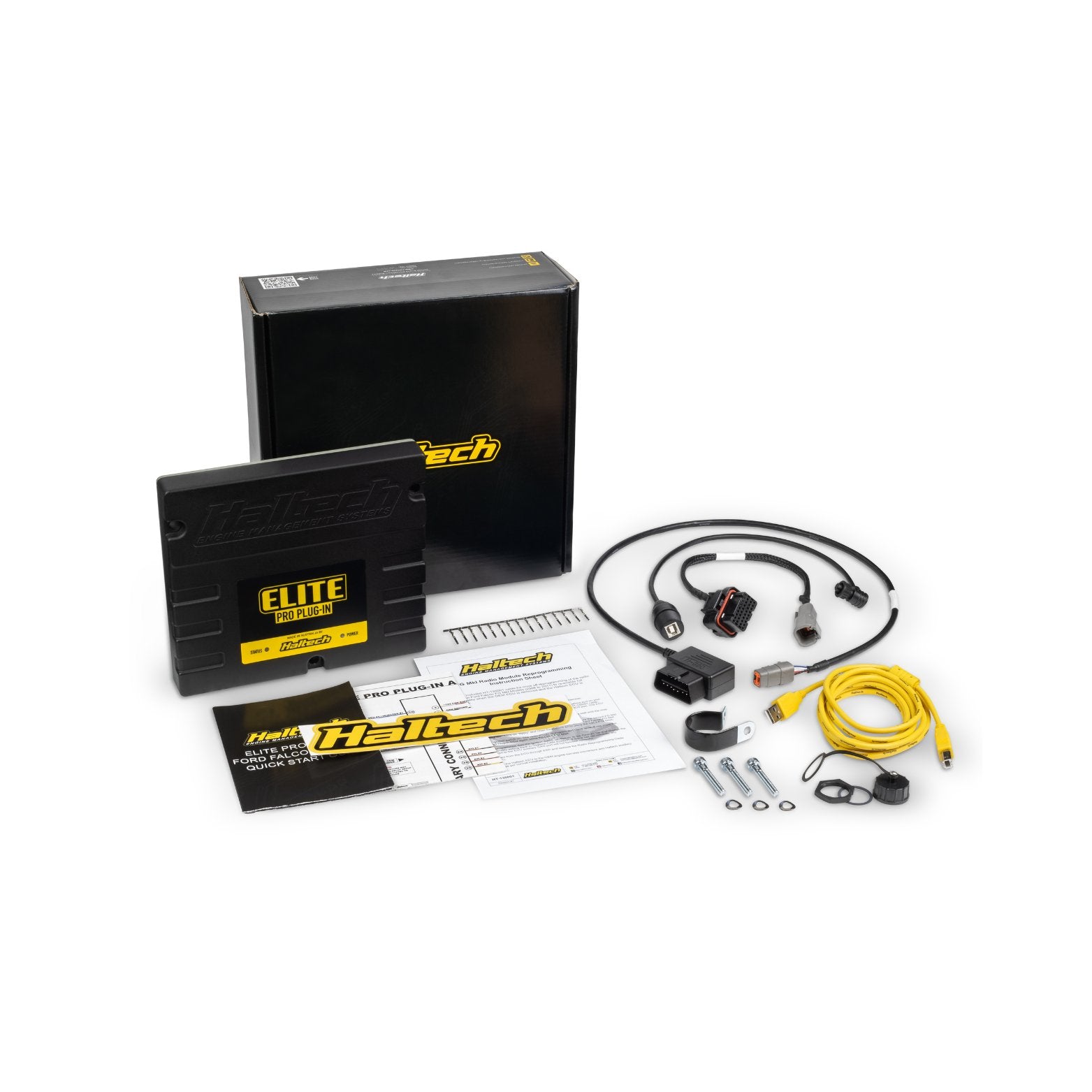

INCLUDES

  • Elite PRO Plug-in ECU
  • 400mm (16") Waterproof USB Connection Cable: Type B to Mini Circular with waterproof cap.
  • Auxiliary AMP 34 Pin Superseal Connector: With Elite CAN DTM-4 female receptacle/socket.
  • 30 Waterproofing/Blanking Pins and 10 Spare Pins to populate auxiliary I/O positions.
  • ESP Software: Provided on a USB key.

ECU OVERVIEW

The Haltech Elite PRO Plug-in ECU is a true Plug'n'Play upgrade option for Ford Falcon BA and BF models. It connects directly to the factory wiring harness and fits perfectly in the factory ECU location. The Elite PRO Plug-in ECU features an on-board wideband controller and sophisticated race functions, making it one of Haltech's most advanced ECUs to date.

Key features include:

  • Performance-oriented functions: closed loop boost control, anti-lag, and launch control.
  • Learning capabilities: short and long term learning for fuel, ignition, boost, and idle.
  • Control of factory functions: variable cam control, cruise control, dash cluster, and 6-speed automatic transmission.
  • Robust design: die-cast aluminum, water-resistant case.
  • Flex-fuel ready: supports multi-fuel configurations like petrol, methanol, and ethanol.
  • OBDII compatible: enables setting and clearing diagnostic trouble codes and viewing live engine data.

ECU OUTPUTS

  • 6 x Current Controlled Injector Drivers: Compatible with both high or low impedance injectors.
  • 8 x Additional Injector Outputs: For staged injection; unused outputs can be repurposed as generic programmable DPOs.
  • 6 x Ignition Outputs: Direct support for OEM Ford coils.
  • Digital Pulsed Outputs: As per OEM specifications.
  • Drive By Wire (DBW) Output: Compatible with any throttle body and pedal, including Ford OEM.

ECU INPUTS

  • Analogue Voltage Inputs (AVI): As per OEM specifications.
  • 4 x Additional User-Definable AVIs: Available on the auxiliary connector.
  • Digital Pulsed Inputs (DPI): As per OEM specifications.
  • 4 x Additional User-Definable DPIs: Used for measuring duty cycle, frequency, or state.
  • Engine Position Inputs: As per OEM, supporting Ford Barra trigger pattern and alternate generic triggers.
  • Knock Inputs: As per OEM specifications.

ECU COMMUNICATION

  • 2 x CAN Bus Communication: Haltech CAN (via auxiliary connector) and Vehicle CAN.
  • 1 x Circular Mini Connector: For USB programming.

ECU DATA LOGGING

  • On-Board Data Logging: Up to 40 channels.
  • 2MB Internal Storage: For data logging.

The Haltech Elite PRO Plug-in ECU provides a seamless upgrade for Ford Falcon BA, BF, and FG models, delivering advanced performance and control features that meet the demands of both daily driving and high-performance racing applications.
