Haltech Elite PRO Plug-in ECU Ford Falcon i6 Barra + Onboard Wideband Sensor Kit HT-154006

Name: Haltech Elite PRO Plug-in ECU Ford Falcon i6 Barra + Onboard Wideband Sensor Kit HT-154006
Brand: Haltech
SKU: HT-154006
Price: 4110.0 AUD
Availability: InStock

SKU: HT-154006 Barcode: 9356450007467

No reviews

$4,110.00

Download Haltechs Quickstart Guide Here

Download Haltechs Spec Sheet Here

SUITS

Ford Falcon BA (02-05): I6 4.0L DOHC VCT Barra engine with manual transmission.
Ford Falcon BF (05-08): I6 4.0L DOHC VCT Barra engine with manual or ZF 6HP26 6-speed automatic transmission.
Ford Falcon FG (08-14): I6 4.0L DOHC VCT Barra engine with manual or ZF 6HP26 6-speed automatic transmission.
Applicable for both naturally aspirated and turbocharged variants.

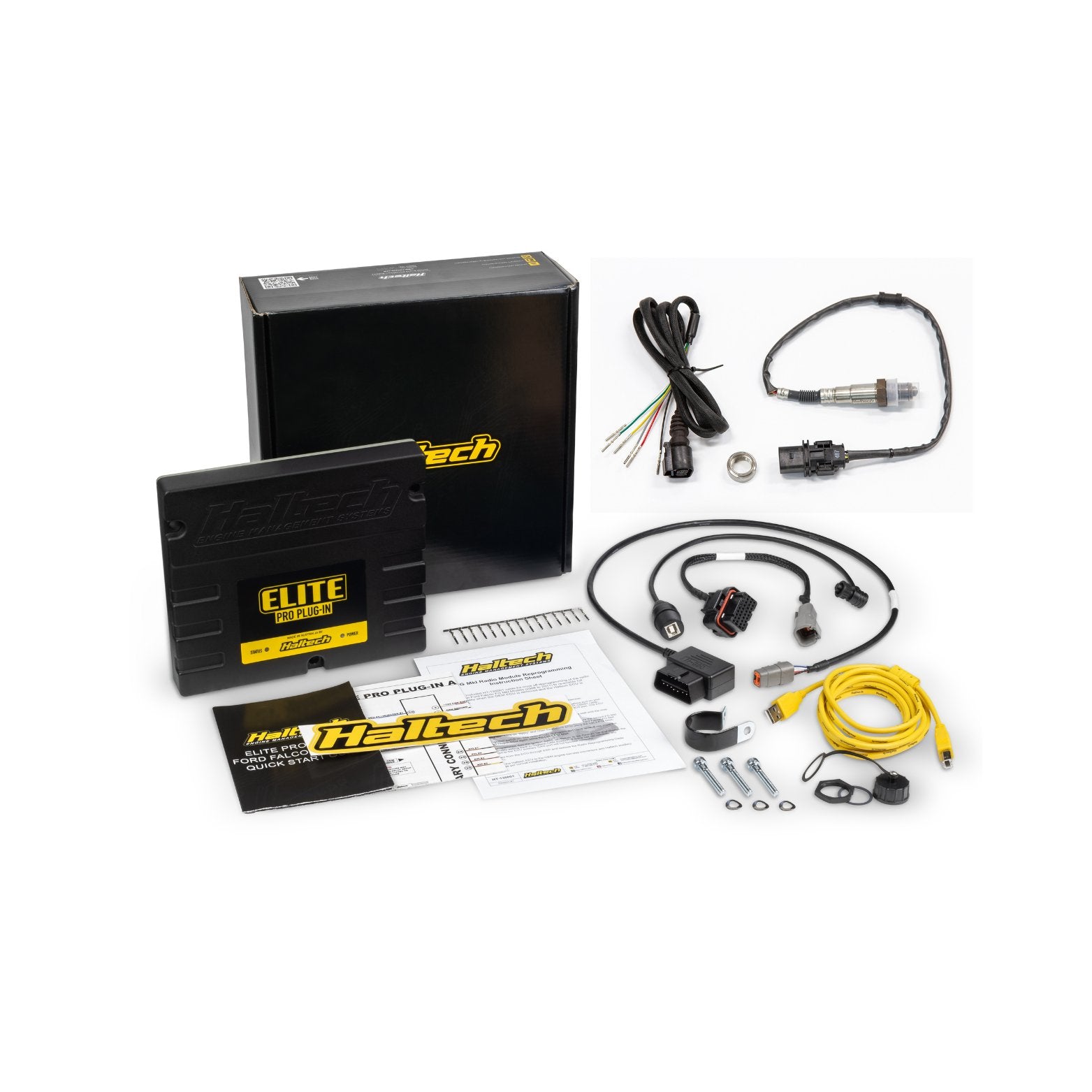

INCLUDES

Elite PRO Plug-in ECU
Auxiliary I/O Harness: With AMP 34 Pin 4 row 4 keyway superseal connector.
300mm (12") Elite CAN DTM-4 Female Receptacle/Socket
30 Waterproofing/Blanking Pins and 10 Spare Pins: To populate auxiliary I/O positions.
Wideband Hardware Pack: Includes LSU 4.9 sensor, 1.2m (4') harness, and weld-on sensor bung.
400mm (16") Waterproof USB Connection Cable: Type B to Mini Circular (90°) with waterproof cap.

ECU OVERVIEW

Haltech's Elite Pro Plug-in ECU offers a true Plug'n'Play upgrade option for Ford Falcon BA, BF, and FG models. It connects directly to the factory wiring harness and fits perfectly in the factory ECU location. This ECU features an on-board wideband controller and sophisticated race functions, making it one of Haltech's most advanced ECUs. Key performance-oriented features include closed loop boost control, anti-lag, and launch control. The ECU also supports all factory functions including variable cam control, cruise control, dash cluster, and 6-speed automatic transmission.

Key features:

Die Cast Aluminium, Water Resistant Case
On-Board Automatic Transmission Control: Via CAN for ZF 6HP26.
E85 Flex Fuel Ready: Multi-fuel support for petrol, methanol, and ethanol.
Internal Single Channel Wideband: Supports LSU4.9 sensor.
Variable Cam Control: Supports variable cam timing.
Cruise Control: Compatible with factory systems.
OBDII Compatible: Enables setting and clearing diagnostic trouble codes and viewing live engine data.
Learning Capabilities: Short and long term learning for fuel, ignition, boost, and idle control.
Knock Control: With high-speed digital filtering.
Closed Loop Boost Control: Tune by gear, wheel speed, or time.
Closed Loop Idle Control: With learning for consistent idle stability.
Closed Loop O2 Control
Anti-Lag and Launch Control: With drag and rally modes.
Multi-Level Engine Protection
ESP Calibration Software: Intuitive and easy to use, offering limitless tuning flexibility with 4D tuning tables, 3D per cylinder compensations, and multiple user-definable corrections.

ECU OUTPUTS

6 x Current Controlled Injector Drivers: Compatible with both high and low impedance injectors.
8 x Additional Injector Outputs: For staged injection; unused staged injector outputs can be used as generic programmable DPOs.
6 x Ignition Outputs: To support OEM Ford coils directly.
Digital Pulsed Outputs: As per OEM specifications.
Drive By Wire (DBW) Output: Suits any throttle body and pedal, including Ford OEM.

ECU INPUTS

Analogue Voltage Inputs (AVI): As per OEM specifications.
4 x Additional User-Definable AVIs: Available on the auxiliary connector.
Digital Pulsed Inputs (DPI): As per OEM specifications.
4 x Additional User-Definable DPIs: Used for measuring duty cycle, frequency, or state.
Engine Position Inputs: As per OEM, supports Ford Barra trigger pattern with alternate generic trigger support.
Knock Inputs: As per OEM specifications.

ECU COMMUNICATION

2 x CAN Bus Communication: Haltech CAN (via auxiliary connector) and Vehicle CAN.
1 x Circular Mini Connector: For USB programming.

ECU DATA LOGGING

On-Board Data Logging: Up to 40 channels with 2MB internal storage.

This Haltech Elite PRO Plug-in ECU with an onboard wideband sensor kit is designed to provide a seamless and advanced upgrade for Ford Falcon BA, BF, and FG models, enhancing performance and functionality for both street and racing applications.
