Unleash Superior Control and Efficiency in Your GM LSx Engine

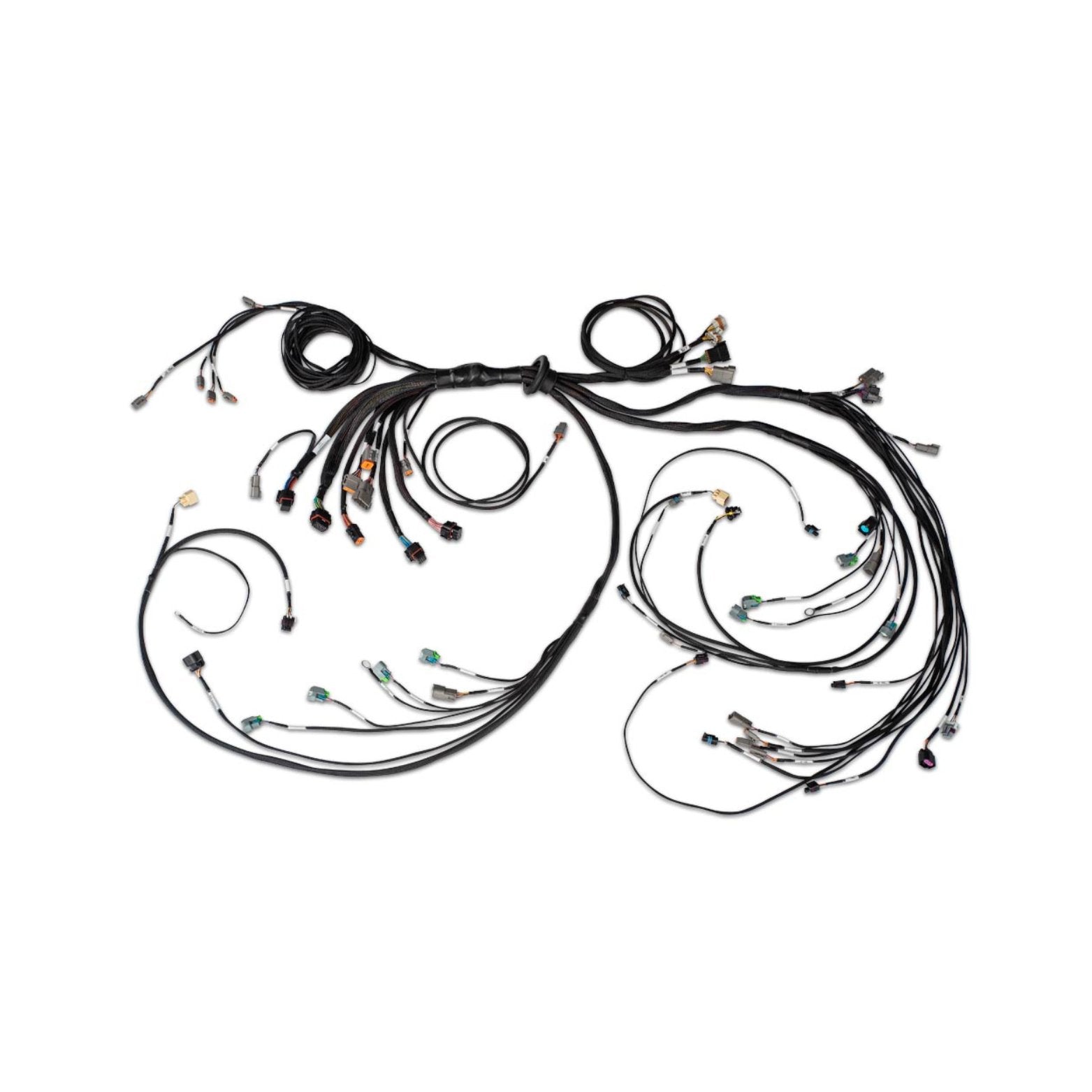

Optimize your GM LSx engine with the Haltech Nexus R5 LSx DBW Terminated Harness, meticulously engineered for vehicles with Drive-By-Wire (DBW) throttle systems requiring comprehensive rewiring and advanced PDM functionality. This harness facilitates seamless integration with OEM setups, ensuring reliability and performance enhancements directly out of the box.
Key Features:
-
DBW Compatibility: Specifically designed for LSx engines with DBW systems.
-
Plug and Play: Effortlessly connects with the OEM 7 Pin Coil Harness Connector and ignition sub-harnesses, streamlining installation.
-
Comprehensive Inclusions:
-
Terminated Harness (HT-186205): Pre-wired for immediate setup.
-
Connectivity Kits: Includes DTM/DT connector and pin set, DTP-2 connectors, DT-8 connector, and alternator adaptors (Bosch, Yazaki, Delco).
-
Injector Support: Configured for EV6 primary and secondary injectors, with provisions for tertiary injection systems.
-
Engine and Cabin Breakouts: Dedicated connectors for engine bay and in-cabin applications including transmission and PDM outputs like headlights and wipers.
-
Advanced Controls:
- Dual wideband sensor control via the onboard R5 controller.
- Flex fuel sensor, direct fuel pump, and thermofan controls for comprehensive engine management.
Harness Capabilities:
-
Power Distribution Module Integration: Simplifies electrical systems by integrating control of power-hungry devices, reducing wiring complexity and enhancing reliability.
-
Sensor and Solenoid Connections: Facilitate connections to a wide range of sensors and solenoids, ensuring full functionality and control over the engine's operating parameters.
Performance Enhancement: This harness not only simplifies your vehicle’s electrical architecture but also enhances engine response and efficiency. It's designed to work seamlessly with Haltech's Nexus R5 VCU, offering a sophisticated network of engine control, diagnostics, and monitoring capabilities.
Installation Ease: With clearly labeled wires and comprehensive wiring diagrams, installation is straightforward. The inclusion of pre-crimped connectors and adaptors ensures a professional setup without the need for specialized tools.
