Download Haltechs Quickstart Guide Here

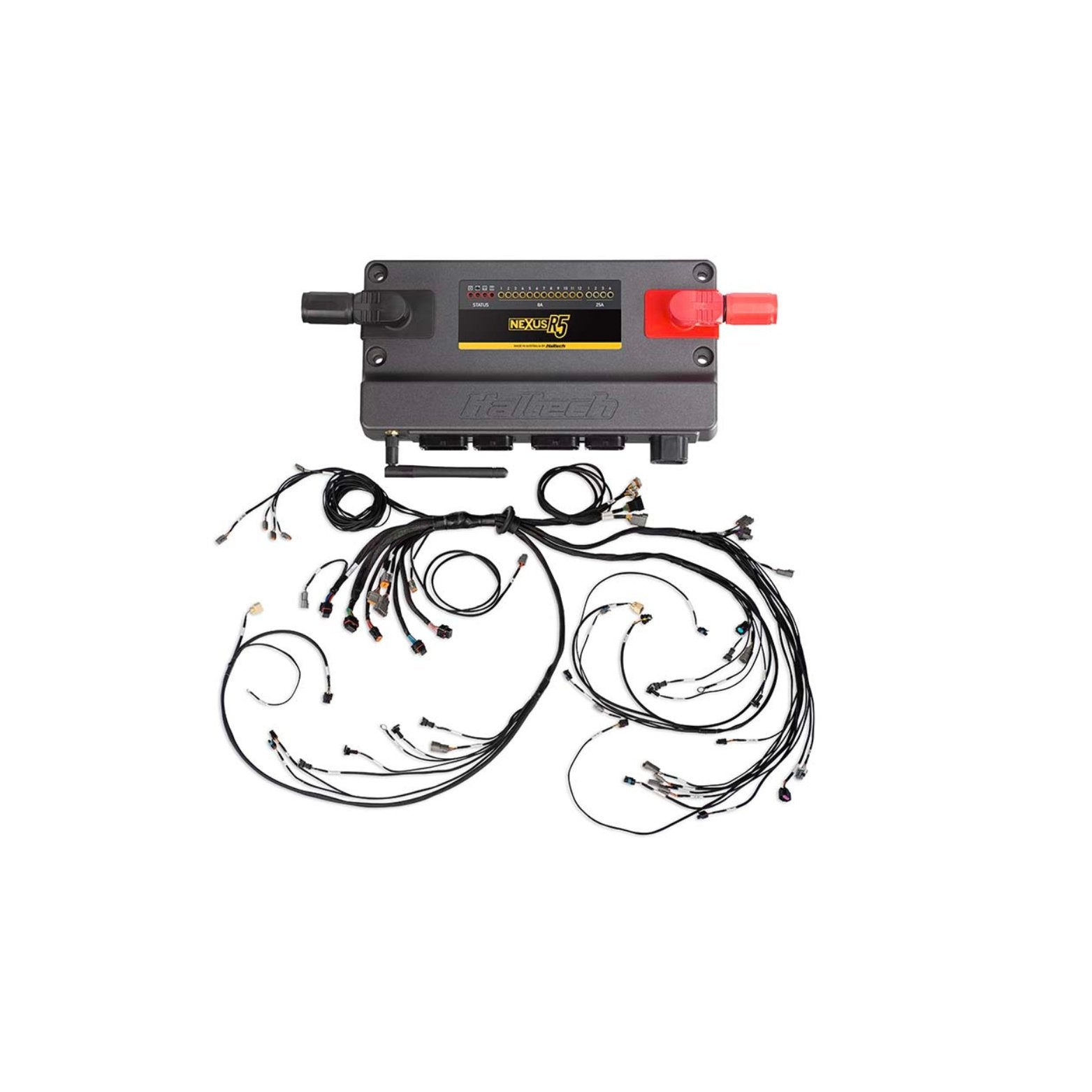

Maximize your vehicle's performance with the Haltech Nexus R5 + LSx non-DBW Terminated Harness HT-195406. This comprehensive kit combines the powerful Nexus R5 Vehicle Control Unit (VCU) with a high-quality terminated harness specifically designed for LSx engines without Drive-By-Wire (DBW) systems. Ideal for high-performance applications, this kit provides advanced race features, data logging, and power management control.
Nexus R5 VCU Overview:
The Nexus R5 VCU integrates multiple functionalities into a single unit, offering:
-
Powerful Outputs:
- Multiple high-current and low-current outputs for comprehensive control over engine components.
-
Advanced Inputs:
- Numerous analog and digital inputs for precise monitoring and control.
-
Integrated Controllers:
- On-board wideband controller and MAP sensor for accurate data acquisition.
-
Connectivity:
- Multiple CAN ports, on-board Wi-Fi, and extensive data logging capabilities.
VCU Features:
- Controlled via NSP (Nexus Software Programmer)
- Advanced features including Long Term Learning, Stepper Motor Control, Closed Loop Boost Control, Rotational Idle, Launch Control, Traction Control, Anti-Lag, Dual Knock Control, Trans Brake Control, Race Timer, Multi Stage Fuel Injection, Multi-level Engine Protection, Nitrous Control, Variable Cam Control, Intake Air Bleed Control, Flat Shift Control, Shock Travel & Ride Height Control, Advanced Torque Management.
Harness Overview:
The LSx non-DBW terminated harness is designed for easy and reliable installation, providing all necessary connections for LSx engines without DBW systems. This harness is color-coded and clearly labeled, ensuring a straightforward setup process.
-
High-Quality Construction: Durable materials and connectors for long-lasting performance.
-
Color-Coded and Labeled Wires: Simplifies the installation process, reducing the risk of errors.
-
Pre-Terminated Ends: Ensures secure and reliable connections.
Includes:
- Nexus R5 VCU
- LSx non-DBW Terminated Harness
- SurLok connectors (Red and Black)
- Wi-Fi antenna
- Mounting bolts
- USB-C Cable
- USB-C dust cap
- USB drive with NSP Software
Suits:
- LSx engines without Drive-By-Wire (DBW) systems
