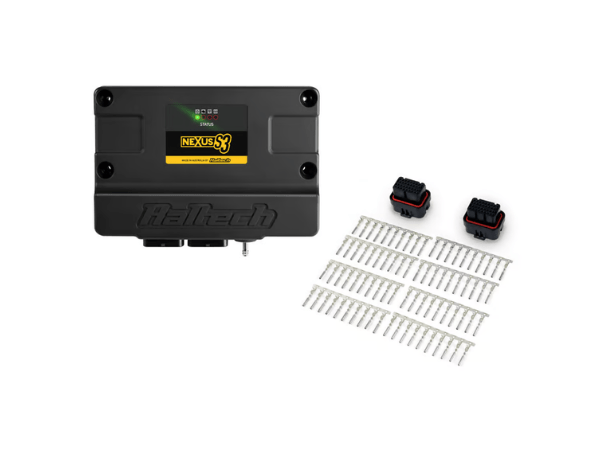

Haltech Nexus S3 ECU + Plug and Pin Set HT-213100

SKU: HT-213100
Price
$3,159
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

Download Haltechs Quickstart Guide Here

Download Haltechs Wiring Diagram Here

The Haltech Nexus S3 ECU delivers next-generation engine control, combining elite-level performance with the smart integration of Haltech’s Nexus technology. Designed for high-powered builds with up to 8 cylinders or 4 rotors, the S3 is ideal for motorsport and advanced street applications demanding precision, reliability, and full-featured tuning.

This version includes a 34-pin Key 2 Superseal plug and pin set, giving you the connectivity needed to wire your Nexus S3 right out of the box. Whether you're building a custom loom or integrating into an existing setup, the included connector ensures compatibility with Haltech Nexus products that use the Key 2/34-position connector.

Included in the box:

  • Haltech Nexus S3 ECU

  • 34-Pin (Key 2) Superseal Plug and Pin Set

  • USB-C Cable and Dust Cap

  • 4x Mounting Bolts

  • Quick Start Guide

  • Wiring Diagram

Hardware Highlights:

  • 8x Peak & Hold Injector Drivers (low side drive capable)

  • 8x Low Current Ignition Outputs

  • 6x PWM-Capable Low Side Outputs

  • 4x Half-Bridge Outputs for DBW, solenoids, etc.

  • Onboard Wideband Controller (NTK & LSU4.9 compatible)

  • 4-Bar MAP Sensor built-in

  • 11x 0-5V Analog Inputs

  • Dual CAN Ports with switchable termination

  • Onboard Wi-Fi and 128MB internal datalogging

Advanced Features via NSP Software:

  • Launch Control, Traction Control, Anti-Lag

  • 4D Boost Control, Multi-stage Nitrous, Rotational Idle

  • Flat Shift, Race Timer, Torque Management

  • Dual Knock Control, Engine Protection, Cam Control

  • Automatic Transmission Support: GM 4L60E/4L80E, Ford AODE/4R70W, Toyota A340E, Lenco, Liberty

The Nexus S3 is the go-to solution for tuners and racers looking to take full control of their vehicle’s performance with confidence and ease.
