Haltech uC-10 Digital Dash HT-068000

Price
$2,950
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

Download Haltechs Quickstart Guide Here

Download Haltechs Wiring Diagram Here

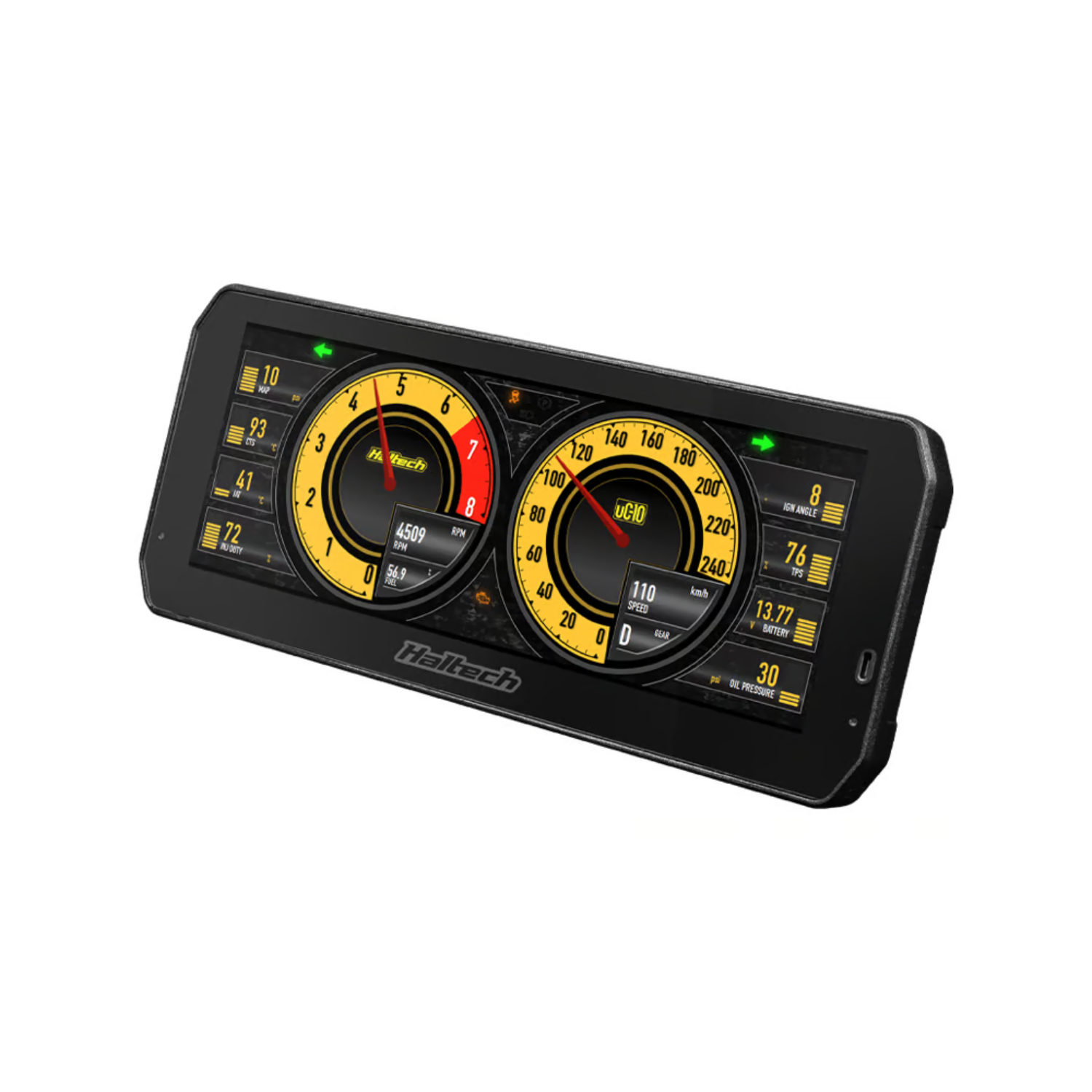

Haltech uC-10 Digital Dash – 10” Fully Customisable Display Dash

Take complete control of your vehicle’s data display with the Haltech uC-10 Digital Dash (HT-068000). Featuring a vibrant 10-inch full-colour TFT screen, the uC-10 delivers exceptional clarity and visibility from any angle. Fully customisable through Haltech’s NSP software, you can design and configure unique layouts, arrange gauges, and choose the exact data you want to see — all in real time.

Built for flexibility, the uC-10 integrates seamlessly with Haltech CAN, OBD2, and a wide range of aftermarket ECUs, or it can function as a complete stand-alone unit. With extensive I/O options, on-board data logging, and durable IP64 construction, the uC-10 is designed for both street and race applications.

Key Features:

  • Full-colour 10” TFT display (1280 × 480 resolution, 600+ lumens) with a 70° viewing angle.

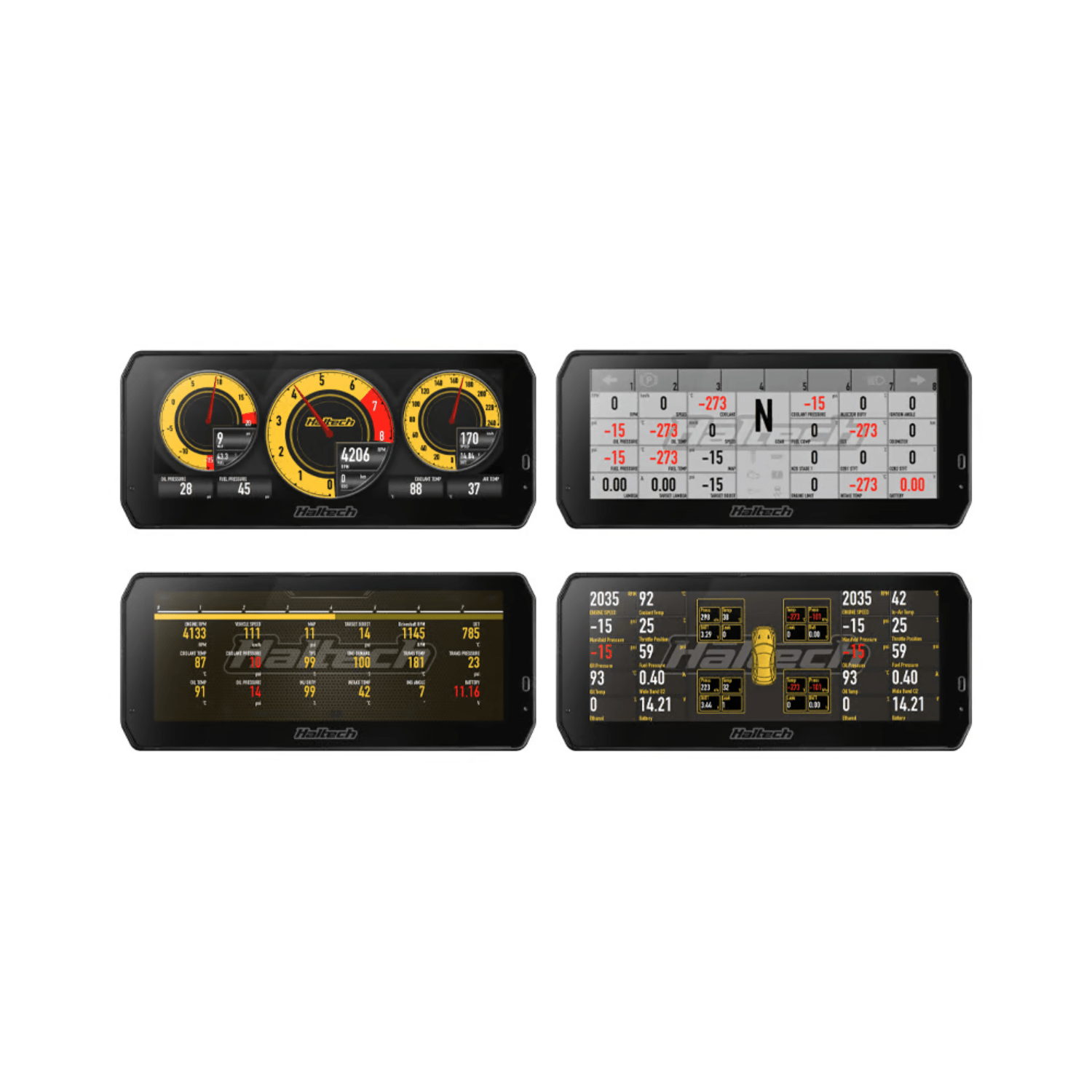

  • Fully customisable layouts via Haltech NSP software.

  • 512 MB on-board looped data logging and 6-digit odometer.

  • Wide compatibility: Haltech CAN, OBD2, and Plug’n’Play with Hondata, Link G4, MaxxECU, Microtech, MoTeC M1, MoTeC Hundred Series (M400/600/800), and Syvecs.

  • Inputs & Outputs: 10 × Analogue Voltage Inputs, 4 × Digital Pulsed Outputs, 4 × Switched Pulsed Inputs, dedicated Tacho and Alternator Excite.

  • Sensors: Dual ambient light sensors for automatic screen brightness.

  • Protection: IP64 dust-tight and splash-resistant housing.

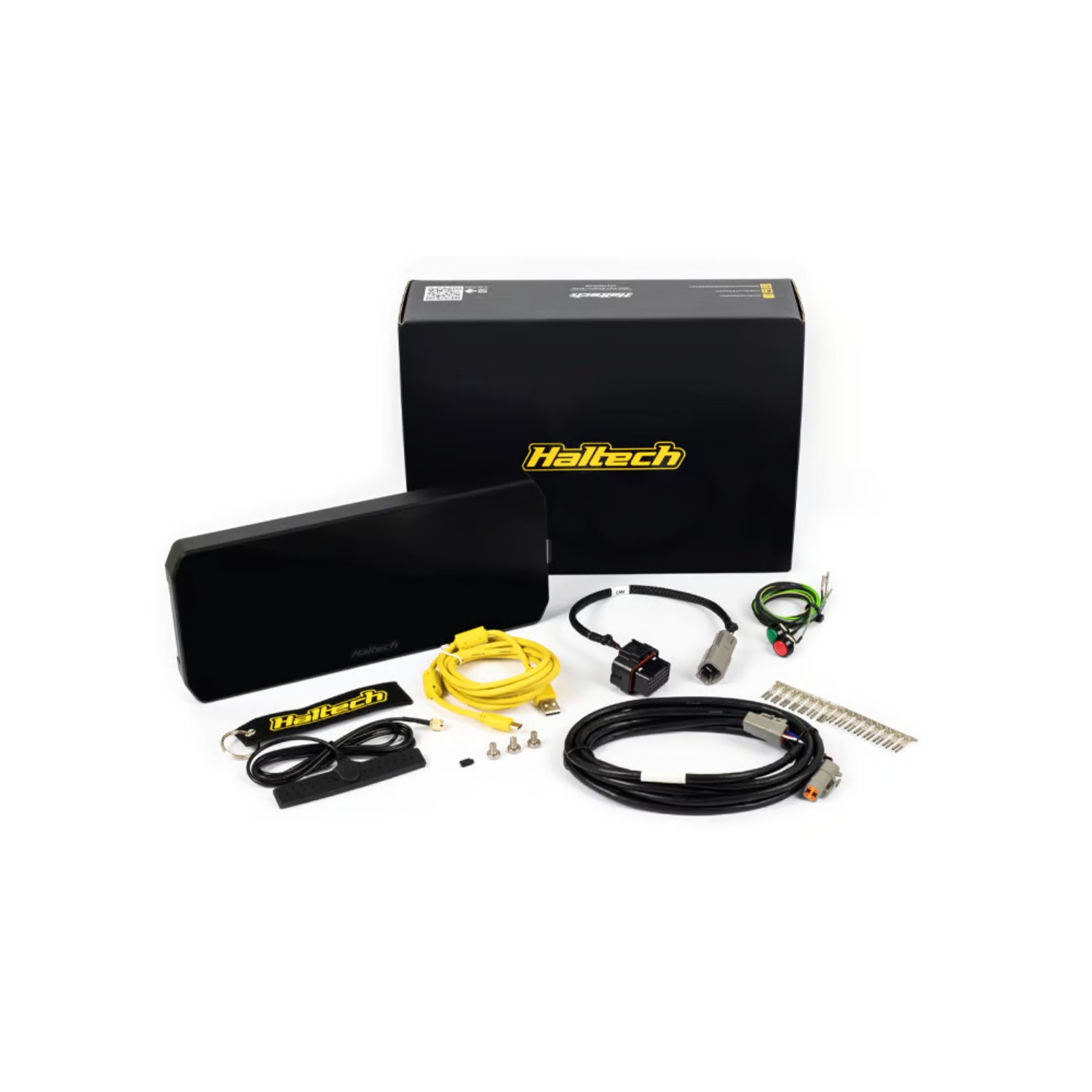

Includes:

  • 1 × Haltech uC-10 Digital Dash

  • 1 × 34-pin connector (same as HT-131001)

  • 1 × Haltech DTM4-to-DTM4 CAN cable (3 m)

  • 1 × USB-C cable

  • 3 × M5 × 8 mm mounting screws

  • 2 × Momentary switches (pre-terminated 800 mm 22 AWG cable)

  • 1 × Glass-mount Wi-Fi antenna (future firmware update required)

  • 1 × Haltech fabric keytag

  • Quick Start Guide + Haltech stickers

Why Choose the uC-10:
With its expansive screen, intuitive software, and unmatched compatibility, the Haltech uC-10 Digital Dash delivers professional-grade data visualisation for any performance build — from street cars to dedicated race machines.
