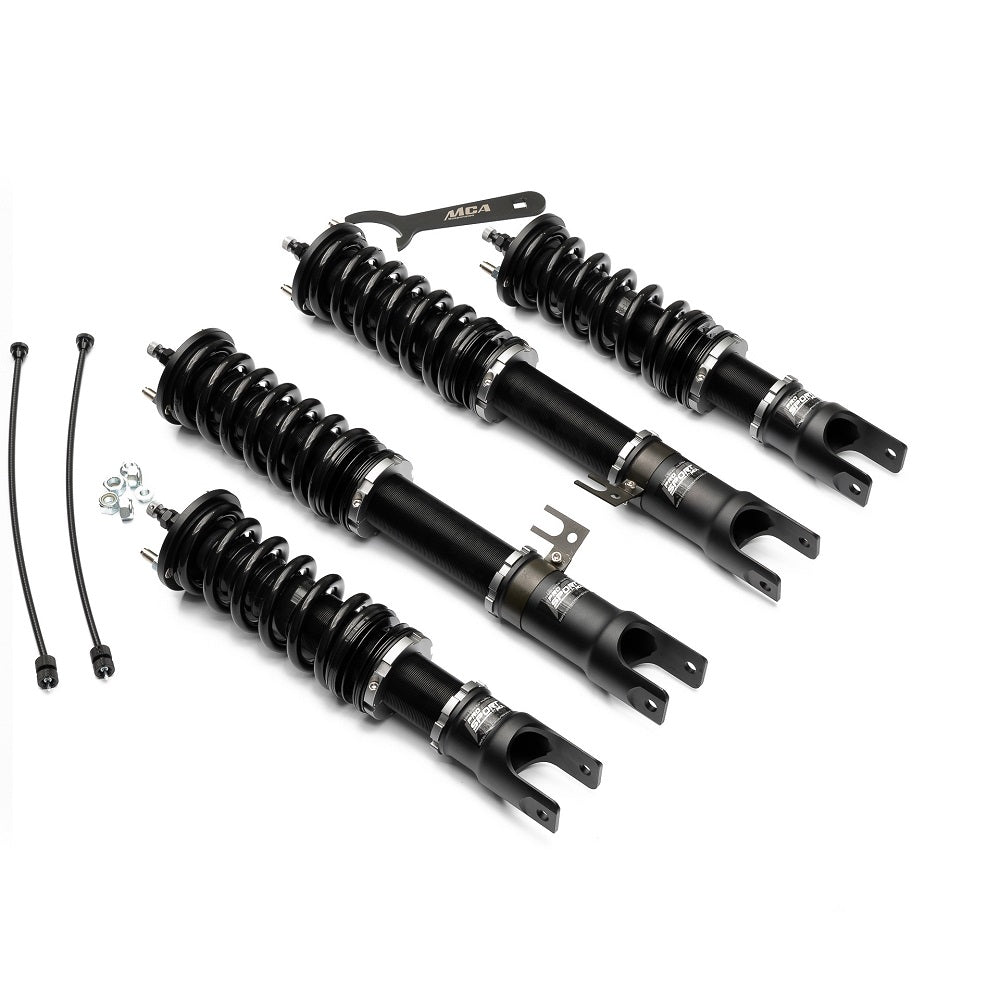

MCA Pro Sport Coilovers suit Datsun 240Z

Regular price $2,890.00

MCA Pro Sport coilovers to suit Datsun 240Z.

  • Front spring rate: 6kg
  • Rear spring rate: 4.5kg
  • Front design: Non-inverted strut design, Weld-on adapter tubes, No camber adjustment, MCA Shock Shield Compatible.
  • Rear design: Non-inverted Strut Design, Weld-On Adaptor Tubes, No Camber Adjustment, MCA Shock Shield Compatible.
  • Note - Weld on tubes: This design uses weld-on adapter tube. So the correct size adaptor tube can be supplied we will need to know the outside diameter of your factory strut tube (front and rear). This is usually either 51mm or 55mm.

The MCA Pro Sports are designed to provide a high level of performance and handling with an acceptable level of comfort on the road. The minimal compromise is achieved thanks to Fusion 3.0, MCA’s latest valving, along with a more thorough and dedicated development program. Their setup has been derived from circuit racing testing for the Red Series but modified to suit a wider range of applications including street use. They feature a very wide range of height adjustment as well as hard/soft damper adjustment and camber adjustment where applicable. The Pro Sports are internally and externally assembled here in our Brisbane Workshop, ensuring full control over the quality and accuracy of products.

Key Features:

  • Designed, Developed, Assembled & Fully Supported in Australia.
  • 3 Year Transferrable, Industry Leading Warranty program.
  • Can be Repaired, Reconditioned, Revalved and Resprung.
  • MCA Proprietary Fusion Valving Technology V3.0 Pre-selected valving and spring package.
  • 12 Clicks of Hard/Soft Damper Adjuster (Bump & Rebound together).
  • Camber Adjustment via top mount.
  • Camber Washer Bottom Mounts.
  • Damper Adjuster Extenders (where possible, see additional information).
  • Wheel travel range adjustment via the bottom mount (pre-set by MCA).
  • Height adjustment via spring seat position (base height adjustment is flawed).
  • Suggested Height Range: between factory height and 15mm tyre tuck (depends on vehicle specifics).
  • Reinforced double-gusseted lower mounts (where applicable, see additional information).
  • Helper Springs to keep the main spring captive at all times.
  • Latest Rugged Spec internal sealing designs and components.
  • Superior Monotube design.

Whats in the box?

  • Complete suspension system.
  • Height adjustment tools.
  • Setup sheet.
  • Information sheets.
  • MCA stickers.
  • MCA lanyard.


  • Suspension:
    • 3 year warranty.
    • Warranty covers motorsport use.
    • Exchange program.
    • Repaired in Australia.
  • Air cups (if applicable):
    • 2 Year Warranty.
