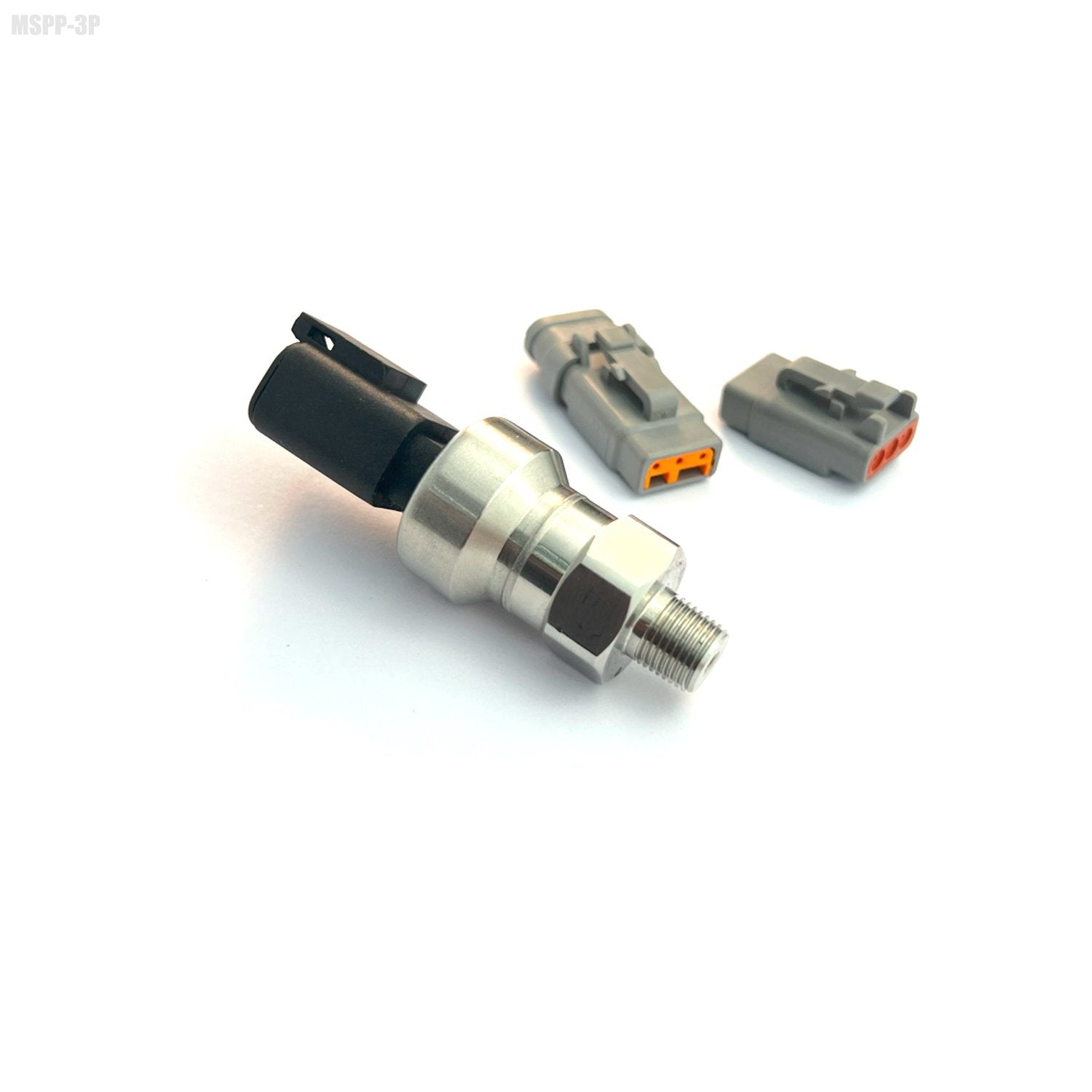

Syltech MSPP 10BAR Absolute MAP Sensor – 145 PSI | Precision 3-Pin | 1/8" NPT

SKU: MSPP-3P-A10-N8
Price
$155.98
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

See Syltechs Data Sheet Here

Download Haltech Specific Data Sheet
Download Motec Specific Data Sheet
Download Emtron Specific Data Sheet
Download Link Specific Data Sheet
Download MaxxECU Specific Data Sheet

The Syltech MSPP-3P-A10-N8 is a professional-grade 10 BAR (145 PSI Absolute) Pressure Sensor, purpose-built for motorsport and high-output applications demanding exceptional pressure resolution, extreme range, and bulletproof reliability.

Perfect for use as a MAP sensor in ultra high-boost engines, or for sealed systems like dry sump oil, power steering, coolant reservoirs, or fuel pressure monitoring, this sensor delivers a rock-solid 0.5–4.5V linear output to any standalone ECU.

Its compact design with 1/8" NPT male thread and sealed 3-pin motorsport connector ensures easy integration and long-term reliability in harsh engine bay environments. Built to survive heat, vibration, and chemically aggressive fluids, the MSPP-3P-A10-N8 is trusted in the most demanding race conditions.


Best Use Cases:

  • Ultra high-boost MAP sensor applications (up to ~130 PSI gauge)

  • Methanol and ethanol high-pressure fuel systems

  • Dry sump and high-load oiling systems

  • Power steering or coolant system pressure in sealed/vented reservoirs

  • Advanced data logging and ECU protection strategies

  • Compatible with Haltech, MoTeC, Link, MaxxECU, Emtron & more


Key Features:

  • 10 BAR (0–145 PSI absolute) pressure range

  • 0.5–4.5V linear analog signal for direct ECU input

  • 1/8" NPT male thread for universal fitment

  • Motorsport-grade 3-pin sealed connector

  • Compatible with petrol, E85, methanol, oil, air, water, power steering fluid

  • Heat, fluid, and vibration resistant – built for racing

  • Ideal for compound turbo setups and professional motorsport use


Technical Specifications:

  • Pressure Range: 0–10 BAR Absolute (0–145 PSI)

  • Output Signal: 0.5V–4.5V linear

  • Thread: 1/8" NPT male

  • Connector: 3-pin sealed connector

  • Supply Voltage: 5V

  • Accuracy: ±1% Full Scale

  • Operating Temp: -40°C to 125°C

  • Compatible Fluids: Fuel (E85, petrol, methanol), oil, coolant, water, air, power steering
