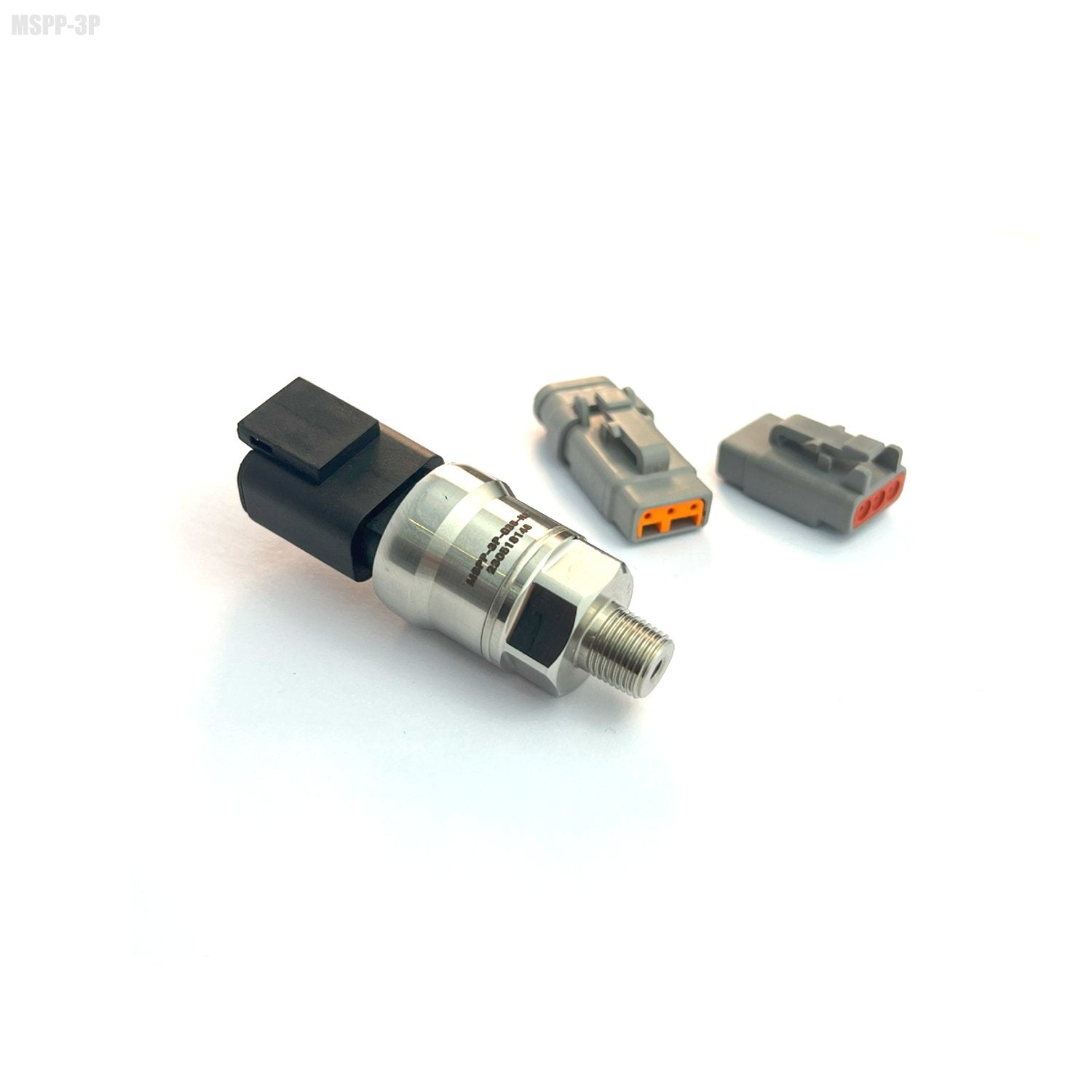

Syltech MSPP 135BAR Gauge Pressure Sensor – 1958 PSI | Precision 3-Pin | 1/8" NPT

SKU: MSPP-3P-G135-N8
Price
$155.98
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

See Syltechs Data Sheet Here

Download Haltech Specific Data Sheet
Download Motec Specific Data Sheet
Download Emtron Specific Data Sheet
Download Link Specific Data Sheet

The Syltech MSPP-3P-G135-N8 is an ultra-high-pressure 135BAR (1958 PSI) Gauge Pressure Sensor, engineered for advanced tuning, motorsport, and industrial-grade applications where performance and reliability under extreme pressure are non-negotiable.

With a 0.5–4.5V linear output and 3-pin sealed connector, this sensor integrates flawlessly with ECUs like Haltech, MoTeC, Link, MaxxECU, and Emtron. Its 1/8" NPT male thread fits most aftermarket sensor ports, making it a drop-in solution for monitoring extreme fuel pressure, power steering systems, nitrous oxide, dry sump oil, or CO₂ boost control.

Built for high shock, vibration, and harsh environments, the MSPP-3P-G135-N8 delivers precision pressure readings and long-term reliability even in the most punishing motorsport conditions.

Best Use Cases:

  • High-pressure fuel systems (methanol, ethanol, petrol)

  • Dry sump and pressurised oiling systems

  • Power steering pressure monitoring in drift, circuit, or race cars

  • Nitrous or CO₂ boost control setups

  • Logging and safety strategies for standalone ECUs

  • Compatible with Haltech, MoTeC, Link, MaxxECU, Emtron & more

Key Features:

  • 135BAR (0–1958 PSI) gauge pressure range

  • 0.5–4.5V linear analog output for direct ECU input

  • Compact body with 1/8" NPT male thread

  • Sealed 3-pin connector for motorsport-grade reliability

  • Built for high-pressure fuel, oil, air, and CO₂ applications

  • Highly resistant to temperature, vibration, and chemical exposure

  • Compatible with E85, methanol, petrol, oil, water, air, CO₂

Technical Specifications:

  • Pressure Range: 0–135BAR (0–1958 PSI)

  • Output Signal: 0.5–4.5V linear (standard 3-wire)

  • Thread: 1/8" NPT male

  • Connector: 3-pin sealed connector

  • Supply Voltage: 5V

  • Accuracy: ±1% Full Scale

  • Operating Temp: -40°C to 125°C

  • Compatible Fluids: Fuel (E85, methanol, petrol), oil, air, water, nitrous, CO₂
