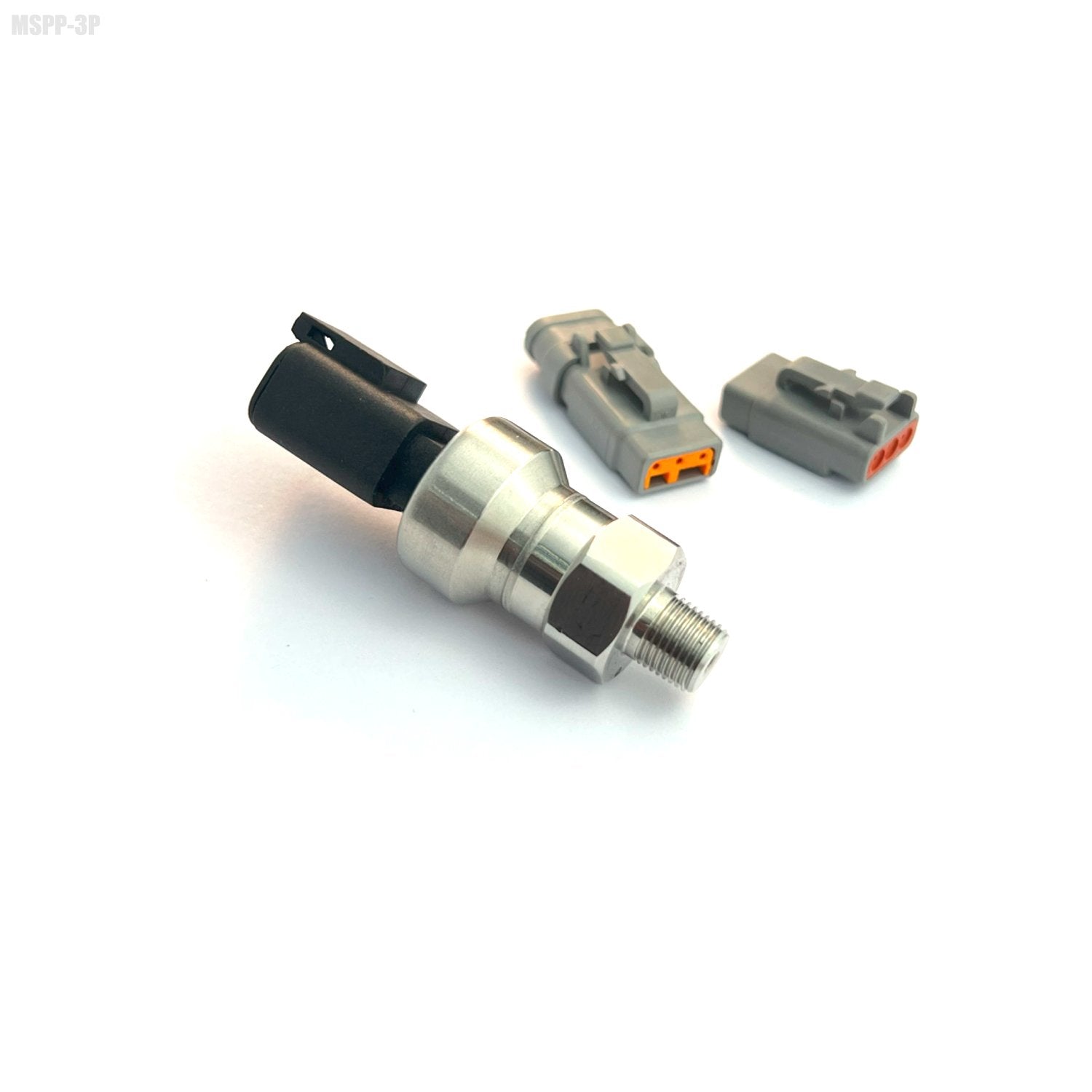

Syltech MSPP 3BAR Absolute MAP Sensor – 43.5 PSI | Precision 3-Pin | 1/8" NPT

SKU: MSPP-3P-A03-N8
Price
$155.98
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

See Syltechs Data Sheet Here

Download Haltech Specific Data Sheet
Download Motec Specific Data Sheet
Download Emtron Specific Data Sheet
Download Link Specific Data Sheet
Download MaxxECU Specific Data Sheet

The Syltech MSPP-3P-A03-N8 is a high-resolution 3 BAR (43.5 PSI) Absolute Pressure Sensor, engineered for use as a MAP (Manifold Absolute Pressure) sensor or for measuring vacuum and boost in standalone ECU applications. With fast response and high stability, this sensor is ideal for tuning turbocharged, supercharged, and naturally aspirated engines using speed-density or hybrid load strategies.

Delivering a 0.5–4.5V linear signal and equipped with a sealed 3-pin connector and 1/8" NPT male thread, this sensor is built to integrate seamlessly into most performance intake manifolds or vacuum ports. It’s compatible with Haltech, MoTeC, Link, MaxxECU, Emtron, and other aftermarket ECUs.

Beyond MAP sensing, the MSPP 3 BAR absolute sensor can also be used in pressurised fluid systems where barometric reference is required, including coolant, fuel, or power steering systems, especially where pressure is measured in sealed or vented reservoirs.

Best Use Cases:

  • MAP sensing for turbo, supercharged, or NA speed-density tuning

  • Boost and vacuum monitoring up to 29.5 PSI (gauge)

  • Power steering system monitoring (closed-loop reservoir)

  • Fuel or coolant pressure with barometric referencing

  • Compatible with Haltech, MoTeC, Link, MaxxECU, Emtron & more

Key Features:

  • 3 BAR (43.5 PSI absolute) pressure range

  • 0.5–4.5V linear output for direct ECU input

  • Ideal as a MAP sensor for speed-density tuning

  • Sealed 3-pin connector for vibration-proof wiring

  • 1/8" NPT male thread – compact and easy to install

  • Compatible with petrol, ethanol, oil, coolant, and air

  • Motorsport-grade design for heat, fluid, and vibration resistance

Technical Specifications:

  • Pressure Range: 0–3 BAR Absolute (0–43.5 PSI)

  • Output Signal: 0.5V–4.5V linear

  • Thread: 1/8" NPT male

  • Connector: 3-pin sealed connector

  • Supply Voltage: 5V

  • Accuracy: ±1% Full Scale

  • Operating Temp: -40°C to 125°C

  • Compatible Fluids: Air, fuel, oil, coolant, power steering fluid
