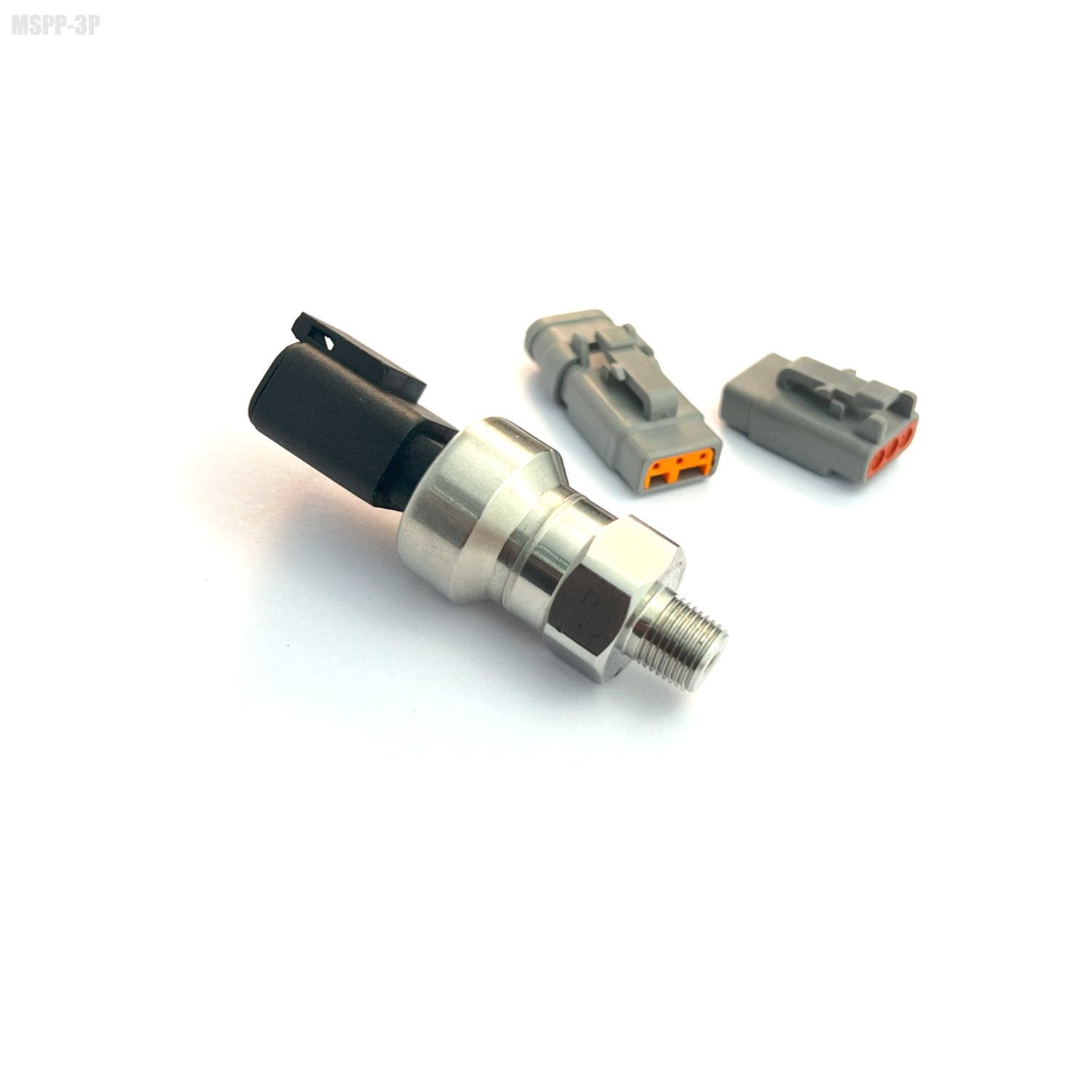

Syltech MSPP 5BAR Absolute MAP Sensor – 72.5 PSI | Precision 3-Pin | 1/8" NPT

SKU: MSPP-3P-A05-N8
Price
$155.98
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

See Syltechs Data Sheet Here

Download Haltech Specific Data Sheet
Download Motec Specific Data Sheet
Download Emtron Specific Data Sheet
Download Link Specific Data Sheet
Download MaxxECU Specific Data Sheet

The Syltech MSPP-3P-A05-N8 is a high-resolution 5 BAR (72.5 PSI Absolute) Pressure Sensor, purpose-built for extreme-performance tuning and ECU-based boost control. Ideal for use as a MAP (Manifold Absolute Pressure) sensor, it delivers ultra-fast and accurate pressure readings across a wide operating range, making it perfect for high-boost turbocharged or supercharged engines.

This sensor outputs a 0.5–4.5V linear signal, making it compatible with most standalone ECUs including Haltech, MoTeC, Link, MaxxECU, and Emtron. The compact 1/8" NPT male thread allows easy installation in intake manifolds, boost reference blocks, or sealed reservoirs, while the sealed 3-pin connector ensures reliability in harsh, high-vibration motorsport environments.

Beyond MAP sensing, the MSPP 5 BAR absolute sensor can be used for monitoring sealed fuel systems, coolant expansion tanks, or power steering reservoirs where barometric referencing is essential.


Best Use Cases:

  • High-boost turbo or supercharged MAP sensor applications

  • Boost/vacuum monitoring up to ~58 PSI gauge

  • Power steering, coolant, or fuel reservoir pressure logging

  • Speed-density tuning with standalone ECUs

  • Compatible with Haltech, MoTeC, Link, MaxxECU, Emtron & more


Key Features:

  • 5 BAR (0–72.5 PSI absolute) pressure range

  • 0.5–4.5V linear output signal for direct ECU input

  • Compact sensor with 1/8" NPT male thread

  • Sealed 3-pin connector – reliable in motorsport conditions

  • Compatible with air, fuel, oil, coolant, power steering, and E85

  • Rugged design built for high heat, pressure, and vibration


Technical Specifications:

  • Pressure Range: 0–5 BAR Absolute (0–72.5 PSI)

  • Output Signal: 0.5V–4.5V linear

  • Thread: 1/8" NPT male

  • Connector: 3-pin sealed connector

  • Supply Voltage: 5V

  • Accuracy: ±1% Full Scale

  • Operating Temp: -40°C to 125°C

  • Compatible Fluids: Air, fuel, oil, coolant, power steering fluid
