Syltech MSPP 5BAR Gauge Pressure Sensor – 72.5 PSI | Precision 3-Pin Sensor | NPT 1/8" Thread

SKU: MSPP-3P-G05-N8
Price
$155.98
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

See Syltechs Data Sheet Here

Download Haltech Specific Data Sheet
Download Motec Specific Data Sheet
Download Emtron Specific Data Sheet
Download Link Specific Data Sheet
Download MaxxECU Specific Data Sheet

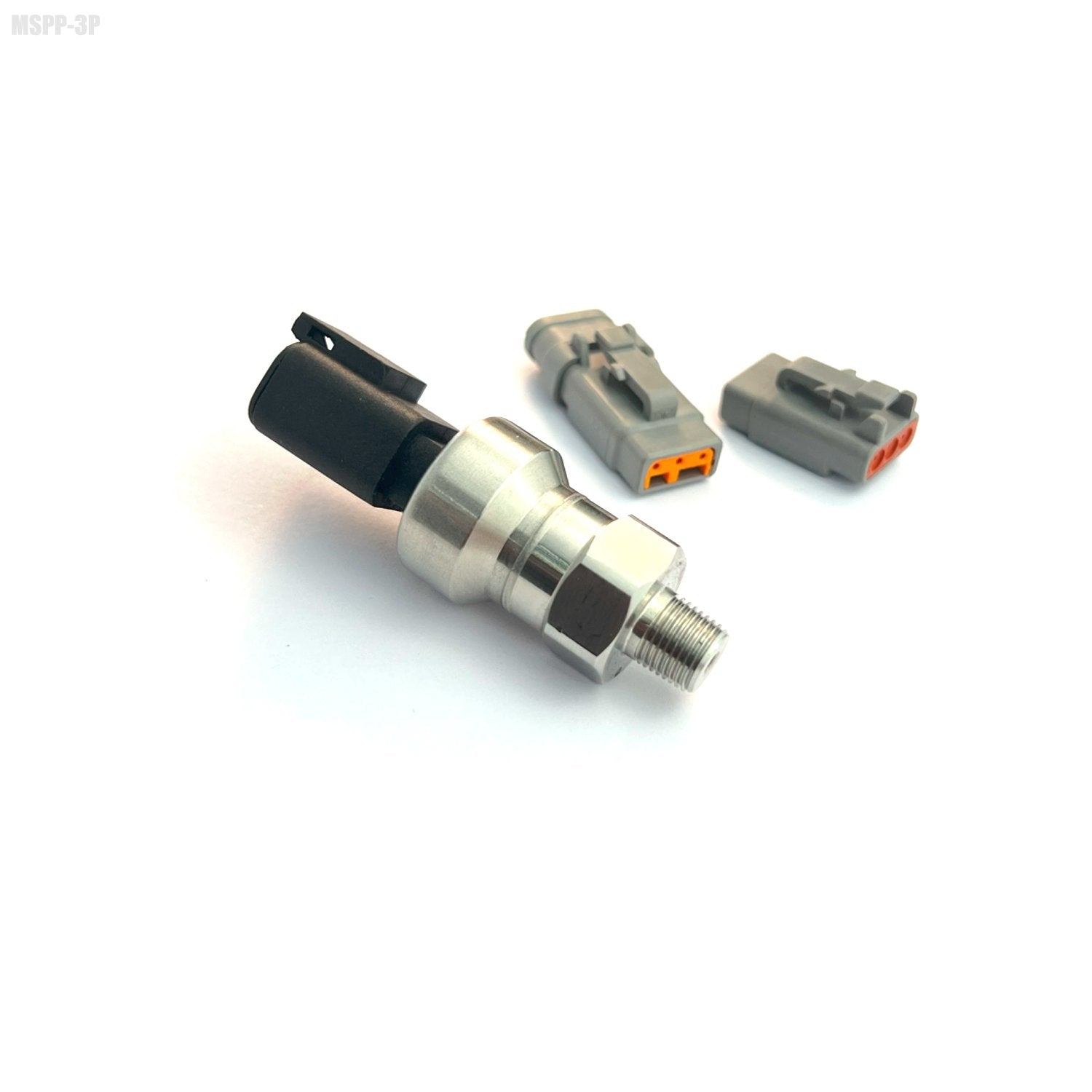

The Syltech MSPP-3P-G05-N8 is a high-accuracy 5BAR (72.5 PSI) Gauge Pressure Sensor, purpose-built for professional tuning, data logging, and engine management applications. Featuring a robust and compact design, this sensor delivers fast, stable, and precise pressure readings for oil, fuel, coolant, and boost systems.

With a 0–5V linear output and a 3-pin motorsport-style connector, the MSPP Series is fully compatible with popular standalone ECUs such as Haltech, MoTeC, Link, MaxxECU, and Emtron. The 1/8" NPT thread makes it a perfect fit for aftermarket fuel rails, oil distribution blocks, or intake manifolds.

Designed to perform in demanding motorsport environments, this sensor offers excellent resistance to vibration, heat, and harsh fluids. Whether you're managing fuel pressure in a high-output flex-fuel build or monitoring oil pressure on a track car, the Syltech MSPP sensor delivers dependable accuracy and responsiveness.

Best Use Cases:

  • Monitoring fuel, oil, coolant, or boost pressure in high-performance engines

  • Flex-fuel, turbocharged, or supercharged builds

  • Data logging and ECU sensor inputs for pressure-based strategies

  • Motorsport, street, or dyno applications

  • Compatible with Haltech, MoTeC, Link, MaxxECU, Emtron & more

Key Features:

  • 5BAR (0–72.5 PSI) gauge pressure range

  • 0–5V linear analog output for direct ECU input

  • 3-pin connector for reliable, sealed connection

  • 1/8" NPT male thread – fits most aftermarket sensor ports

  • Compact and rugged – built for motorsport vibration and heat

  • Accurate, fast-response pressure data for tuning and safety

  • Fluid-compatible with petrol, E85, diesel, oil, and coolant

Technical Specifications:

  • Pressure Range: 0–5BAR (0–72.5 PSI)

  • Output Signal: 0.5V–4.5V linear (standard 3-wire)

  • Thread: 1/8" NPT male

  • Connector: 3-pin (motorsport-style)

  • Supply Voltage: 5V

  • Accuracy: ±1% FS

  • Operating Temp: -40°C to 125°C

  • Compatible Fluids: Fuel (including E85), oil, coolant, air, and water
