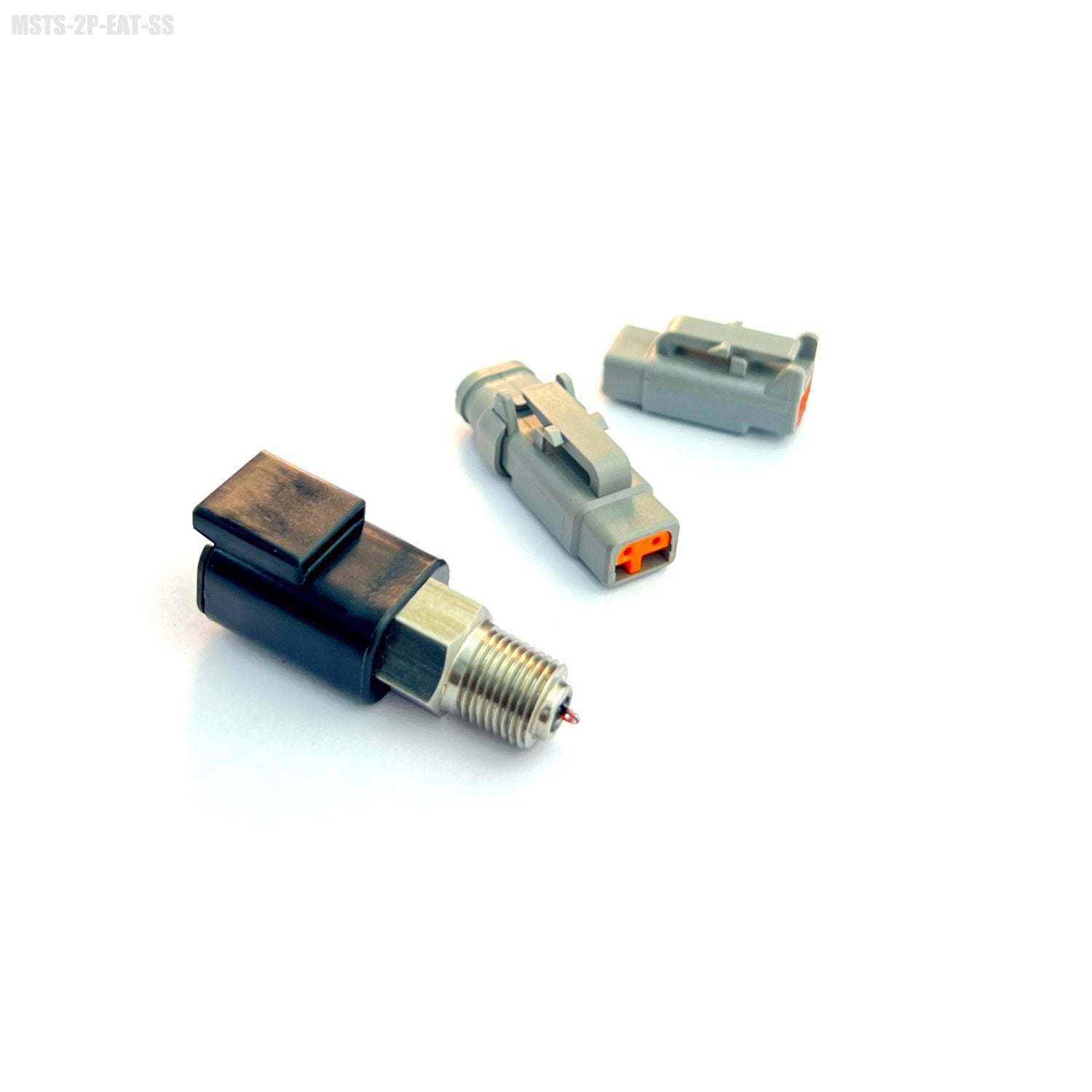

Syltech MSTS Post-Intercooler IAT Sensor – G15 Exposed Glass Tip | Stainless Steel | 2-Pin DTM

SKU: MSTS-2P-EAT-SS-G15
Price
$60.50
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

See Syltechs Data Sheet Here

Download Haltech Specific Data Sheet
Download Motec Specific Data Sheet
Download Emtron Specific Data Sheet
Download Link Specific Data Sheet
Download MaxxECU Specific Data Sheet

The Syltech MSTS-2P-EAT-SS-G15 is a specialised Post-Intercooler Intake Air Temperature (IAT) Sensor featuring a shallow-position G15 exposed glass tip for ultra-fast response times in high-velocity intake air streams. Engineered for precise temperature readings after forced induction components (such as intercoolers or charge pipes), this sensor is ideal for advanced ECU tuning strategies in turbocharged and supercharged engines.

The G15 glass tip is highly sensitive to rapid thermal changes, ensuring your ECU receives real-time air temperature data to optimise ignition timing, fuel delivery, and boost control. The stainless steel body provides strength and thermal stability, while the 2-pin DTM connector guarantees a sealed, motorsport-ready connection for harsh environments.

Designed specifically for shallow mounting positions and compact charge systems, this sensor is essential for anyone looking to achieve maximum engine efficiency and power under boost.


Best Use Cases:

  • Post-intercooler intake air temp monitoring in turbo/supercharged builds

  • Charge pipe or plenum mounting where rapid temp change detection is critical

  • ECU-controlled ignition and fuel compensation in boosted motors

  • High-performance street, drift, time attack, and drag racing applications

  • Compatible with Haltech, MoTeC, Link, MaxxECU, Emtron and other ECUs


Key Features:

  • Exposed G15 glass tip for ultra-fast air temp sensing

  • Shallow position design – ideal for tight charge pipe installs

  • Stainless steel housing for durability and heat resistance

  • 2-pin DTM connector – sealed and vibration-resistant

  • Delivers accurate data under high boost and rapid airflow

  • Designed for ECU tuning accuracy and air/fuel correction

  • Thread: M14 x 1.5 (please confirm for precision)


Technical Specifications:

  • Sensor Type: Intake Air Temp (Post-Intercooler)

  • Tip Style: G15 Exposed Glass (Shallow Position)

  • Connector: 2-Pin DTM

  • Material: Stainless Steel

  • Thread Size: M14 x 1.5 (TBC)

  • Operating Temp: -40°C to 150°C

  • Calibration: Standard NTC

  • Application: Charge pipe, post-intercooler IAT monitoring
