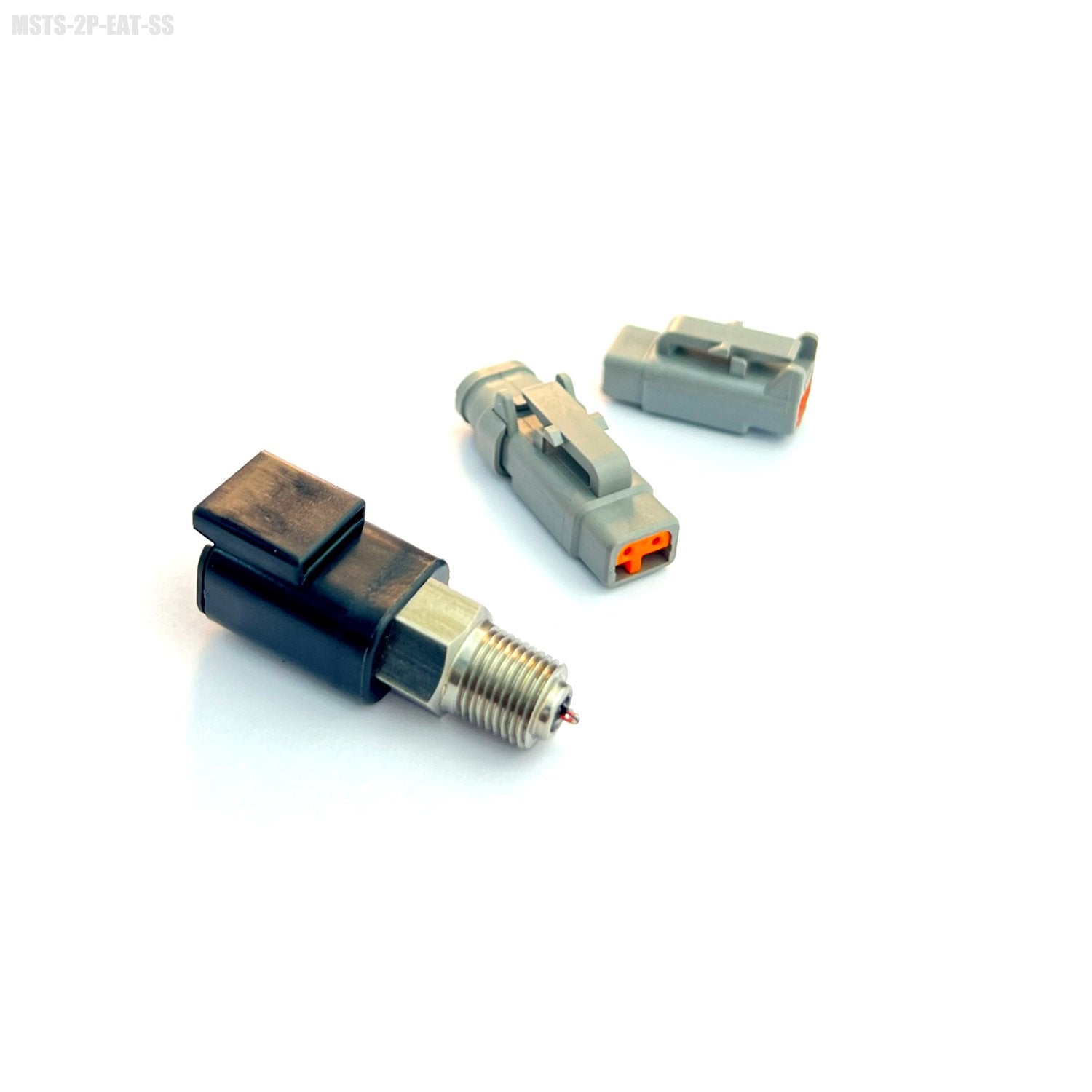

Syltech MSTS Pre-Intercooler IAT Sensor – G25 Glass Tip | Stainless Steel | 2-Pin DTM

SKU: MSTS-2P-EAT-SS-G25
Price
$60.50
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

See Syltechs Data Sheet Here

Download Haltech Specific Data Sheet
Download Motec Specific Data Sheet
Download Emtron Specific Data Sheet
Download Link Specific Data Sheet
Download MaxxECU Specific Data Sheet

The Syltech MSTS-2P-EAT-SS-G25 is a premium Pre-Intercooler Intake Air Temperature (IAT) Sensor engineered for precision temperature monitoring before the charge air enters your intercooler. Featuring a G25 exposed glass tip in a shallow-mount stainless steel body, this sensor delivers ultra-fast thermal response, making it ideal for high-boost turbo or supercharged applications where intake temps rise quickly under load.

The G25 glass element is larger than G15, allowing for exceptional airflow exposure and responsiveness — critical for accurate air/fuel corrections, ignition timing, and engine protection. The 2-pin DTM connector provides a reliable, sealed connection that integrates seamlessly with standalone ECUs including Haltech, MoTeC, Link, and MaxxECU.

Designed for shallow mounting locations such as turbo inlets or pre-cooler piping, this sensor gives tuners the fast, accurate data needed to stay in control under boost.


Best Use Cases:

  • Pre-intercooler temp monitoring on high-boost setups

  • Turbocharger inlet temperature tracking

  • ECU fuel and timing control in high air-temp environments

  • Tuning systems for drift, drag, time attack, or track builds

  • Compatible with Haltech, MoTeC, Link, MaxxECU, Emtron & more


Key Features:

  • G25 exposed glass tip for extreme fast-response air temp sensing

  • Shallow body ideal for compact mounting locations

  • Stainless steel housing built for heat and vibration resistance

  • 2-pin DTM connector for secure, weather-sealed installation

  • Ideal for pre-cooler, turbo inlet, or intake pipe placement

  • Accurate input for high-performance standalone ECU tuning

  • Thread: M14 x 1.5 (please confirm exact size for accuracy)


Technical Specifications:

  • Sensor Type: Pre-Intercooler Intake Air Temperature

  • Tip Style: G25 Exposed Glass (Shallow Mount)

  • Connector: 2-Pin DTM

  • Material: Stainless Steel

  • Thread Size: M14 x 1.5 (TBC)

  • Operating Temp: -40°C to 150°C

  • Calibration: Standard NTC

  • Application: Intake pipe, turbo inlet, pre-intercooler temp monitoring
