PRP Crank Gear / Crank Pickup - Nissan RB

SKU: PLATGEAR-OEM
Price
$130
Tax included and shipping calculated at checkout
Version:
OEM Replacement Gear (OEM REPLACEMENT)

Product variant with selected options does not exist!

Frequently Bought Together

Product Information

The PRP Crank Gear / Crank Pickup for Nissan RB engines is engineered to deliver accurate ignition timing, improved durability, and reliability under high RPM and high horsepower conditions. Designed and manufactured by Platinum Racing Products, this range covers everything from OEM replacement through to extreme motorsport applications.

Available in OEM Replacement, Race Series, and Pro Series configurations, each crank gear is precision-cut from premium billet steel to ensure consistent sensor readings and long-term reliability. Whether you are refreshing a street RB build, pushing a circuit or drag setup, or chasing four-figure horsepower, PRP offers a crank gear solution to suit your exact requirements.

From billet 1045 steel options through to ultra-durable 4140 hardened steel Pro Plus variants, these crank gears are designed to eliminate common RB timing issues while providing strength where it matters most. Sensor angle options, tooth counts, and washer upgrades allow you to fine-tune your setup for maximum performance and compatibility.

Important: V1 and V2 crank gears are not interchangeable due to sensor position differences. If you are unsure which option suits your setup, please contact us before ordering.

Key Features
Designed specifically for Nissan RB engines
Multiple ranges to suit street, race, and extreme performance builds
Precision CNC-cut billet steel construction
Options for 12-tooth and 36-tooth crank triggers
Swept-back sensor angle options for improved signal stability
High-strength PRP rear washers included (varies by model)
Suitable for high RPM and high horsepower applications
Trusted by professional engine builders worldwide

Range & Variant Breakdown

OEM Replacement Series

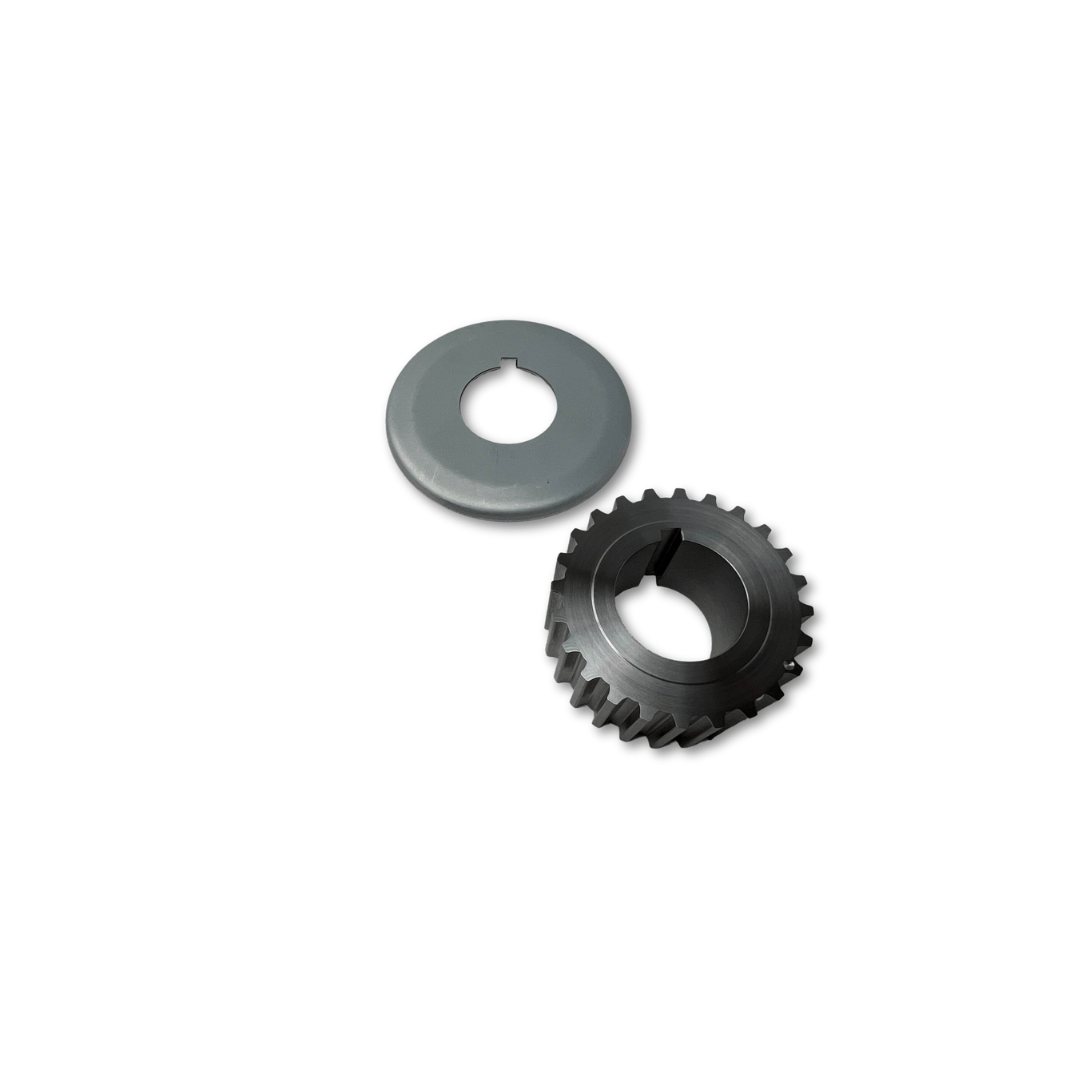

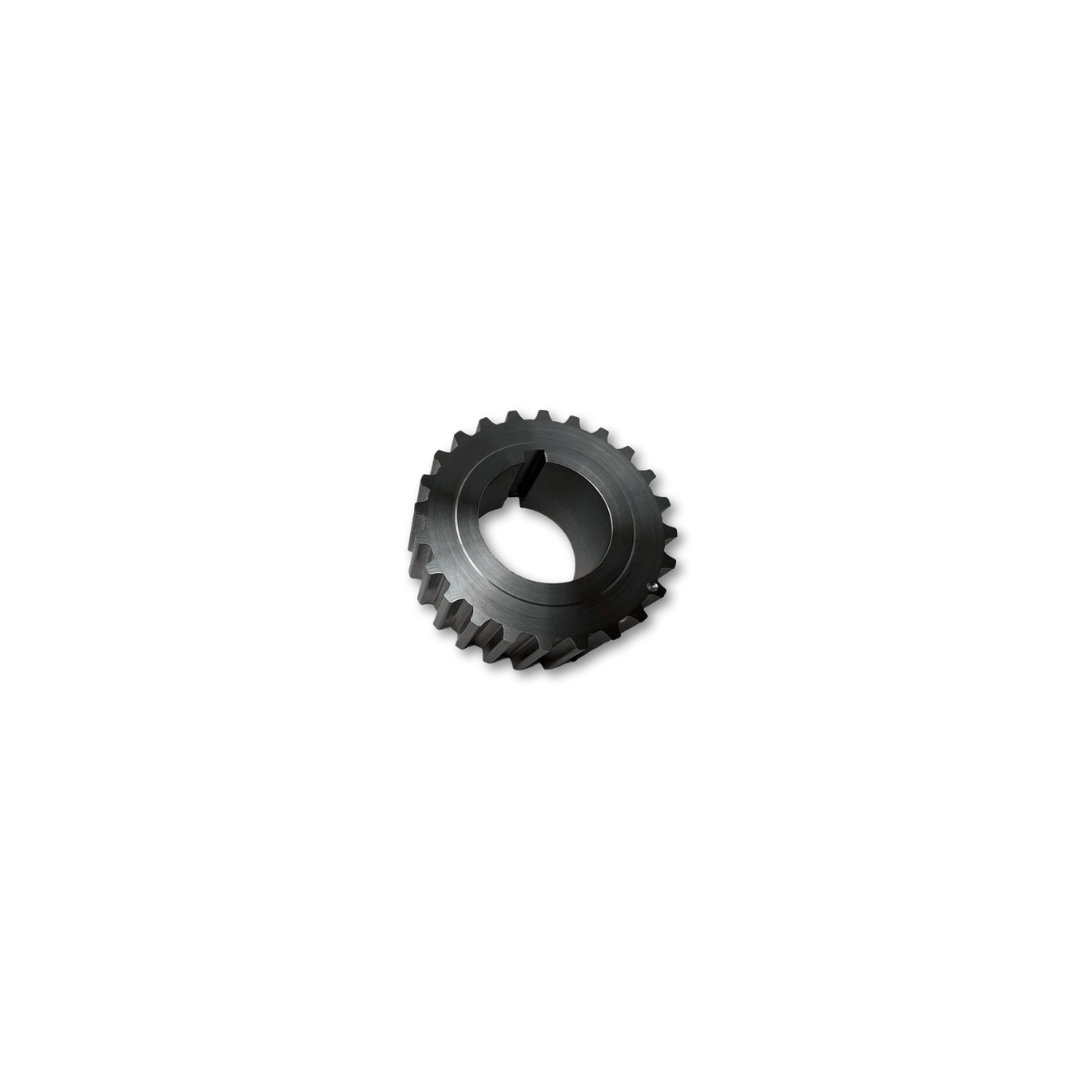

OEM Replacement
Billet 1045 steel cut gear
OEM timing guide
PRP rear washer

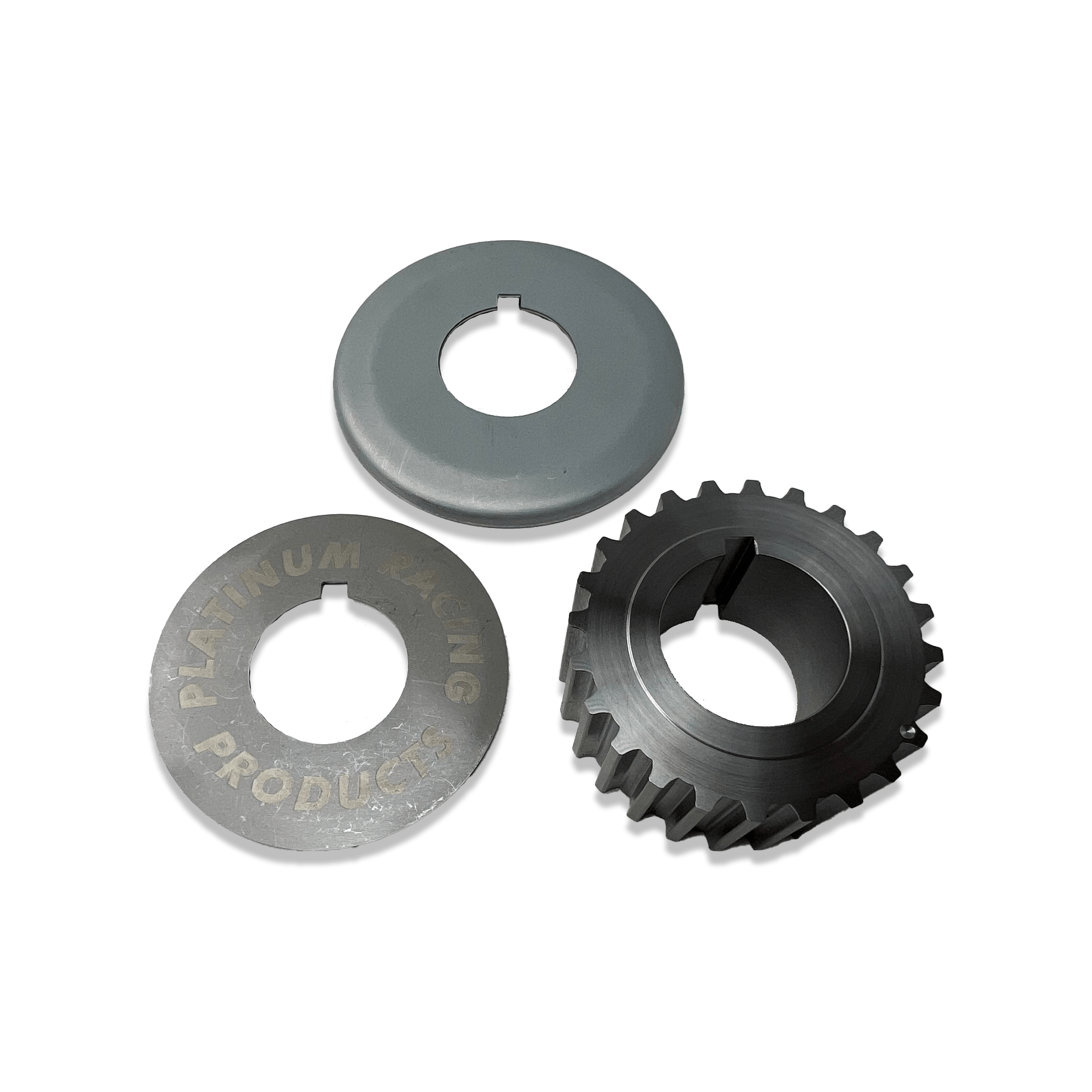

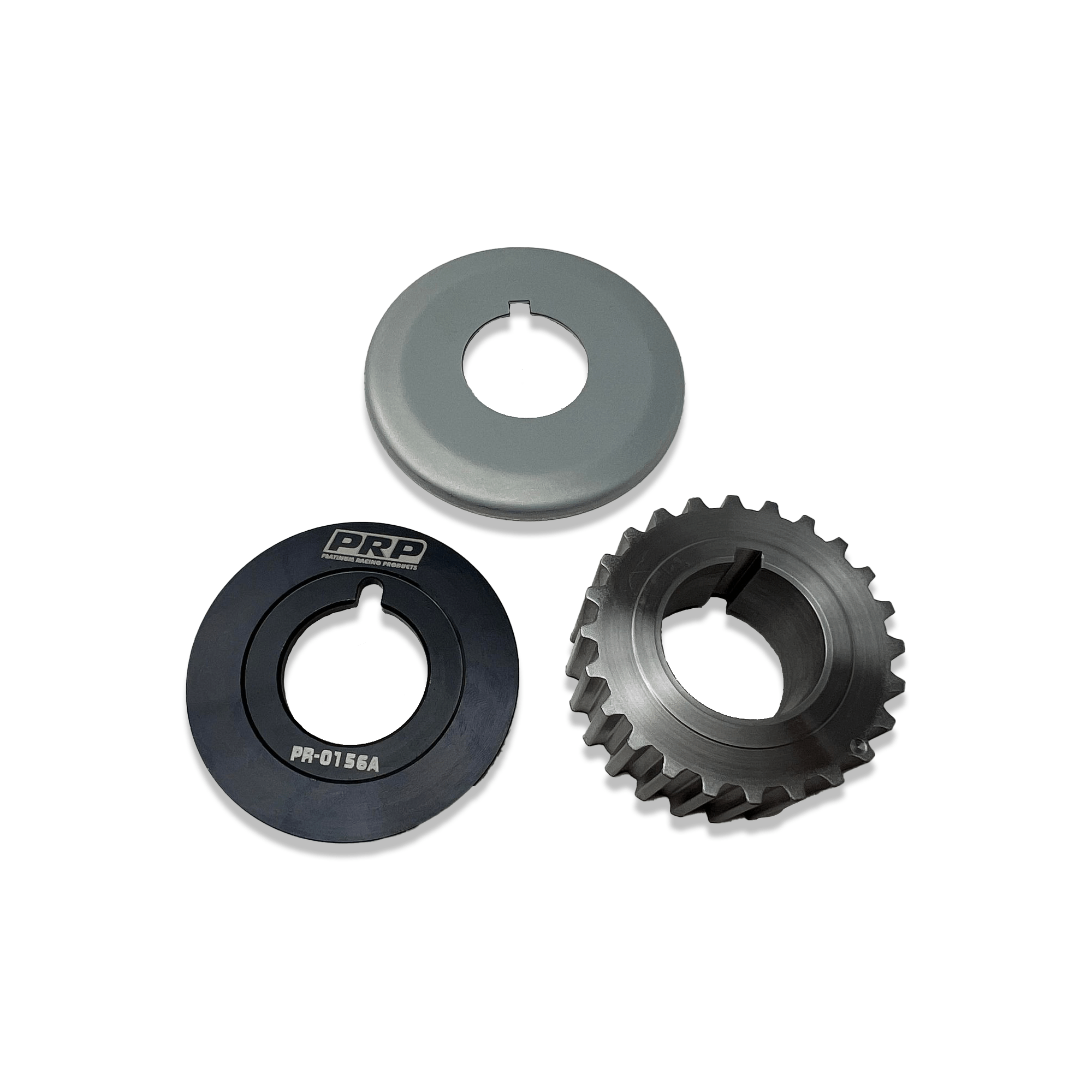

OEM Replacement PLUS
Billet 1045 steel cut gear
OEM timing guide
PRP rear EN36 blackened and hardened washer (25 Rockwell)

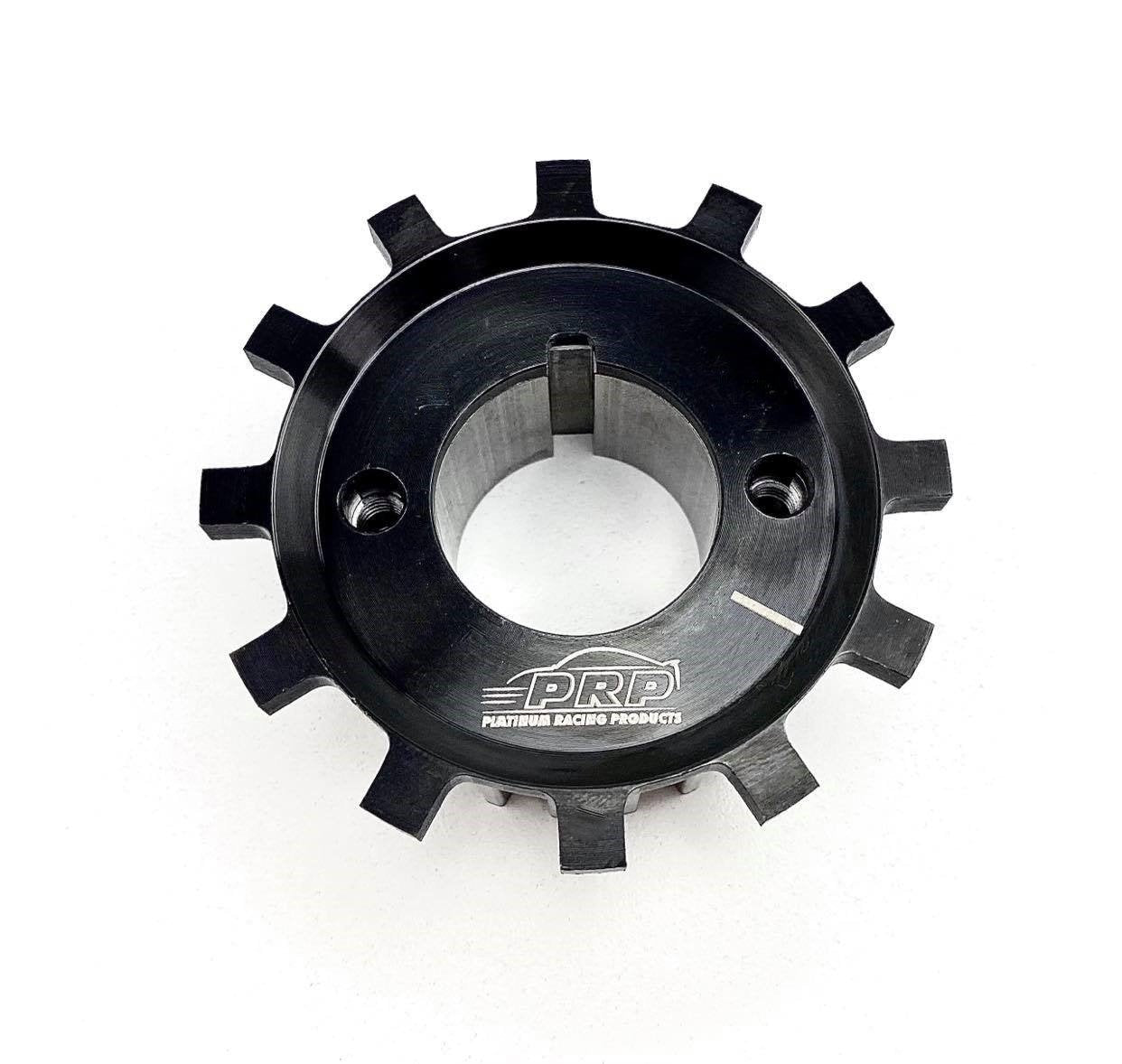

Race Series – 12 Tooth

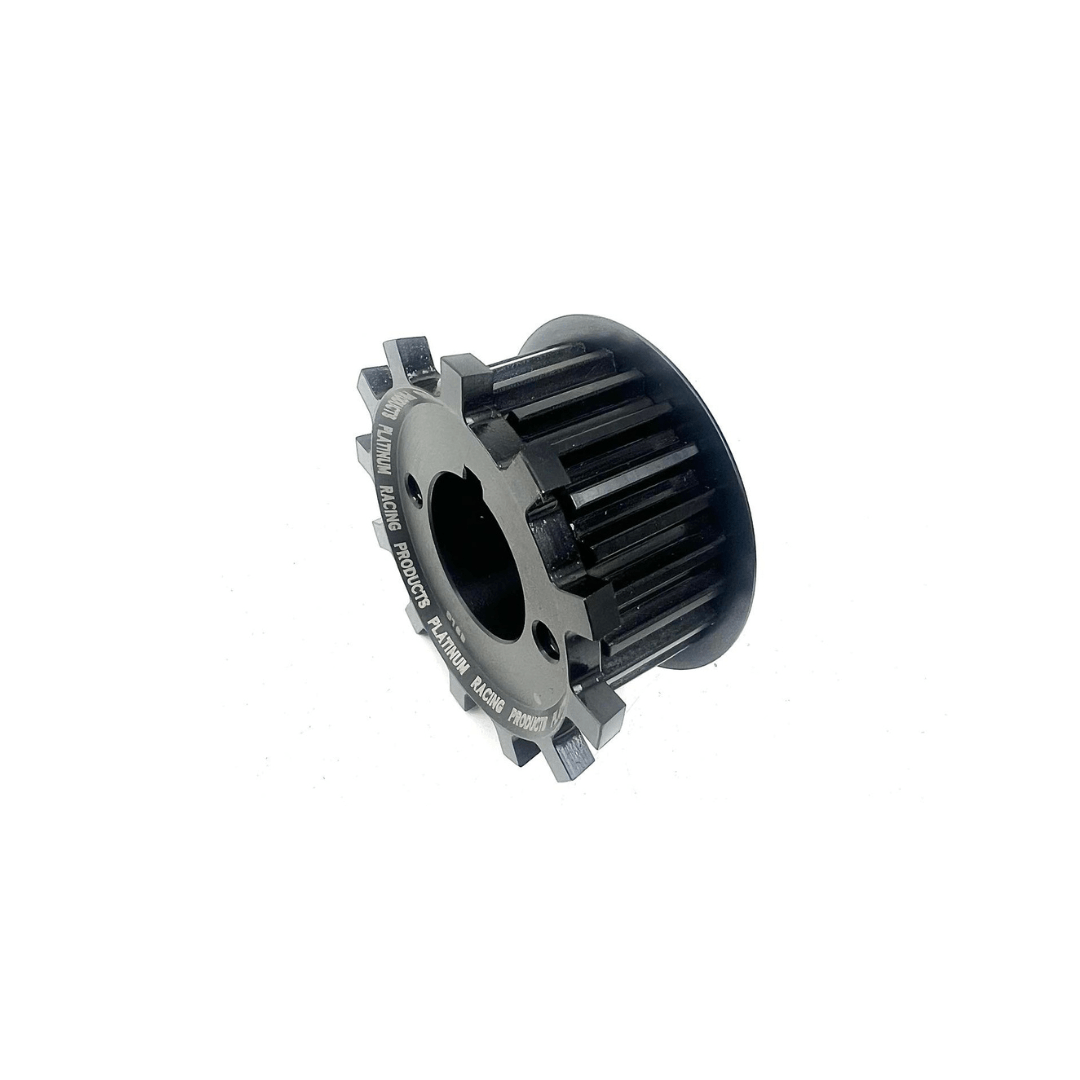

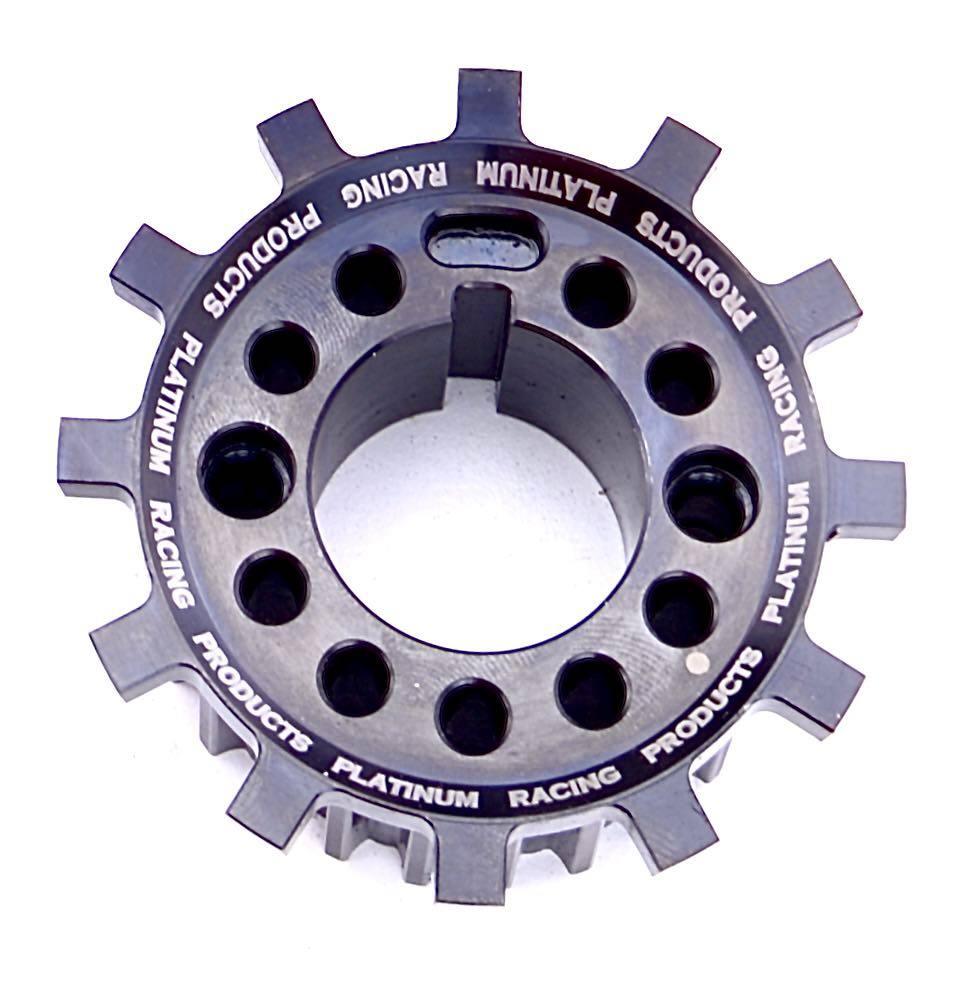

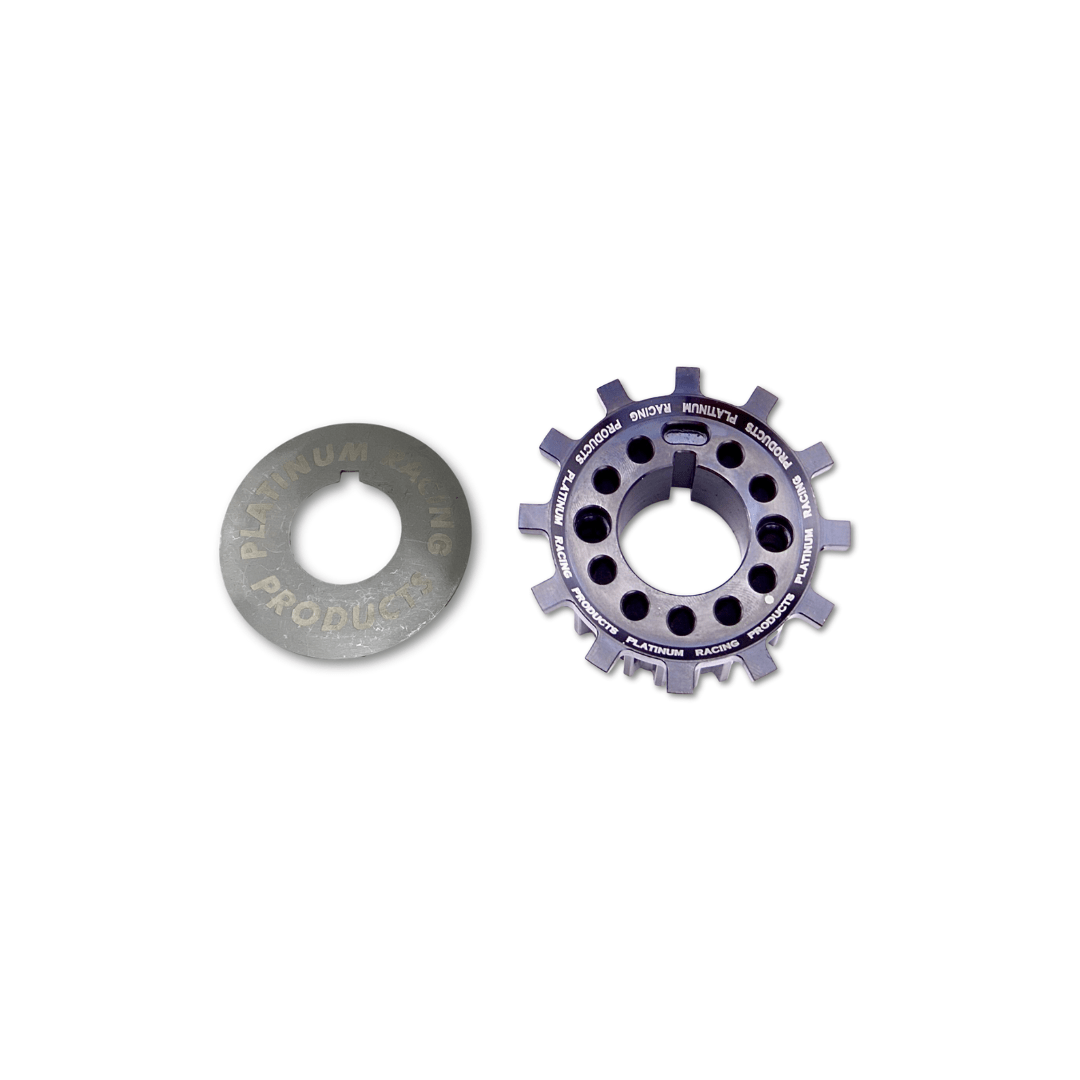

Race V1 (superseded)
Straight 90-degree sensor angle
Older race series design

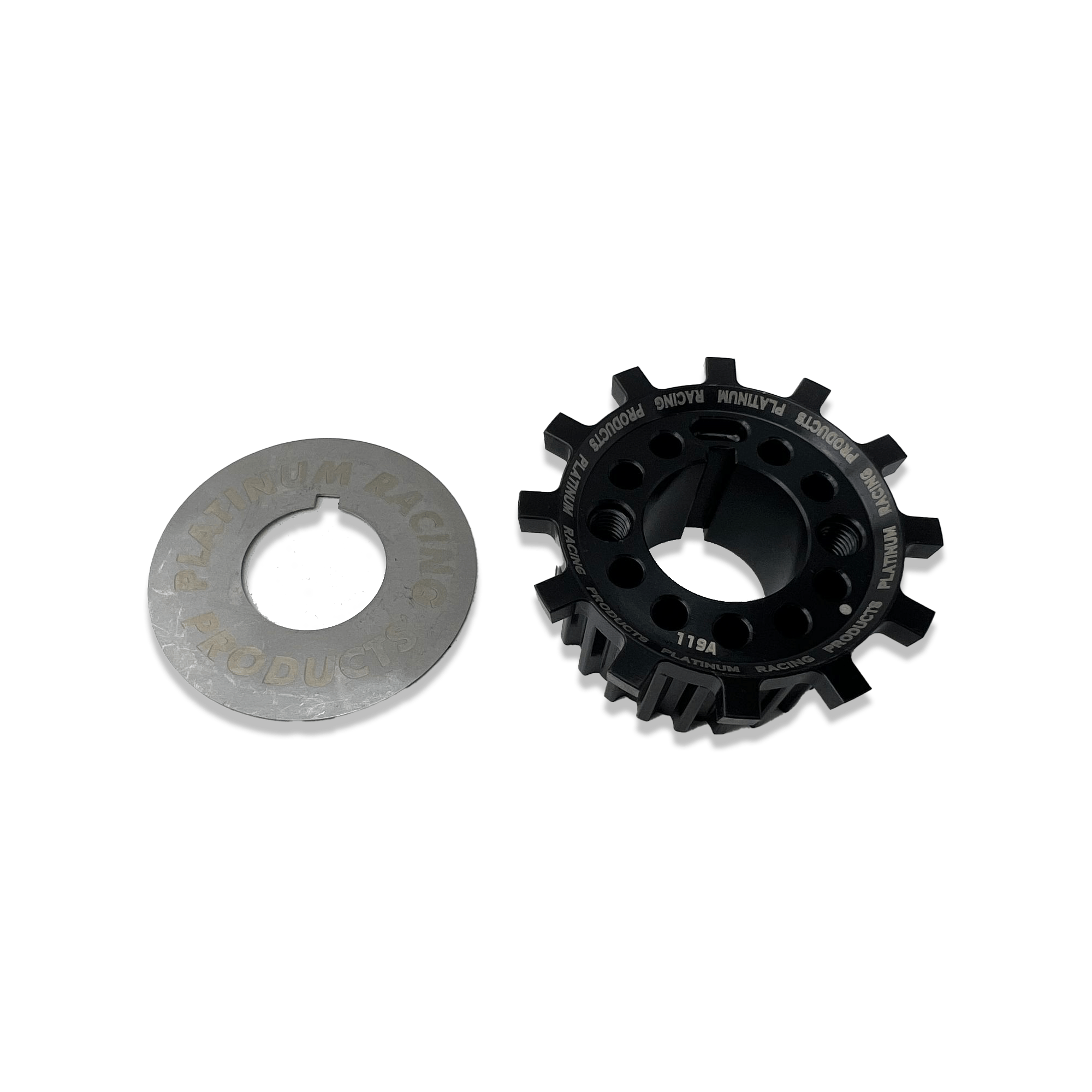

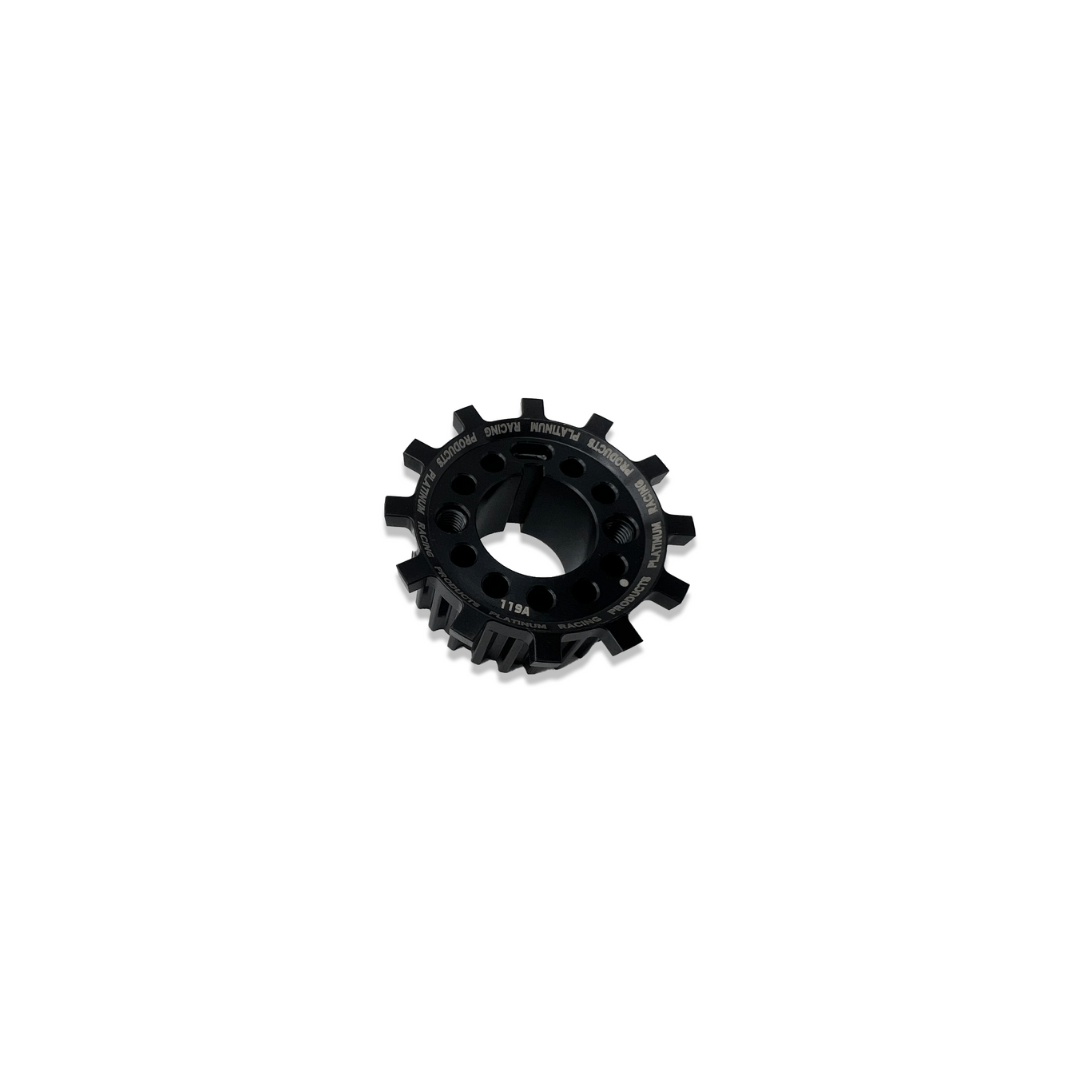

Race V2
Swept-back sensor angle
OEM timing guide
PRP stainless washer
V2 Race Series Ignition Timing Kit replacement

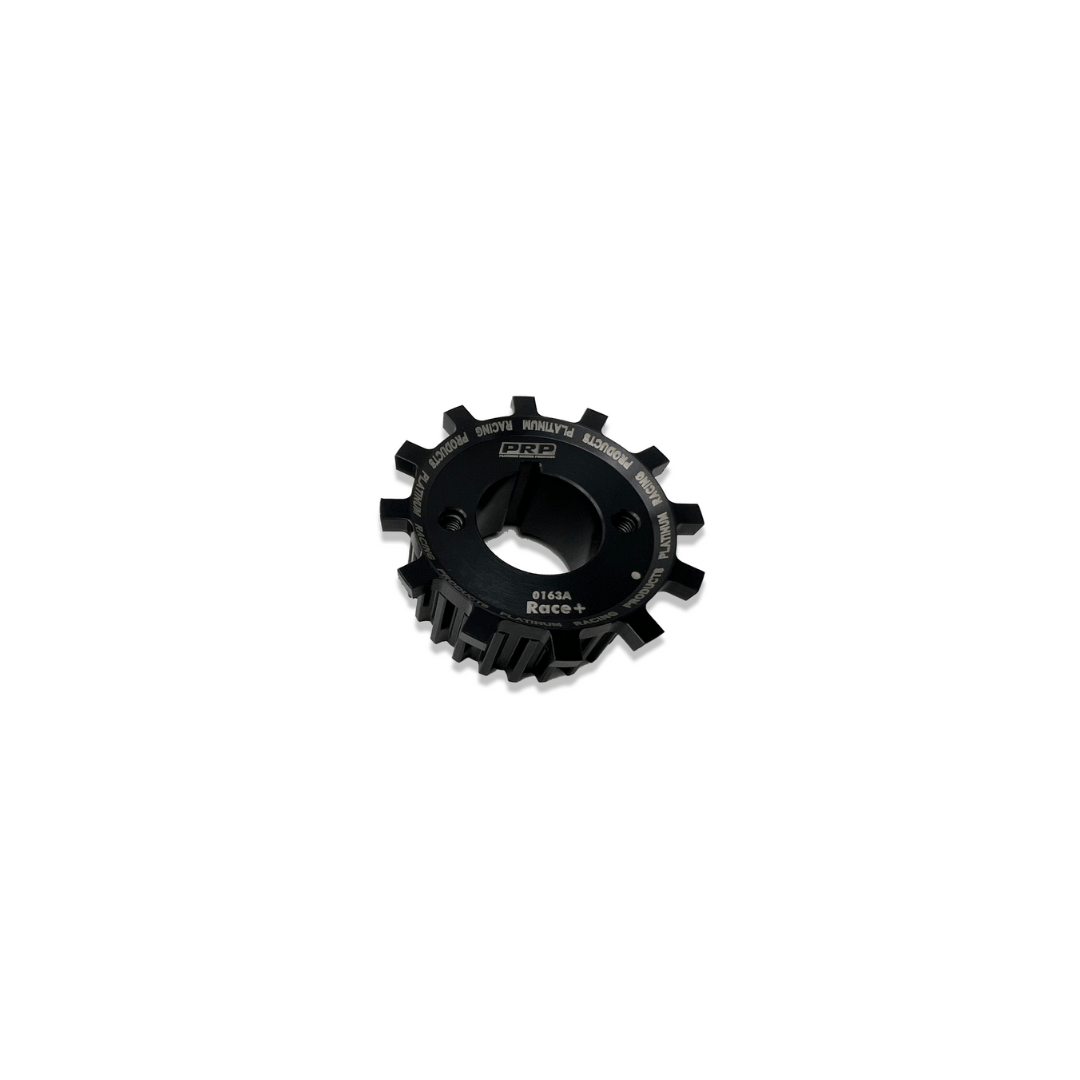

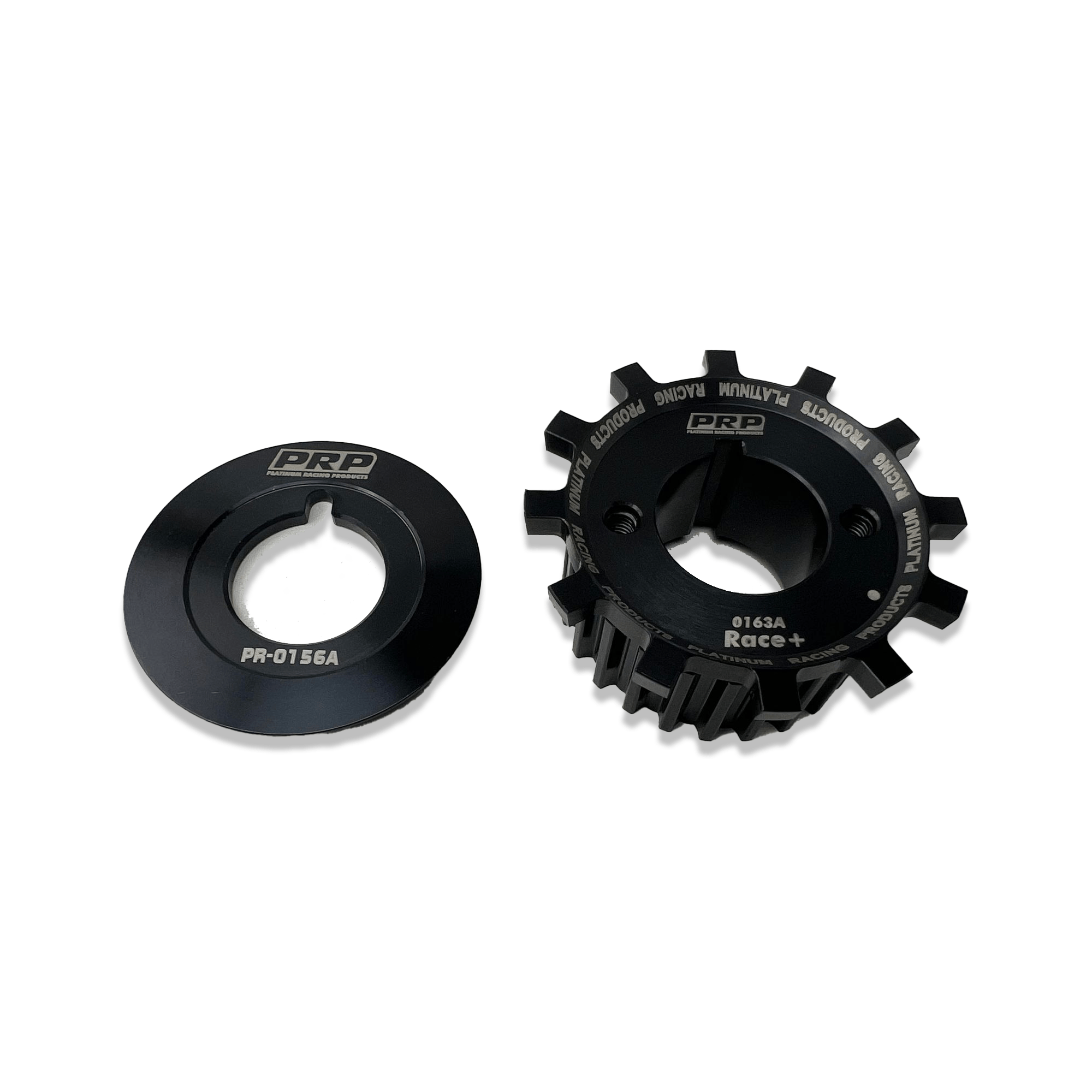

Race V2 PLUS
Swept-back sensor angle
OEM timing guide
PRP rear EN36 blackened and hardened washer (25 Rockwell)

Pro Series – 36 Tooth

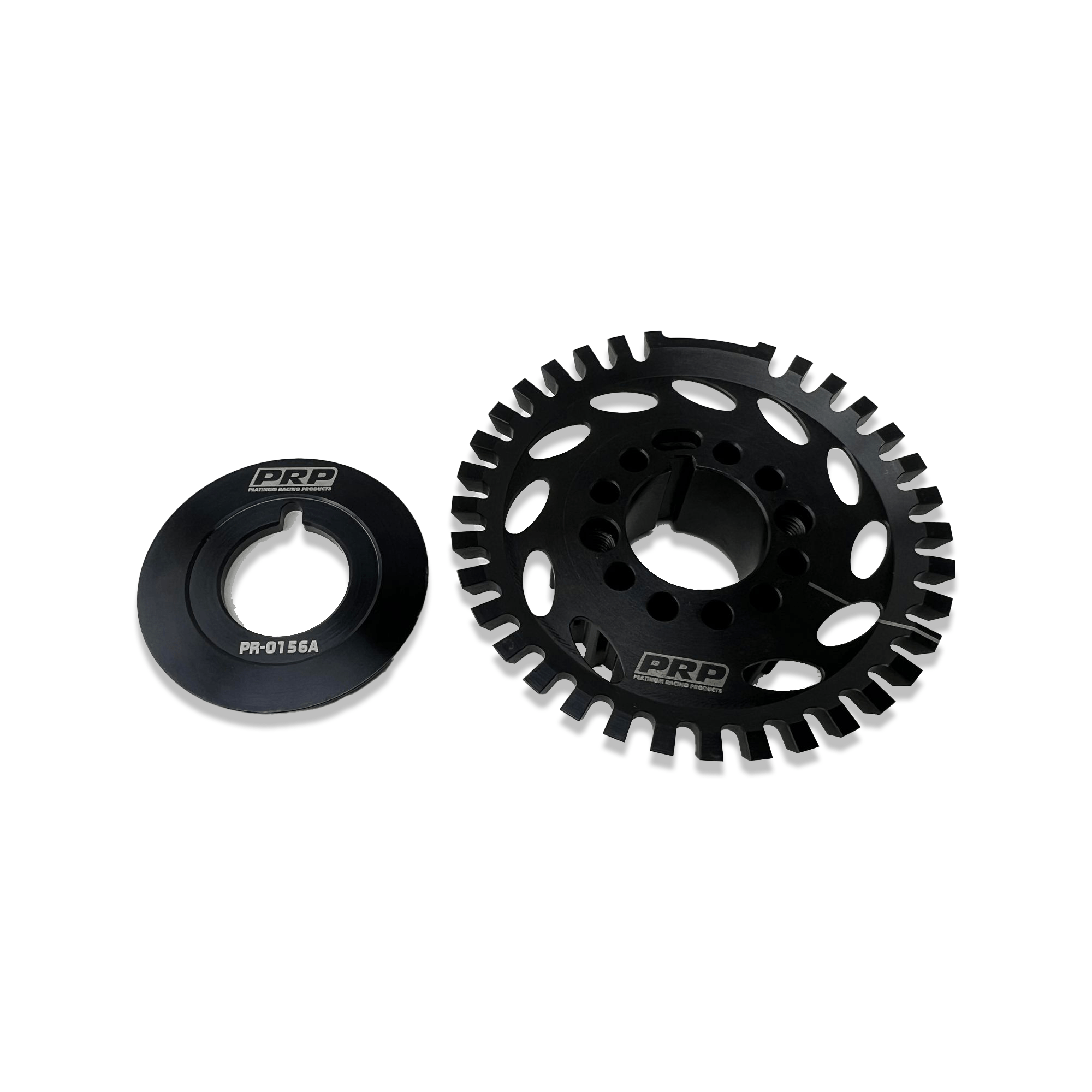

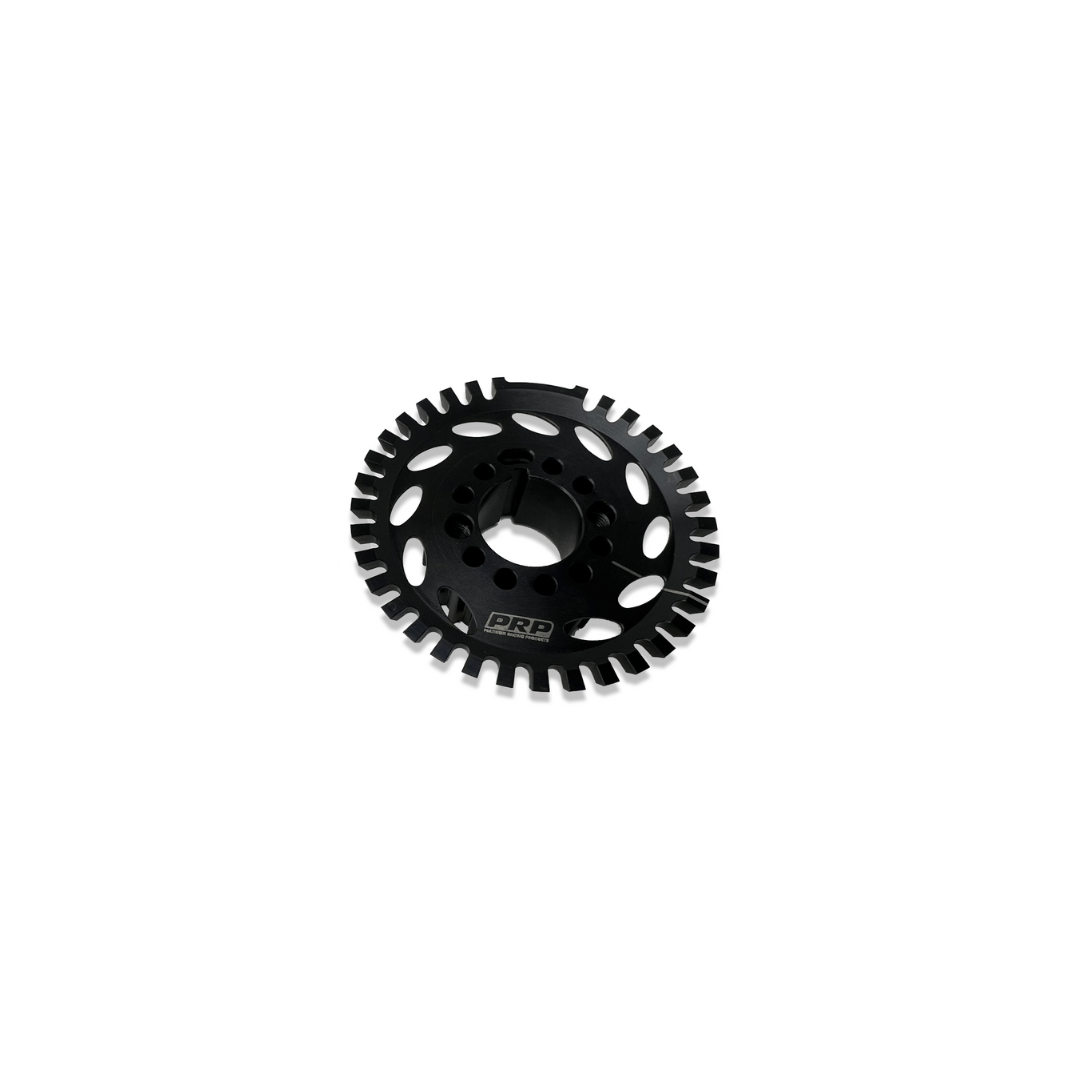

PRO (superseded)
Hardened billet 1045 steel cut gear
PRP rear EN36 hardened washer

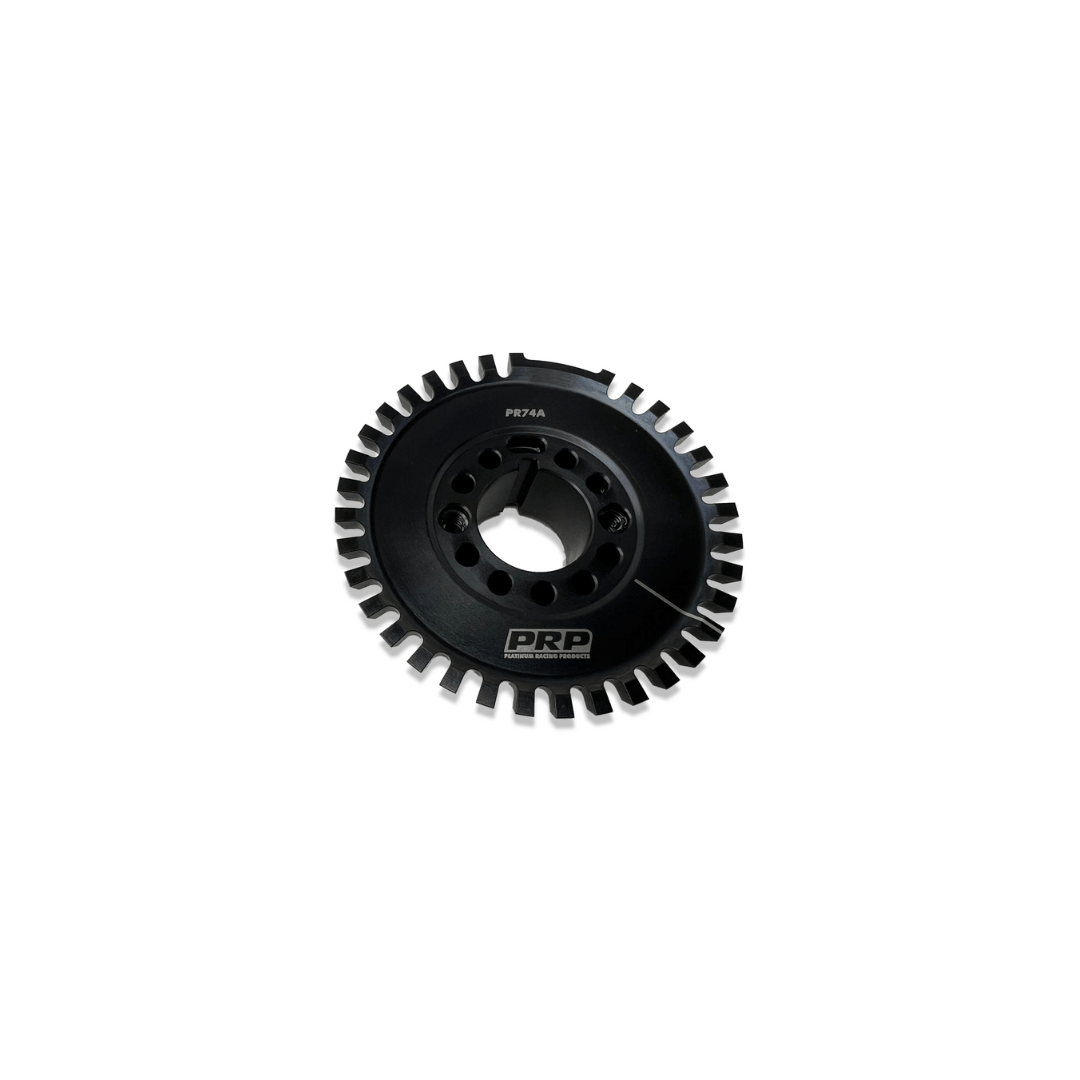

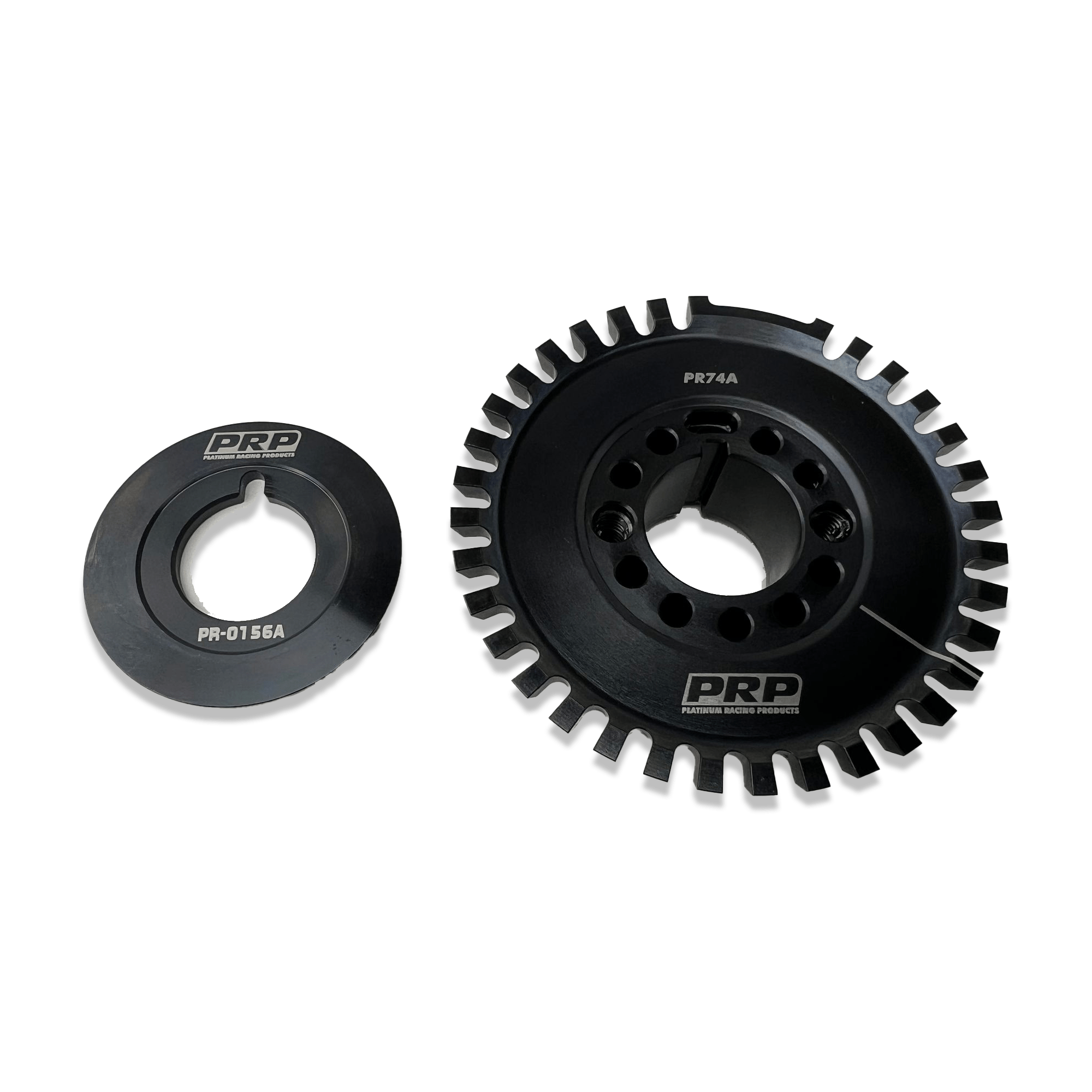

PRO V2
Hardened billet 1045 steel cut gear
No lightening holes for increased strength
PRP rear EN36 hardened washer
Pro Series Ignition Timing Kit replacement

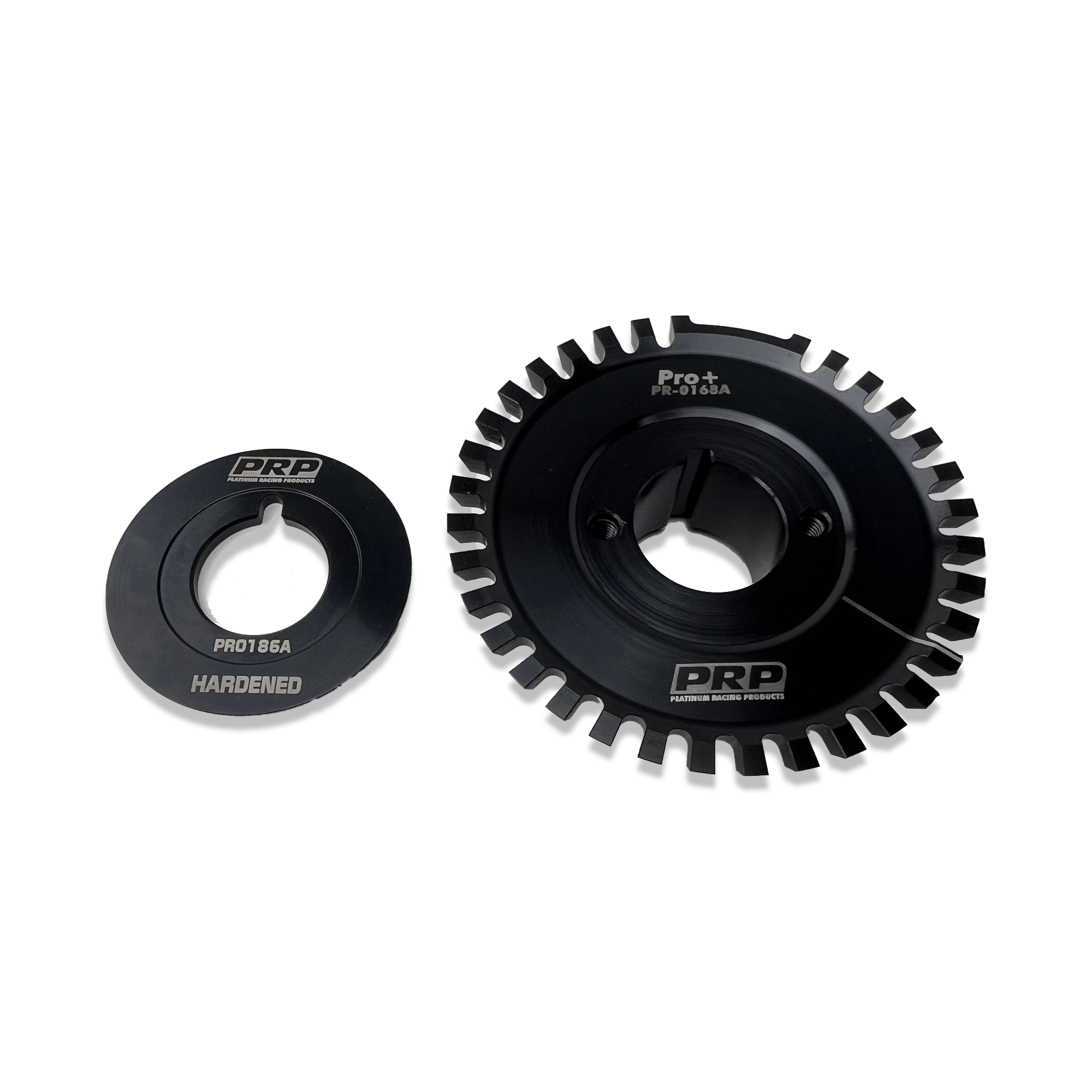

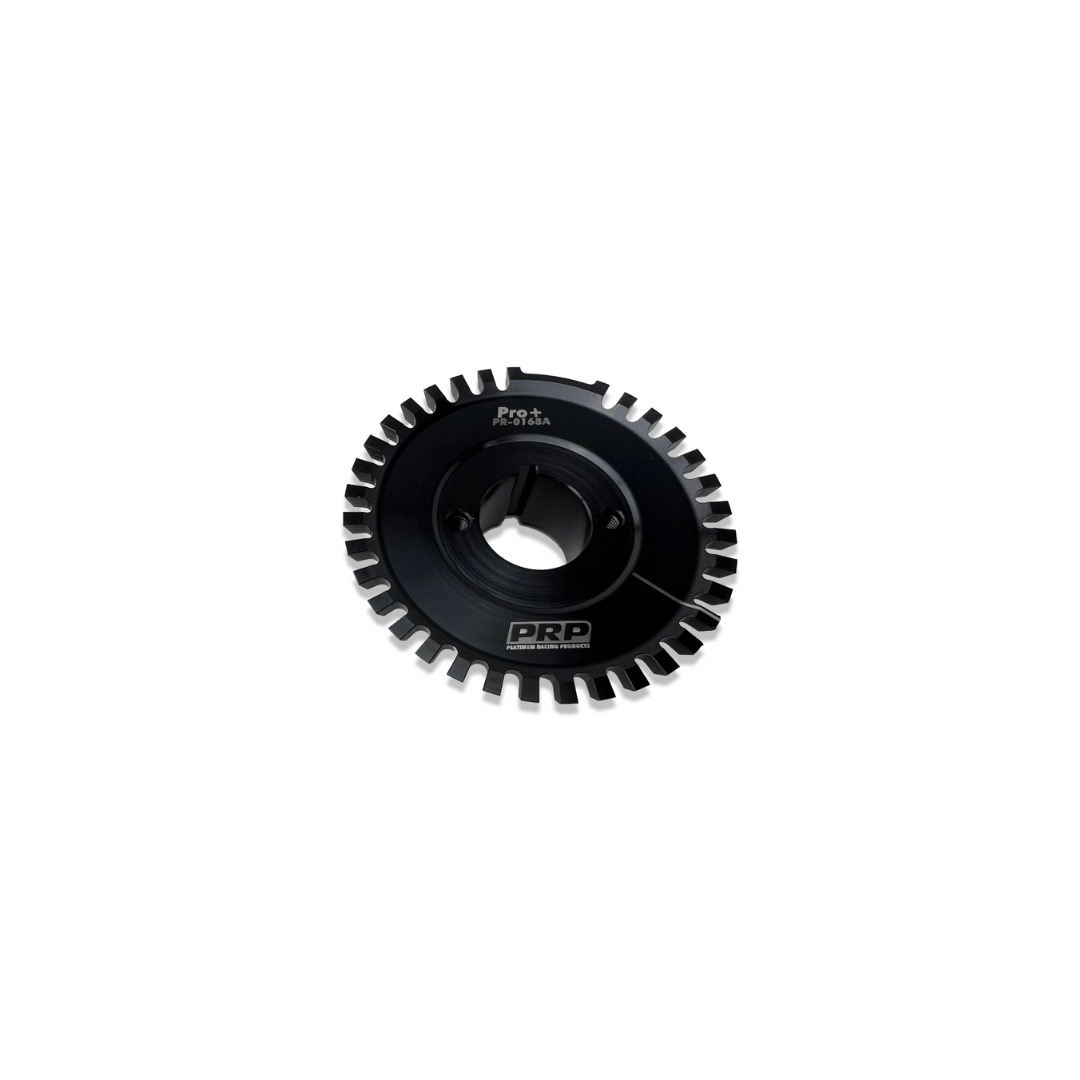

PRO PLUS
Hardened billet 4140 steel cut gear
PRP rear EN36 blackened and hardened washer
Rated for 1500HP+ and 10,000 RPM

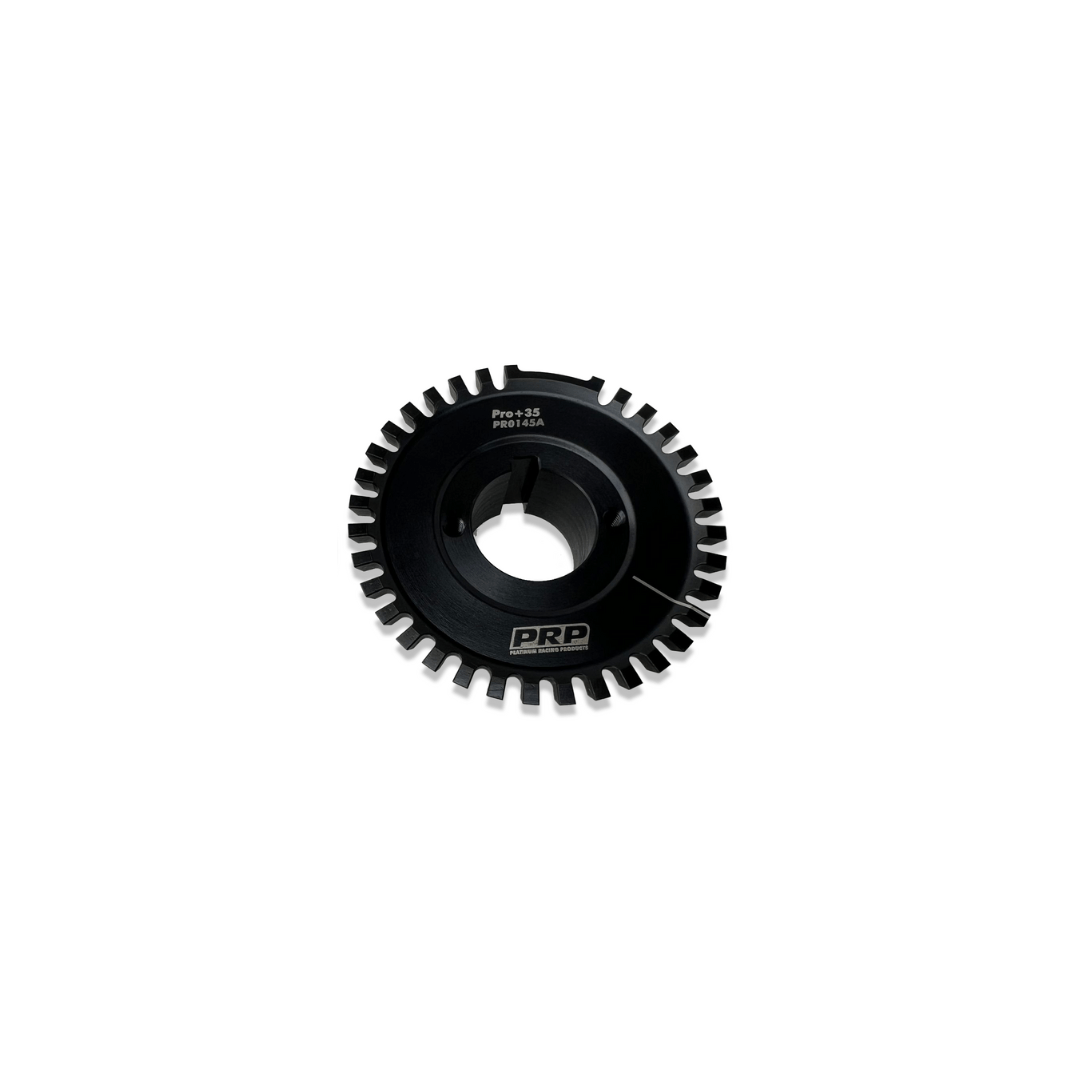

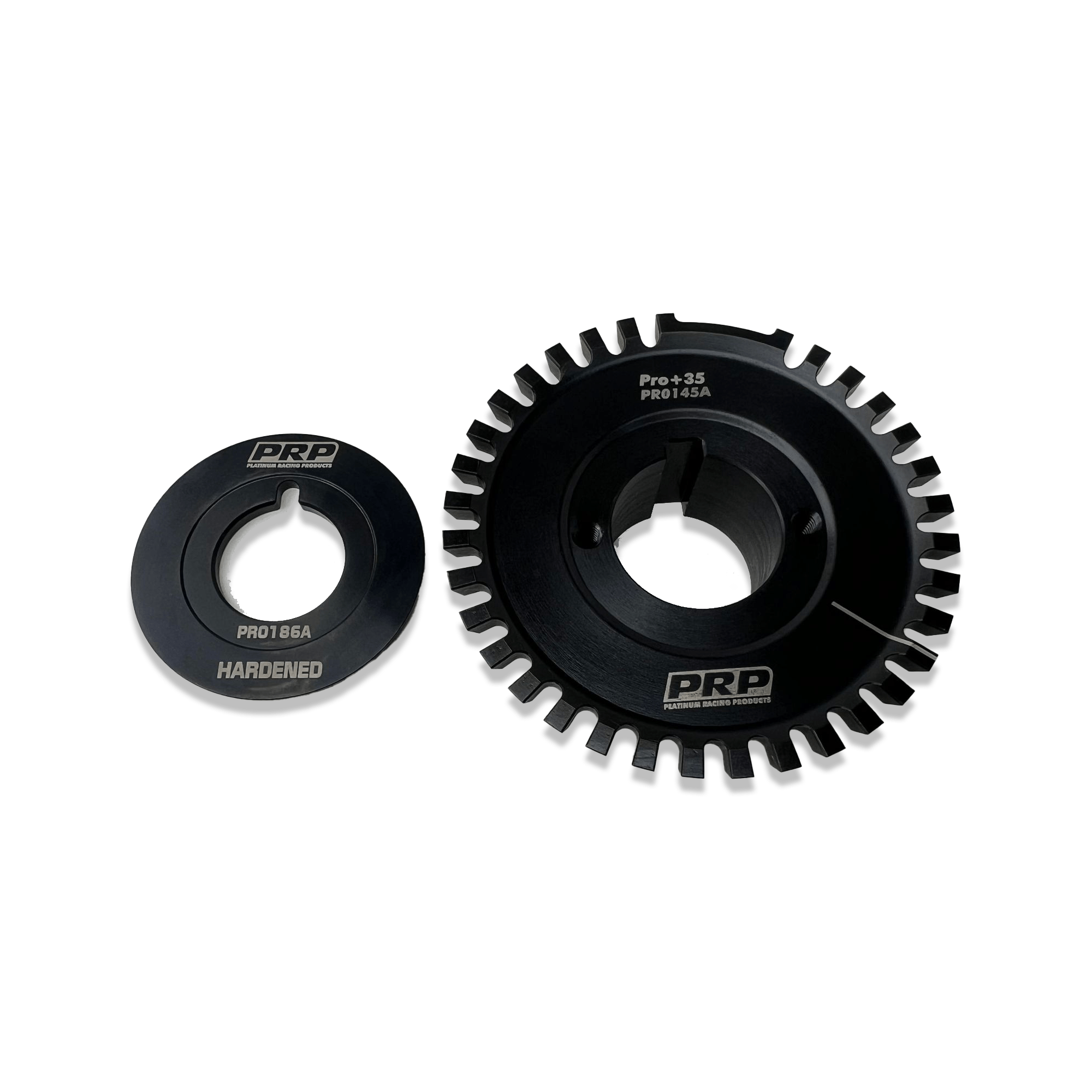

PRO PLUS 35 (Stroker)
Hardened billet 4140 steel cut gear
35mm snout for 3.6L RB stroker engines
PRP rear EN36 washer heat treated and hardened to 40 Rockwell

Technical Specifications
Engine compatibility: Nissan RB series
Tooth count: 12-tooth (Race series), 36-tooth (Pro series)
Material options: 1045 billet steel, 4140 hardened billet steel
Washer material: EN36 (varies by model)
Applications: Street, race, drag, circuit, high RPM performance builds

Availability & Lead Time
Due to the size and variety of the Platinum Racing Products range, some items are supplied to order rather than held on the shelf. Lead times can vary. If you need an item urgently, please contact us before ordering so we can confirm availability.
