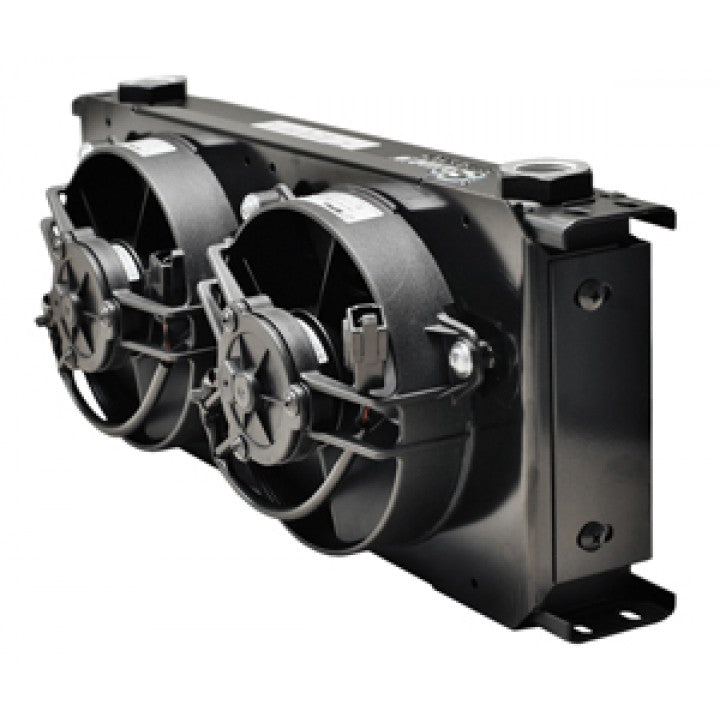

Setrab Series 9 20-Row Fanpack Oil Cooler with Dual 12V Fans - SET-FP920M22

SKU: SET-FP920M22
Price
$975
Tax included and shipping calculated at checkout

Frequently Bought Together

Setrab 900 Series Oil Cooler Mounting Bracket Extra Wide Cooler Mount SET23-9002 - Game On Motorsports Australia

Setrab 900 Series Extra Wide Oil Cooler Mounting Bracket SET23-9002

$95.95
Setrab M22 -10 AN Adapter SET22-M22AN10 - Game On Motorsports Australia

Setrab M22 -10 AN Adapter SET22-M22AN10

$22.95
Setrab M22 -12 AN Adapter SET22-M22AN12 - Game On Motorsports Australia

Setrab M22 -12 AN Adapter SET22-M22AN12

$23.95
Setrab M22 -6 AN Adapter SET22-M22AN06 - Game On Motorsports Australia

Setrab M22 -6 AN Adapter SET22-M22AN06

$18.95
Setrab M22 -8 AN Adapter SET22-M22AN08 - Game On Motorsports Australia

Setrab M22 -8 AN Adapter SET22-M22AN08

$21.95

Product Information

The Setrab Series 9 20-Row Fanpack Oil Cooler combines a wide-format Setrab ProLine oil cooler with dual 12V puller fans, making it a strong choice for performance vehicles that need reliable oil temperature control where direct airflow is limited.

Using the extra-wide Series 9, 20-row core, this fan-assisted cooler provides a large cooling surface area while the twin fans actively pull air through the core at low vehicle speeds or when the cooler is mounted away from the front of the vehicle. This makes it particularly useful for tightly packaged race cars, street cars, track cars and fabricated builds where positioning a conventional oil cooler directly in clean airflow is difficult.

The dual fans provide a combined airflow of approximately 684 CFM, helping maintain airflow through the cooler during staging, pit-lane operation, low-speed driving and other situations where vehicle speed alone cannot provide sufficient cooling.

With M22 x 1.5 female ports, the cooler can be incorporated into a wide range of performance oil systems using the appropriate Setrab M22 O-ring adapters and AN plumbing. Typical installations include engine oil, transmission oil, differential oil and power steering cooling systems.

FEATURES

  • 20-row Series 9 Setrab ProLine oil cooler
  • Dual 12V puller fans
  • Combined fan airflow: approximately 684 CFM
  • Approximately 342 CFM per fan
  • Port size: M22 x 1.5 female
  • Overall width: approximately 405mm
  • Core width: approximately 330mm
  • Height: approximately 153mm
  • Depth with fans: approximately 112mm
  • Extra-wide Series 9 core provides a large cooling surface area
  • Integrated fan shroud directs airflow through the cooler core
  • Fan-assisted design is suited to installations with limited natural airflow
  • Suitable for remote-mounted performance oil cooling systems
  • Setrab ProLine M22 ports allow hose sizing to be selected using appropriate adapters

TYPICAL APPLICATIONS

  • Performance engine oil cooling
  • Automatic transmission oil cooling
  • Sequential and motorsport gearbox cooling
  • Differential oil cooling
  • Power steering oil cooling
  • Turbocharged and high-output engine builds
  • Street performance cars
  • Track and circuit cars
  • Drag racing vehicles
  • Motorsport and competition vehicles
  • Remote-mounted oil cooler installations
  • Vehicles with restricted front-end airflow
  • Custom fabricated oil cooling systems

FITMENT NOTES

This is a universal performance oil cooler assembly and is not designed as a direct vehicle-specific replacement. Mounting, oil lines, adapters and electrical wiring must be configured to suit the individual vehicle.

The cooler uses M22 x 1.5 Setrab ProLine female ports. Appropriate Setrab M22 O-ring adapters are required to convert the cooler to the AN hose size being used in the oil system.

The dual fans are configured as puller fans, drawing air through the cooler core. The assembly should be positioned so the fans have adequate space behind them to discharge heated air without significant restriction.

Because this cooler is approximately 405mm wide x 153mm high x 112mm deep, available mounting space should be checked carefully before ordering.

The fans require a suitable 12V electrical supply. Appropriate wiring, fusing, relays and fan control must be selected for the installation. A thermostatic fan switch or ECU-controlled relay can be incorporated where required.

For engine oil installations, confirm the required oil take-off arrangement, thermostat configuration, hose size and adapter fittings before ordering.
