Setrab 19 Row Narrow Oil Cooler SET50-119-7612

$353.25 In Stock Sold out
CODE: SET50-119-7612
  • Description
  • Shipping and Refund
  • Reviews

M22 - Female

19 Rows

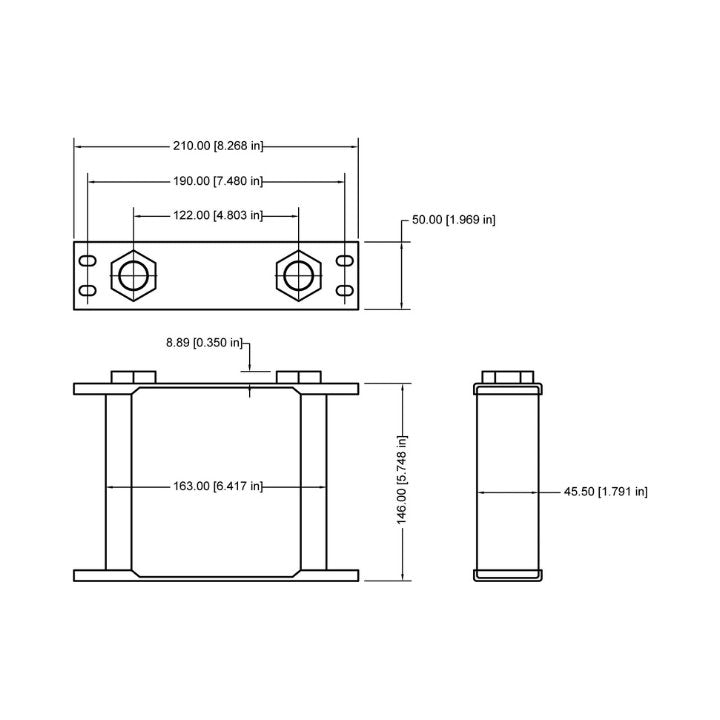

HEIGHT - 146mm

LENGTH - 210mm

DEPTH - 50

  • Maximum working pressure is 10 bar.
  • Corrosion protection: Nocolok brazing process and epoxy-coated.
  • Connections: M22 Female Thread, Adapters available to suit various applications
  • For use in hydraulic systems, engines, transmissions, transformers, fuel coolers, etc.


Setrabs unique modular system for the STD Oil Cooler gives them great freedom to adapt their coolers to most applications as regards external dimensions. The range comprises about 700 dimensions, besides which we can choose from among several different air fins, turbulators, mounting flanges, placements of connections, and about 60 different kinds of connections.


All types of installations should be assessed for the best method of mounting the oil cooler. When designing the mounting arrangement consideration should be given to avoid any undue stresses and vibrations being transmitted to the STD cooler. Hydraulic hoses should be used to connect both the inlet and outlet of the cooler and hoses should be free from stress so as not to induce any tension to the cooler connections. We also recommend the use of damping devices to isolate the cooler from vibrations whilst providing for expansion of the cooler when at full operating temperatures.


GameOn Motorsports warranties are void when the product in question has been physically altered, improperly installed, used or otherwise damaged due to no fault of GameOn Motorsports or has not been used for the said purpose it was intended or for which it was designed. GameOn Motorsports does not warrant the performance of the products due to lack of control during product installation and usage.
GameOn Motorsports shall not, under any circumstances, be liable for any special, incidental or consequential damages, including, but not limited to, damages or loss of other property or equipment, loss of profits or revenue, cost of purchased or replacement goods, or claims of customers of the purchaser which may arise and/or result from the sale, installation or use of these parts.

Returns Policy
Please choose your products carefully, as GameOn Motorsports will not refund processed and dispatched orders unless they are compromised in some way or unless otherwise stated.

Returns are only available for dispatched orders that contain supplied goods that are wholly or partly defective in appearance, incorrectly packaged or sent in error by fault of GameOn Motorsports, or the goods fail to operate in accordance to their specification or duration period.
Should the need arise to return a product or products please advise us by phone 0434 162 858 or email us at within 7 days of the date of receipt of your order. GameOn Motorsports will resupply your order promptly or any part thereof freight free in instances upon receipt of the returned goods which are in error by fault of GameOn Motorsports or obviously defective from manufacture.

Exchange of items is offered only when the product is unused, package is not opened and within 7 days of the date of receipt. The credit will not include any shipping and handling charges forming part of the purchase price. Customer must pay the return postage and must ensure that the returned Goods are received by GameOn Motorsports in as-new or as-shipped by GameOn Motorsports condition, exchange will be refused if GameOn Motorsports has not received communication on the product being returned.

Warranty returns which are in question of being faulty in appearance or performance by the customer are subject to our initial inspection and will be forwarded on to our supplier for a full warranty claim. If an immediate substitute part is required, the replacement item plus freight costs will be need to be purchased by the customer again until the warranty claim can be fully processed by our supplier.

In the event of an exchange part return, warranty claim credit or refund we will contact the customer directly either via phone or email for details of reimbursement preferably using secure online bank to bank transfer method.

To assist us with any returns please provide us with the following details: your full name and address, product details, invoice number, date of purchase, and the reason for return. Upon receipt of this information we will contact you with the preferred method of goods return if the item cannot be returned by post.
