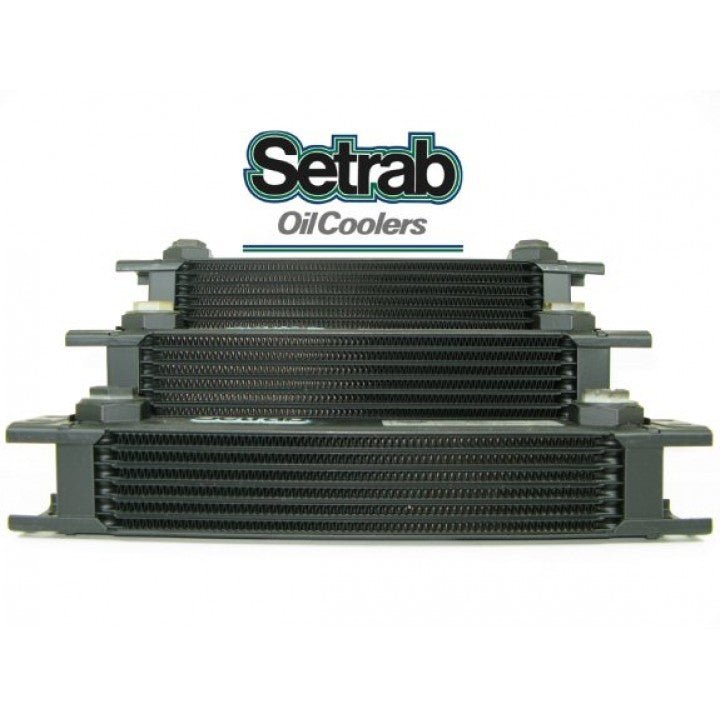

Setrab 40 Row Extra Wide Oil Cooler M22 Ports SET50-640-7612

SKU: SET50-640-7612
Price
$877
Tax included and shipping calculated at checkout

Product Information

Specifications:

  • Rows: 40

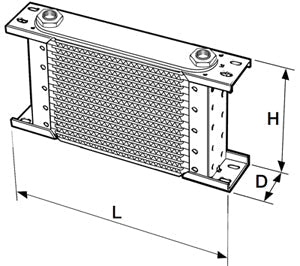

  • Core Width: 330mm

  • Overall Width: 405mm

  • Height: 306mm

  • Depth: 50mm

  • Port Size: M22 x 1.5 female threads

  • Operating Pressure: Up to 10 bar (145 psi)

  • Burst Pressure: 37 bar (536 psi)

  • Temperature Range: -40°C to 150°C

  • Oil Volume: Approx. 1.05L

  • Weight: Approx. 3.1kg

The Setrab SET50-640-7612 is a 40-row extra wide oil cooler built for high-powered street, track, and endurance applications where superior heat management is critical. Part of Setrab’s ProLine Series 9 range, this cooler features a 405mm overall width and a race-proven stacked-plate core that delivers maximum heat rejection with minimal pressure drop.

Ideal for cooling engine oil, transmission fluid, or differentials in turbocharged, supercharged, or high-revving builds, the 40-row configuration provides significant cooling capacity while remaining compact enough to integrate cleanly into performance setups. M22 x 1.5 female ports offer plumbing flexibility for -AN or OEM-style fittings.

Setrab’s reputation for quality and performance is backed by global motorsport use. Lightweight, efficient, and built to last — this oil cooler is designed to perform under pressure.

Key Features:

  • 40-row extra wide stacked-plate core for superior thermal efficiency

  • M22 x 1.5 female ports for versatile fitting integration

  • Lightweight aluminium construction with durable black powder coat

  • Excellent flow characteristics with low pressure drop

  • Ideal for engine, transmission, or differential cooling

  • Made in Sweden – trusted by race teams worldwide
