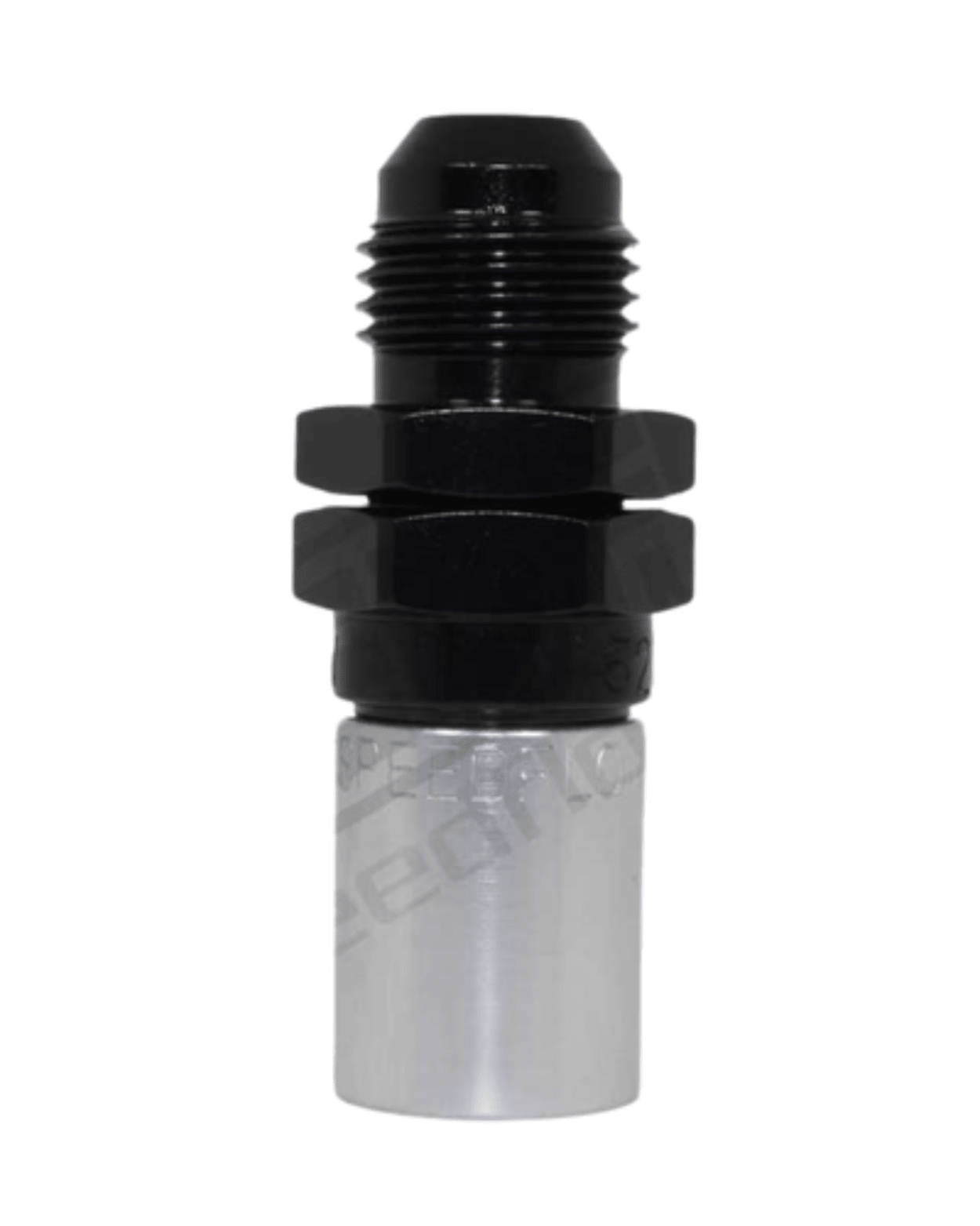

Speedflow 520 Series -6 Crimp to 5/16" Barb Aluminium Fitting 520-T05-06

SKU: 520-T05-06
Price
$38.05
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

Speedflow 520 Series crimp hose end to hose tail fittings provide a compact and reliable solution for transitioning PTFE hose to rubber hose in a single fitting. Designed for use with Speedflow 200 Series PTFE hose and crimp collars, this -6 AN to 5/16" hose tail fitting eliminates the need for multiple adapters while delivering a clean, professional installation.

Manufactured from lightweight 6061-T6 billet aluminium, this fitting features a 360° swivel for simplified alignment during installation and a Viton® O-ring internal seal for dependable, leak-free performance. Ideal for motorsport, street, and track applications where reliability and efficient hose routing are essential.

Features

  • -6 AN crimp hose end to 5/16" hose tail configuration
  • Designed for Speedflow 200 Series PTFE hose
  • Compatible with Speedflow 500 Series crimp collars
  • 360° swivel design for easier alignment during installation
  • 6061-T6 billet aluminium construction for strength and reduced weight
  • Viton® O-ring internal seal for reliable, leak-free performance
  • Hard anodised finish for corrosion resistance
  • Eliminates the need for multiple adapters and joiners

Typical Applications

  • Fuel return systems
  • Coolant and heater hose plumbing
  • Breather and catch can systems
  • Low-pressure oil return lines
  • Vacuum and auxiliary fluid circuits
  • Race car, street car, and track car builds
  • Motorsport fabrication and custom plumbing

Fitment Notes

  • Suits Speedflow 200 Series PTFE Hose -6 (200-06)
  • Requires Speedflow 500 Series Crimp Collar -6 for installation
  • Hose tail suits 5/16" (7.9mm) rubber hose
  • Secure rubber hose using an appropriate fuel injection or worm drive hose clamp suitable for the application
  • Designed for low to medium pressure hose tail applications – not intended for direct high-pressure EFI feed connections on the hose tail side
  • Pressure test the system after installation
