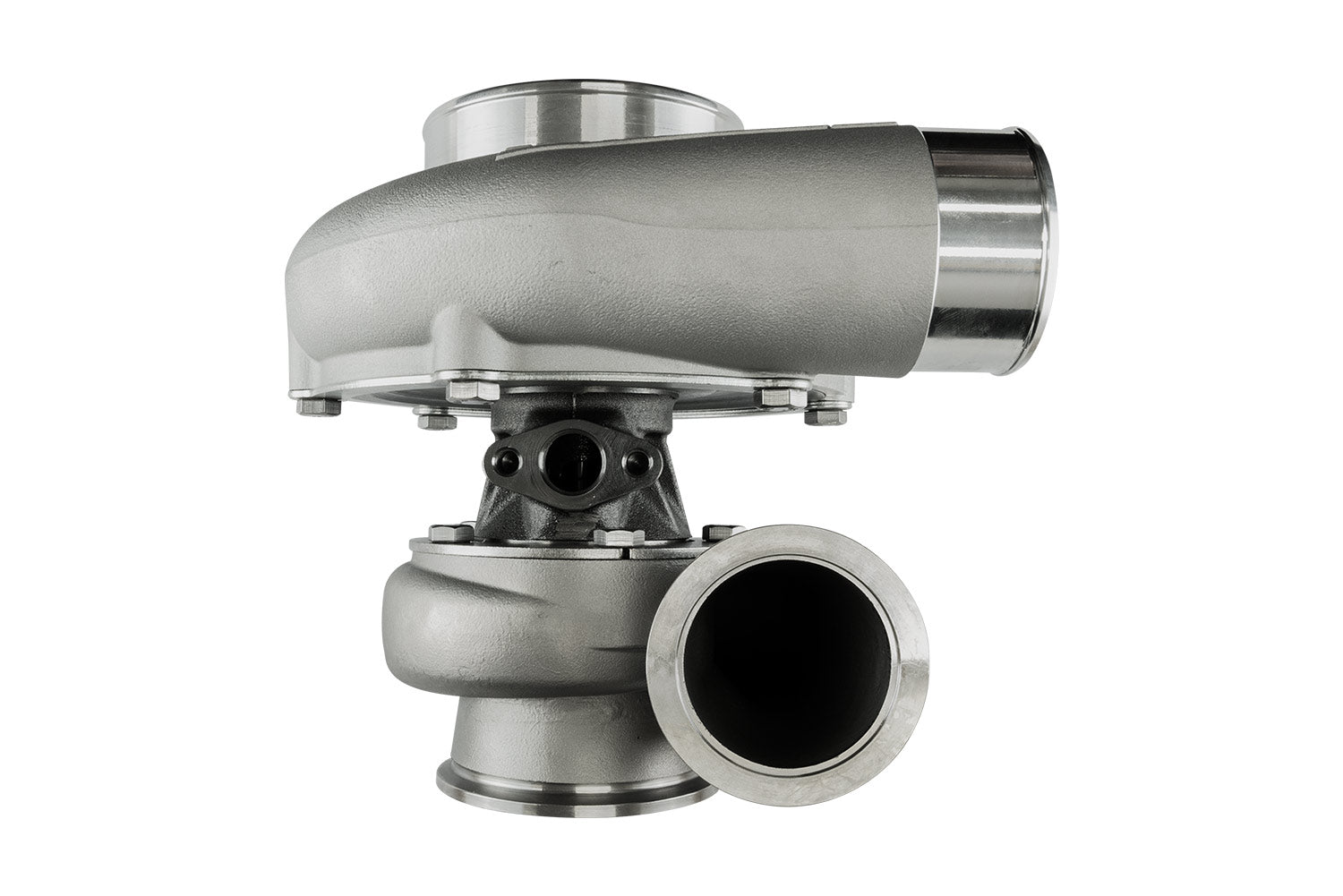

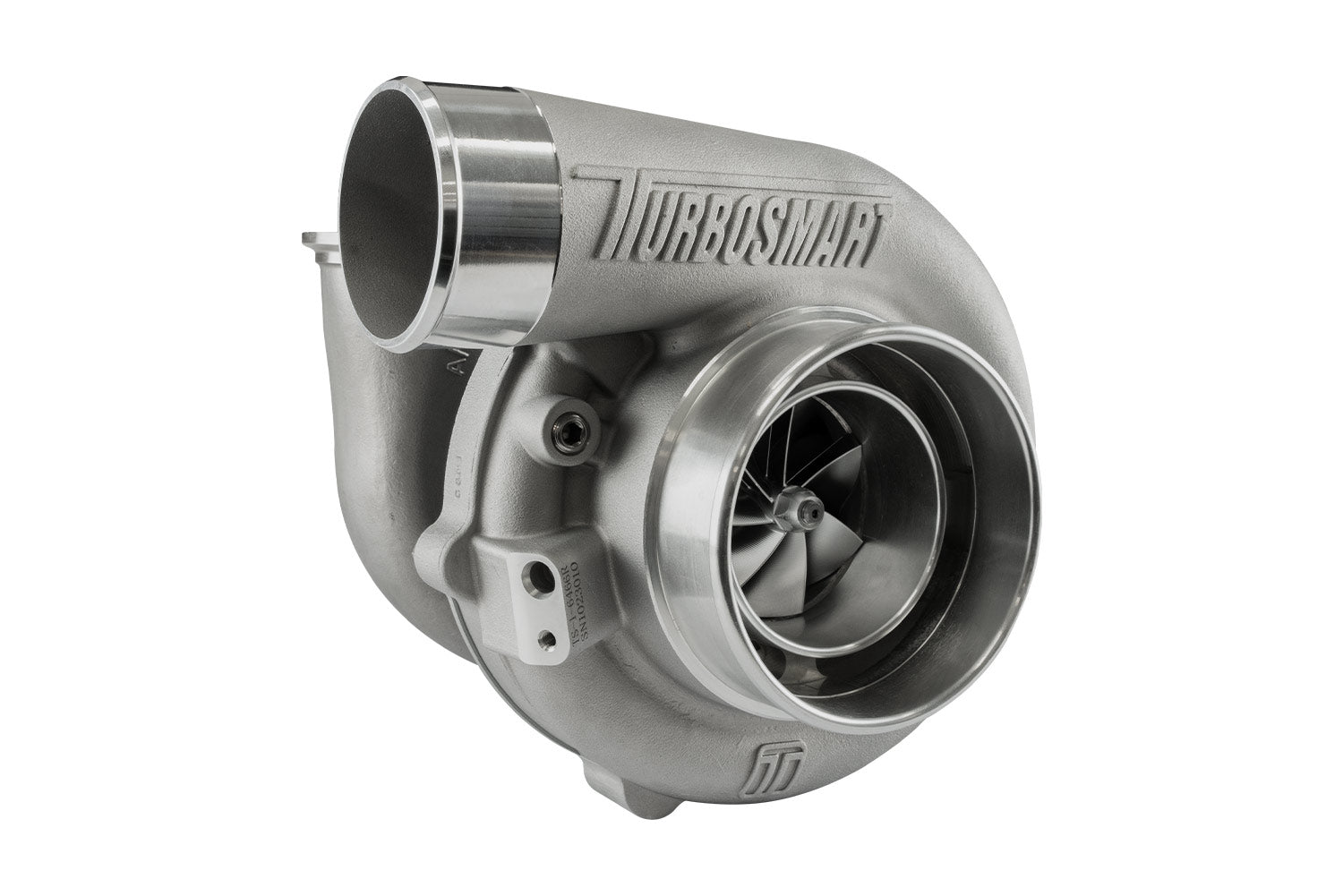

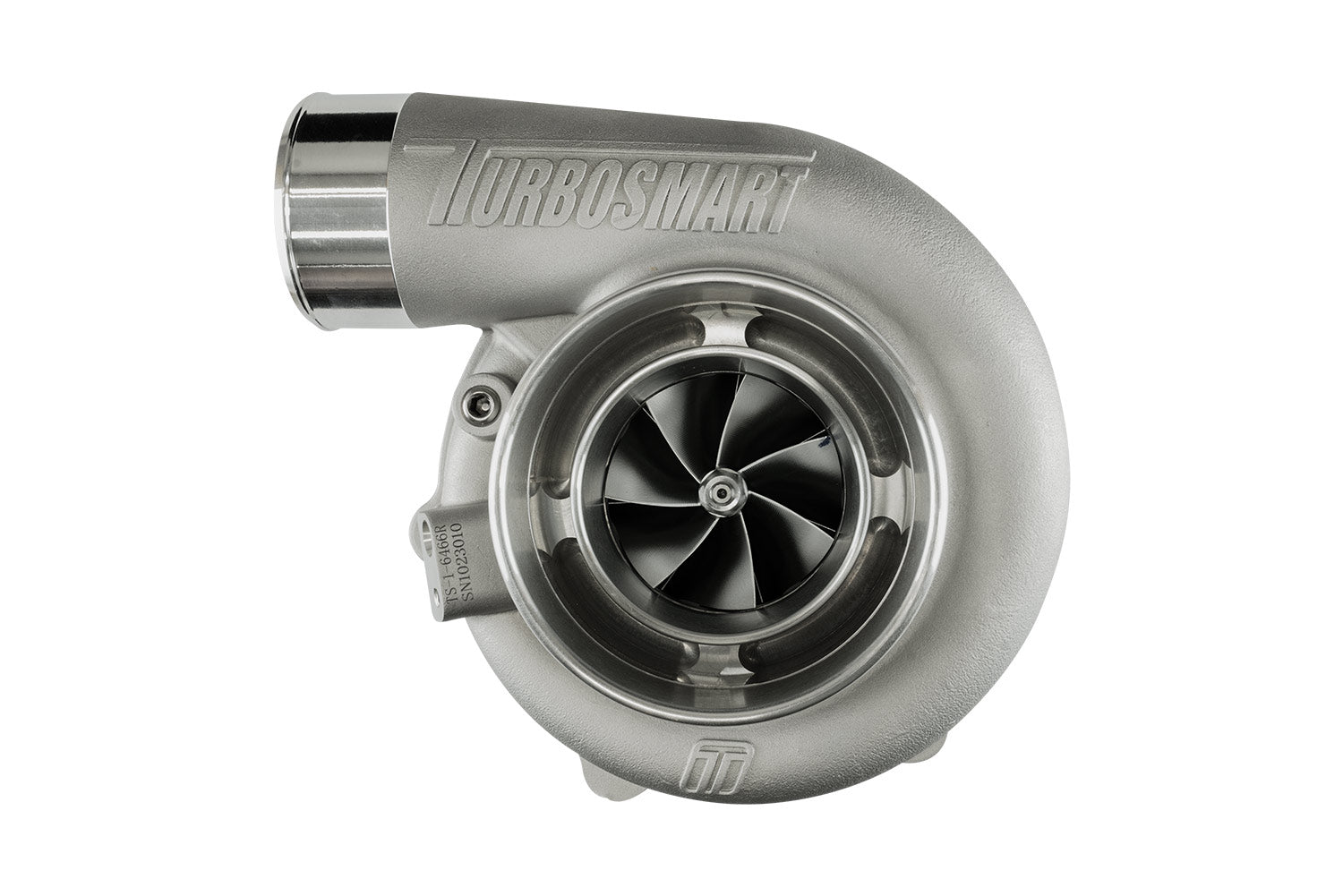

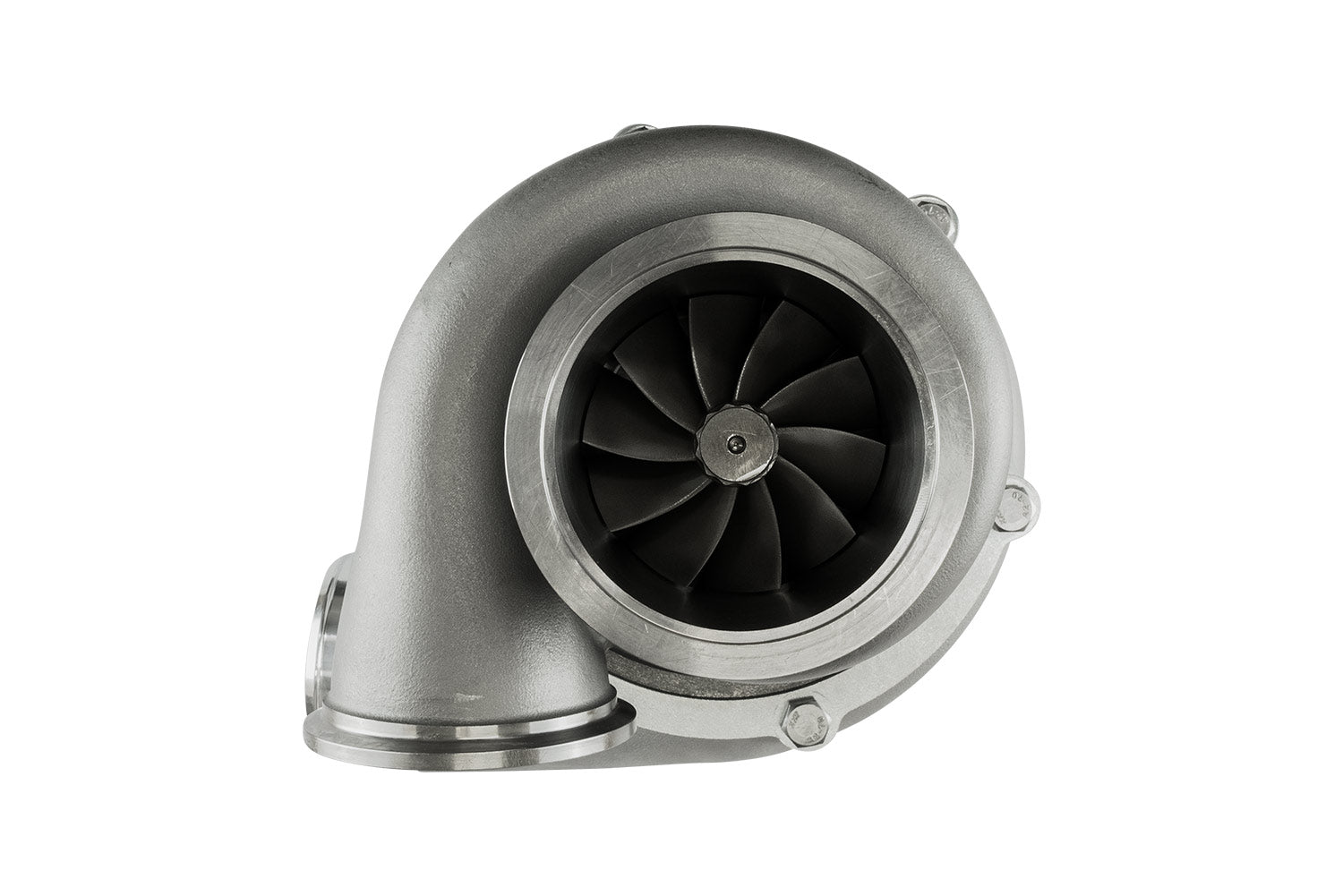

TS-1 Performance Turbocharger 6466 V-Band 0.82AR Externally Wastegated Reverse Rotation TS-1-6466VR082E

SKU: TS-1-6466B-VR082E
Price
$3,850
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

TS-2 6466 Water-Cooled Turbocharger – Reverse Rotation, 0.82 A/R, Externally Wastegated

See Turbosmarts Data Sheet Here

See Turbosmarts Installation Guide Here

The Turbosmart TS-2 6466 is a high-performance water-cooled turbocharger designed for superior transient response, exceptional efficiency, and maximum durability in both motorsport and high-power street applications. Engineered using state-of-the-art materials, CFD-optimised housings, and Turbosmart’s proprietary dual-ceramic bearing system, the TS-2 series is built to be smaller, lighter, and faster than competing turbochargers in its class.

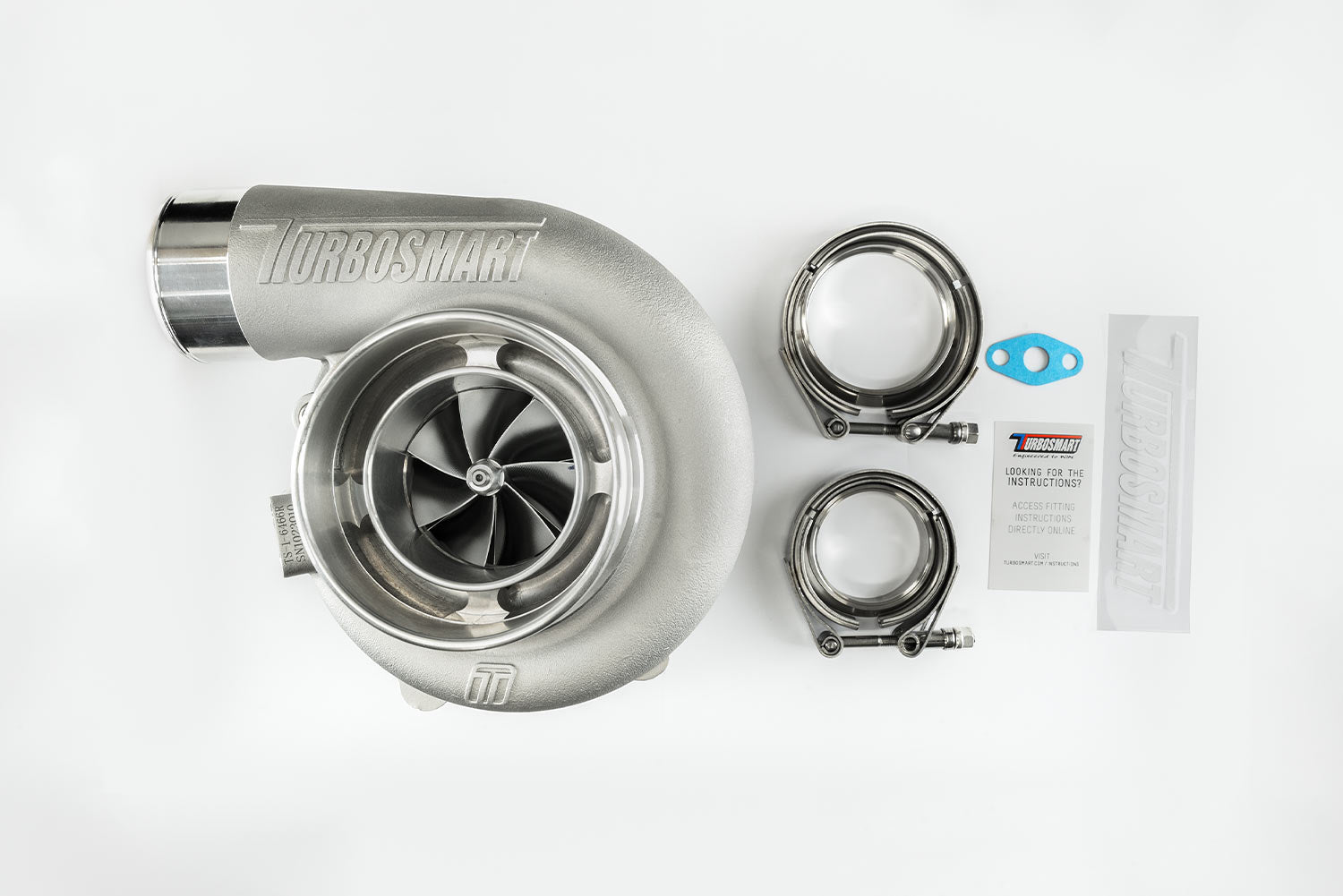

Featuring a reverse-rotation compressor, V-Band turbine housing, and 0.82 A/R externally wastegated configuration, the 6466 delivers lightning-fast boost response with outstanding airflow and high-load performance. Each TS-2 turbocharger includes weld flanges, V-band clamps, gaskets, oil feed and return fittings, plus water feed and return fittings — everything needed for installation.

Key Features:

Unmatched transient response
7+7 2618 aluminium billet compressor wheel
Lightweight 310S stainless steel investment-cast turbine housing
Lightweight aluminium compressor cover
CFD-optimised housings for ideal A/R and maximum flow
713C inconel turbine wheel for extreme EGT durability
Proprietary dual-ceramic bearing system
VSR speed balanced
Integrated iron backplate centre housing
Reverse rotation configuration (selected TS-2 sizes)
Water and oil cooled for thermal stability

Turbocharger Specifications:

Compressor Inlet: 4" (101.6 mm)
Compressor Inducer: 64 mm
Turbine Inlet: V-Band (2.25")
Turbine Exducer: 66 mm
Turbine A/R: 0.82
Turbine Outlet: V-Band (3.00")
Weight: 6.06 kg (13.3 lbs)
Horsepower Rating: 825–955 HP

Series Overview:

TS-1 oil-cooled turbochargers
TS-2 water + oil-cooled turbochargers
Reverse rotation options (selected sizes)
V-Band, T3, and T4 flange options
Multiple A/R options
Internal and external wastegate variants

Why Choose the TS-2 6466?

With modern aerodynamics, reduced rotating mass, and a full engine airflow design approach, the TS-2 6466 provides exceptional responsiveness and high-horsepower capability in a compact, efficient package.
