Turbosmart TS-1 7880 V-Band Reverse Rotation 0.96 A/R Externally Wastegated Turbocharger – TS-1-7880C-VR096E

SKU: TS-1-7880C-VR096E
Price
$5,291
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

TS-1 7880 Performance Turbocharger – Reverse Rotation, 0.96 A/R, Externally Wastegated

See Turbosmarts Data Sheet Here

See Turbosmarts Installation Guide Here

The Turbosmart TS-1 7880 is the flagship turbocharger in the TS-1 series, engineered for high-power applications needing fast transient response and exceptional top-end performance. Designed using modern materials, advanced aerodynamics and a proprietary dual ceramic bearing system, the TS-1 series delivers serious horsepower while remaining smaller, lighter and faster responding than traditional turbochargers.

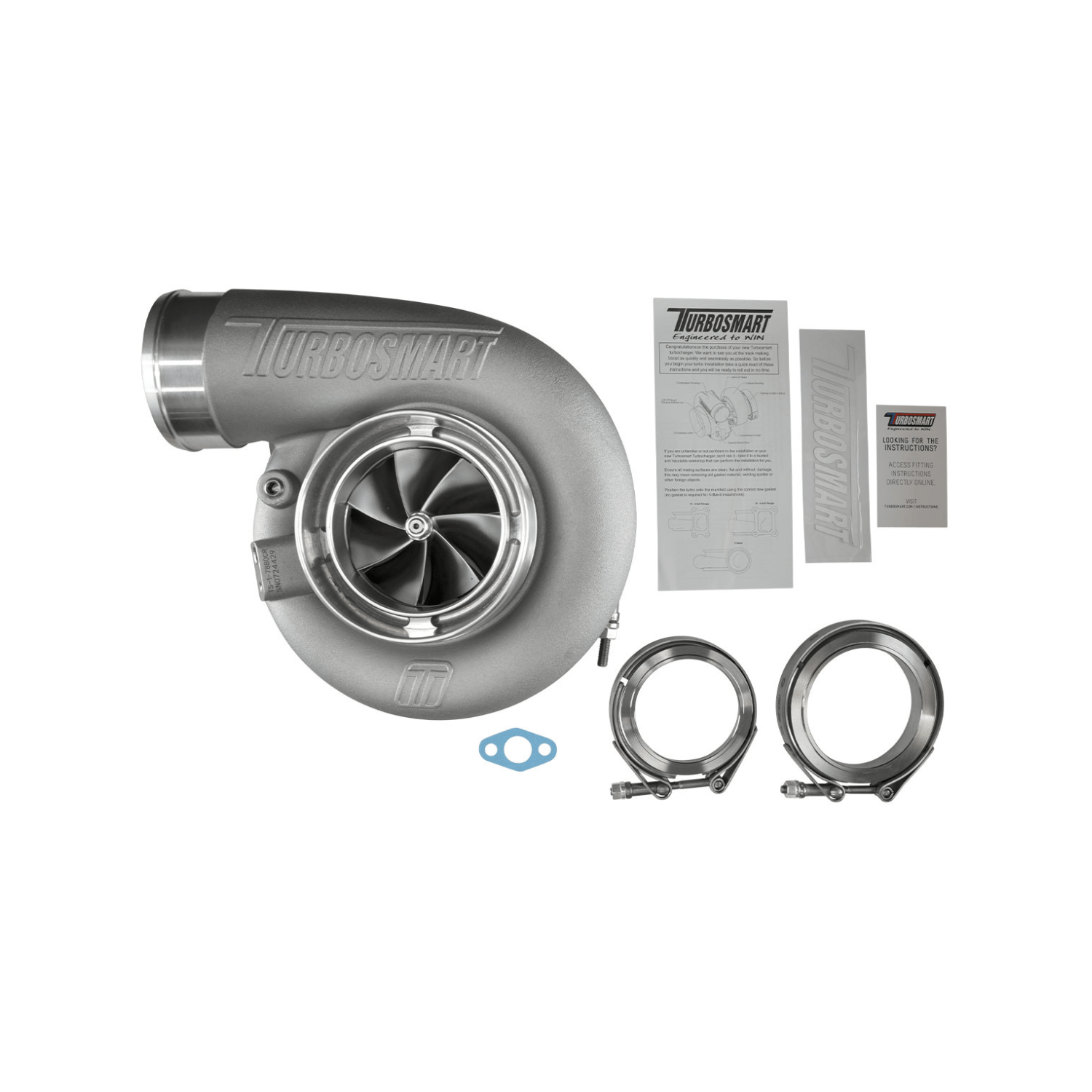

This reverse-rotation variant features a V-Band turbine housing with a 0.96 A/R external wastegate setup, giving high flow capacity while maintaining excellent spool characteristics. Each unit comes complete with weld flanges, V-band clamps, gaskets and oil feed and drain fittings for an easier installation process.

Key Features

  • Exceptional transient response from ultra-low rotating mass

  • 7+7 billet 2618 aluminium splitter compressor wheel

  • Lightweight 310S stainless steel investment-cast turbine housing

  • Lightweight aluminium compressor cover

  • CFD-optimised housings for maximum flow and efficiency

  • 713C inconel turbine wheel for extreme EGT durability

  • VSR speed-balanced for long-term reliability

  • Proprietary dual ceramic bearing system

  • Oil-cooled TS-1 architecture

  • Reverse-rotation compressor configuration

  • V-Band turbine inlet and outlet

  • Includes weld flanges, V-bands, gaskets, and all oil fittings

Turbocharger Specifications

  • Compressor Inlet: 4" / 101.6 mm

  • Compressor Inducer: 78 mm

  • Turbine Inlet: V-Band (3.00")

  • Turbine Exducer: 80 mm

  • Turbine A/R: 0.96

  • Turbine Outlet: V-Band (3.50")

  • Weight: 9.63 kg / 21.23 lbs

  • Horsepower Rating: 1,140 – 1,350 HP

Why Choose the TS-1 7880?

The TS-1 7880 offers a perfect combination of fast spool and massive power capability. Designed for builds targeting over 1,000 HP, it provides exceptional durability, response and efficiency in a compact and installation-friendly package.
