TS-2 7170 Kompact Performance Turbocharger – Water Cooled V-Band Reverse Rotation 1.07 A/R Externally Wastegated TS-2-7170B-VR107E

SKU: TS-2-7170B-VR107E
Price
$4,730
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

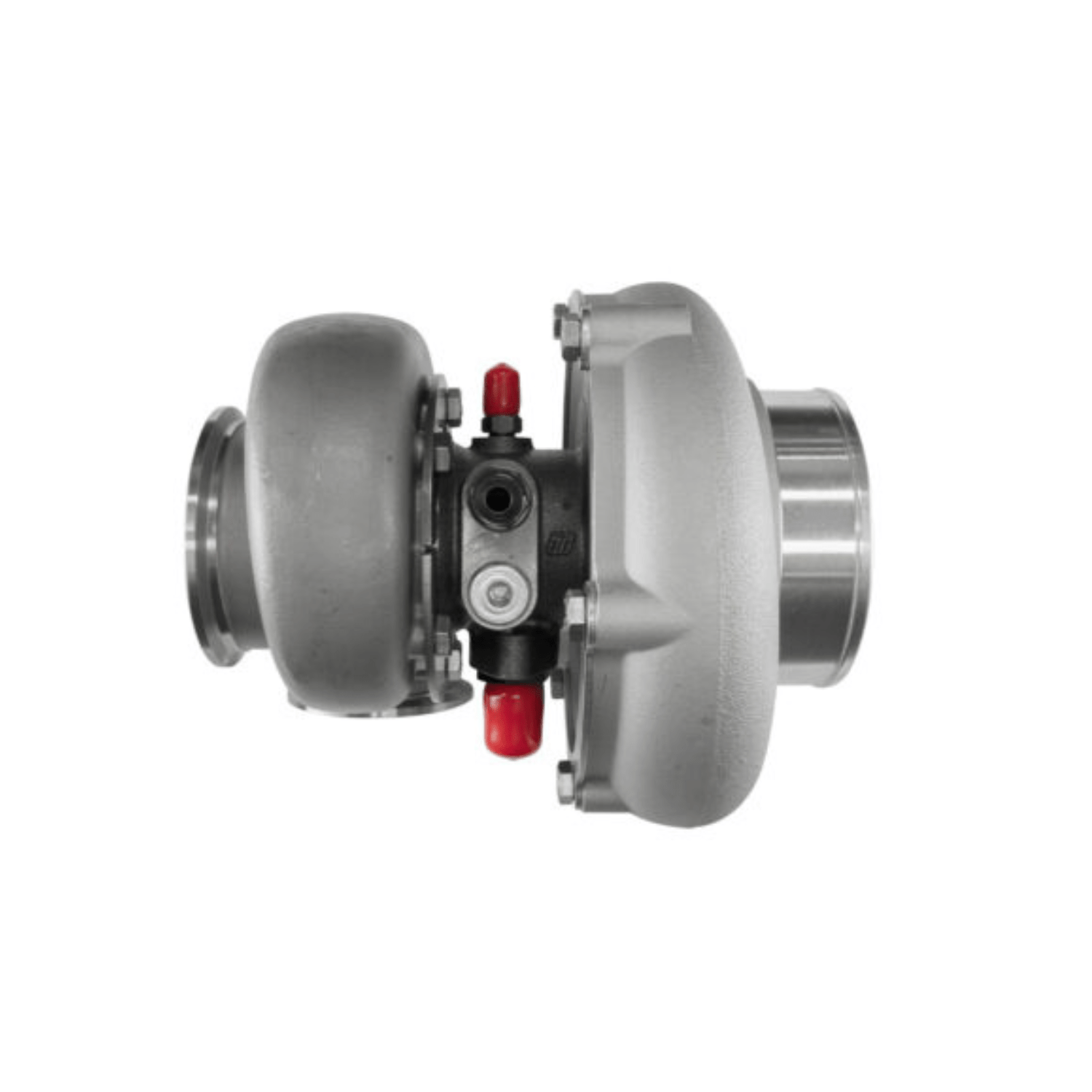

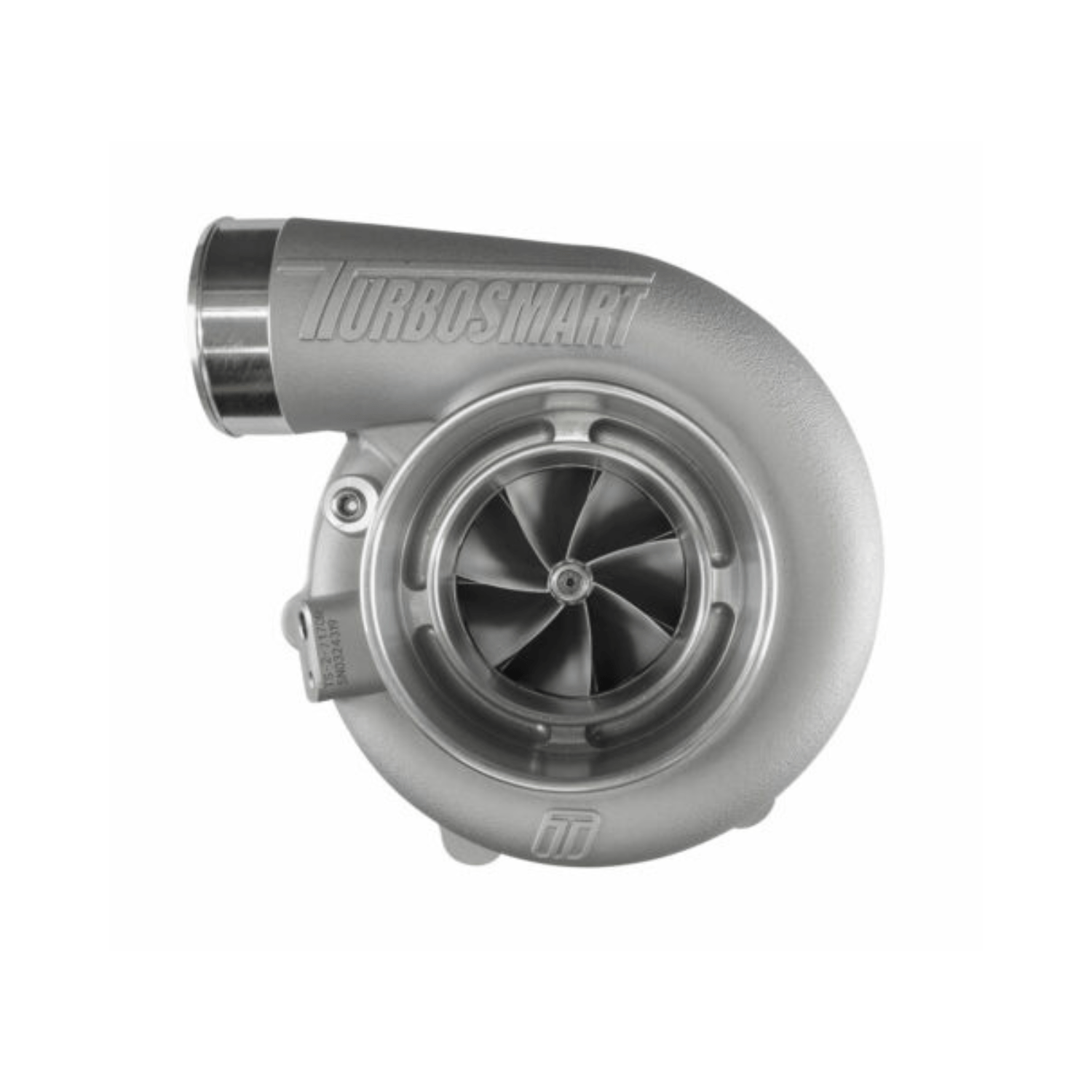

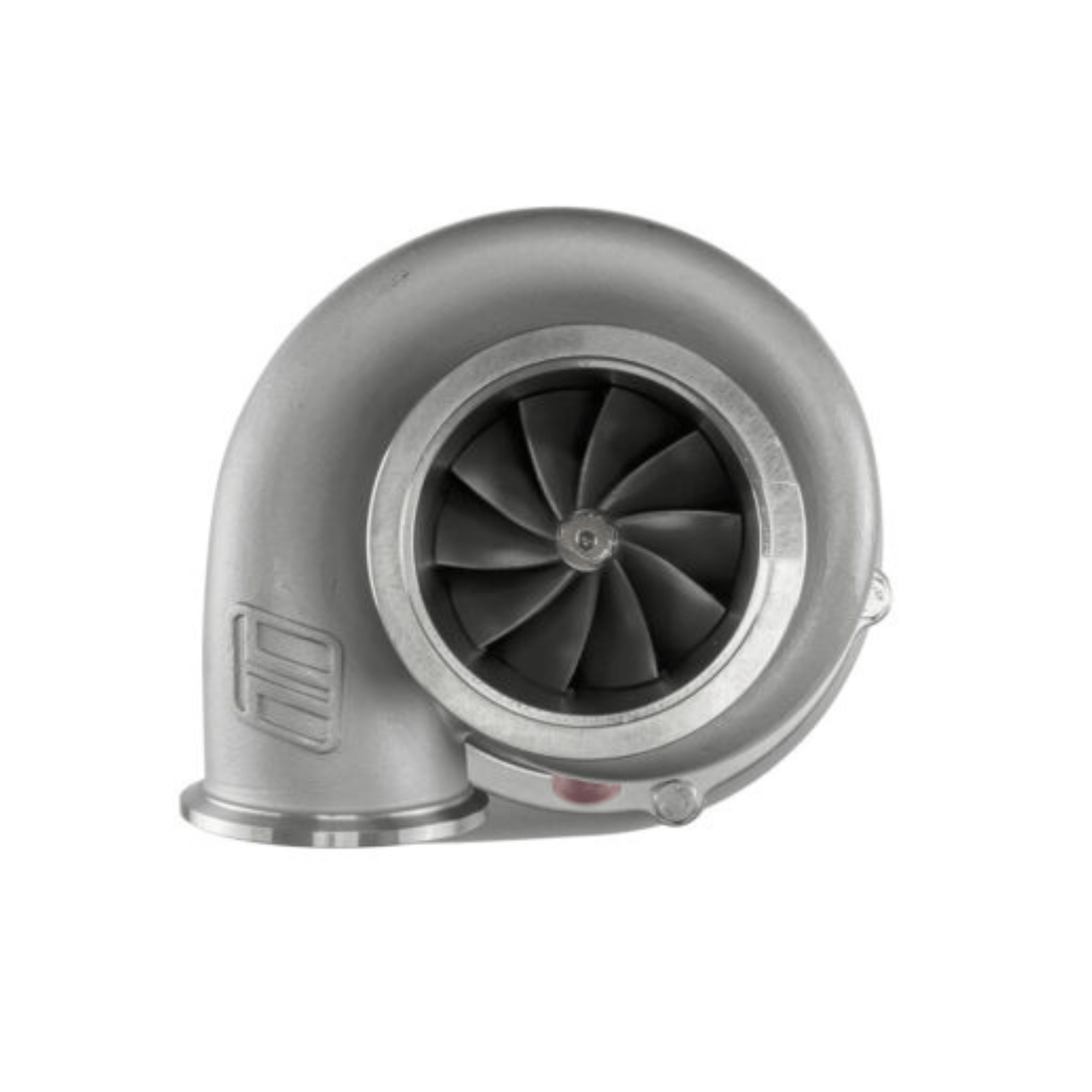

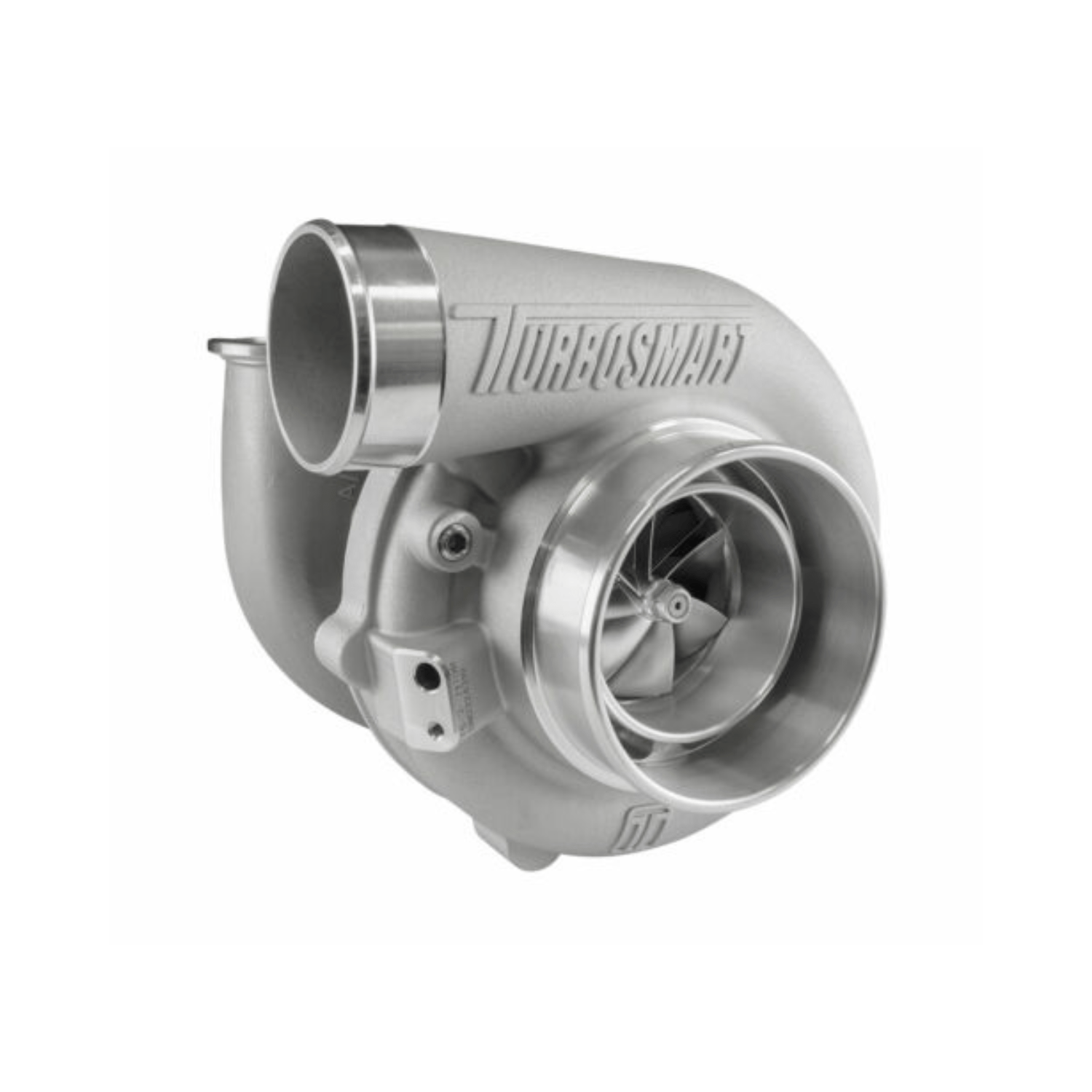

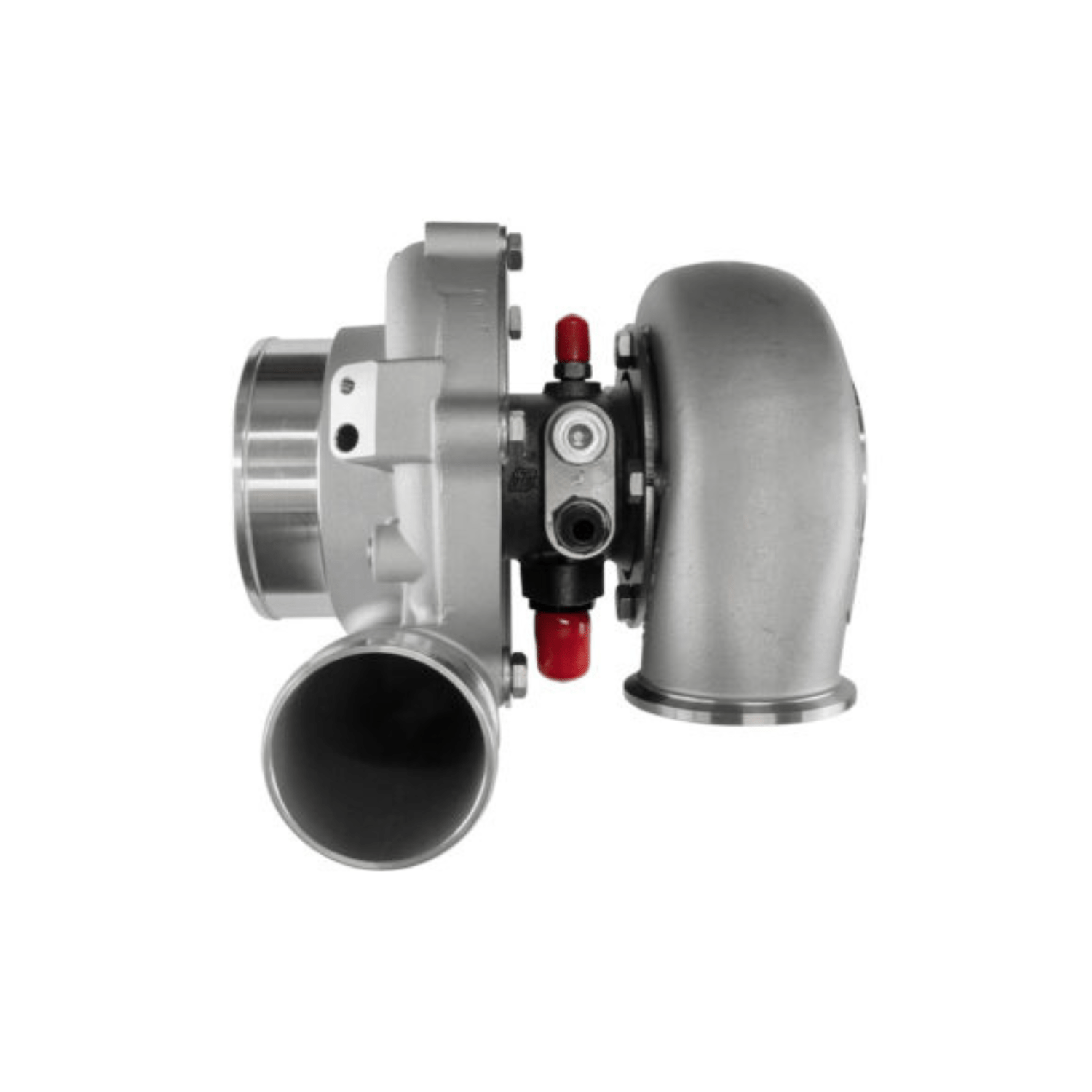

TS-2 7170 Kompact Turbocharger – Reverse Rotation, 1.07 A/R, Externally Wastegated

See Turbosmarts Data Sheet Here

See Turbosmart Installation Guide Here

The Turbosmart TS-2 7170 Kompact is a high-performance water and oil cooled turbocharger built for serious street and motorsport applications. Designed using modern aerodynamics, advanced materials and a proprietary dual-ceramic bearing system, the TS-2 range is engineered to be smaller, lighter and significantly faster responding than traditional turbochargers in the same power class.

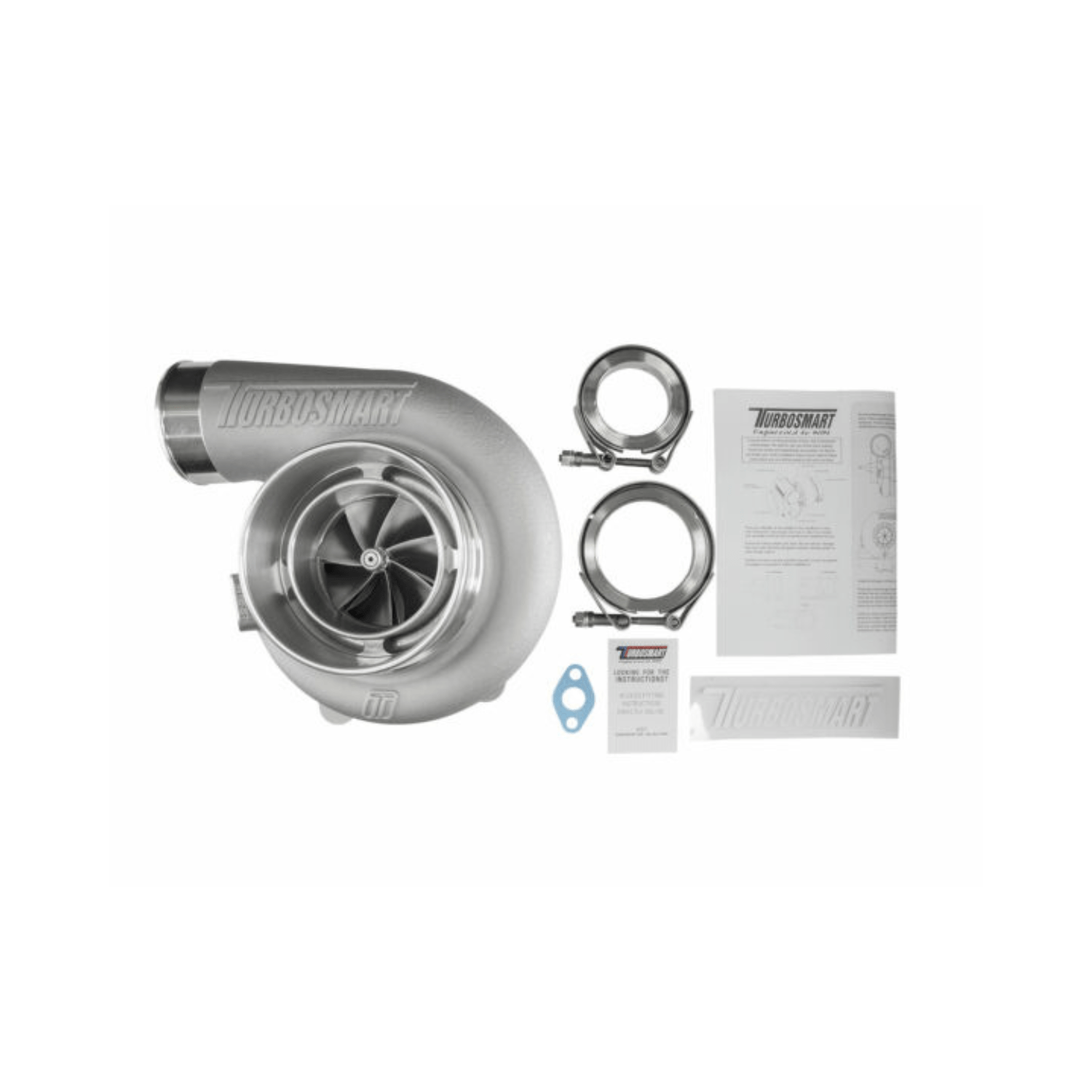

Featuring a reverse-rotation 71mm compressor, V-band turbine inlet and outlet and a 1.07 A/R externally wastegated turbine housing, the 7170 Kompact delivers fast transient response with strong top-end flow. Every TS-2 turbocharger includes weld flanges, V-band clamps, gaskets, oil feed and drain fittings, and water feed and return fittings for a complete installation package.

Key Features

  • Unmatched transient response

  • 7+7 splitter 2618 aluminium billet compressor wheel

  • Lightweight 310S stainless steel investment-cast turbine housing

  • Lightweight aluminium compressor cover

  • CFD-designed housings for optimal A/R and maximum flow

  • 713C inconel turbine wheel for extreme EGT durability

  • VSR speed balanced

  • Proprietary dual ceramic bearing system

  • Integrated iron backplate into the centre housing

  • Water + oil cooled for improved thermal stability

  • Reverse rotation configuration (selected TS-2 sizes)

Turbocharger Specifications

  • Compressor Inlet: 4" / 101.6 mm

  • Compressor Inducer: 71 mm

  • Turbine Inlet: V-band (2.25")

  • Turbine Exducer: 70 mm

  • Turbine A/R: 1.07

  • Turbine Outlet: V-band (3.00")

  • Weight: 6.06 kg / 13.3 lbs

  • Horsepower Rating: 875–1010 HP

Why Choose the TS-2 7170 Kompact?

The TS-2 7170 Kompact delivers outstanding power capability in a compact housing with rapid spool and high efficiency. Ideal for high-performance street builds, time attack cars, drag applications and turbo conversions requiring fast response and 900+ hp potential.
