TurboSmart GenV WG45CG HyperGate45 Compressed Gas 7psi Black TS-0553-1242

SKU: TS-0553-1242
Price
$851.40
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

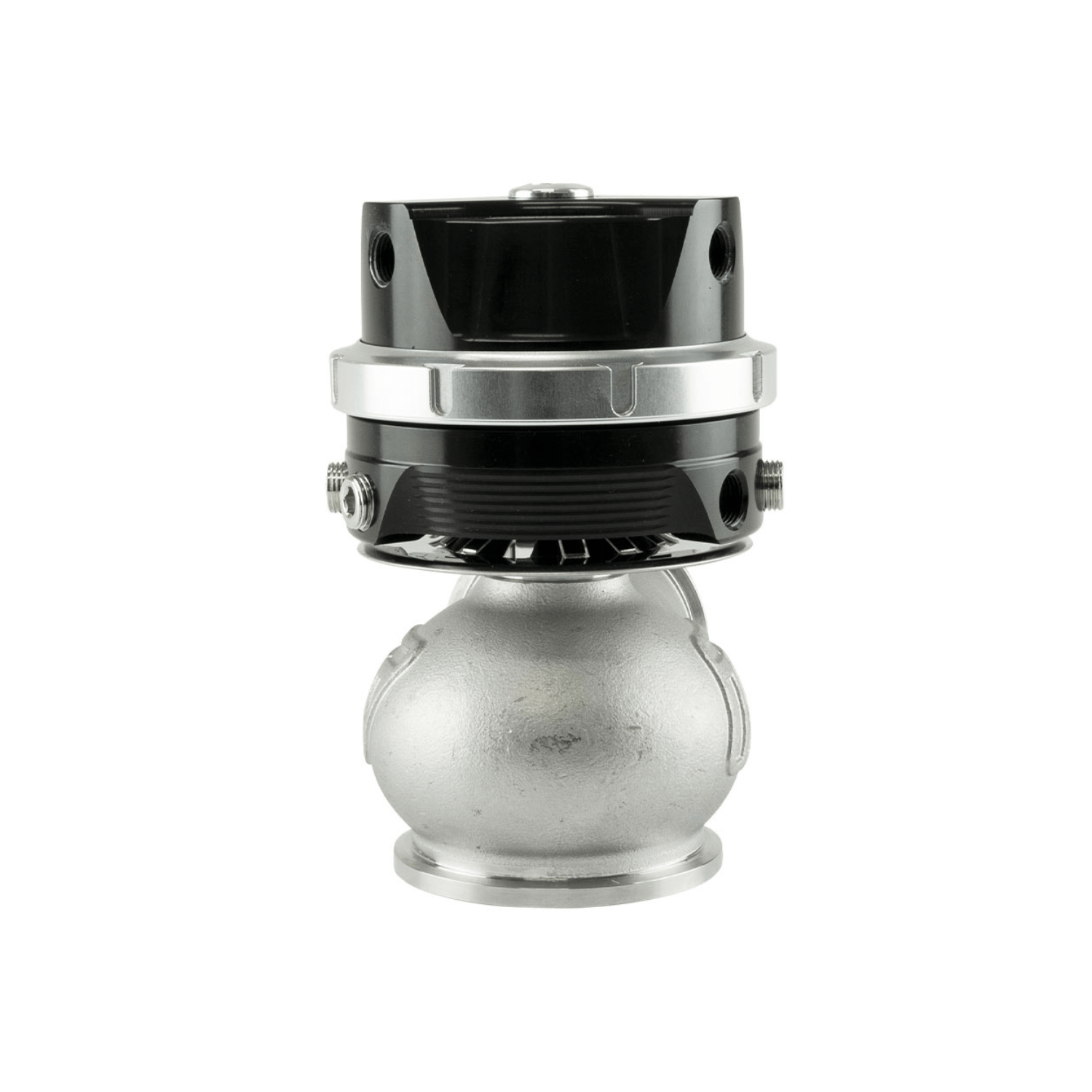

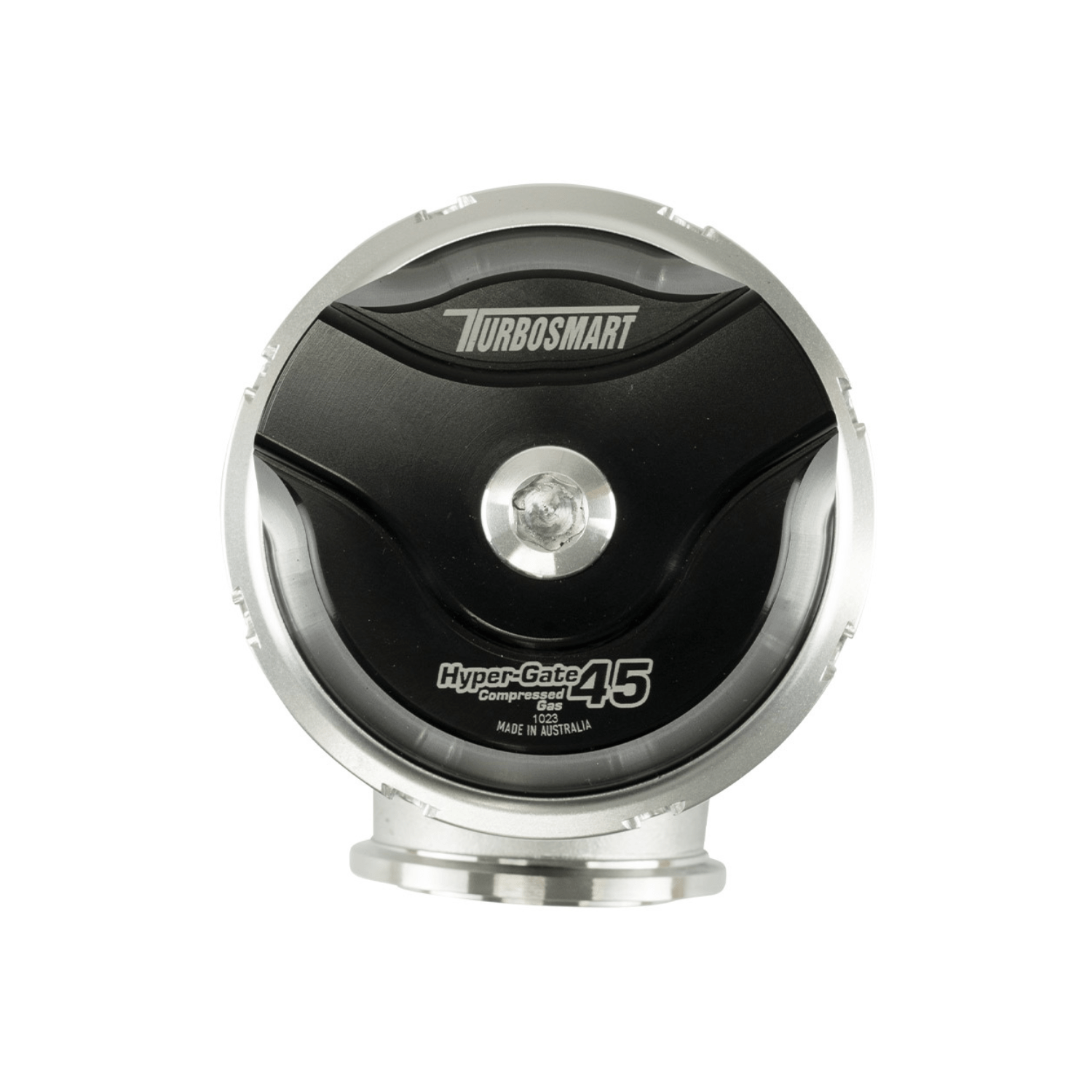

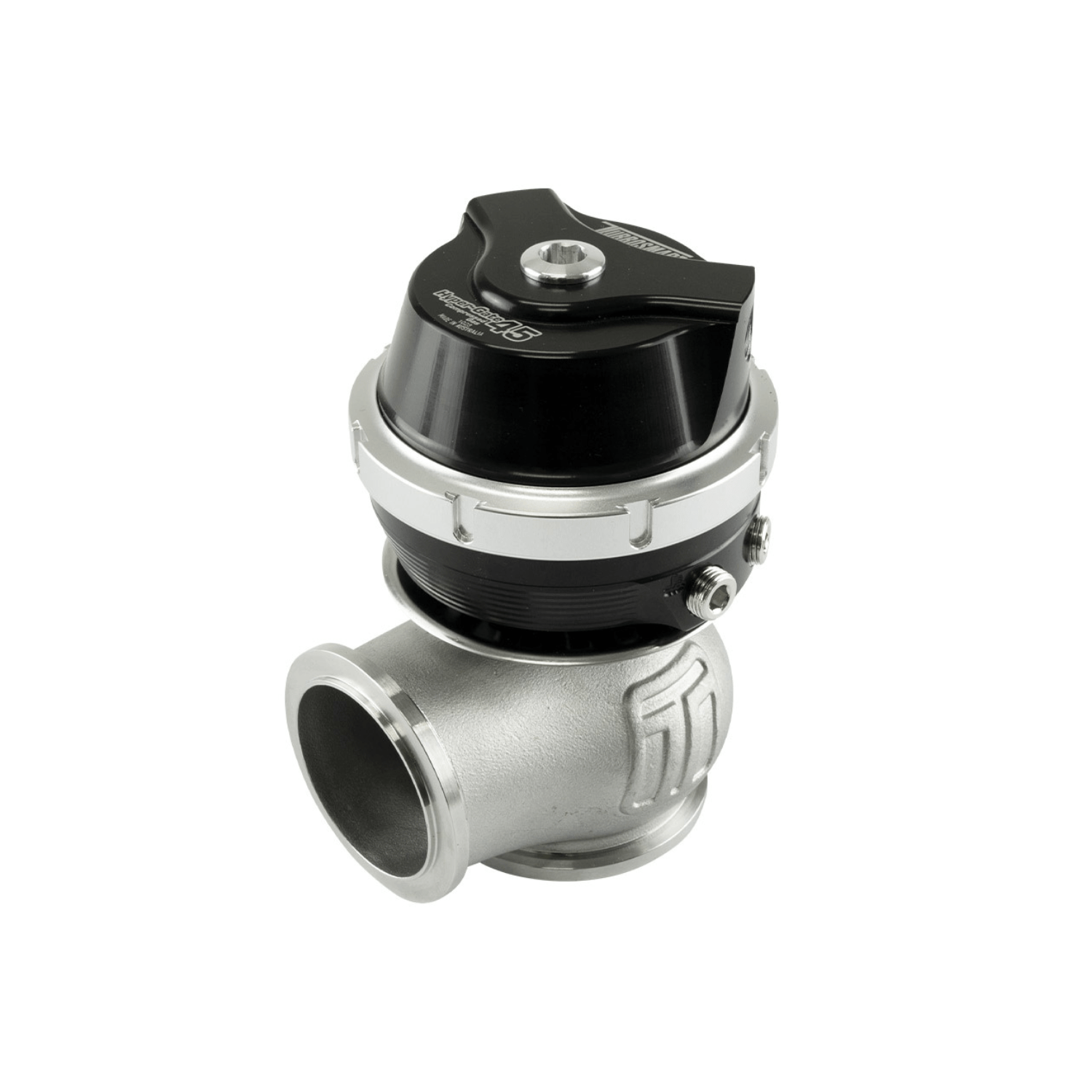

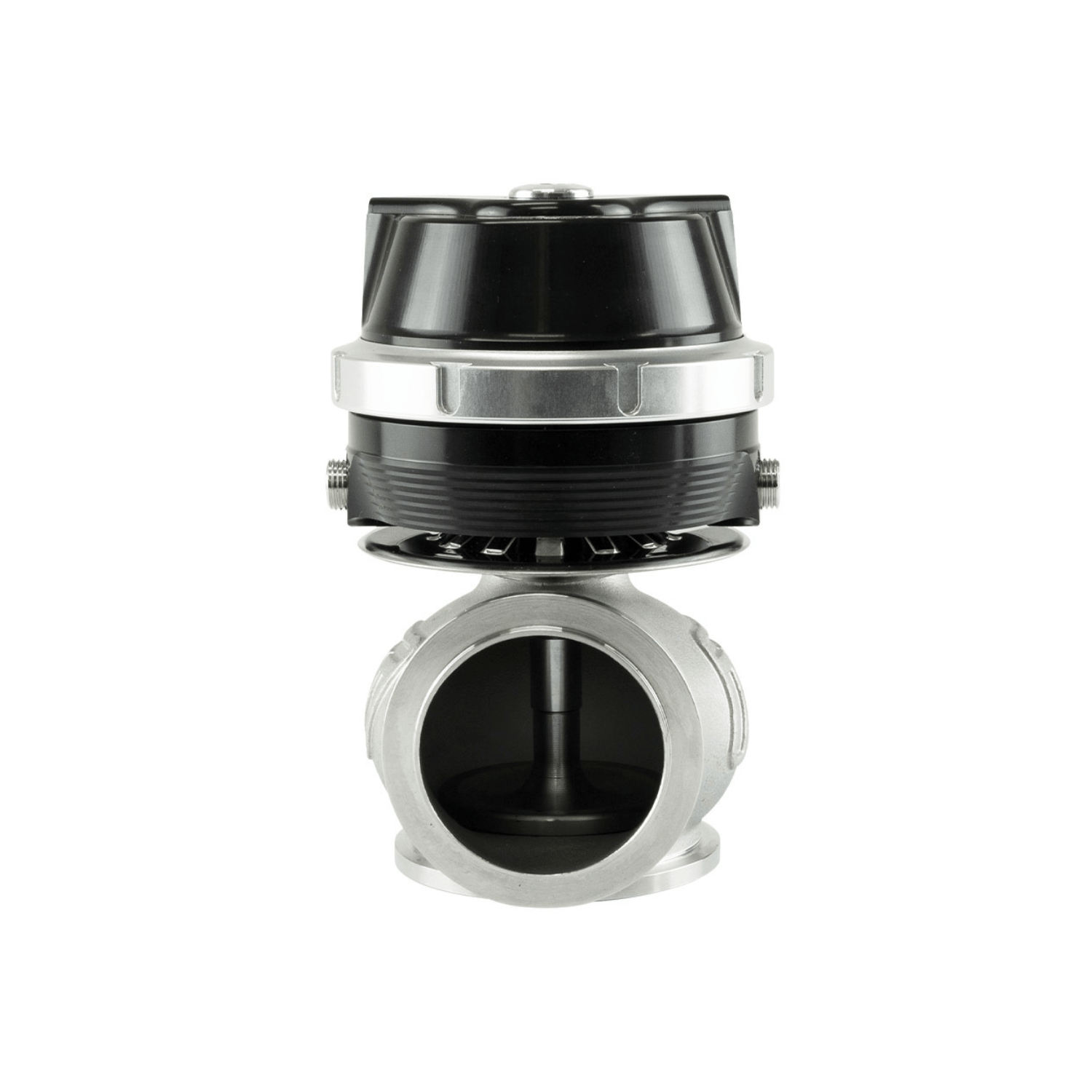

Turbosmart GenV HyperGate45 Compressed Gas – 45mm CO₂ / Compressed Air External Wastegate (7psi Base Pressure)

The Turbosmart GenV WG45CG HyperGate45 Compressed Gas is a high-performance 45mm external wastegate designed specifically for CO₂ and compressed-air boost control systems. Engineered to bias the top chamber with increased pressure, it offers exceptional boost bandwidth and precise control in drag racing, roll racing, and serious high-boost applications.

Featuring an inverted diaphragm tailored for high-pressure CO₂/air systems, the HyperGate45 CG delivers outstanding reliability under extreme pressure differentials. Built on the all-new GenV platform, it provides world-leading thermal performance, fatigue resistance, and CFD-validated flow — all while remaining a direct bolt-on upgrade to previous Gen4 Turbosmart wastegates.

The WG45CG includes Turbosmart’s collar-locking system, 360-degree rotatable actuator housing, optional liquid-cooling provisions, and full spring pack for tuning flexibility. If your build demands uncompromised control in high-pressure environments, the HyperGate45 CG is the premium solution.

Available Part Numbers:

TS-0553-1202 – Standard Version (Up to 5psi base pressure)
TS-0553-1242 – High-Pressure Version (Up to 26psi base pressure – this listing)

Key Features:

Base spring options from 3–26 psi
Class-leading thermal performance
CFD and bench-validated high flow
Exceptional fatigue resistance
Optional liquid actuator cooling
Optional position sensor compatible
Rotatable / clockable actuator housing
45mm V-band fitment
Nitronic 60 valve guide with high-temp 347 stainless steel body
17-7 PH stainless steel springs
Strap-type V-band clamps
Direct fit upgrade for all Gen4 HyperGate45 wastegates
Unique collar-locking system for easy spring changes

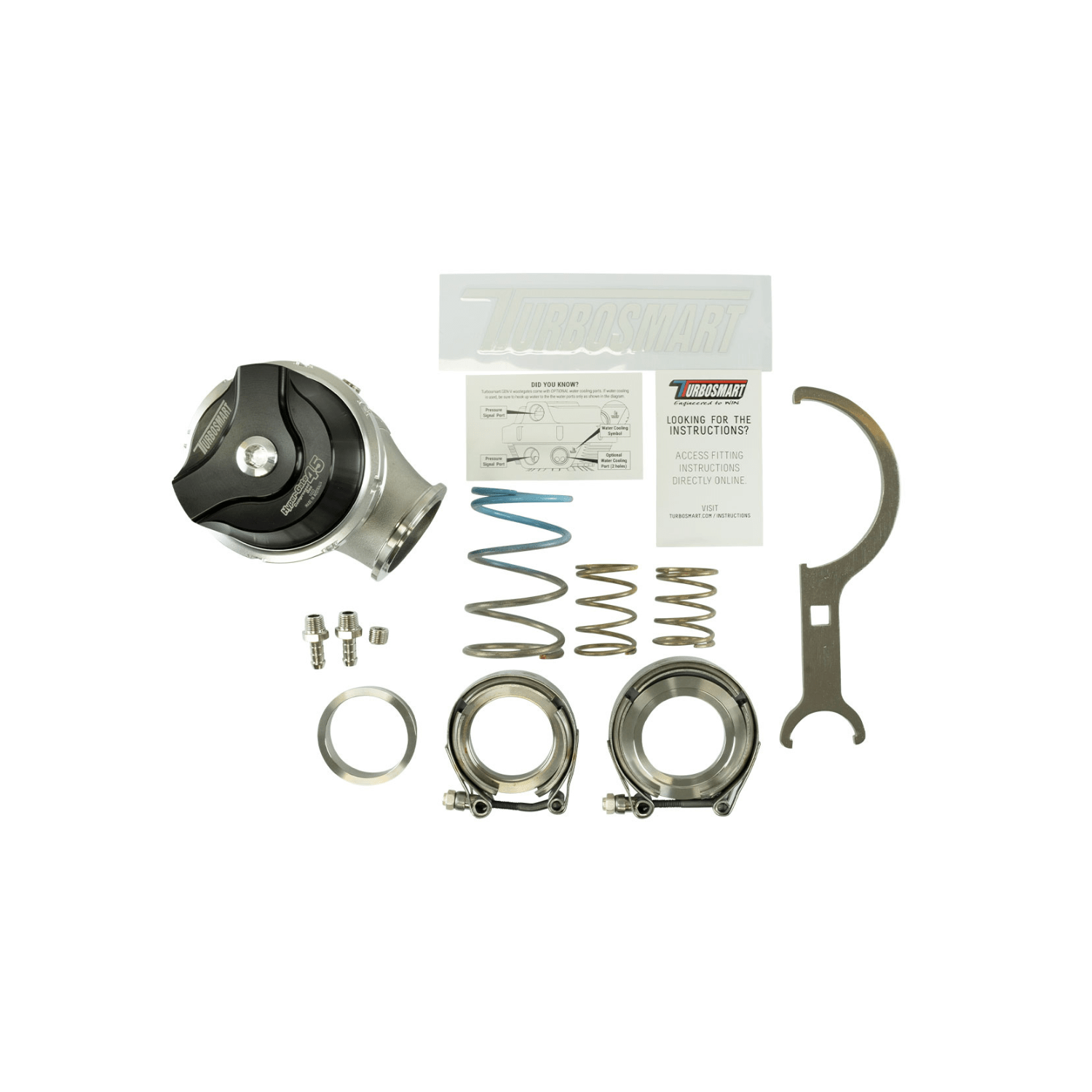

What’s Included:

GenV HyperGate45 Compressed Gas Wastegate (7psi)
Full spring pack (3, 5, 7, 14 psi – one pre-installed)
Locking collar tool
GenV SS316 valve seat
Strap-type V-band clamps
Inlet and outlet weld flanges
Hose tail and blank fitting kit
Turbosmart decal

Why Choose the HyperGate45 CG:

Designed for serious high-boost CO₂ or compressed-air control strategies, the WG45CG delivers unmatched accuracy, durability, and thermal stability. For drag racing and extreme forced-induction applications, it provides the precision and resilience your setup needs.
