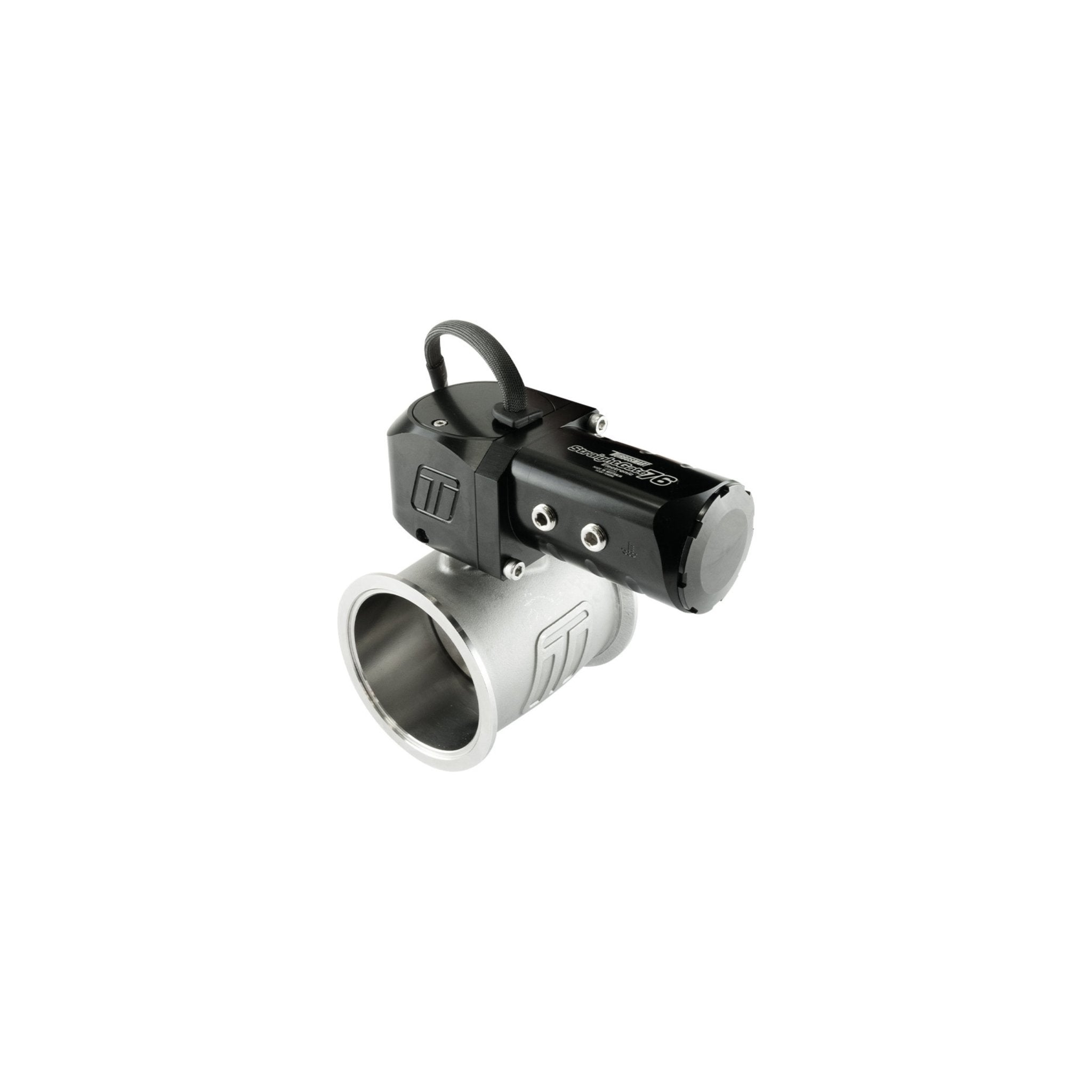

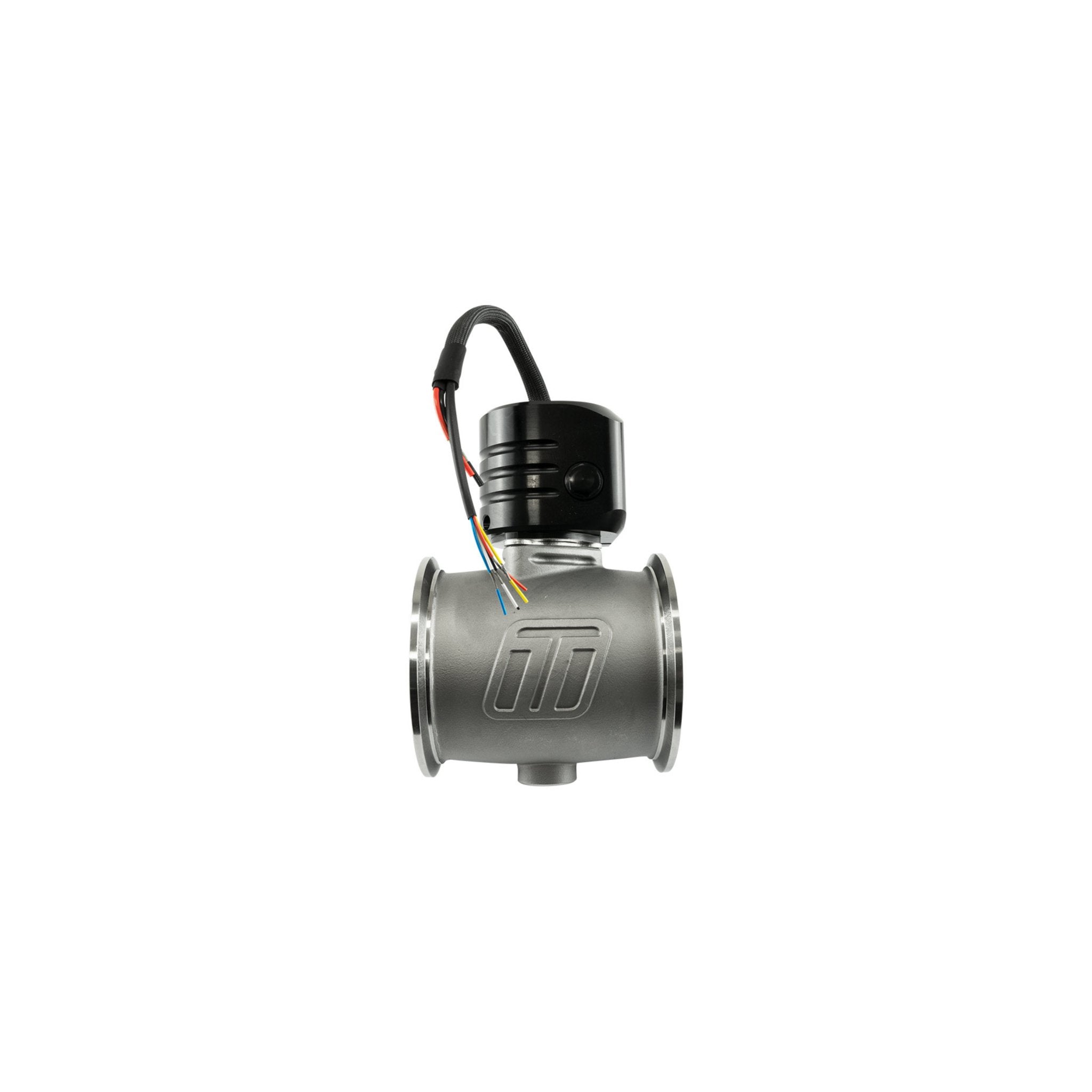

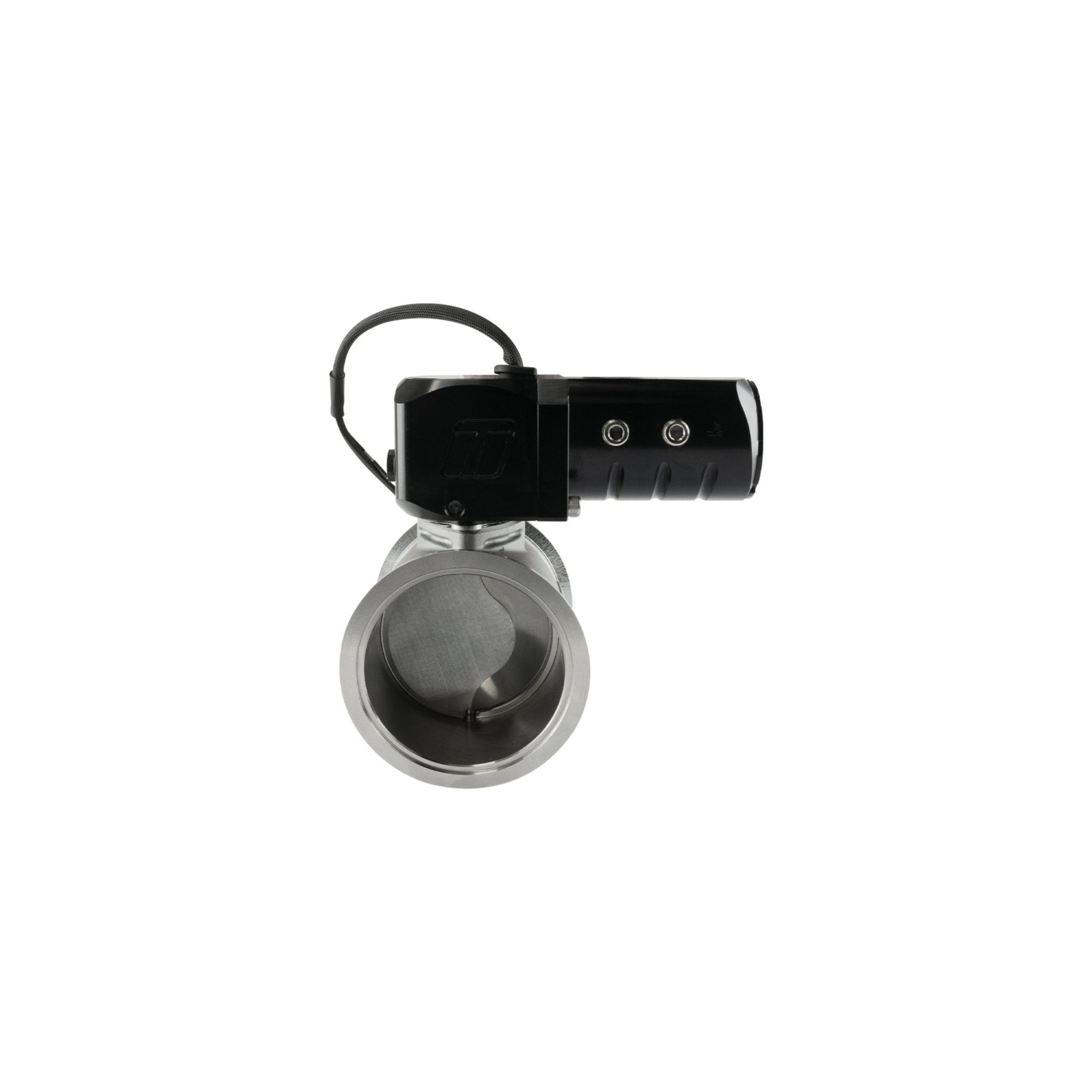

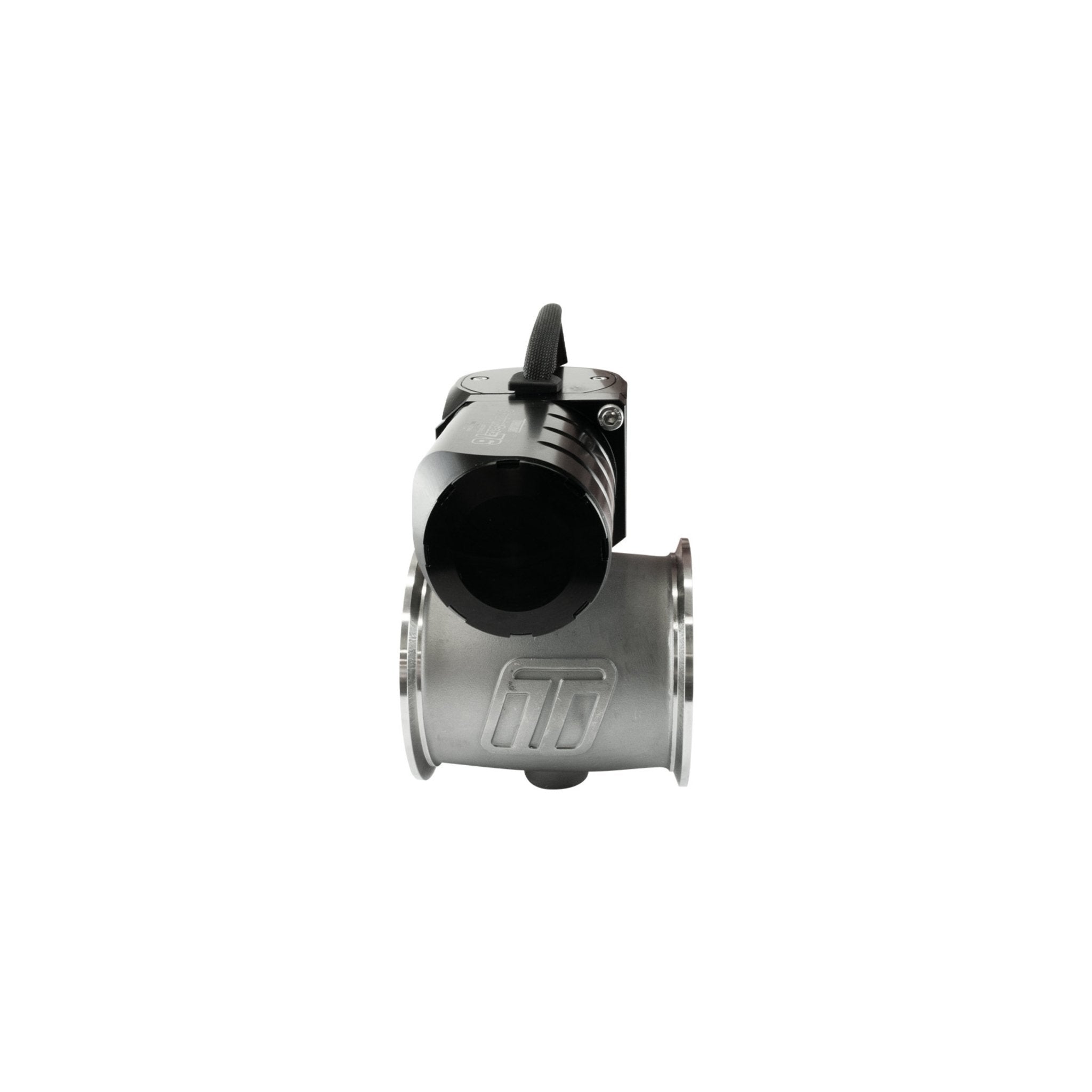

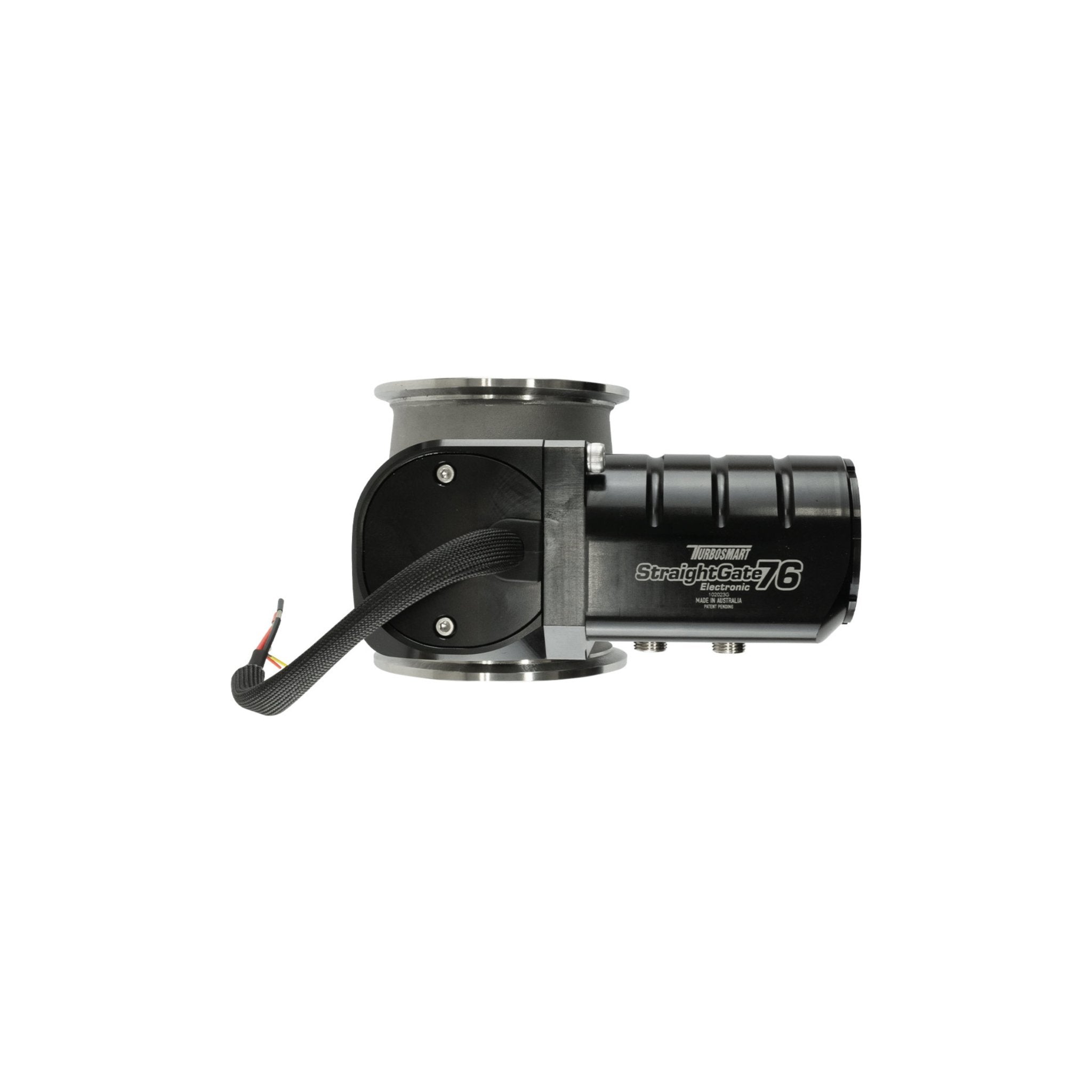

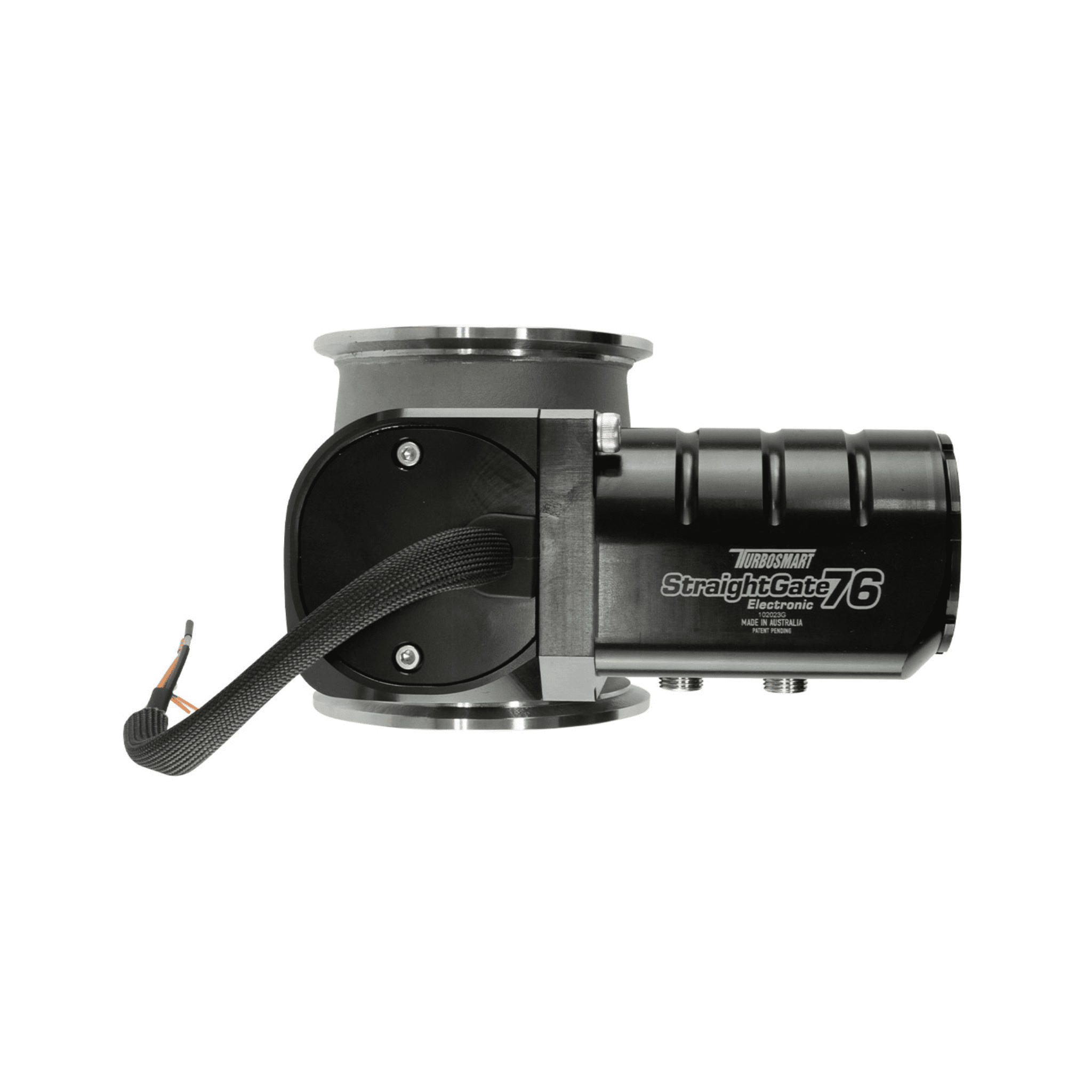

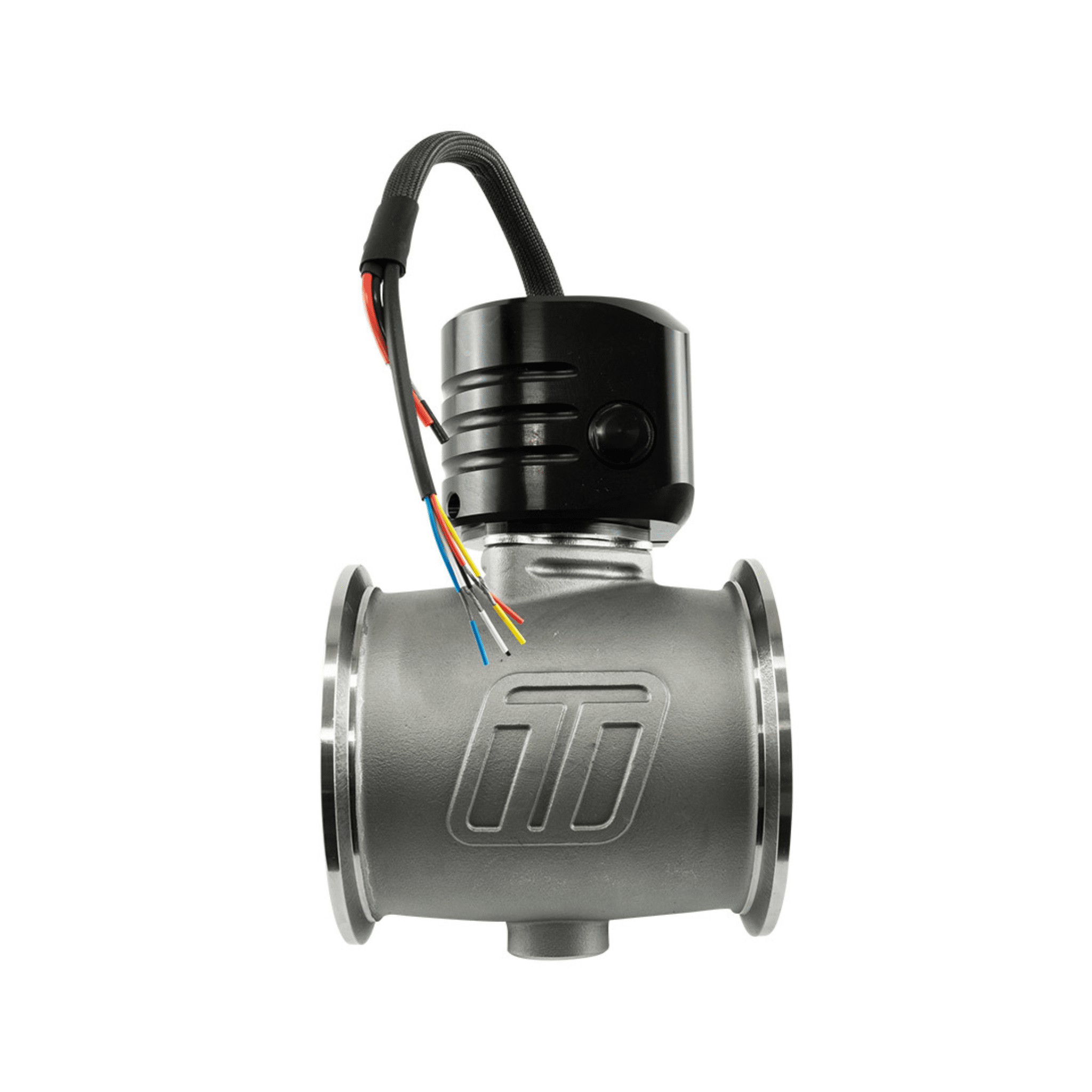

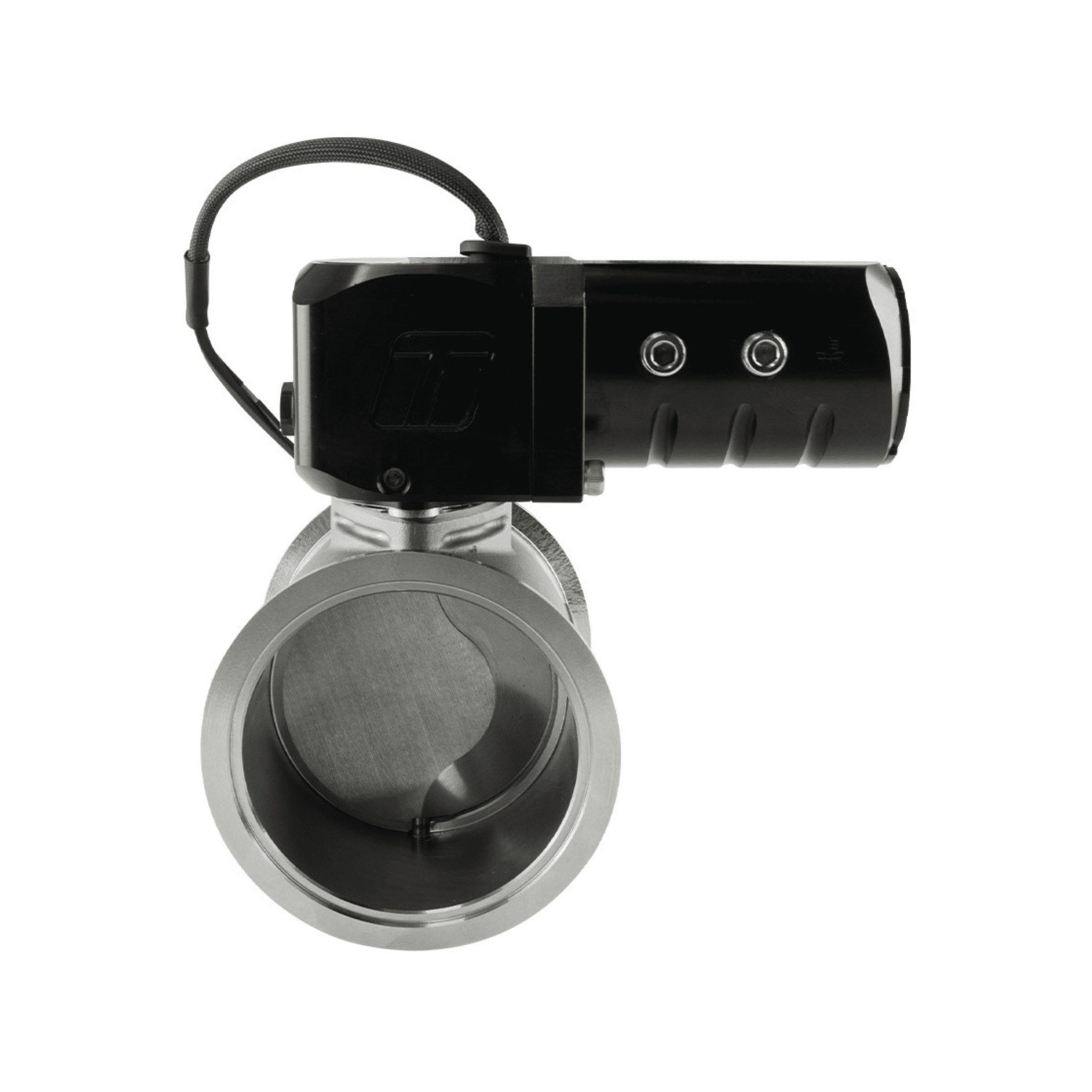

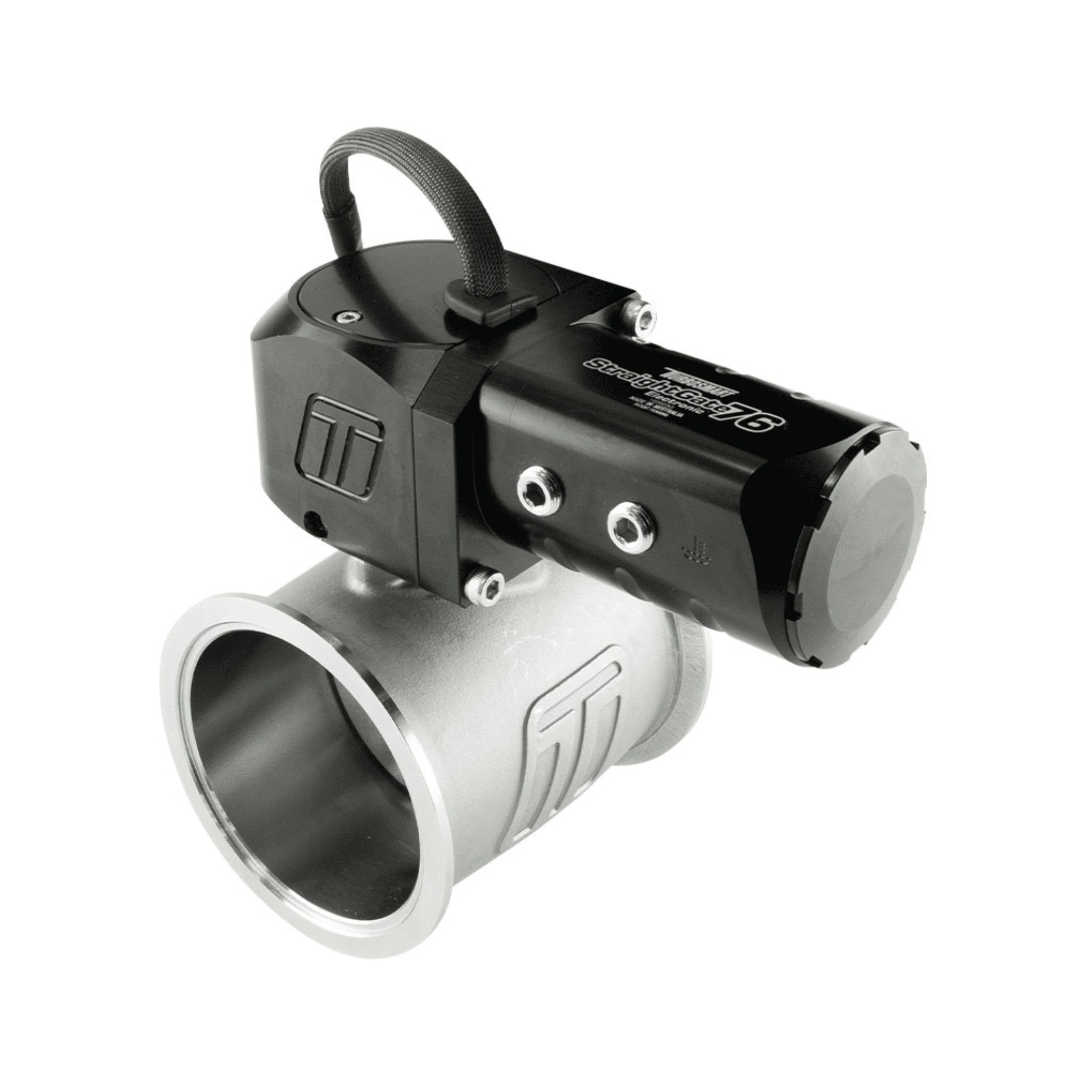

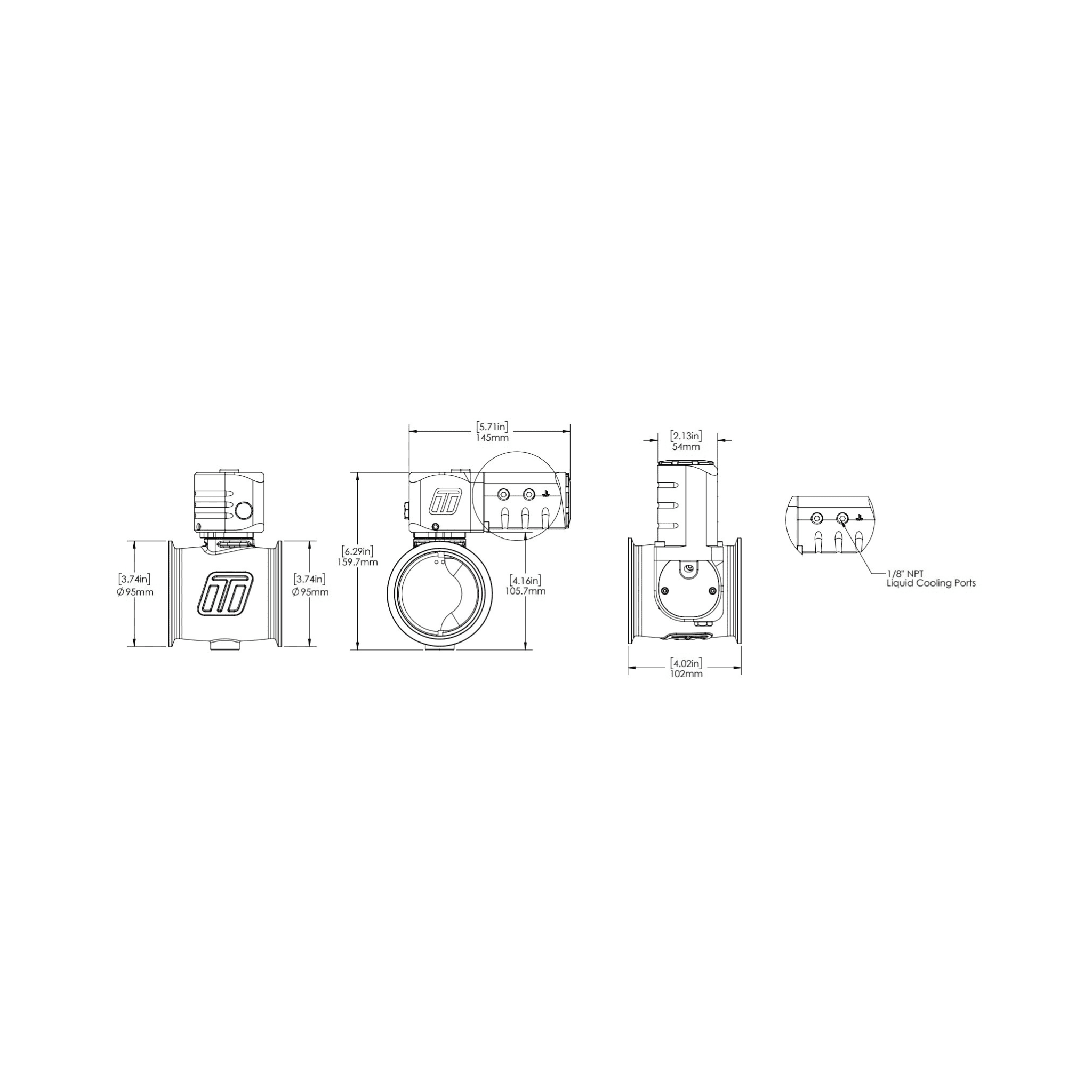

Experience the ultimate in boost control with the TurboSmart eSG76 Electronic StraightGate Black TS-0567-1002, the world's highest flowing external wastegate. The StraightGate76 features a zero-offset butterfly style wastegate, delivering exceptional flow and nearly linear control for unparalleled boost management across the entire operating range.
Building on the success of the award-winning eSG50, the eSG76 utilizes a patent-pending design that eliminates the need for reference hoses, springs, and diaphragms. Instead, it offers full electronic control via a servo motor and TurboSmart’s zero-backdrive gearbox, ensuring lower current demands and stable operation even under extreme drive pressures. Onboard sensors provide real-time data on actuator temperature and valve position, available in both analog and digital formats.
The innovative design of the eSG76 centers around a self-balanced, zero-offset butterfly valve, which handles exhaust drive pressure equally on both sides, making actuation against high drive pressures more efficient. This results in a wider tuning window, allowing for precise boost control from zero to maximum levels. The straight-through valve design significantly enhances flow efficiency compared to traditional poppet-style valves, which require a 90-degree turn of the exhaust gas.
Available Sizes:
Key Features:
- 76mm (2.99in) butterfly style zero-offset valve
- 723.7 CFM / 20.49m³ per minute flow
- Stainless Steel (630) butterfly and shaft
- Stainless Steel (347) main body
- Stainless Steel (heat treated 431) V-band clamps
- 360-degree mounting options on V-band
- Clockable actuator position (3 x 120-degree options)
- Full electronic actuation (dual H-bridge input)
- Onboard (0-5V) analog actuator temperature sensor
- Onboard (0-5V) analog valve position sensor
- Onboard (PWM) digital valve position sensor
- 7-wire unterminated flying lead loom
- Liquid cooling for actuator stability

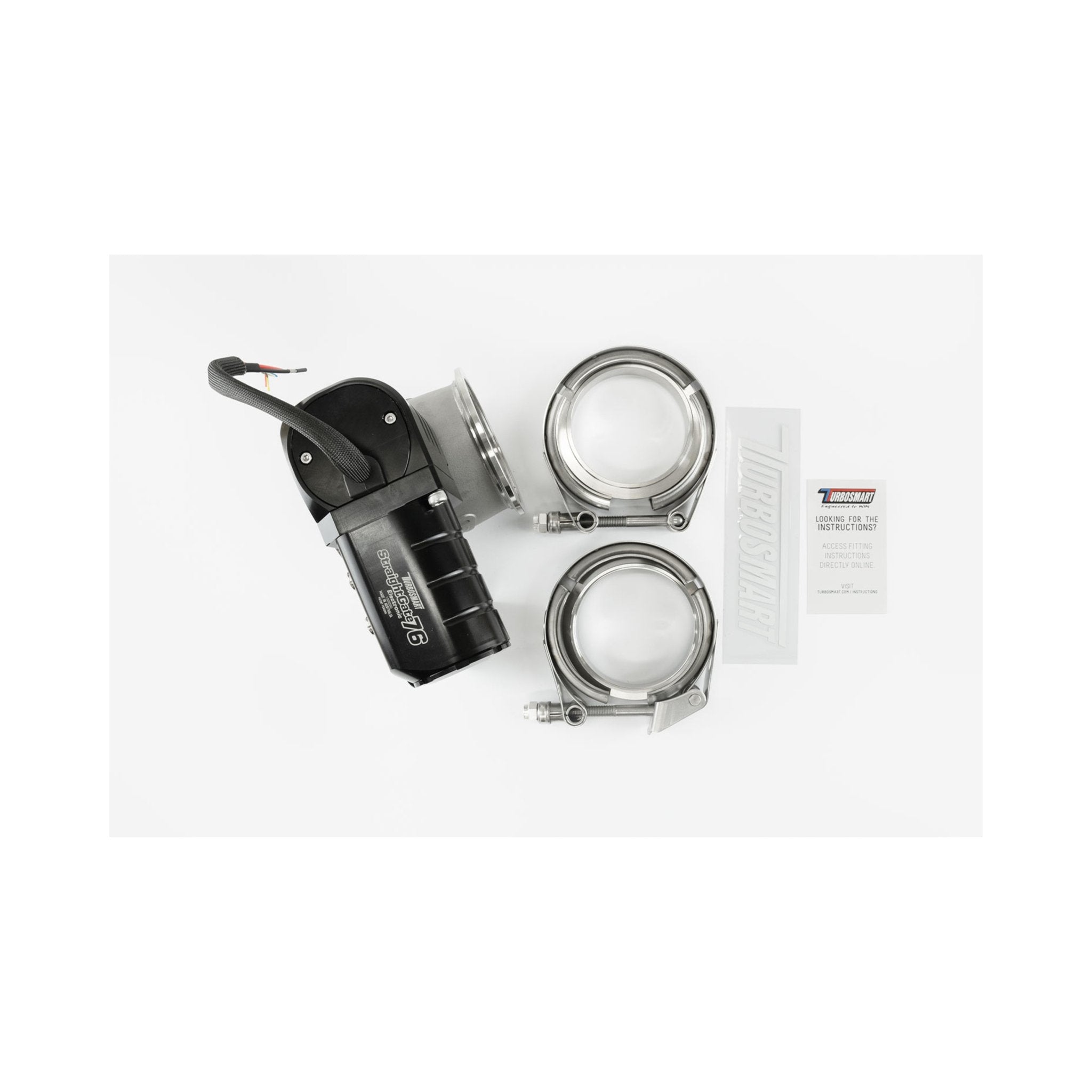

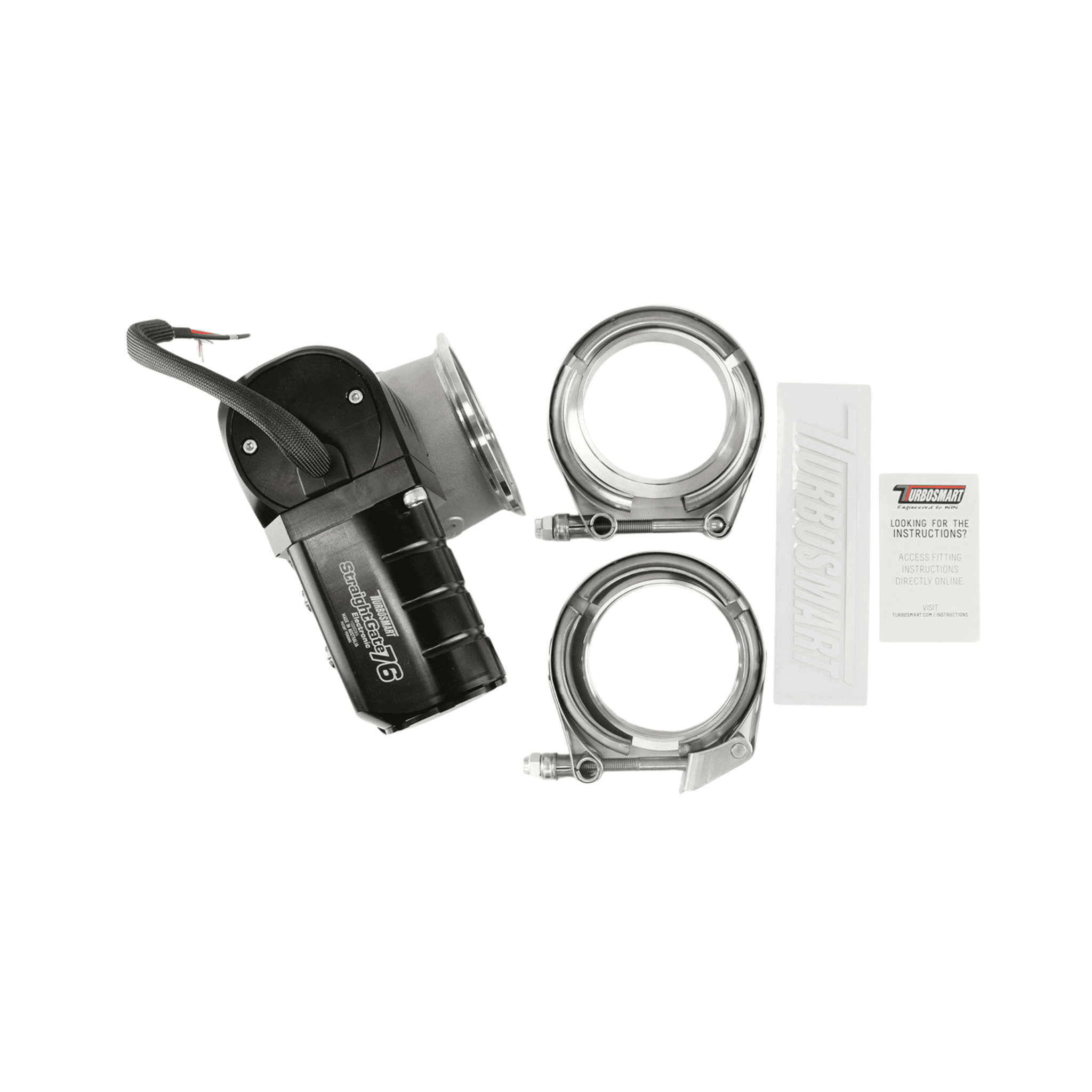

Included in the Package:
- Electronic StraightGate unit
- Unterminated flying lead
- StraightGate inlet and outlet V-bands
- StraightGate inlet and outlet weld flanges
- TurboSmart decal
What is a StraightGate? The TurboSmart StraightGate is an advanced external wastegate using a zero-offset butterfly valve for boost control. Unlike traditional poppet-style wastegates that turn exhaust gas 90 degrees, the StraightGate's design allows for much more efficient flow, significantly improving performance for any given valve size.
What is an Electronic Wastegate? TurboSmart electronic wastegates are fully actuated electronically through a servo motor and patented zero-backdrive gearbox, removing the need for boost reference hoses, springs, and diaphragms. This provides full control under all conditions, offering a broader boost window without the limitations of traditional spring-based systems.
