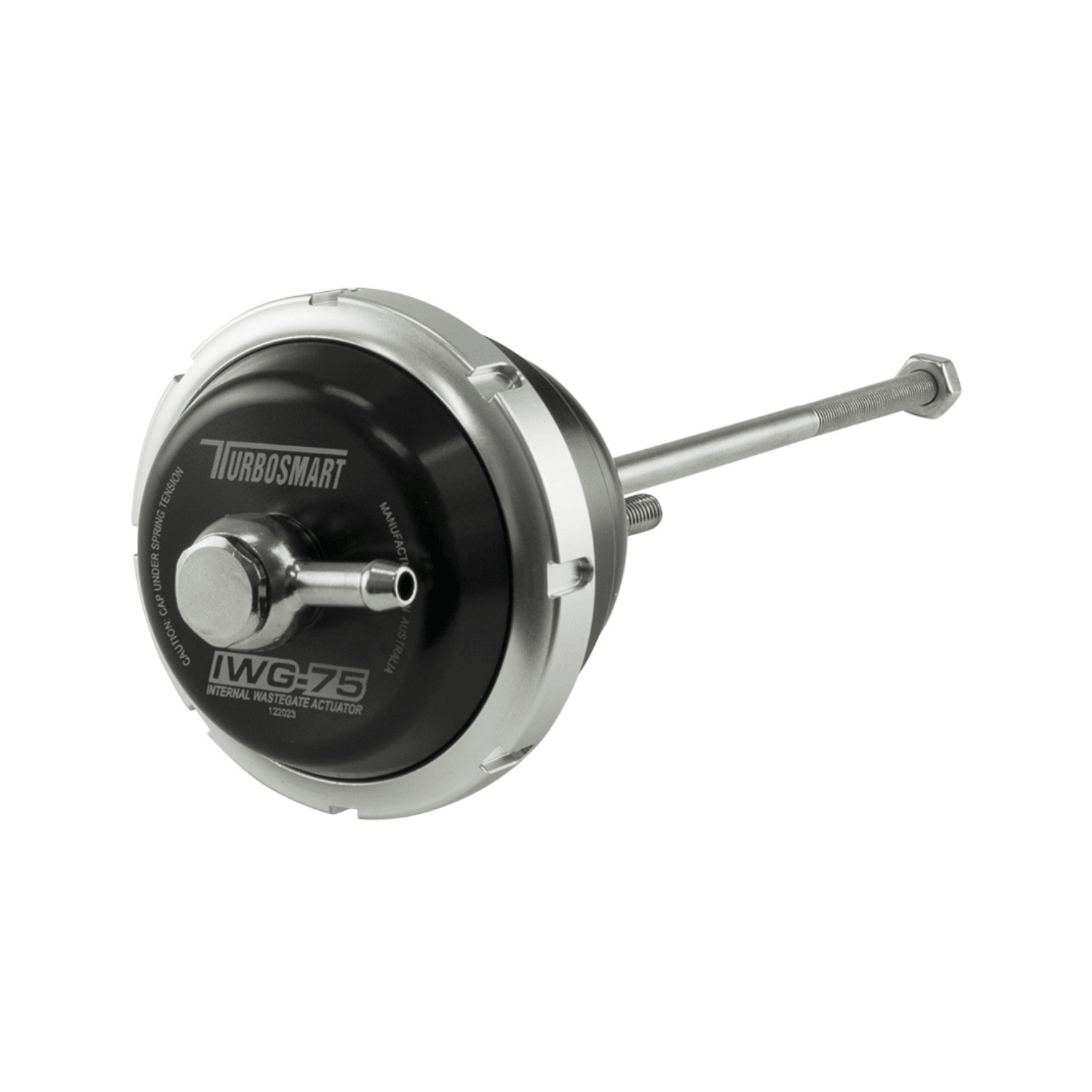

TurboSmart Internal Wastegate IWG75 Universal 150mm Actuator TS-0681-5

SKU: TS-0681-5142
Sale price
$198.31
Regular price
$218.14
You save
$19.83 (9%)
Taxes and shipping calculated at checkout
Spring Rate:
14 PSI

Product variant with selected options does not exist!

Frequently Bought Together

Product Information

Download Turbosmarts Installation Guide Here

The TurboSmart IWG75 Universal Internal Wastegate Actuator is engineered to improve boost response and control on factory frame turbochargers. Featuring an increased working ratio through a larger effective diaphragm surface area and revised spring design, it delivers earlier boost onset and stronger boost hold across the RPM range.

Available in multiple base spring pressures, this universal single port actuator allows you to tailor boost characteristics to suit your engine combination and tuning strategy.

Features

  • Universal Single Port IWG75 actuator

  • Available base spring pressures: 7 PSI, 10 PSI, 14 PSI

  • Increased effective diaphragm surface area

  • Proprietary Silicone Nomex diaphragm

  • CNC machined billet aluminium construction

  • Stainless steel rod and clevis

  • TurboSmart unique locking collar system

  • Optional spring range available 3 PSI to 26 PSI

Typical Applications

  • Factory frame turbocharger upgrades

  • Performance street and track vehicles

  • Turbocharged EFI builds

  • Boost response and torque improvement upgrades

  • Motorsport and competition vehicles

Fitment Notes

  • Universal Single Port actuator

  • Supplied with M6 threaded rod (150mm length)

  • Variant spring rates / part numbers:

  • 7 PSI – TS-0681-5072

  • 10 PSI – TS-0681-5102

  • 14 PSI – TS-0681-5142

  • Fabrication likely required for brackets and clevis fitment

  • Tuning recommended when changing base spring pressure

Available in

SUPPLIED WITH
IWG75 Wastegate Actuator
Springs Pre-Fitted as per Description
Required Fasteners & Swivel Hose Barb
