Turbosmart TS-1 6262 T4 0.82 A/R Externally Wastegated Turbocharger – TS-1-6262B-T4082E

SKU: TS-1-6262B-T4082E
Price
$3,390.20
Tax included and shipping calculated at checkout

Product Information

See Turbosmarts Installation Guide Here

See Turbosmarts Data Sheet Here

The Turbosmart TS-1 6262 is a high-performance turbocharger designed for enthusiasts and motorsport applications demanding fast spool, strong mid-range response and reliable top-end power. Built using modern design techniques and lightweight materials, the TS-1 series offers a compact, efficient and extremely responsive turbo solution.

With an oil-cooled centre housing, T4 turbine inlet, and 0.82 A/R turbine housing, this turbo delivers an ideal balance of responsiveness and horsepower capability. Turbosmart’s proprietary dual ceramic bearing system and ultra-low rotating mass ensure quick transient response, while the high-flow turbine and compressor wheel maintain power at high load.

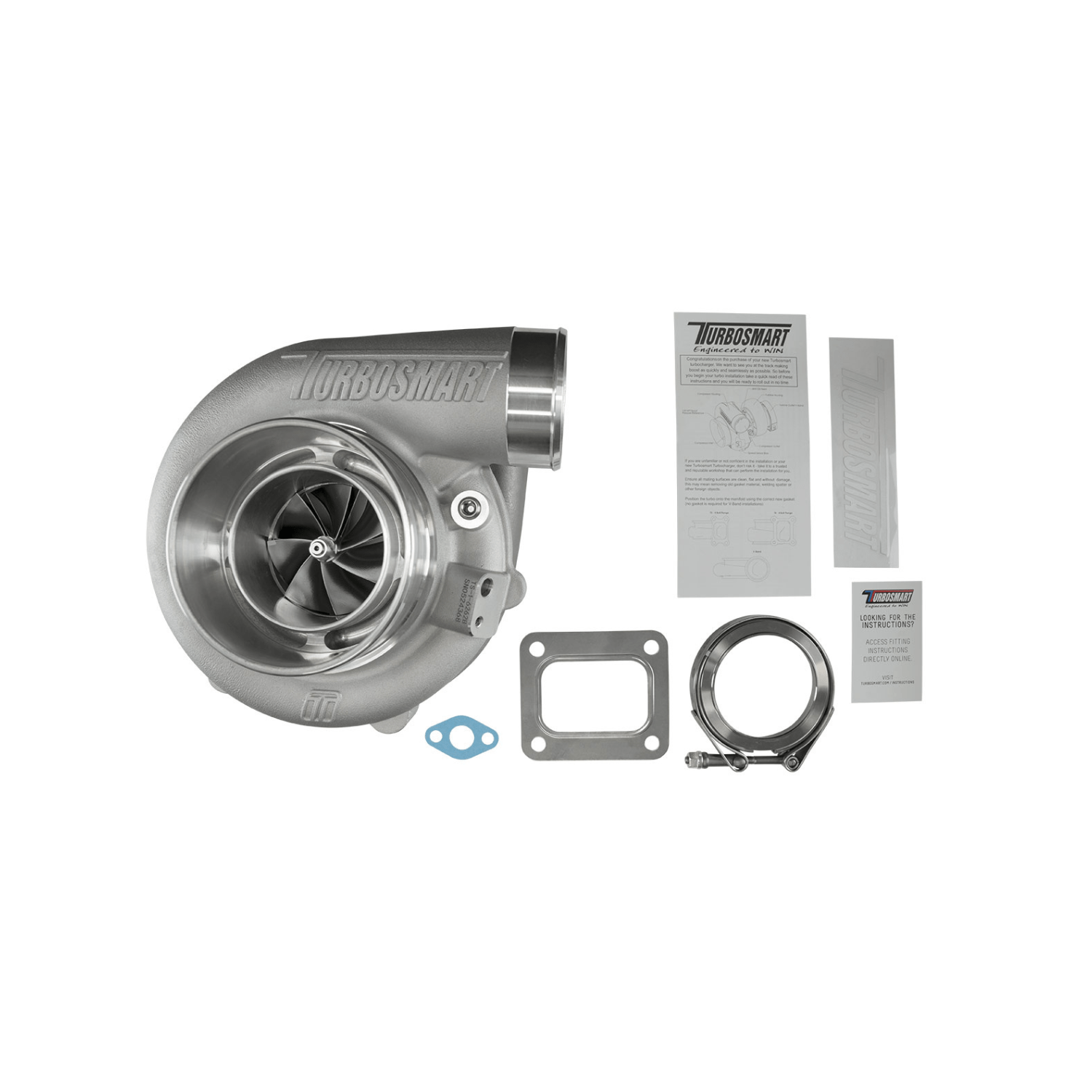

Every TS-1 turbocharger includes weld flanges, V-band clamps, gaskets and oil feed/drain fittings for a complete installation package.

Key Features

  • Ultra-fast transient response

  • 7+7 billet 2618 aluminium splitter compressor wheel

  • Lightweight 310S stainless-steel investment-cast turbine housing

  • Lightweight aluminium compressor cover

  • CFD-designed housings optimised for flow and efficiency

  • 713C inconel turbine wheel for extreme EGT durability

  • VSR speed-balanced for smooth, reliable operation

  • Proprietary dual ceramic bearing system

  • Integrated iron backplate on the centre housing

  • Oil-cooled TS-1 architecture

  • Includes all V-bands, flanges, gaskets and oil fittings

Specifications

  • Compressor Inlet: 4″ / 101.6 mm

  • Compressor Inducer: 62 mm

  • Turbine Inlet: T4 flange

  • Turbine Exducer: 62 mm

  • Turbine A/R: 0.82

  • Turbine Outlet: V-Band (3.00″)

  • Weight: 6.06 kg / 13.3 lbs

  • Horsepower Rating: 760–880 HP

Why Choose the TS-1 6262?

  • Ideal for street, drift and time-attack builds needing fast spool and strong mid-range

  • Compact size makes fitment easier in tight engine bays

  • Exceptional durability through high-quality materials and dual ceramic bearings

  • Perfect balance of response and horsepower for 750–880 HP builds

  • Designed to reduce back pressure and increase efficiency across the entire powerband
