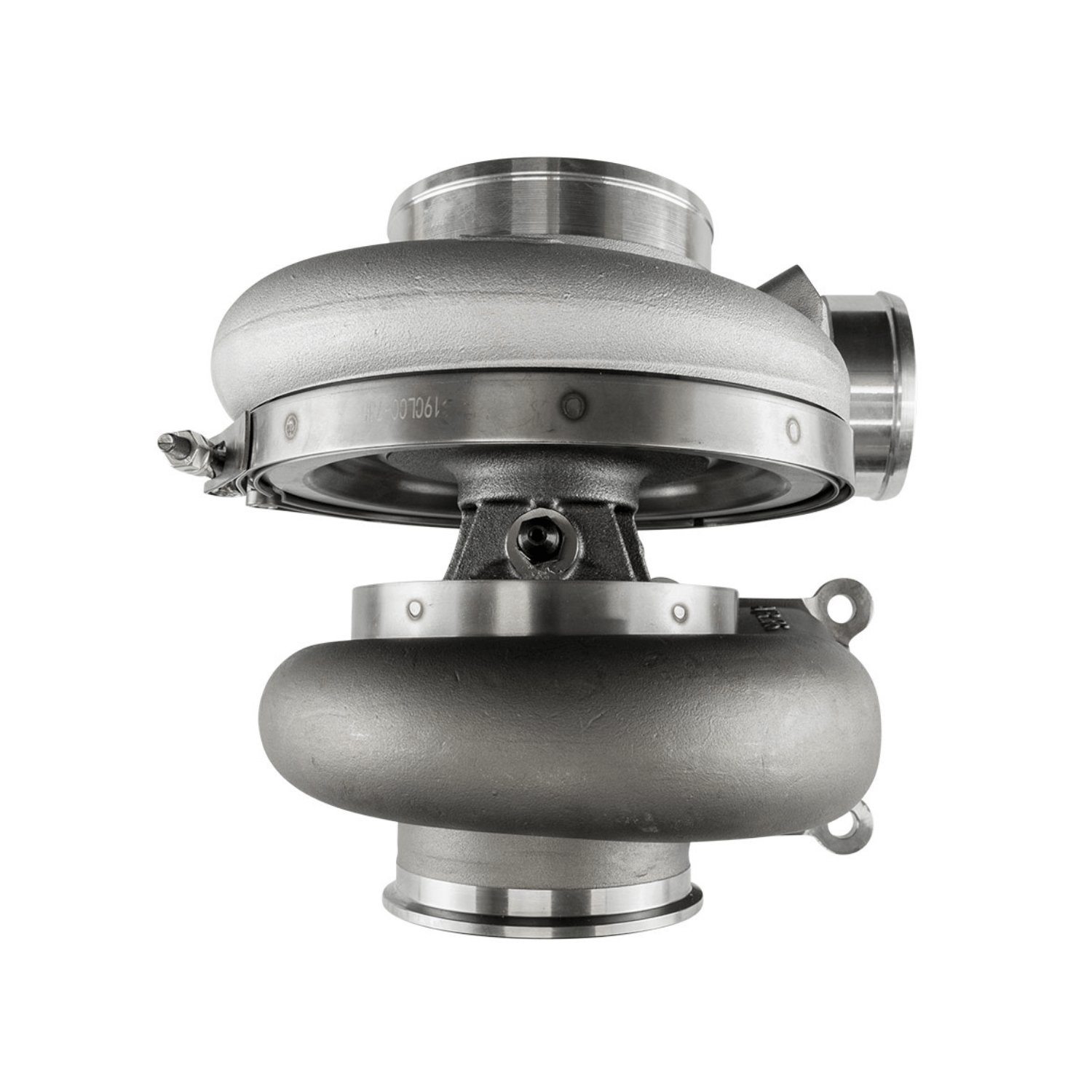

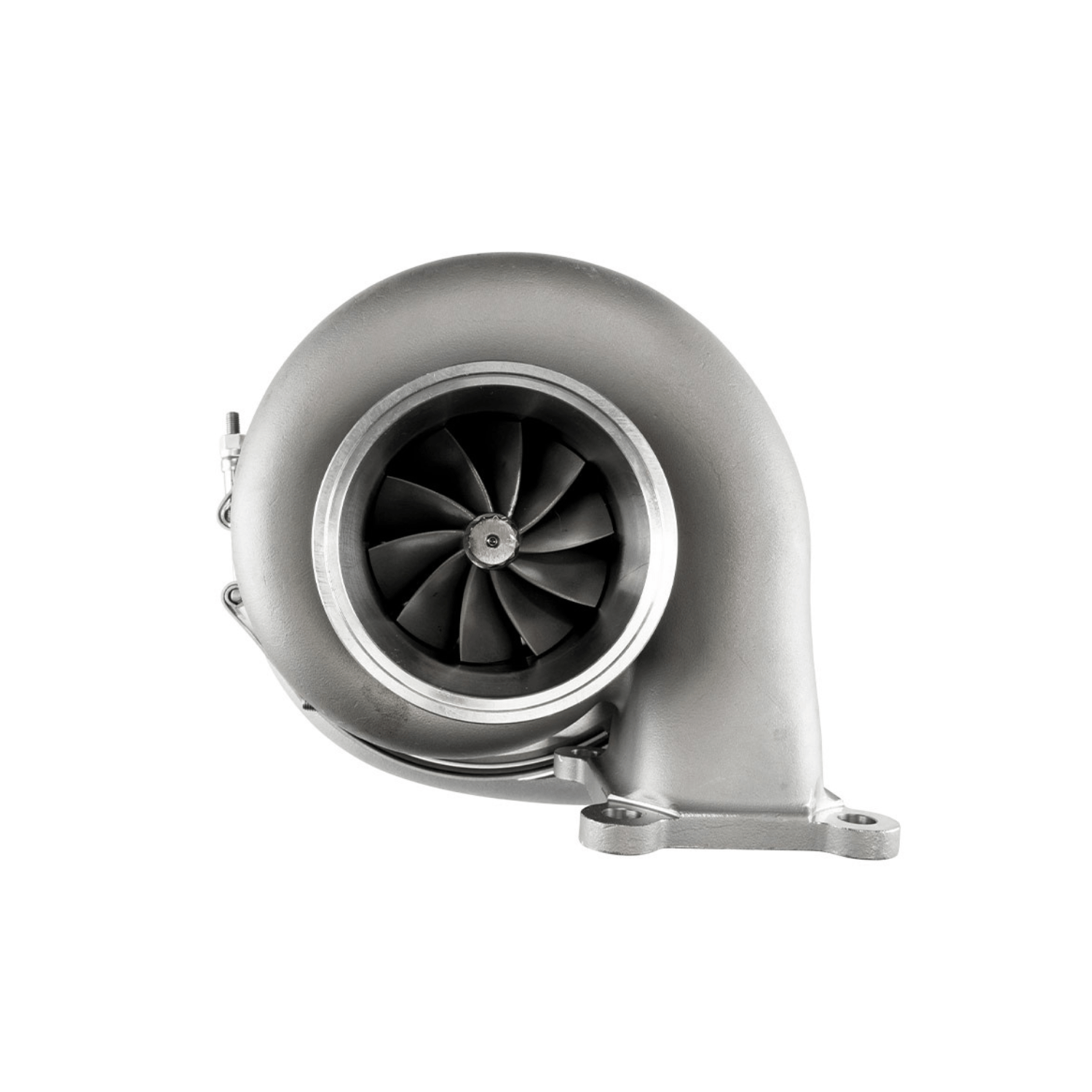

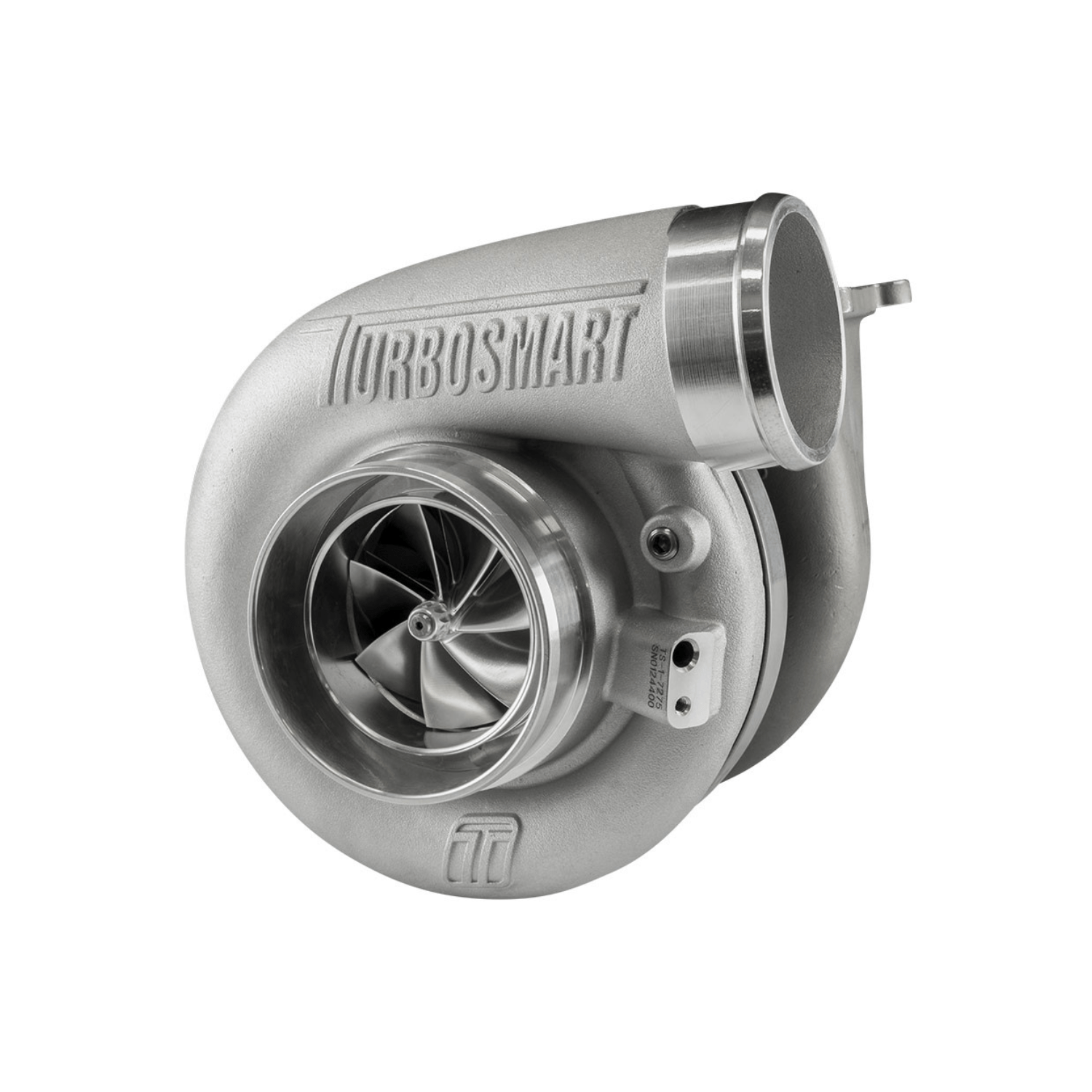

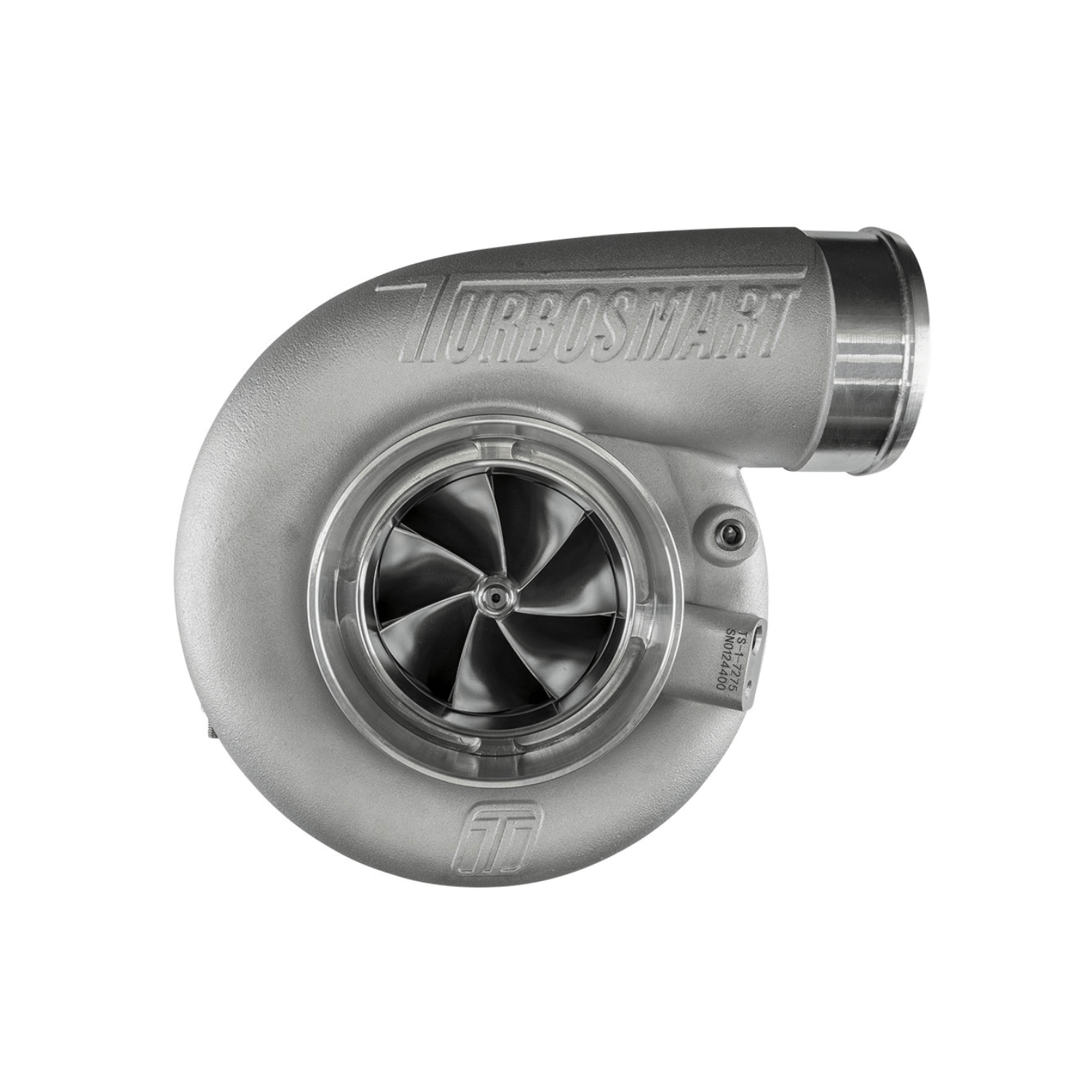

Turbosmart TS-1 7275 T4 0.96 A/R Externally Wastegated Turbocharger – TS-1-7275C-T4096E

SKU: TS-1-7275C-T4096E
Price
$4,485.80
Tax included and shipping calculated at checkout

Frequently Bought Together

Product Information

TS-1 7275 T4 0.96 A/R Performance Turbocharger – Oil-Cooled, Externally Wastegated

See Turbosmarts Data Sheet Here

See Turbosmarts Installation Guide Here

The Turbosmart TS-1 7275 T4 is engineered for high-power performance builds requiring fast response and serious top-end capability. Designed to be smaller, lighter and faster responding than traditional turbochargers, the TS-1 series uses advanced materials, an ultra-low rotating mass assembly and aggressive compressor aerodynamics to deliver exceptional performance.

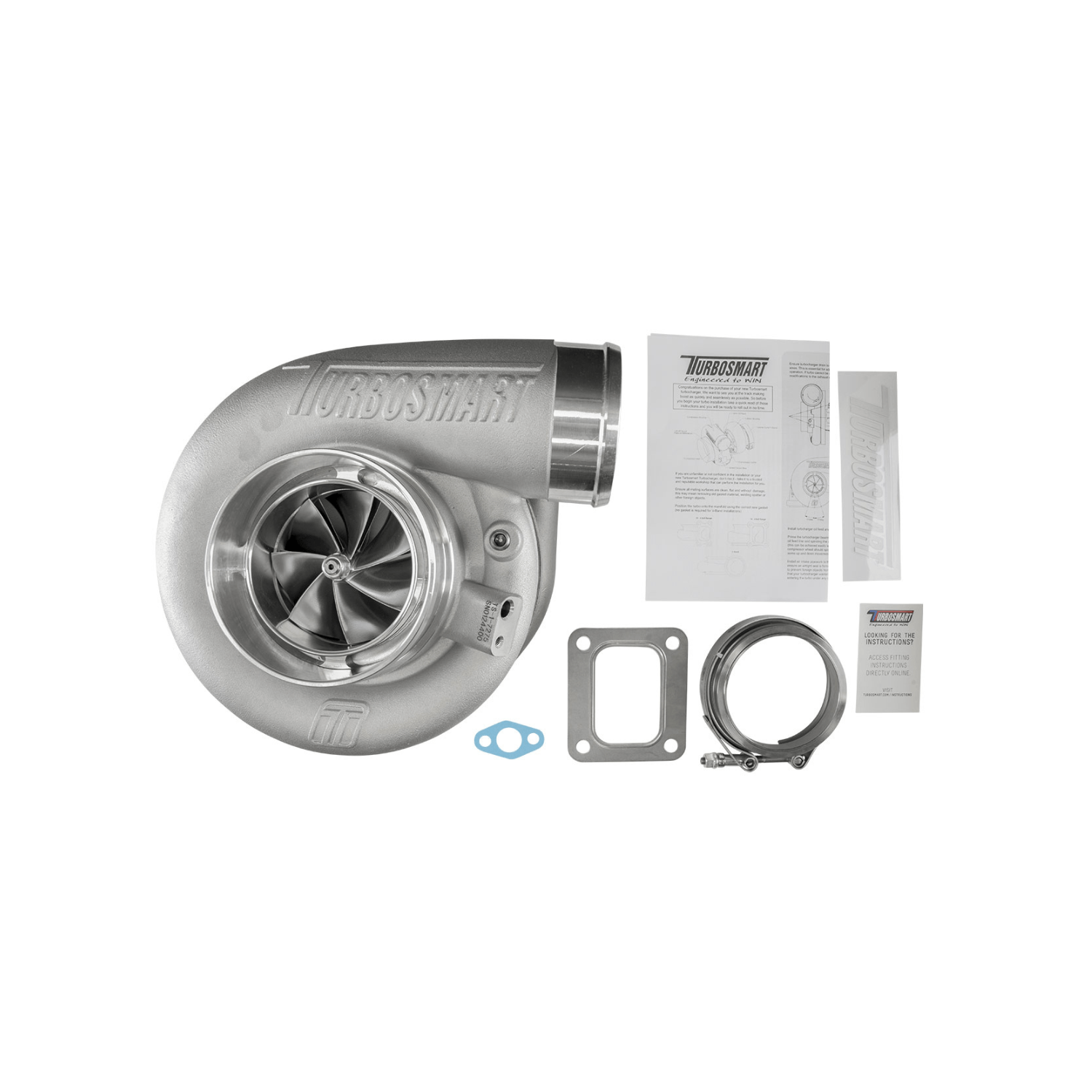

This model features a T4 turbine flange, 0.96 A/R housing and externally wastegated configuration, making it ideal for high-boost street cars, race engines and turbo setups targeting the 1000+ horsepower range. Each turbo comes complete with weld flanges, V-band clamps, gaskets and oil feed/drain fittings for a streamlined installation.

Key Features

  • Exceptional transient response

  • 7+7 billet 2618 aluminium splitter compressor wheel

  • Lightweight 310S stainless steel investment-cast turbine housing

  • Lightweight aluminium compressor cover

  • CFD-designed housings for optimised A/R and high flow

  • 713C inconel turbine wheel for extreme EGT durability

  • VSR speed balanced for high-rpm reliability

  • Proprietary dual ceramic bearing system

  • Oil-cooled TS-1 series design

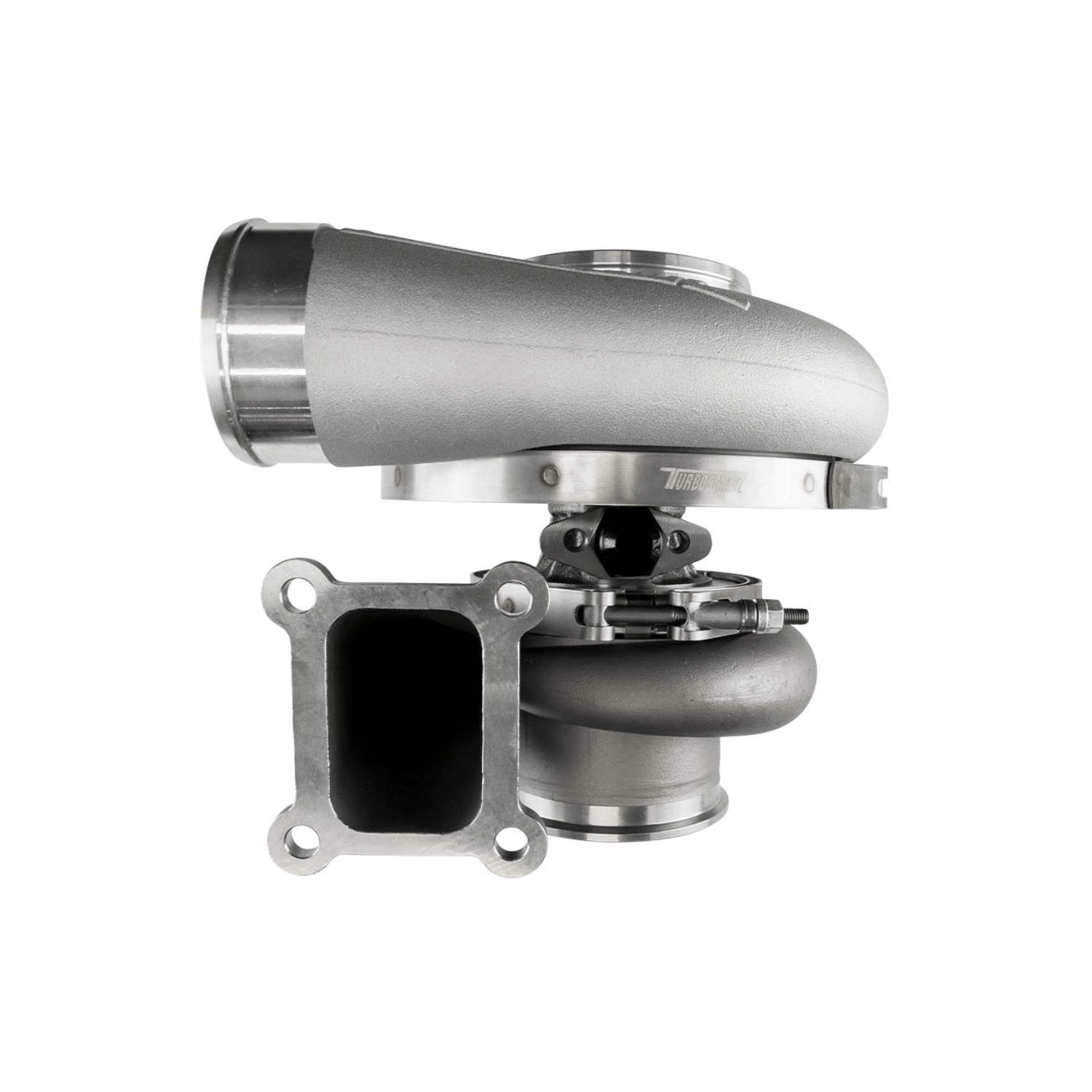

  • T4 turbine inlet, 0.96 A/R turbine housing

  • Externally wastegated configuration

  • Includes weld flanges, V-bands, gaskets, and oil fittings

Turbocharger Specifications

  • Compressor Inlet: 4" / 101.6 mm

  • Compressor Inducer: 72 mm

  • Turbine Inlet: T4 flange

  • Turbine Exducer: 75 mm

  • Turbine A/R: 0.96

  • Turbine Outlet: V-band (3.50")

  • Weight: 9.63 kg / 20.23 lbs

  • Horsepower Rating: 1050–1240 HP

Why Choose the TS-1 7275?

This turbocharger is designed for builds demanding quick spool with huge horsepower potential. With advanced aerodynamic design, robust materials and a compact form factor, the TS-1 7275 is ideal for drag racing, street/strip applications, roll-racing setups and high-boost performance engines.
